Home ProductsStone MachineryStone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
-
Add To CompareType: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
FOB Price:$-8750
Warranty: 12 Months
Usage: Granite, Marble, Limestone
Machinery Function Features:
DAP UKRAINE/MOLDOVA:11750$.

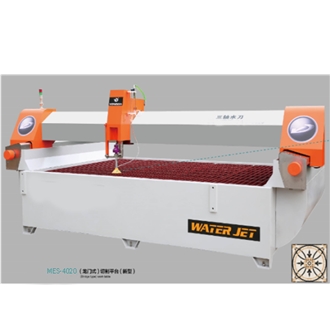

MES 4020 WATER JET Stone cutting Machine with Tools special disinged model MES-4020 (3 axis, simplified configuration from cheap Chinese components) very cheap price that not give good speed, accuracy and will need more often service and renew operations by recovery, but have very competative price. can cut stone and glass with small accuracy and speed.
Messen
China
Xiamen Messen Building Material CO., LTD
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
FOB Price:$65000-75000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
ADVANTAGES:
1. we promise 2 years( 2000 hours) warranty always. and have got CE certificate
2. we use flow type ECL cutting head, the cutting efficiency is at least 10% higher.
3. the abrasive sand hopper beside the cutting head is also FLOW design.
4. we have new technology that can make the machine moving speed is to 30m/min. normal speed is 6m/min as you see. if this
technology used in pure water cutting, the cutting cost will reduce 50%. if using other materials cutting like glass , marble,
steel, the cutting cost will also 20-30% reduced. but of course , the machine with this function price will be a little higher.
5. we use soft cover of the linear guider, can prevent dust away from the linear guider, so keep the linear guider keep precision
longer.
6. we assemble an auto oil feeding to linear guider, so customer needn't maintenance the linear guider always.
7. seperated body.
8. we will send a remote control pendent.
9. we have the world most convenient abrasive sand removing system. it can be used for any brand water jet cutting machine, maybe
you can promote this system in your country and other countries. please check the attachment.
11. we supply 420mpa pump with 37KW motor, but the price of the whole machine is very competitive now
12. we use variable pump, so can reduce electricity cost for customers.
13. we can do 220V and 415v also.
14. like height tracking system, positioning system , we can also provide.
15. all our components are SCHNEIDER brand
16. the motor and PLC are SIEMENS brand.
17. we can provide AB 5 axis with 10 degree and AC 3D 5 axis with 60 degree.
18. use 10mm steel for water tank supporter and use 8mm steel for beam, keep the machine working more stable.
19. use JAPAN YASKAWA servo motor.
20. imported TAIWAN HIWIN ball screw and linear guider
21. imported America intensifier assembly and TAIWAN accumulator and high pressure assembly and low pressure assembly. if you have special
requests, we can also do.
22. we can provide 80Kpsi and 90KPSI intensifier pump and 60KPSI direct drive pump.
23. can make Touch screen
24. automatic calibration gantry perpendicularity
WAMIT
China
Shandong WAMI CNC Technology Co.,Ltd.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
FOB Price:$40000-50000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
1.Gantry type balanced design work table, solid and stable, higher strength
2.Work table of CNC motion mechanism and workpiece supporting adopts a split structure, which eliminates the influence of water gushing on cutting precision during cutting
3.X-axis,Y- axis use high quality LINDEN SWEDEN rack and pinion, TBI rail, which ensure the accuracy of bearing parts, stable conveying, hard-wearing quality. During cutting, it causes splashing sand and water. Fully enclosed lifting structure design in Z-axis prevents corrosion of lead screws and guides.
4.Lntegrated automatic lubrication system make the maintenance more automatic and easier.
5.All electric components are Schneider brand
6.Equipped with YASKAWA AC power and motor ( Japan brand), high accuracy, long service life.
WAMIT
China
Shandong WAMI CNC Technology Co.,Ltd.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
FOB Price:$35000-80000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Artificial Stone, Quartzite, Travertine
Machinery Function Features:
ONEJET50-G30*20(New) Waterjet cutting machine
Designed for a wide range of machining needs,the ONEJET50-G30*20 sets a higher standard for precision abrasive waterjet cutting;One of the best sellers from Onejet Waterjet;Water tank separated structure and controler integrated;Meet almost all size of sheet cutting demand;Simple,quick and fast;the most effective model;All stainless steel covers with water splash & dust proof,easier cleanning and always new machine looking
OneJet
China
ONEJET CO.,LTD
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Start Now
The Mach 100 is the essential waterjet that gives you the fundamental versatility of waterjet cutting with no frills. Engineered with the same components as Flow's premium cutting solutions, the Mach 100 features robust cutting capabilities and a programmable Z-axis for added flexibility. Everything you want, exactly what you need.
Flow Waterjet
Germany
Flow Europe GmbH
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Designed for the most accurate Bevel cutting by the Mavijet 5 axis cutting head is making our customers cutting jobs very easy from 100 up to optionally 450 -
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
$28000-35000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
EAAK Enhanced waterjet cutting machine EK3020N applications: The cutting materials are not limited (such as stainless steel,carbon steel,copper,brass,aluminum and other metal,glass,stone,marble,granite,foam,ceramics,plastics,composite materials.), waterjet cutting is currently the most applicable cutting method; Metal cutting: 1 Decoration of stainless steel,aluminum.iron,brass and other metal cutting process. 2 Manufacture of machinery and equipment control cabinets such as food machinery,medical machinery,CNC machinery. 3 The metal parts cutting such as stainlesssteel flange,semi-finished,steel construction, non-ferrous metal and so on. Glass cutting: 1 Gas stove surfaces, range hood,disinfecting cabinet, TV, bathroom products. 2 Construction and decoration glass,automotive glass. Ceramic and stone cutting: 1 Ceramic cutting for decoration and construction. 2 Marble mosaic,granite mosaicmstone plate cutting.
EAAK
China
Shandong EAAK Machinery Co. Ltd
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Elevate Expectations
The Mach 200 is specifically engineered to deliver value, reliability, and performance. The system is purposefully crafted to be a practical and flexible waterjet solution, featuring tried and true genuine Flow technology. Get capabilities reserved for elite waterjet systems with the Mach 200 — where value meets performance.
Designed for Flexibility
The Mach 200 is a flexible and practical waterjet solution. With 3-sided access for easy loading and unloading of materials, the systems is specifically engineered to deliver.
Pivot+ Bevel Cutting
With Pivot+ Waterjet the Mach 200 allows you to confidently take on more advanced waterjet applications. The compact cutting head uses a simplified, low-profile, design to deliver 5-axis cutting with taper control.
Genuine Flow Support
The Mach 200 is backed by FlowCare. Get worry-free programs tailored to your business with Flow's three levels of genuine FlowCare support.
Reliable Operation
The modern electrical systems paired with the latest generation Flow software create fast ROI and reliable operation.
Cutting Head Technology
Pivot+ Waterjet
Pivot+™ Waterjet for bevel cutting and taper compensation is a compact, 5-axis cutting solution designed for high-accuracy cutting.
Pure Waterjet
Hair-thin pure waterjet stream ideal for cutting soft materials.
Standard Abrasive
Waterjet Uses garnet abrasive to cut virtually any hard material.
Pump Technology
Intensifier
4,150 bar [60,000 psi]
The longest lasting, lowest maintenance ultrahigh-pressure pump in the industry with continuous operating pressure at 4,150 bar [60,000 psi].
HyPlex® Prime
4,150 bar [60,000 psi]
The highest pressure, most advanced direct drive pump available today, with pressures rated at 4,150 bar [60,000 psi]. -
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Artificial Stone, Basalt
Machinery Function Features:
LG 4020 Five Axis Gantry Water Jet Machine for natural stone and artificial stone(quartz, porcelain, sintered stone)
LONGER Machinery
China
Foshan LONGER Machinery Equipment Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone
Machinery Function Features:
APPLICATION OF WATERJET CUTTING MACHINE IS AS FOLLOW:
Job & Machine Shop Application
Machine Manufacturing
Ceramic/Stones Cutting
Slitting Operations/ Trim & Hole cuts
ADVANTAGE OF WATERJET TECHNOLOGY:
Cold Cutting without thermal influences.
Material saving production due to reduced cutting width.
Flexible processing of all virtually material with consistent high quality.
Tension-free processed parts due to minimal cutting force.
Environment friendly & clean production without poisonous gas.
Close linking with the CAD/CAM programming system.
High productivity through multi head cutting system & multi layer cutting.
High-Performance drive system, which permit high-precision production of parts as well as the highest processing speed. -
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Numerically controlled with 5 interpolated axes for simultaneous control. Working of soft materials with water alone, hard materials such as glass, stones, steel with the use of abrasive material type silica.
The machine 'consists of a bridge structure that moves on the basement, driven by two brushless motors in gantry configuration.
The sliding movement are on linear ball bearing guides, which are tempered and rectified and are equipped with nr. 4 contact points to ensure greater precision and ruggedness, protected by bellows-shaped profile. The movement is on precisely tilted racks, driven by a brushless motors.
The containment tank water is steel hot galvanized made and integrated in the frame-base.
The grid to support the working material is composed of large plates vertically placed in comb position, within which are inserted interchangeable galvanized sheets
Useful area of work (X-Y-Z): 4000 x 2000 x 250 mm.
Cobalm
Italy
Cobalm srl
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Artificial Stone
Machinery Function Features:
Helios Jet is a fast and performing 3/5 interpolated axes waterjet saw. It has been developed for high precision cutting processes on porcelain, compact surfaces, quartz, as well as marbles and granites. It is the essential waterjet that gives you the fundamental versatility of waterjet cutting. Engineered with the same technology as the other Helios cutting solutions, the Helios Jet features robust cutting capabilities and user-friendly software for added flexibility.
HELIOS
Italy
Helios Automazioni Srl
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
Machinery Function Features:
1. Controlled by computer; Can edit needed figures in next working procedure;
2. The machine tool uses seamless precision ball screw and guideway. Combining with high precision servo motor, it guarantees the accuracy and machine.
3. Materials can be cut except diamond and alloy steel.
Technical Parameters:
Maximum Processing Range: 3000mmX2000mm
Thickness of Cutting: 0~120mm
Travel of X-Axis: 3000mm
Travel of Y-Axis: 2000mm
Travel of Z-Axis: 180mm
Maximum Speed of Cutting: 3000mm/min
Working Pressure: 350-380Mpa
Diameter of Gem Nozzle: Φ0.33mm
Power of Oil Pump Motor: 30kw
Gross Power: 30.75kw
Sands Consumption: 10~25kgs/h
Gross weight: 3800kgs
External Dimension of Machine: L4200×W2350×H1800mm
HESHENG
China
Hesheng Machinery & Stone Materials Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Quartzite, Sandstone, Travertine
Machinery Function Features:
Bridge Type 6 axis Waterjet Machine is manufactured as full integrated with dividing system 2.1 Nm servo motors
Servo motor, linear sledge and vehicles, helical rack and pinions is used for providing a rapid and smooth axial movement. The linear slides and rails, helical rack and pinions in all systems are protected with automatic greasing pump in order to prevent rust and to continue sensibility. -
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
$29000-35000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
EAAK CNC water jet cutter application: The cutting materials are not limited (such as stainless steel,carbon steel,copper,brass,aluminum and other metal,glass,stone,marble,granite,foam,ceramics,plastics,composite materials...), waterjet cutting is currently the most applicable cutting method; Metal cutting: 1 Decoration of stainless steel,aluminum.iron,brass and other metal cutting process. 2 Manufacture of machinery and equipment control cabinets such as food machinery,medical machinery,CNC machinery. 3 The metal parts cutting such as stainlesssteel flange,semi-finished,steel construction, non-ferrous metal and so on. Glass cutting: 1 Gas stove surfaces, range hood,disinfecting cabinet, TV, bathroom products. 2 Construction and decoration glass,automotive glass. Ceramic and stone cutting: 1 Ceramic cutting for decoration and construction. 2 Marble mosaic,granite mosaicmstone plate cutting.
EAAK
China
Shandong EAAK Machinery Co. Ltd
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone
Machinery Function Features:
We offers following options for Robotic Cutting Station:
1) 1 Robot + 2 Station
2) 2 Robot + 2 Station
3) 2 Robot + 3 Station
4) 2 Robot + 4 Station
ADVANTAGE OF ROBOTIC CUTTING MACHINE:
1) High Productivity
2) Reduce Manpower
3) Flexible
4) Easy to operate
5) High Standard of Safety
6) Large Cutting Area -
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
HIGH PRECISION HIGH PRESSURE WATERJET
The cutting system is a high pressure water jet up to 4150 Bar/ 60 000 PSI (optional : 6000 Bar / 87 000 PSI ) generated by an intensifying pump. This high pressure water is concentrated into a fine but very powerful water jet after going through an orifice.
In a mixing chamber just after the orifice, abrasives are added to the jet which reach a speed of 900 m/s almost MACH 2. It then goes in a focalization tube to be projected onto the work-piece. The result is an abrasive jet of less than one millimeter diameter capable of cutting the hardest materials.
WORKING TABLE OF LARGE DIMENSION
A large working table enabling to cut the pieces of dimension 4000×2000 mm (TWJ4020).
Thanks to the mobile machine arm, access to the table is eased. The operation can lay the slabs from all the table sides.
The working table is composed of galvanized vertical blades (S shape), stainless steel frame and grates on tank bottom for recovering of waste material which might have fallen.
Water level variation by Ballast system (quick and ecological). By raising slightly the water level above the slab one can cut with the same efficiency yet reducing drastically the sound level.
AUTOMATIC SYSTEM CONTROLLED BY NC
The NC controls the head movement following the program written into the NC or on PC.
The T’CUT software is identical to the software of the THIBAUT NC sawing machines.
Work-pieces are positioned on the working table. The table is in a stainless steel tank full of water.
Most of the materials do not require any clamping. The water in the tank absorbs the jet residual energy. The working table as well as the abrasive suction pipes positioned in the tank bottom (only with option abrasive muds evacuation) can be damaged or worn out by the jet if left idle a certain using time but can be replaced easily.
VERY HIGH PRESSURE PUMP
The VHP pump is integrated in the machine frame (back side) for a space optimization. It is entirely controlled by the NC. The pressure is variable from 500 to 4150 bar / 7250 to 60000 PSI via IHM (option 6000 bar / 87 000 PSI).
This enables to drill with low pressure to avoid any splash or material breakage when jet is opened in full material. Then, the NC controls high pressure automatically.
Thibaut
France
Thibaut S.A.S.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
3 Axis CNC Waterjet can cut all kinds of materials existing in the nature up to 200 mm thickness with power generated by mixing pressurized water and abrasive sand. All materials cutting can be made with the same nozzle. Not only for thick but also for thin materials, it can realize 90 degrees corner, narrow angular and small radius precise cuttings. -
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone
Machinery Function Features:
Water jet Machine uses cold supersonic erosion to provide through cut in almost any materials both metals and nonmetals. The highly pressurized water stream is forced through a tiny area which carries abrasive garnet to erode away the material.
ADVANTAGE OF WATERJET TECHNOLOGY:
Cold Cutting without thermal influences.
Material saving production due to reduced cutting width.
Flexible processing of all virtually material with consistent high quality.
Tension-free processed parts due to minimal cutting force.
Environment friendly & clean production without poisonous gas.
Close linking with the CAD/CAM programming system.
High productivity through multi head cutting system & multi layer cutting.
High-Performance drive system, which permit high-precision production of parts as well as the highest processing speed. -
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
Machinery Function Features:
Helios Jet is a fast and performing 3/5 interpolated axes waterjet saw. It has been developed for high precision cutting processes on porcelain, compact surfaces, quartz, as well as marbles and granites. It is the essential waterjet that gives you the fundamental versatility of waterjet cutting. Engineered with the same technology as the other Helios cutting solutions, the Helios Jet features robust cutting capabilities and user-friendly software for added flexibility.
Learn more here:
https://www.heliosautomazioni.com/en/waterjet/heliosjet.php
HELIOS
Italy
Helios Automazioni Srl
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
3D 5 Axis CNC Waterjet is designed by our engineers to make highly precise 0-120 degrees angular cuttings.Thanks to rigid structure, not being affected by deflector force of high pressure coil, can realize 3D cuttings in 0.02 mm accuracy.5 axis head can rotate +/- 360 degrees. -
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The Mach 300 is purpose-built and value focused, bringing a new kind of ROI to the waterjet world. Advanced Flow technology and all-in-one steel construction create a robust foundation for cutting performance.
Mach 300 handles high production needs with ease. Dynamic Waterjet® brings the Mach 300 to the next level for efficient and accurate cut parts. With small footprint options and a quick installation, Mach 300 makes waterjet easy. -
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Brembana Easyline is a high-performance, versatile, modular water jet cutting system - either pure or hydroabrasive - which can be employed in a number of application fields for the most diverse production demands.
- the cantilever structure, with a separate tank, allows an easy access to the worktable. Loading and removing material is quick and easy
- all axes motions are carried out through hardened and ground rack and pinion
- the thermowelded bellows provide complete protection of the guides and the rack from water and dust
- the steel structure undergoes an anti-rust treatment through sandblasting and ceramic painting, which results in a higher resistance against corrosion
- the tank is set up for the installation of a dredge
brembana easyline is also available in the following versions:
- Twin (double tank solution for pendular working)
- Twin+ (single-tank pendular cutting system)
- Dual Bridge
- Scanner safety
- Manual Pivotable 3ax head
CMS Stone Technology
Italy
CMS Spa
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone
Machinery Function Features:
Water jet Machine uses cold supersonic erosion to provide through cut in almost any materials both metals and nonmetals. The highly pressurized water stream is forced through a tiny area which carries abrasive garnet to erode away the material.
ADVANTAGE OF WATERJET TECHNOLOGY:
1) Cold Cutting without thermal influences.
2) Material saving production due to reduced cutting width.
3) Flexible processing of all virtually material with consistent high quality.
4)Tension-free processed parts due to minimal cutting force.
5)Environment friendly & clean production without poisonous gas.
6)Close linking with the CAD/CAM programming system.
7)High productivity through multi head cutting system & multi layer cutting.
8)High-Performance drive system, which permit high-precision production of parts as well as the highest processing speed. -
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
brembana smartline is designed to redefine industry standards of excellence by improving operating efficiency, while maintaning CMS’ renowned reputation for unparalleled construction and working quality. It includes all the safety and performance features typical of CMS Waterjet machines, in a brand new, innovative, and compact design.
the open frame structure with electric gantry and linear guides integrated in a sturdy tank allows an easy access to the worktable. Loading and removing material is quick and easy.
all axes’ motions are carried out through hardened and ground rack and pinion.
the thermowelded bellows provide complete protection of the guides and the rack of x-axis from water and dust. On Y-axis, instead, the protection is guaranteed by a set of sheet metal panels.
the steel structure undergoes an anti-rust treatment through sandblasting and ceramic painting, which results in a higher resistance against corrosion.
the tank is set up for the installation of a chain system for the exhausted removal.
Brembana Smartline is also available with the following configurations:
Dual greenjet
Manual Pivotable 3ax head
Advantages
EASY LOADING /UNLOADING: SMART OPERATIONS
Excellent access to the cutting area, the cantylever structure with separate catch tank offers easy access on 3 sides to load and unload the material.
91% LESS OPERATIVE COSTS: SMART MAINTENANCE
The catch tank with special anti rust ceramic painting is designed to fit the new Evo 4 chain dredge for exhausted abrasive removal even later after installation with 91% less maintenance costs.
HIGH PERFORMANCE: SMART PRODUCTIVITY
Rapid speed up to 50 m/ min and acceleration up to 3 m/s 2 top notch performance in the category to get maximum productivity with 3 and 5 axis configuration.
BEST PRICE/PERFORMANCE: SMART INVESTMENT
High price/performance ratio for a cutting solution configurable to satisfy every application needs based on customer s investment plan.
CMS Stone Technology
Italy
CMS Spa
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
Machinery Function Features:
3- and 5-axis waterjet cutting system
brembana milestone s is an advanced, versatile, high-performance waterjet cutting system – either pure water or hydro-abrasive – able to accomodate the most diverse production demands in different application fields, delivering highly accurate cuts even in 3D.
the bridge structure with fixed table, mobile crossbeam and high guides make it compact and able to move quickly
all motions are carried out by tempered ground rack, driven by brushless motors
the axes’ guideways are housed within the structure and protected by an innovative system called “Powder-Free”, which provides full protection against water and powders
Brembana Milestone S is also available with dual brembana greenjet evo.
CMS Stone Technology
Italy
CMS Spa
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
Machinery Function Features:
Hydro-abrasive Waterjet Cutting System
A proper cutting robot, designed with specific structural solutions for water-jet cutting technology, so as to ensure superior technological and productive performance. Extremely rigid fixed column gantry structure, designed to ensure long term maximum accuracy. Machine movement via high-precision hardened and ground racks (H5 class), driven by electric brushless motors and case hardened and ground pinion. Racks and axis sliding guides housed inside the structure and protected by the revolutionary “Powder-Free” system by CMS, an engineering masterpiece of impenetrable casing labyrinths which ensure perfect
protection against water and dust.
Higher efficiency: highly intuitive man/machine interface and new workpiece clamping system
Higher versatility: new machine sizes and wide range of supply accessories
Higher reliability: NC and digital drives for the total control of cutting parameters
Brembana Idroline S is also available with dual brembana greenjet evo.
CMS Stone Technology
Italy
CMS Spa
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Artificial Stone, Basalt
Machinery Function Features:
High pressure intensifier
CMS brought about a new concept in ultrahigh pressure intensifiers, enhaced by technological solutions designed to satisfy the needs of most demanding users. This new technology is based on an intensifier equipped with several pressure multipliers independent, parallel and electronically synchronized. This innovative solution results in an everconstant pressure avoiding any drops typical of traditional opposecylinder intensifiers.
highly constant pressure and no accumulator
higher stability of the dynamic pressure signal as a guarantee to achieve a superior quality cut
lower wear of all machining centre high-pressure circuit components, longer life of materials and reduced maintenance
the technology of independent cylinders allows shutdown of any cylinder that needs servicing
this means the operator can choose the maintenance schedule, without stop the machine
software-based electronic control of cutting pressure
electronic monitoring of temperature, pressure and filter clogging
hydraulic pump with variable flow rates
hydraulic cylinders return circuit with independent pump
air/Oil exchanger for hydraulic circuit cooling (water/oil option)
it can be connected to any Stand Alone cutting system
CMS Stone Technology
Italy
CMS Spa
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
LIMIT-FREE MACHINING OPERATIONS
Primus is a range of water jet cutting machines designed to meet the needs of companies searching for the maximum versatility. It offers the possibility to process a wide selection of materials from stone to metal, from glass to plastic, from ceramic to compound materials.
Support surfaces are available for special materials and applications, to minimise the reverberation of the water jet on the material being machined and to facilitate the drainage of water and small machining residues.
Maximum programming flexibility thanks to the free movement of the cutting head.The 5-axis cutting head is fitted with the patented Intermac infinite rotating C axis system for making top-quality tilted cuts (+/-60°) on complex profiles, with no limits. This system eliminates the errors due to rotating axis reverse clearance in traditional methods, and also guarantees a constant supply of abrasive material.
Intermac
Italy
Intermac Glass & Stone Division - Biesse Spa
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
Machinery Function Features:
Brembana greenjet evo is a groundbreaking, highly efficient electric pump. A top-performance torque servomotor supplies a very high-pressure level while removing the hydraulic unit and up to 80% of components compared to a traditional hydraulic intensifier. Brembana Greenjet Evo is equipped with one electrically driven actuator and two high-pressure opposed cylinders. Such solution with an electric actuator delivers an extremely constant pressure level, a monitoring of the pressurization cycle and an efficiency at least 30% higher than hydraulic intensifiers.
highly efficient: up to 60% more in comparison with traditional intensifiers very quiet when running
reduced maintenance schedule because of the 80% reduction of structural components
lubrication circuit and air motor cooling
integrated pump booster
environment-friendly technology with a significant reduction of the power consumption. (-30% power consumption)
compatible with any waterjet cutting system. (Brembana Greenjet Evo Stand Alone)
CMS Stone Technology
Italy
CMS Spa
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone
Machinery Function Features:
Water jet Machine uses cold supersonic erosion to provide through cut in almost any materials both metals and nonmetals. The highly pressurized water stream is forced through a tiny area which carries abrasive garnet to erode away the material.
ADVANTAGE OF WATERJET TECHNOLOGY:
1) Cold Cutting without thermal influences.
2) Material saving production due to reduced cutting width.
3) Flexible processing of all virtually material with consistent high quality.
4) Tension-free processed parts due to minimal cutting force.
5) Environment friendly & clean production without poisonous gas.
6) Close linking with the CAD/CAM programming system.
7) High productivity through multi head cutting system & multi layer cutting.
8) High-Performance drive system, which permit high-precision production of parts as well as the highest processing speed. -
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
SNIC waterjet cutting systems are reliable, heavy duty and easy to maintain. Their higher efficiency and accuracy substantially reduce operating costs. In order to manufacture the best waterjet systems money can buy we have teamed with worldwide leading companies such as KMT, the company who invented waterjet cutting and has been leading the field in waterjet applications for over a quarter of a century.
The ACTIVE IDE cutting head is the most efficient, long lasting cutting head with the fewest possible parts on the market. The key advantages of the ACTIVE IDE I are the exact targeted cutting jet, the pre-filter protecting the orifice and the advanced nozzle valve design. The unit is also virtually maintenance-free.
As the cutting head contains a minimum number of components, it is particularly easy to handle. Its innovative design minimizes the jet stream width so that all impact energy is concentrated in the cutting tip of the jet. The result is a perfect and accurately positioned cut.
The diamond orifice and the mixing chamber are combined in a single nozzle body. Thanks to this user-friendly design, the focusing tube and the pre-filter, which are the only wear parts, can be exchanged easily and quickly.
The integrated diamond orifice far outperforms any sapphire orifice by ten to twenty times. The prolonged orifice life means longer uptime and thus more consistent precision cutting. This in turn helps increase the lifespan of the focusing tube and results in smoother cutting edges and less waste.
The newly developed pre-filter is installed between the HD line and the nozzle valve body in the adapter. It keeps impurities from cloggings the orifice which significantly prolongs the service life of the nozzle and lowers the operating costs.
Operators can quickly and easily change over from pure water cutting to abrasive cutting.
Orifice sizes : 0.25mm, 0.28mm, 0.33mm, 0.35mm.
The automatic stainless steel abrasive bulk transfer system enables the machine to work unattended for several hours.
Its abrasive metering assembly allows a visual check of the abrasive supply and provides very accurate metering control of the abrasive flow rate.
The very constant abrasive flow combined with the kinetics of the machine provides outstanding precise cutting and superior edge quality.
Axes are guided by high precision linear guides with a quadruple protection against dust, dirt and moisture.
The rails are treated to resist corrosion.
The machine is equipped with stainless steel covers for protection instead of textile bellows.
The double bridge provides greater stability thus allowing perfect precision of cut.
PLC controller with direct link to touch display showing operating system status, hour-meter, failure messages and comprehensive diagnostics for troubleshooting.
Touch screen control system in 8 languages freely selectable.
Variable displacement, pressure compensated hydraulic pump technology.
Standard dual pressure control facilitates hole piercing and kiss cut applications.
4136 bar operating pressure.
Sound insulated housing with see through top cover which opens on both sides.
Standard high pressure fluid or water leak detection.
Exclusive long slow stroke.
Long life seal design provides reliable and improved service life.
Patented Quick Plunger Removal without disassembly of the hydraulic cylinder.
Cartridge type hydraulic seal.
Water pressure booster and filtration system with 10-micron double-length filter.
High efficiency heat exchanger in independent recirculation pump circuit to cool all oil or air coolers.
High-pressure safety dump valve.
High-pressure accumulator (TUV approved).
Water inlet shut-off valve.
Separate water and oil drip pans.
Two-liter accumulator.
Upon customer request, SNIC waterjet systems can also be equipped with KMT Jetline or Streamline SL-V Standard or Streamline PRO intensifiers.
The intensifier generates a high pressure of up to 4136 bar, which is focused with high-speed water through a fine precious stone orifice. The jet stream velocity equals about 3 times the speed of sound. When cutting hard materials, garnet is added to the high-pressure water generating a high energy stream now containing water and abrasive.
Extremely fast transition from drawing to cutting.
Faster setup - low tangential forces often eliminate the need for clamping.
High accuracy - eliminates secondary cutting.
Fast cutting speed.
Eliminates the need to sharpen tools.
Safer for operators and the environment - avoids vapor, dust and smoke and does not require expensive coolants.
Cold cutting process - eliminates heat-affected zones, hardened material and material stresses.
Clean finished product eliminates secondary cleaning operations.
Burr-free finish - eliminates any need for secondary surface finishing for most applications.
Small kerfs.
Ideal for quick prototype, flexible production and proven for high volume production.
Optimum material utilization with CAD/CAM software.
Customized system solutions.
This cutting method is primarily used for cutting soft materials such as rubber, foam, gasket, leather, textiles, foodstuffs and many other similar materials.
Normal tap water is pressurized at ultra-high pressure levels and forced through a small precious stone orifice to form an intense cutting stream. The jet stream moves at a velocity of up to 3 times the speed of sound, creating the ability to cut at very high feed rates.
For your hard materials that cannot be machined with water only, the water nozzle nut is replaced with the IDE abrasive cutting head. The high velocity waterjet creates a vacuum which pulls the abrasive into a mixing chamber, producing a coherent, extremely energetic abrasive jet stream. This process is ideal for cutting intricate patterns in sheet metals, composites, decorative stone, synthetic ceramics, glass, etc.
SNIC
Lebanon
S.N.I.C.- Societe Nahas Pour L'industrie Et Le Commerce
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Water jet cutting machine with 2 basins.
By using 2 catch basins, the Powerjet 3D Twin enables the machine to be loaded during the machining process. This means that, for the first time, a machine is available specifically for industrial and efficient manufacturing in the waterjet sector. The basins can be designed as a continuous work surface so that oversized workpieces can be machined. Alternatively, the machine can be equipped with an automatic interchangeable frame. This allows the machine to be integrated into a system with automatic loading.
weha
Germany
Weha Ludwig Werwein GmbH
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Cutting with high pressure.
Waterjet cutting is the perfect solution for complex cuts in ceramics, marble, granite, glass, plastics and engineered stone. The rotating and swiveling cutting head allows precise miter cuts to be made. Fully automatic scanning compensates for tolerances in material thickness.
weha
Germany
Weha Ludwig Werwein GmbH
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
OZKKM 5 Axis / HYDRA Waterjet Machine
Ozteknik Makine
Turkey
Ozteknik Makine
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
The Mach 500 Series
Make More
The Mach 500 is unmatched in accuracy, quickness and speed, making it your most productive solution. The system is revolutionary in terms of reliability and productivity, backed by the only comprehensive service program in waterjet. Uniquely flexible, the Mach 500 can be everything you want, or just what you need.
Driven by extensive research and customer feedback, Mach 500 is the fastest, quickest, most accurate waterjet by design. Designed with the operator in mind, the system is built for production. No other waterjet is quite like this.
With the modern architecture, precision motion, and Flow's leading ultrahigh-pressure technology at the core, the Mach 500 is unmatched in speed and accuracy. Paired with Dynamic XD and Compass, there is no waterjet that can compare.
Mach 500 is equipped with top-of-the-line components from leading machine tool suppliers for the machine drive, precision motion system, motion control, and solid model software to create a machine that is the quickest, and most accurate on the market.
The ultrahigh-pressure pump technology, machine control, cutting heads, industry-leading software, and advanced wrist articulation pioneered by Flow are the foundation of the Mach 500.
With the Mach 500 you can rely on Flow to partner with you for service, parts, training and beyond. Flow has established a new industry standard with the Mach Series, providing complete solutions for machine system, software, service and support.
We have thousands of combinations we can provide to integrate the right solution directly into your production. -
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Aqua is a modern, versatile and high-performance abrasive waterjet cnc.
Featuring 3 interpolated axis with Brushless movement, it performs fast and precise cuts. Axes stroke is on high-precision guideways with helical teeth rack and pinion transmission which are lubricated by a centralized pump.
Machine is designed with a Flying Bridge structure: tank with work bench and rear beam with flying bridge sliding on it.
Denver
San Marino
Denver S.P.A.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The Softec ™ waterjet cutting software was developed by TECHNI Waterjet ™ with two very clear goals:
1.cutting at minimum cost with the highest accuracy,
2. simple and intuitive interface facilitating the operator's work.
The result is a comprehensive "All In One" software, specifically designed for waterjet cutting, that maximizes productivity and can be learned quickly and easily by anyone with computer experience without any problems.
At the heart of Softec ™ software is Tru-Cut ™ technology, which is a highly advanced database of algorithms that determines optimal cutting speeds and machine performance characteristics. After selecting the right material for cutting, all you need to do is enter the thickness and edge finish of the element, the computer will do the rest, ensuring minimal cutting time for any element. All with one software!
Softec Nest uses advanced nesting algorithms that have been developed by one of the world's largest and award-winning CAD software developers - Geometric Global.
The benefits include:
- improving profitability by minimizing feeding time.
- increasing the optimization of cutting along with the material efficiency.
GMM
Poland
Euro Arss S.C.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
HIGH-PRESSURE WATERJET SYSTEMS
The Intec-G2® can cut almost any material to 8” thick at maximum cutting speed with minimum capital outlay. These machines last longer and require less maintenance, while delivering an easy to use, fast and accurate system at a very competitive price. This series of machines is particularly well-suited for stone industry.
Softec™ Waterjet Cutting Software has been developed by TECHNI Waterjet™ with two very clear goals in mind:
1. To cut parts at minimum cost with the greatest accuracy.
2. To have a simple and intuitive interface with the operator.
The result is a comprehensive “All In One” Windows based software, that is specifically designed for Waterjet Cutting, which maximizes productivity and anyone with PC experience can learn to use quickly and easily.
At the “Heart” of Softec™ is Tru-Cut Technology™, a highly sophisticated algorithms database that determines the optimum cutting speeds and machine ramping characteristics. Once you select the material to be cut, it’s thickness and surface edge finish required, the computer will take care of the rest, ensuring the minimum cutting time for any given part. Programming edges for mitering within seconds. All with one software!
Softec Nest utilizes advance nesting algorithms which have been developed by one of the world’s largest and most awarded CAD and nesting software developers - Geometric Global.
Benefits Include:
Improves profitability by minimising rapid feed times.
Increasing both nesting speed and material yield.
GMM
Italy
Gmm S.p.A.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
HIGH-PRESSURE WATERJET SYSTEMS
The Intec-G2® can cut almost any material to 4” thick at maximum cutting speed with minimum capital outlay. These machines last longer and require less maintenance, while delivering an easy to use, fast and accurate system at a very competitive price. This series of machines is particularly well-suited for stone industry.
Softec™ Waterjet Cutting Software has been developed by TECHNI Waterjet™ with two very clear goals in mind:
1. To cut parts at minimum cost with the greatest accuracy.
2. To have a simple and intuitive interface with the operator.
The result is a comprehensive “All In One” Windows based software, that is specifically designed for Waterjet Cutting, which maximizes productivity and anyone with PC experience can learn to use quickly and easily.
At the “Heart” of Softec™ is Tru-Cut Technology™, a highly sophisticated algorithms database that determines the optimum cutting speeds and machine ramping characteristics. Once you select the material to be cut, it’s thickness and surface edge finish required, the computer will take care of the rest, ensuring the minimum cutting time for any given part. Programming edges for mitering within seconds. All with one software!
Softec Nest utilizes advance nesting algorithms which have been developed by one of the world’s largest and most awarded CAD and nesting software developers - Geometric Global.
Benefits Include:
Improves profitability by minimising rapid feed times.
Increasing both nesting speed and material yield.
GMM
Italy
Gmm S.p.A.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
SNIC waterjet cutting systems are reliable, heavy duty and easy to maintain. Their higher efficiency and accuracy substantially reduce operating costs. In order to manufacture the best waterjet systems money can buy we have teamed with worldwide leading companies such as KMT, the company who invented waterjet cutting and has been leading the field in waterjet applications for over a quarter of a century.
The ACTIVE IDE cutting head is the most efficient, long lasting cutting head with the fewest possible parts on the market. The key advantages of the ACTIVE IDE I are the exact targeted cutting jet, the pre-filter protecting the orifice and the advanced nozzle valve design. The unit is also virtually maintenance-free.
As the cutting head contains a minimum number of components, it is particularly easy to handle. Its innovative design minimizes the jet stream width so that all impact energy is concentrated in the cutting tip of the jet. The result is a perfect and accurately positioned cut.
The diamond orifice and the mixing chamber are combined in a single nozzle body. Thanks to this user-friendly design, the focusing tube and the pre-filter, which are the only wear parts, can be exchanged easily and quickly.
The integrated diamond orifice far outperforms any sapphire orifice by ten to twenty times. The prolonged orifice life means longer uptime and thus more consistent precision cutting. This in turn helps increase the lifespan of the focusing tube and results in smoother cutting edges and less waste.
The newly developed pre-filter is installed between the HD line and the nozzle valve body in the adapter. It keeps impurities from cloggings the orifice which significantly prolongs the service life of the nozzle and lowers the operating costs.
Operators can quickly and easily change over from pure water cutting to abrasive cutting.
Orifice sizes : 0.25mm, 0.28mm, 0.33mm, 0.35mm.
The automatic stainless steel abrasive bulk transfer system enables the machine to work unattended for several hours.
Its abrasive metering assembly allows a visual check of the abrasive supply and provides very accurate metering control of the abrasive flow rate.
The very constant abrasive flow combined with the kinetics of the machine provides outstanding precise cutting and superior edge quality.
Axes are guided by high precision linear guides with a quadruple protection against dust, dirt and moisture.
The rails are treated to resist corrosion.
The machine is equipped with stainless steel covers for protection instead of textile bellows.
The double bridge provides greater stability thus allowing perfect precision of cut.
PLC controller with direct link to touch display showing operating system status, hour-meter, failure messages and comprehensive diagnostics for troubleshooting.
Touch screen control system in 8 languages freely selectable.
Variable displacement, pressure compensated hydraulic pump technology.
Standard dual pressure control facilitates hole piercing and kiss cut applications.
4136 bar operating pressure.
Sound insulated housing with see through top cover which opens on both sides.
Standard high pressure fluid or water leak detection.
Exclusive long slow stroke.
Long life seal design provides reliable and improved service life.
Patented Quick Plunger Removal without disassembly of the hydraulic cylinder.
Cartridge type hydraulic seal.
Water pressure booster and filtration system with 10-micron double-length filter.
High efficiency heat exchanger in independent recirculation pump circuit to cool all oil or air coolers.
High-pressure safety dump valve.
High-pressure accumulator (TUV approved).
Water inlet shut-off valve.
Separate water and oil drip pans.
Two-liter accumulator.
Upon customer request, SNIC waterjet systems can also be equipped with KMT Jetline or Streamline SL-V Standard or Streamline PRO intensifiers.
The intensifier generates a high pressure of up to 4136 bar, which is focused with high-speed water through a fine precious stone orifice. The jet stream velocity equals about 3 times the speed of sound. When cutting hard materials, garnet is added to the high-pressure water generating a high energy stream now containing water and abrasive.
Extremely fast transition from drawing to cutting.
Faster setup - low tangential forces often eliminate the need for clamping.
High accuracy - eliminates secondary cutting.
Fast cutting speed.
Eliminates the need to sharpen tools.
Safer for operators and the environment - avoids vapor, dust and smoke and does not require expensive coolants.
Cold cutting process - eliminates heat-affected zones, hardened material and material stresses.
Clean finished product eliminates secondary cleaning operations.
Burr-free finish - eliminates any need for secondary surface finishing for most applications.
Small kerfs.
Ideal for quick prototype, flexible production and proven for high volume production.
Optimum material utilization with CAD/CAM software.
Customized system solutions.
This cutting method is primarily used for cutting soft materials such as rubber, foam, gasket, leather, textiles, foodstuffs and many other similar materials.
Normal tap water is pressurized at ultra-high pressure levels and forced through a small precious stone orifice to form an intense cutting stream. The jet stream moves at a velocity of up to 3 times the speed of sound, creating the ability to cut at very high feed rates.
For your hard materials that cannot be machined with water only, the water nozzle nut is replaced with the IDE abrasive cutting head. The high velocity waterjet creates a vacuum which pulls the abrasive into a mixing chamber, producing a coherent, extremely energetic abrasive jet stream. This process is ideal for cutting intricate patterns in sheet metals, composites, decorative stone, synthetic ceramics, glass, etc.
SNIC
Lebanon
S.N.I.C.- Societe Nahas Pour L'industrie Et Le Commerce
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
$32000-45000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
1. It can realize 45-degree chamfering and special-shaped cutting. Saw blade cuts straight lines, water jet cuts curves, and can be combined cutting- Increase efficiency by 20%
2. Automatic loading and unloading can be realized, and the stone type table board can be cut in one time- Save labor costs by 20%, 0 damage to the slabs
3. Customize the commonly used graphics library, which can be loaded with one key- Increase efficiency by 10%
4. The purchase cost is lower than the price of a five-axis bridge cutting machine and a five-axis waterjet- Save labor costs by 20%
5. China's first manufacturing for the machine. The best way for high-end home improvement industry
China
Shenyang Head Science & Technology Corporation
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Numerically controlled with 5 interpolated axes for simultaneous control. Working of soft materials with water alone, hard materials such as glass, stones, steel with the use of abrasive material type silica.
The machine 'consists of a bridge structure that moves on the basement, driven by two brushless motors in gantry configuration.
The sliding movement are on linear ball bearing guides, which are tempered and rectified and are equipped with nr. 4 contact points to ensure greater precision and ruggedness, protected by bellows-shaped profile. The movement is on precisely tilted racks, driven by a brushless motors.
The containment tank water is steel hot galvanized made and integrated in the frame-base.
The grid to support the working material is composed of large plates vertically placed in comb position, within which are inserted interchangeable galvanized sheets
Useful area of work (X-Y-Z): 4000 x 2000 x 250 mm.
Cobalm
Italy
Cobalm srl
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
$32000-38000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
With the support of five axis CNC system, the machine coordinates X, Y, Z and A, B rotation axes at the same time, so that the water jet cutting head can swing in any direction. When cutting, the computer calculates the material density and thickness of the workpiece in real time, and controls the cutter head to run along the cutting track, so as to realize the three-dimensional cutting of the workpiece with complex shape, such as cutting inclined plane, chamfering, and cutting high-precision conic surface, arc surface and other complex space surfaces. So that the water knife to achieve higher performance and bring better benefits to users.
Cutting advantages:
1. Strong versatility, almost all materials can be cut.
2. The water jet is cold cutting, which does not produce thermal effect, deformation, slag, ablation and change the physical and chemical properties of materials.
3. Small slotting and cooling cutting can improve material utilization.
4. The cutting medium is only water and natural abrasive, and no other substances are produced in the cutting process. It is a clean and environmental protection cutting process.
5. After cutting, the cutting surface is neat and smooth, and there will be no damage to the cut object in the cutting process, which can play a role in many cutting operations that cannot be realized by cutting tools.
Water jet has a wide range of applications, from metal materials to non-metal materials, from natural materials to artificial materials, from food to daily necessities, basically can cut, has the "universal cutting machine" reputation.
Machinable materials:
Water knife is known as "universal cutting machine", which can cut almost any kind of material, such as steel, alloy, stone, ceramics, ceramic tiles, glass, aluminum, and other materials. Of course, some materials that can't be cut for their own reasons, such as tempered glass.
The main application fields are as follows:
1. Ceramic, stone and other building materials processing;
2. Glass products processing, such as home electrical products in glass parts cutting, building decoration, process glass;
3. Metal plate cutting and blanking in machinery industry;
4. Advertising industry signs, art pattern cutting
14YR
China
Xiamen Asian Stone Imp.& Exp. Co.,Ltd.
Contact Supplier
Have a Question? Ask our expert
Ask now
