Slate Tile Cutting Machines
( 350 )After the large stone blocks are cut into 2 or 3 cm wide sheets, they need to be cut into various sizes according to your project. Sometimes these sizes are standard, sometimes they just need to be cut to the sizes your project requires. Cutting Natural Stone slabs to desired sizes is not easy to standard and requires high-tech machinery to do it accurately. It is easy to find stone tile cutting machines of all models and prices related to these works in the Stonecontact.com global stone portal. Stonecontact.com website has all kinds of brands and models of stone tile cutting, chamfering, polishing machines. Therefore, if you need a new stone tile cutting machine, it is inevitable that you will encounter many options. There are CNC machining centers, wire saws and many more type machines for cutting, shaping, edge profiling and grinding stone.
More Hide-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
FOB Price:$4000-6000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:

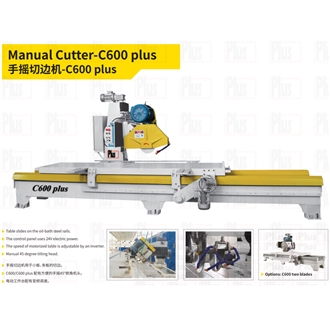

Manual Cutter-C600 plus Table slides on the oil-bath steel rails. The control panel uses 24V electric power. The speed of motorized table is adjustable by an inverter. Manual 45 degree tilting head.
Stoneplus
China
STONEPLUS MACHINERY CO.,LTD
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
FOB Price:$5000-50000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone
Machinery Function Features:
1. Hydraulic stone splitting machine can recyle granite or marble waste or left over from countertops making pavers for plaza, street, garden, etc.
2. Also it can split the stone into two pieces to make cladding stone and wall stones for natural faces.
3. It is a smart machine for granite fabricators to recycle the waste turning waste into gold.
BESTLINK
China
XIAMEN BESTLINK FACTORY CO., LTD.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
FOB Price:$5000-50000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone
Machinery Function Features:
The hydraulic stone splitter machine is designed to cut block cubic etc. The hydraulic machine is suitable for splitting all types of natural and artificial stone. Its splitting force is about 200 Ton for brt200t and 320 Ton for brt320. It is able to process 800/1200mm max.splitting length and 400/600mm max. splitting height. The special design of fast lift up movement greatly improves the working efficiency. The tooth tools are of advanced design and alloy steel that make it sharp and durable. The body is made of strong cast iron and high quality parts ensuring stability during working. The hydraulic stone splitter machine with stable performance and high quality, efficiency has won trust and reputation from our customers.
BESTLINK
China
XIAMEN BESTLINK FACTORY CO., LTD.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
FOB Price:$10000-50000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone
Machinery Function Features:
Hydraulic Splitting Machine for Natural Stone
It's specially designed for splitting big blocks. Due to their big splitting power and long blade, these 3 models can easily split any big rock blocks into big and regular building stone kerb stone and wall stone
BESTLINK
China
XIAMEN BESTLINK FACTORY CO., LTD.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
FOB Price:$5000-55000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone
Machinery Function Features:
Stone Machinery BRT200ton Inartificial Surface Splitter For Granite Marble
Hydraulic operated stone splitting machines can be use for every kind of stone. The machinery is primarily designed for the manufacture of tiles, curbstones, and split-faced walling, but can also be adapted to other areas of the stone industry. The crushing power and long blade, Broadway and Winstar models are adequate for large wall stone and curbing production.
BESTLINK
China
XIAMEN BESTLINK FACTORY CO., LTD.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
$12500-16000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone
Machinery Function Features:
VS series thin stone veneer saw (mighty stone saw) make cutting thin stone veneer flats and 90-degree corners quick, simple, low maintenance,and profitable. The unique v-structured cutting surface easily cuts split-face or natural finished sandstone, brick, limestone, and other hard stones up to 16" high and 2.5" thick. A single pass through the saw turns large stone pieces into thin stone veneer with unmatched consistency, efficiency, and reliability. There are two model:30HP&60HP.
BESTLINK
China
XIAMEN BESTLINK FACTORY CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
$12500-16000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone
Machinery Function Features:
Bestlink Factory Thin veneer saw stone wall veneer saw corner cutting machine
The mighty stone saw (30 horse and 60 horse power) model is compact, portable, and lighter - making the task of hauling much easier. This model comes with a smaller and faster 30 in. Blade for quicker cutting of your everyday stones. Effectively changing the stone cutting industry, this mighty stone saw has been designed to be safe, sturdy and simply low maintenance. Every aspect-from components to assembly-was designed to fit all the below criteria and do it at a reasonable price. Reliable
powerful
fast
accurate
safe
BESTLINK
China
XIAMEN BESTLINK FACTORY CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
$4500-7000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Cross Cutter-CR65 is for cutting strips of marble and granite. The machine is made in compact. It is easy for installation and future moving. The stone material can be loaded quickly and easily. It works manually and automatically. The operation is easy. The cutting speed is controlled by an inverter. Optional 45° rotation table.
Stoneplus
China
STONEPLUS MACHINERY CO.,LTD
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
$10000-1000000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone
Machinery Function Features:
Factory Price Ledge Stone Blasting Machine, Hydraulic Stone Splitting Machine
Processing natural-face stone, kerb stone,buklding stone, etc
BESTLINK
China
XIAMEN BESTLINK FACTORY CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
$6000-6000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone
Machinery Function Features:
Cube Stone Splitting for Making Mosaic Stone Cut Machine
Product Model: HS25T-300*110
Splitting power: 20ton
Power supply: 3phases/380V/50Hz
Rated power: 4.0kw
Max.Stone size: W300*H20~100mm
Tank Capacity: 30L
Overall size: 1800mm*1100mm*1600mm
Net weight: 500kg
BESTLINK
China
XIAMEN BESTLINK FACTORY CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
$5000-10000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Infrared automatic stone splitter has an automatic conveying mechanism, which is suitable for processing the feldspar strips that need to be continuously fed into square stones after sawing.The thickness of the splitting is controlled by an infrared sensor, and the adjustment is convenient and efficient.
BESTLINK
China
XIAMEN BESTLINK FACTORY CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
$12000-14400
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Our patented veneer saws make cutting thinstone veneer flats and 90-degree corners quick, simple, and profitable. The unique v-structured cutting surface easily cuts split-face or natural finished sandstone, brick, limestone, and other hard stones up to 16” high and 2.5” thick.
BESTLINK
China
XIAMEN BESTLINK FACTORY CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
$795-1550
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
This stone cutting machine is widely used in construction, decoration and other industries, especially for construction engineering, stone processing, building materials construction site, for stone, marble, firebrick, trail brick, blind road brick professional cutting.
Product Features:
300/350mm diamond saw blades can be used according to customer requirements.
The nose can be rotated at an Angle of 45 degrees to ensure that customers are chamfered.
Customers can choose 220V or 380V models according to their needs, and equipped with 220V or 380V models waterproof switch.
Automatic water-bearing operation in cutting construction.
Widely used in construction, decoration and other industries, especially for construction engineering, stone processing, building materials construction site.
This stone cutting machine for stone, marble, firebrick, trail brick, blind road brick to provide professional cutting.
ZT
China
Zest Machine
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
$5000-6000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The hydraulic splitting machine is used to split cube stones, kerbstones, wall stones and any kinds of stones.This is an automatic splitting machine specially designed for cubes and strips with small size.Work on granite and marble.
Stoneplus
China
STONEPLUS MACHINERY CO.,LTD
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
$8300-8800
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Hydraulic Splitting Machine-60T This machine is used to split the large size block to the small pieces. By using the hydraulic system, it splits the stone in a moment overpass the upper and down. The hydraulic splitting machine is used to split cube stones, kerbstones, wall stones and any kinds of stones. Work on granite and marble.
Stoneplus
China
STONEPLUS MACHINERY CO.,LTD
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Basalt, Quartzite, Sandstone
Machinery Function Features:
Wind Star is the Steinex range of splitting machinery used in automatic splitting lines for splitting sawn stone and concrete.
In addition to the traditional upper and lower blades, Wind Star splitting machines are equipped with lateral or side blades. This four-blade system permits splitting pressure to be exerted to all four principal stone faces resulting in a straighter split or profile
With certain types of stone, using this technology it is possible to produce very thin cladding and tiles with a straight profile not normally achievable with traditional upper and lower blade systems
Additionally, Wind Star machines have a special internal frame, raising the lower blade so it makes direct contact with the bottom stone surface and is not impeded by any part of the machinery, optimizing the accuracy of the split.
The Wind Star splitting machinery range covers a wide range of applications including cladding, tiles and split paving. Wind Star models range from a blade length of 300 mm up to 2800 mm and a starting splitting force at 20 tons and going up to over 600 tons
Wind Star splitting machines are often configured in an automatic line. The nature of the input material (sawn blocks, slabs and concrete) lends itself well to being split in an automatic line, offering real improvements in production capacity, product quality and operational costs. Automation options for splitting stone are vast and include conveyors, pushers, pneumatic deviators, product counters, and numerous other additional components and machinery to optimize material handling and production of the split cycle.
Steinex
Italy
Steinex S.r.l
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
$4000-5000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Decorative Stone Breaking Machine-R180 It is an electric operation machine used for processing of rusticating tiles for cladding or internal/external decoration. This machine is useful to the industry for the recovery of material. It works on granite, marble, travertine and slates, etc. The R180 has robust structure and ease of use.
Stoneplus
China
STONEPLUS MACHINERY CO.,LTD
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The HM-2 cross cutting machine combines the possibility of cutting with two units with the positioning precision of the mobile spindle, employing advanced technologies when cutting strips of marble and granite. It finds its application in consecutive cuts of different sizes and is ideal for recovering waste material.
HERSEN S.L
Spain
HERSEN S.L
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Crosscut saw KS 40
The good cut
A good crosscut saw belongs in every stone processing plant. We offer a wide range of crosscut saws, from the simple crosscut saw to the swiveling machine for miter and angle cuts.
weha
Germany
Weha Ludwig Werwein GmbH
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Marble bench saw ITC AV/AA with toothed belt-drive transmission system. Perfect for both building sites and for small-medium marble-works. Ideal for cutting brickworks, natural stones and stone-like materials, bricks, marbles, granites and Grès porcelain stone-wares. A solid and precise wet saw, available with manual advancement of the cutting head (by means of a flywheel on the right hand side of the machine) – model “AV” – or motorized (with inverter for regulating the speed of advancement) – model “AA”. Unlike the basic versions (ITC – ITC AL – ITC ST) the operator remains stationary, without having to move with the head during cutting.
The head runs on chrome-plated guides straightened by means of linear recirculating bearings with anti-dust protection. Manual inclination of the bridge for cuts from 90° to 45°. Adjustment of the depth of the cut is with a flywheel set above the motor unit. They are designed to work with blades of Ø300 Ø350 Ø400 and Ø450 mm. Available in single-phase or three-phase version.
Sawing-machine equipped with a cooling system for the cutting disc: a pump for the circulation of water, positioned within the collection tank, allows water to flow onto the disc for cooling. The tank, in sheet metal, is completely welded to structural reinforcements that guarantee maximum resistance to torsion/bending. The tank is emptied by opening the draining cap.
Folding legs to facilitate transport.
ACCESSORIES SUPPLIED: extension side roller table 100×50 cm, instruction manual, lateral fence, set of wrenches, side stop.
OPTIONALS: raised structure for using blade of Ø450 o Ø500 mm, multilayer marine plywood (phenolic) work surface, diamond blades, extension side table in sheet metal 55×45 cm, goniometer fence, motor for adjusting depth of cut (on versions AA and AA-T), precision laser, supplementary extension side roller table 100×50 cm / 150×50 cm / 200×50 cm, three-phase 4KW motor, wheel kit for transport.
ITC
Italy
ITC Italian Top Class GS S.r.l.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
$3500-4500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Hydraulic Pressing Machine-HC30 The machine is for cutting marble and granite pieces at different shapes. It splits stone pieces with alloy moulds, driven by hydraulic pistons. At least, 40 different moulds. The moulds can be custom-made. Reuse the leftover and slabs.
Stoneplus
China
STONEPLUS MACHINERY CO.,LTD
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS
Çalışma Genişliği / Working Width 680 mm
Çalışma Kalınlığı / Working Thickness 75 mm
Bant Motor Gücü / Band Engine Power 2 hp
Testere Motoru / Saw Engine 15 kw 3000 dev/dak (Rpm)
Testere Çapı / Saw Diameter 450 mm
Kesim Hareket Motoru Gücü / Cutting Movement Engine Power 2 hp
Toplam Güç Tüketimi / Total Electricity Consumption 6,25 kw
Ebatlar / Dimensions 190 x 190 x 480 cm
Ağırlık / Weight 1500 kg
Kontrol Paneli / Control Panel PLC Otomasyon / Automation
GÖLER MAKİNA
Turkey
Goler Makine Rulman San Tic. Ltd. Sti.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
$12000-12500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The veneer saw cuts thin stone veneer fats and 90 degrees corners. It cuts stone with irregular shapes and variable dimensions. While maintaining its natural shape, the cut stone presents an even surface, making it easy to place on any surface.It uses vertical blades and an automatical controlled conveyor to accurately cut fat and corner pieces to uniform sizes.Cut types: Flats + Corners.Up to 380mm high and 60mm thick.Material: Sandstone. Brick. Limestone. Other stone. Operating the is easy. Simply adjust the vertical blade position, then place the stone on the durable belt conveyor. Automatically adjust the belt speed with the touchscreen control.The main motor is equipped with an inverter, which can adjust the speed and save energy ac-cording to the cutting status. Manual Height Adjustments. Easy blade changes.
Stoneplus
China
STONEPLUS MACHINERY CO.,LTD
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
$1500-2500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Mitre Saw Tile Cutting Machine - C350 Easy to use. Easy transportation and installation. For cutting tile and ceramic.
Stoneplus
China
STONEPLUS MACHINERY CO.,LTD
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS
Çalışma Genişliği / Working Width 680 mm
Çalışma Kalınlığı / Working Thickness 75 mm
Bant Motor Gücü / Band Engine Power 2 hp
Testere Motoru / Saw Engine 15 kw 3000 dev/dak (Rpm)
Testere Çapı / Saw Diameter 450 mm
Kesim Hareket Motoru Gücü / Cutting Movement Engine Power 2 hp
Toplam Güç Tüketimi / Total Electricity Consumption 6,25 kw
Ebatlar / Dimensions 190 x 190 x 480 cm
Ağırlık / Weight 1500 kg
Kontrol Paneli / Control Panel PLC Otomasyon / Automation
GÖLER MAKİNA
Turkey
Goler Makine Rulman San Tic. Ltd. Sti.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
General characteristics:
The SNM-DM is a heavy-duty high precision mono-bloc cutting machine suitable for all factories working in the stone industry. When equipped with the suitable tooling it is capable of working marble, granite, cement etc... It is easy to handle and maintenance free.
All guide ways are in hard chrome.
The main structure is made of heavy-duty steel in order to insure maximum stability and quality of the machine over time. The table's sliding surface is composed of very thick plates that are machined on three sides.
The bridge is made of a very stiff box type frame and the base of the slide ways is directly machined on the bridge.
The table slide ways are hardened and work in oil.
The replacement of slide ways is quick and inexpensive and enables this machine to keep its accuracy indefinitely.
Metal shoulders replace conventional concrete walls, facilitating installation and transport of the machine.
The disk is directly mounted on the motor and the machine is suitable for inclined cuts from 0° to 45°.
The driving systems inside gears are case hardened before final grinding.
The machine is equipped with an insulated electric panel.
All components are mass-produced, safe and of high quality.
The machine has very low maintenance costs.
Optional features:
Electrical vertical, horizontal and lateral displacements: An articulated control pendant which enables the operator to control the most important commands: Back/Forward and Up/Down for the head, a potentiometer to control the advancing speed for both cutting directions.
Profiling: The machine can be equipped with a laser device for a very precise copying of profiles.
The machine can be equipped with 2 diamond blades, which is a great advantage when profiling.
SNIC
Lebanon
S.N.I.C.- Societe Nahas Pour L'industrie Et Le Commerce
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Bridge saw ITC AVS with manual advancement of the cutting head (by means of a flywheel on the right hand side of the machine). The single beam system (in aluminium) and the reinforced structure make this saw very tough, compact and precise. Devised and designed for marble-works. Perfect for cutting slabs of natural stone, marble, granite and Grès porcelain stoneware, but also for bricks and brickwork. Toothed belt transmission means that the operator can remain stationary without having to move with the cutting head.
Manual inclination of the bridge from 90° to 0° by means of a simple lever or reduction gear – for those who wish greater precision during the operation of setting the degrees. Adjustment of cutting depth is by means of a flywheel above the motor unit. Designed to function with blades of Ø300 Ø350 Ø400 Ø450 mm. Available in single-phase or three-phase version.
The work surface, in multilayer marine plywood (phenolic), ensures stability, resistance to bending, resistance to water and damp.
Equipped with a cooling system for the cutting disc: a pump for the circulation of water, positioned within the collection tank, allows water to flow onto the disc for cooling. The tank, in sheet metal, is completely welded to structural reinforcements that guarantee maximum resistance to torsion/bending. The tank is emptied by opening the draining cap. Detachable legs to facilitate transport.
ACCESSORIES SUPPLIED: extension side roller table 100×50 cm, instruction manual, lateral fence, set of wrenches, side stop.
OPTIONALS: diamond blades, extension side table in sheet metal 55×45 cm, goniometer fence, precision laser, reducer for degrees regulating, supplementary extension side roller table 100×50 cm / 150×50 cm / 200×50 cm, three-phase 4KW motor.
ITC
Italy
ITC Italian Top Class GS S.r.l.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
$29999-89999
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Compared with ESAB,Miller, OTC,Lincoln Electric, our features：TOPtek Laser is an innovative high-tech company focusing on handheld laser welding solutions. Adhering to the deep professional ability, numerical control system, high-speed transmission system and other core technologies, we are committed to providing high-quality welding solutions to customers in various industries around the world.
After decades of development, the company has become a modern high-tech enterprise integrating research and development, sales, production and service.
TOPTEK
China
Shandong TOPTEK Co.,ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Slate, Onyx, Basalt, Sandstone, Travertine
Machinery Function Features:
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS
Çalışma Genişliği / Working Width 480 mm
Faydalı Kesim Genişliği / Useful Cutting Width 430 mm
Kesim Kafa Sayısı / Cutting Head Number 1 Adet / Piece
Takılabilir Disk Sayısı / Attechable Saw Number 30 Adet / Piece
Çalışma Kalınlığı / Working Depth 40 mm
Kesim Motor Gücü / Cutting Engine Power 22 kw
Konveyör Bant Hızı / Conveyor Band speed 0-4, 9 m/dk 0-4, 9 mt/min
Disk Çapı / Disk Diameter 300 mm
En Küçük Kesim Ebadı / The Smallest Cutting Dimensions 10x10
Kesim Motor Devri / Cutting Engine Revulations 2940 dev/dk (Rpm)
Makina Ebatları / Machine Dimensions 2450mm / 1840mm
GÖLER MAKİNA
Turkey
Goler Makine Rulman San Tic. Ltd. Sti.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Technical characteristics
The SNIC Edge Trimmer mounts two spindles which remain in a fixed position and trim the slab from both sides as it is conveyed forwards on rollers.
The spindles which travel along guides mounted to the cross-beam are positioned manually or as an optional accessory a motorized screw assembly can be fitted for automatic spindle positioning operations.
The digital display shows the operator the width between the disks.
The hardness of the material determines the feed speed of the belt that can be electronically adjusted from 0 to 5 m/min.
SNIC
Lebanon
S.N.I.C.- Societe Nahas Pour L'industrie Et Le Commerce
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Bridge saw ITC AAS with motorized advancement of the cutting head (with inverter for regulation of advancement speed). Toothed belt transmission. The single beam system (in aluminium) and the reinforced structure make this saw very tough, compact and precise. Devised and designed for marble-works. Perfect for cutting natural stone, marble, granite, Grès porcelain stoneware, bricks and brickwork. Inclination of the bridge from 90° to 0° by means of reduction gear (on the right hand side of the machine). The innovative system of inclination at 0° means that you can also work in the horizontal, making it possible to use a drilling kit. This accessory allows the operator to realize boring holes (maximum 80 mm) in paving tiles, marble and granite. Adjustment of cutting depth is by means of a flywheel above the motor unit. Designed to function with blades of Ø300 Ø350 Ø400 Ø450 mm. Available in single-phase or three-phase version.
The work surface, in multilayer marine plywood (phenolic), ensures stability, resistance to bending, resistance to water and damp.
Equipped with a cooling system for the cutting disc: a pump for the circulation of water, positioned within the collection tank, allows water to flow onto the disc for cooling. The tank, in sheet metal, is completely welded to structural reinforcements that guarantee maximum resistance to torsion/bending. The tank is emptied by opening the draining cap. Detachable legs to facilitate transport.
ACCESSORIES SUPPLIED: electrical switchboard, extension side roller table 100×50 cm, instruction manual, lateral fence, set of wrenches, side stop.
OPTIONALS: raised structure for using blade of Ø450 o Ø500 mm, diamond blades, drilling kit, extension side table in sheet metal 55×45 cm, goniometer fence, motor for adjustment of cutting depth, precision laser, speed reducer of the cutting motor, supplementary side table with rollers 100×50 cm / 150×50 cm / 200×50 cm, three-phase 4KW motor. Grinding wheels for half-bullnose edge
ITC
Italy
ITC Italian Top Class GS S.r.l.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
$4000-9000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The advantage of using this machine
1. Very accurate cutting of 45°, much better than what bridge cutters can do.
2. The X- axis cutting speed is adjustable. Therefore nearly all kinds of materials can be processed.
3. No width limitation of the slab to be cut, Even the narrowest strips can be cut thanks to the pneumatic pistons holding the slab.
4. Designed with slab“face down”, it allows performing perfect 45°cut even on un-calibrated slabs.
5. The table's liftable rollers help move slabs smoothly, up/down driven by pneumatic pistons.
6. it is safe and easy to use. Maintenance is very simple.
STONEPLUS
China
Stoneplus Machinery Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
General Characteristics
The Horizontal splitting machine allows doubling the production of the block-cutter by splitting in two pieces thik slabs cut on the latter. Placed on the beginning of the marble line it feeds it continuously increasing production and lowering cost.
The machine is manufactured in two models: with 2 or 4 tables. in the REF1x62, 1 pair of opposed spindles are placed so that every blade can cut half of the width of the material.
The REF4x62, is equipped with two pairs of opposed spindles so that every blade can cut one fourth of the material. This system allows dealing with the cut of hard marbles.
The hardness of the material determines the feed speed of the belt that can be adjusted from 0 to 3m/min.
SNIC
Lebanon
S.N.I.C.- Societe Nahas Pour L'industrie Et Le Commerce
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The ITC ST is top of the range stone bench saws for construction sector. Their structure in stainless steel ensures maximum resistance to corrosive processes and atmospheric agent. Long lasting wet saws, very solid and precise; they are suitable for cutting all types of material (Grès porcelain stone-wares, bricks, items in concrete, brickworks, natural stones, marbles and granites). The head runs on chrome-plated guides by means of linear recirculating ball bearings with anti-dust protection. Manual inclination of the bridge for cuts from 90° to 45°. Adjustment of the depth of the cut is with a flywheel set above the motor unit. They are designed to work with blades of Ø250 Ø300 Ø350 Ø400 mm. Available in single-phase or three-phase version.
Equipped with a cooling system for the cutting disc: a pump for the circulation of water, positioned within the collection tank, allows water to flow onto the disc for cooling. The tank, in stainless steel, is completely welded to structural reinforcements that guarantee maximum resistance to torsion/bending. The tank is emptied by opening the draining cap. Folding legs to facilitate transport.
ACCESSORIES SUPPLIED: instruction manual, set of wrenches, side stop.
OPTIONALS: multilayer marine plywood (phenolic) work surface, diamond blade, extension side roller table 100×50 cm / 150×50 cm / 200×50 cm, extension side table in sheet-metal 55×45 cm, goniometer fence, lateral fence, machine with structure for blades of Ø450 Ø500 mm, precision laser, three-phase motor for models 800 – 1000 – 1200, wheel kit for transport.
ITC
Italy
ITC Italian Top Class GS S.r.l.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
General Characteristics
The Horizontal splitting machine allows doubling the production of the block-cutter by splitting in two pieces thik slabs cut on the latter. Placed on the beginning of the marble line it feeds it continuously increasing production and lowering cost.
The machine is manufactured in two models: with 2 or 4 tables. in the REF1x62, 1 pair of opposed spindles are placed so that every blade can cut half of the width of the material.
The REF4x62, is equipped with two pairs of opposed spindles so that every blade can cut one fourth of the material. This system allows dealing with the cut of hard marbles.
The hardness of the material determines the feed speed of the belt that can be adjusted from 0 to 3m/min.
SNIC
Lebanon
S.N.I.C.- Societe Nahas Pour L'industrie Et Le Commerce
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Our cutting line N.2990/2200-5+7C has been designed to obtain maximum production with minimum operator labor and maximum reliability in the machines that comprise it.
The general dimensions of the production line have been adjusted to the needs of the client, following the criteria established by it, in terms of the dimensions of the pieces to be manufactured and the final products obtained.
The entire line is characterized by the robustness and reliability of the machines that make it up, all of which are designed to withstand the toughest working conditions, and it is precisely in this aspect that we can contribute all the experience accumulated over the years that We have been designing and manufacturing machinery for this sector.
One of the great advantages that we can highlight of the machines of this production line is that they are models with designs that have already been evaluated in their operation, and that they only differ from our series machines in their fundamental dimensions, but not in all the components that they incorporate. .
By means of the NDF-1289 automatic loading car (optional), we will feed the longitudinal cutter with the material coming from a stevedore, the boards are collected by this automatic feeder, through the use of suction cups connected to a vacuum pump that lowers them until put them in a horizontal position, prepared for their advance towards the cutting unit. The boards are picked up from the horizontal stacker and positioned waiting to enter the production line in
such a way that in successive boards the alignment is maintained and it is not necessary to adjust the starting point of the cutter.
The intermediate roller table constitutes the point of union between the feeding car and the longitudinal cutter. In addition, it acts as an intermediate warehouse so that the downtime of the cutting unit is minimal.
The longitudinal cutter with 5 heads on mobile bridge N.8000-L-5C and the transverse cutter with 7 heads N.8000-T-7C, are machines equipped with the latest technological advances in terms of their mechanical and electronic design. What stands out above all are the linear guide systems of the headstock bridge supported by two beams parallel to the cutting table, the first and perpendicular to the second, with precision linear guides and high-precision, high-rigidity recirculating ball slides, on the that it displaces, to carry out the cutting tasks. By alternating the positioning of the cutting heads we can achieve a multitude of measures depending on the needs of the client.
The movable disc holder heads supported on linear guides on the bridge, with recirculating ball sliders, also carry out the vertical movement guided on recirculating ball sliders and driven by a laminated spindle
with recirculating ball nut, to be able to position very quickly. and precision, leaving the entire assembly perfectly protected by PVC bellows.
Head holders equipped with translation movement through a displacement motor reducer controlled by a frequency converter and a magnetic rule for positioning on the X axis, and a head driven by a spindle and an electric motor reducer for vertical positioning of the cut on the Z axis. The positioning of the heads is simultaneously thanks to the independent converters of each head.
The N.2304 cutting tables are built with a steel structure with a rectified upper plane, on which the motorized transport belt rests with a rubber-coated outer surface to prevent the displacement of the material during the cutting phase. A device to stop the stone, located on the table of the second crosscutter, allows to greatly reduce the times during the crosscutting process.
The table N.2590, located at the exit of the longitudinal cutter, has a system of physical stops, actuated pneumatically, that allows the selection of the strips that have been previously cut according to the width for their subsequent processing in the longitudinal cutter.
The second table N.2585 has a dragging device to join and align the strips prior to their processing in the transversal cutter, as well as the removal of longitudinal waste.
The unloading tables with band N.2426 have a frame built based on steel profiles with a transport band for unloading the cutting table, simultaneously, while the crosscutter already receives the next board and is ready to cut.
The Robot – Palletizer N-3530 (optional) with vacuum suction cup, is specially designed to perform automated palletizing tasks, based on the same operating principles applied in standard Nodosafer palletizing, and offers multiple advantages, optimization of work process , reduction of cycle times and efficient use of downtime. The reception suction cup, of particular design, is made up of a rectangular plate, capable of supporting horizontal loads of up to 120 Kgs.
Work areas are protected, limiting access to risk areas by means of protection fences and photocells, to avoid any risk of accident.
All machines and heads are equipped with an implantation system with centralized greasing for quick and easy maintenance.
In the electrical and control installation section, it is worth highlighting the implementation of state-of-the-art automatons with programs custom designed by our technical department, so that the programming of the machines is as simple as possible for the operators, avoiding thus wasting unnecessary time. The programming of the work cycle and the visualization of its sequence is carried out on two operator terminals with a screen, where all the work parameters are displayed, as well as the cutting cycles.
The cutting line N.2990/2200-5+7C basically consists of:
– 1 Intermediate table with motorized plastic rollers, model N.2274.
– 1 Transversal cutter with 7 Ø600 heads and mobile bridge, model N.8000-T-7C.
– 1 Longitudinal cutter with 5 Ø600 heads and mobile bridge, model N.8000-L-5C.
– 2 Cutting tables with motorized band, model N.2304.
– 1 buffer table for sheet metal selection, model N.2590.
– 1 Double displacement table with motorized rollers, model N.2585.
– 2 Motorized band tables for material output, model N.2426.
Nodosafer
Spain
Nodosafer S.L.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Parallel cutting multiheads HLS
Ref. 8601
HLS multi-head parallel machine has high precision and waste reduction.
Long tile slitting is performed continuously, without interruptions using advanced technology that controls spindle movement on the bridge and all phases of processing.
The HLS machines transport tiles on the support table. This table has a continuous rubber strap for immediate removal of debris from the cutting cycle.
HERSEN S.L
Spain
HERSEN S.L
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Our cutting line N.2990/2200-6+9C has been designed to obtain maximum production with minimum operator labor and maximum reliability in the machines that comprise it.
The general dimensions of the production line have been adjusted to the needs of the client, following the criteria established by it, in terms of the dimensions of the pieces to be manufactured and the final products obtained.
The entire line is characterized by the robustness and reliability of the machines that make it up, all of which are designed to withstand the toughest working conditions, and it is precisely in this aspect that we can contribute all the experience accumulated over the years that We have been designing and manufacturing machinery for this sector.
One of the great advantages that we can highlight of the machines of this production line is that they are models with designs that have already been evaluated in their operation, and that they only differ from our series machines in their fundamental dimensions, but not in all the components that they incorporate. .
By means of the NDF-1289 automatic loading car (optional), we will feed the longitudinal cutter with the material coming from a stevedore, the boards are collected by this automatic feeder, through the use of suction cups connected to a vacuum pump that lowers them until put them in a horizontal position, prepared for their advance towards the cutting unit. The boards are picked up from the
horizontal stacker and positioned waiting to enter the production line in such a way that in successive boards the alignment is maintained and it is not necessary to adjust the starting point of the cutter.
The intermediate roller table constitutes the point of union between the feeding car and the longitudinal cutter. In addition, it acts as an intermediate warehouse so that the downtime of the cutting unit is minimal.
The longitudinal cutter with 6 heads on mobile bridge N.8000-L-6C and the transversal cutter with 9 heads N.8000-T-9C, are machines equipped with the latest technological advances in terms of their mechanical and electronic design. What stands out above all are the linear guidance systems of the headstock bridge supported by two beams parallel to the cutting table, the first and perpendicular to the second, with
precision linear guides and high-precision, high-rigidity recirculating ball slides, on the that it displaces, to carry out the cutting tasks.
The movable disc holder heads supported on linear guides on the bridge, with recirculating ball sliders, also carry out the vertical movement guided on recirculating ball sliders and driven by a laminated spindle with recirculating ball nut, to be able to position very quickly. and precision, leaving the entire assembly perfectly protected by PVC bellows.
Head holders equipped with translation movement through a displacement motor reducer controlled by a frequency converter and a magnetic rule for positioning on the X axis, and a head driven by a spindle and an electric motor reducer for vertical positioning of the cut on the Z axis. The positioning of the heads is simultaneously thanks to the independent converters of each head.
The N.2304 cutting tables are built with a steel structure with a rectified upper plane, on which the motorized transport belt rests with a rubber-coated outer surface to prevent the displacement of the material during the cutting phase. A device to stop the stone, located on the table of the second crosscutter, allows to greatly reduce the times during the crosscutting process.
The table N.2590, located at the exit of the longitudinal cutter, has a system of physical stops, actuated pneumatically, that allows the selection of the strips that have been previously cut according to the width for their subsequent processing in the longitudinal cutter. By alternating the positioning of the cutting heads we can achieve a multitude of measures depending on the needs of the client.
The second table N.2585 has a dragging device to join and align the strips prior to their processing in the transversal cutter, as well as the removal of longitudinal waste.
The unloading tables with band N.2426 have a frame built based on steel profiles with a transport band for unloading the cutting table, simultaneously, while the crosscutter already receives the next board and is ready to cut.
The Robot – Palletizer N-3530 (optional) with vacuum suction cup, is specially designed to perform automated palletizing tasks, based on the same operating principles applied in standard Nodosafer palletizing, and offers multiple advantages, optimization of work process , reduction of cycle times and efficient use of downtime. The reception Suction Cup, of particular design, is made up of a rectangular plate, capable of supporting
horizontal loads of up to 120 Kgs.
Work areas are protected, limiting access to risk areas by means of protection fences and photocells, to avoid any risk of accident.
All machines and heads are equipped with an implantation system with centralized greasing for quick and easy maintenance.
In the electrical and control installation section, it is worth highlighting the implementation of state-of-the-art automatons with programs custom designed by our technical department, so that the programming of the machines is as simple as possible for the operators, avoiding thus wasting unnecessary time. The programming of the work cycle and the visualization of its sequence is carried out on two operator terminals with a screen, where all the work parameters are displayed, as well as the cutting cycles.
The cutting line N.2990/2200-6+9C basically consists of:
– 1 Intermediate table with motorized plastic rollers, model N.2274.
– 1 Longitudinal cutter with 6 Ø600 heads and mobile bridge, model N.8000-L-6C.
– 1 Transversal cutter with 9 Ø600 heads and mobile bridge, model N.8000-T-9C.
– 2 Cutting tables with motorized band, model N.2304.
– 1 buffer table for sheet metal selection, model N.2590.
– 1 Double displacement table with motorized rollers, model N.2585.
– 2 Motorized band tables for material output, model N.2426.
CHARACTERISTICS OF MOTORIZED ROLLER TABLE N.2274/2200
Characteristic Specification
table width 2930mm
max length of the table 3500mm
width max. worked 2200mm
forward speed 11.5m/min
Drive motor power 1.5 hp
CHARACTERISTICS BRIDGE CUTTER N.8000-L-600-6C
Characteristic Specification
Machine width 4220mm
Raceway length 6000mm
Max separation between discs 1-6 2200mm (interior)
min separation between discs 1-2-3-4-5-6 300mm
diameter max. cutting disks 600mm
Maximum height pieces to be cut 100mm
Disc motor power 15 hp (6)
Total installed power 100 hp
Water consumption per disc 15 – 20 l/min
CHARACTERISTICS BRIDGE CUTTER N.8000-T-600-9C
Characteristic Specification
Machine width 5370mm
Raceway length 5500mm
Max separation between discs 1-9 3500mm (indoors)
min separation between discs 1-2-3-4-5-6-7-8-9 300mm
diameter max. cutting disks 600mm
Maximum height pieces to be cut 100mm
Disc motor power 15 hp (8)
Total installed power 150 hp
Water consumption per disc 15 – 20 l/min
CHARACTERISTICS OF CUTTING TABLES WITH BELT N.2304/2200
Characteristic Specification
table width 2960mm
max length of the table 4044mm
width max. band 2200mm
Belt displacement speed 11.5m/min
Drive motor power 3 hp
CHARACTERISTICS OF ROLLER TABLE WITH SELECTION STOPS N.2590/2200
Characteristic Specification
table width 2930mm
max length of the table 3700mm
width max. worked 2200mm
Roller advance speed 11.5m/min
Roller drive motor power 1.5 hp
CHARACTERISTICS OF MOTORIZED ROLLER TABLE WITH DOUBLE DISPLACEMENT N.2585/2200
Characteristic Specification
table width 2930mm
max length of the table 3900mm
width max. worked 2200mm
Roller advance speed 11.5m/min
Roller drive motor power 1.5 hp
Centering displacement speed 5m/min
Motor power after cross 2.5 hp
CHARACTERISTICS OF MOTORIZED BELT TABLES N.2426/2200
Characteristic Specification
table width 2930mm
max length of the table 3500mm
width max. worked 2200mm
Roller advance speed 11.5m/min
Roller drive motor power 2 hp
CHARACTERISTICS LOADING TROLLEY N.1289-V
Characteristic Specification
table dimensions 1880×3200mm
Frame dimensions 2560×1140mm
vacuum center 30 m3/h / 1.35 hp
Hydraulic power plant 4 hp
Carriage advance motor power 0.75 hp
Table motor power 0.50CV
speed scrolling cart 5m/min
speed displacement pins 7.5m/min
width max. worked 2200mm
CHARACTERISTICS ROBOT-MANIPULATOR N-3530
Characteristic Specification
Max load capacity 120 kg.
min format of work 300x300mm
vacuum center 100m3/h
Installed potency. 25 hp
cycle time min. 10” sec
Nodosafer
Spain
Nodosafer S.L.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
General Characteristics
The SNM-CCE is a mono-block crosscutting machine with a single diamond blade that transforms slabs cut on the block-cutter into tiles of desired length.
The main structure is made of heavy-duty steel, and the disk is directly mounted on the motor.
A brushless AC motor with inverter powers the forward and return movements of the head.
When cutting the last few millimeters, the machine will automatically reduce its speed in order to guarantee a perfect edge.
Electric cables and tubes for tool cooling are supported by nylon cable holding chains.
SNIC
Lebanon
S.N.I.C.- Societe Nahas Pour L'industrie Et Le Commerce
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
General Characteristics
The new SNIC Multiple Cross Cutter machines offer extraordinarily high performance and productivity to eliminate the old bottle-necks caused by spindle translation for strip cutting.
These cutting machines, which are structurally identical, process strips up to a width of 600 mm or 800 mm and thanks to their powerful 7.5 hp motors, they cut in a single passage thickness up to 70 mm on marble. The SNIC-MCC cuts strips up to 3000 mm long and can mount up to 7 spindles with manual or sequential positioning.
The cutting movement of the disks is ensured by a single bridge sliding on high accuracy runner blocks with electronically adjustable cutting speed.
The cutting cycle is completely automated, without the intervention of the operator:
The marble strip to be sawn advances on a conveyor belt sliding over the milled table of the machine and stops automatically against a reference limit switch
The milled table automatically goes up to lift the strip away from the conveyor belt
The aligner/pusher pistons align the strip and push it against the side of the milled table
The Bridge moves the disks to cut
The cut finished, the bridge moves back to initial position
The milled table goes down and the conveyor belt moves the cut strips automatically to a motorized rollers.
SNIC
Lebanon
S.N.I.C.- Societe Nahas Pour L'industrie Et Le Commerce
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
$4500-5000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
SY-S81, whose oil pump is installed above the machine and this creates a good airproof result that protects the oil pump from stone dust. The machine's oil tank is enlarged, equipped with quality engine exported to overseas and front-door lock design which is convenient for repairing and maintenance. It has a good apperance, longevity and manual handle gives a sate operation.
China
FuJian WanLong Diamond Tools CO,.LTD
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Marble, Limestone, Slate, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
Special machine for dividing strips of marble with a width from 150 to 460 mm into two parts. and a thickness from 20 to 100 mm.
Italy
Guglielmi Macchine Marmi e Graniti srl
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
$4500-5000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The machine uses joined structure, the main head can rotate 45 degree, and be electrically moving up and sown, the whole machine has compact structure, stable functions and high cutting precision.
China
Fujian Province Kaida Stone Machinery Co.,Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Number of Head : 2/3 Adet
Diameter of Blade : 350 mm
Blade Motor Power : 5,5 kW
Motor Rotation : 3000 devir/dk
Max. Working Thickness : 30 mm
Max. Working Width : 650-1200 mm
Min. Working Width : 70 mm
Turkey
Ozteknik Makine
Contact Supplier
Have a Question? Ask our expert
Ask now
Questions & Answers on Slate Tile Cutting Machines
Can I cut stone with a table saw?
Posted by Visitor
Reply to this question
Post ReplyCancel
You can use a table saw to cut stone if the saw has a diamond blade that is kept continually wet while cutting. A regular table saw blade will not create a smooth cut. The blade will chip the stone and will also produce a large amount of dangerous silica dust. A table saw is great for everyday projects.
Answered by StoneContact
Like
How can natural stone be cut with a tile saw?
Posted by Visitor
Reply to this question
Post ReplyCancel
Wet your stone in a bowl or bucket of water to prevent an initial dry cut. Place the stone on the opposite end of the tile saw from yourself. Pull the stone gently towards you, using the saw blade to cut down your marked line. Allow the saw blade to cut the rock, rather than putting a lot of pressure on it.
Answered by StoneContact
Like
