ENZO 500S FULL BRIDGE MILLING MACHINE AT 4 AXES
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Sandstone
After-Sale
Warranty:12 Months
Supplier
Eatablished :Dec 31,2000
Main Product:
CNC-Numerical Control Machining Centres- Floor Honing Machines- Water-Jet Cutting Machines -Block Cutting Machines-Cutters|
You may also like
Machinery Function Features

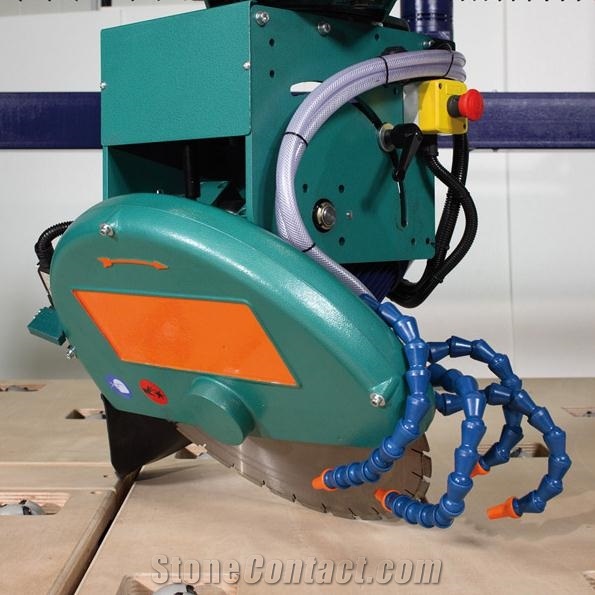

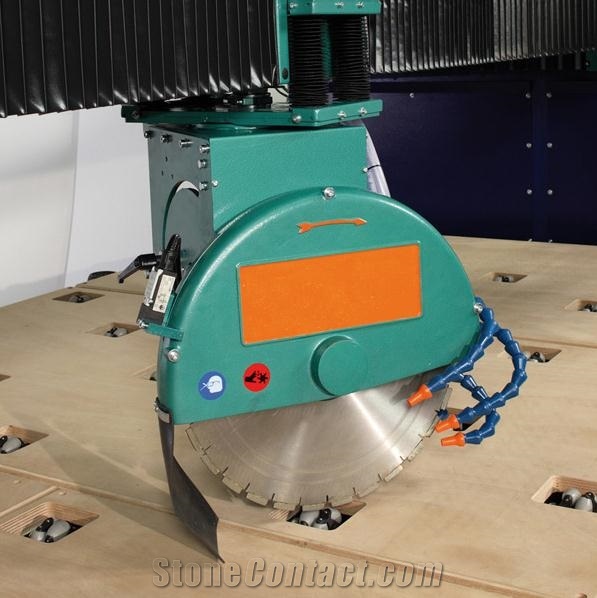

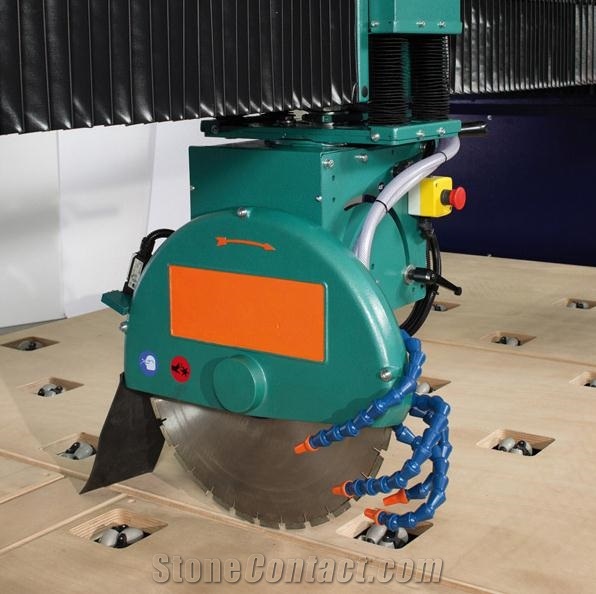

Sawing machine with 4 interpolated axes managed by CNC. Sturdy monolithic structure, cast iron based side supports and working head to ease vibration while working.
This machine executes several operations from cutting (orthogonal, circular or kitchen top) to profiling operations.
This model is equipped with a simple control managed by brushless motors and a touch screen control panel.
Strengthened basement frames equipped with linear guides and bearings; Endless screw and bearing unit; PVC protective caps for transmission units. The working bench is equipped with a kit rolls to place the sheets with pneumatic system.
This machine was developed for suite professional marble workers with particular attention to kitchen top working operations.
Technical Data
Parameters |
Unit |
ENZO 500S FULL |
Horizontal stroke(X axis travel) |
mm |
3200 |
Spindle diameter |
mm |
40 |
Disc diameter |
mm |
Max.500 , Min.300 |
Head raising/lowering stroke(Z axis travel) |
mm |
300 |
Disc motor power |
kw |
8 |
Bridge transversal stroke(Y axis travel) |
mm |
1800 |
Head rotation on Z-axis |
° |
0-365° |
