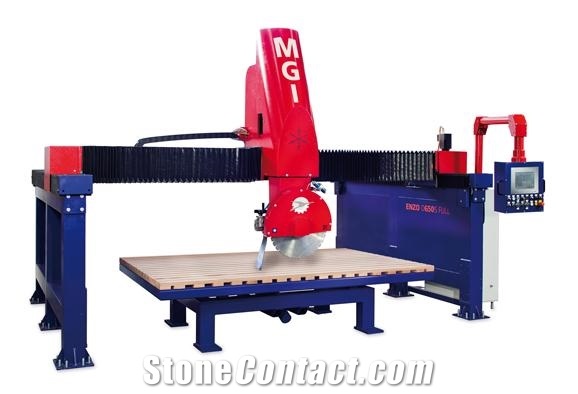

ENZO 650S FULL AUTOMATIC BRIDGE CNC MACHINE AT 5 INTERPOLATED AXES
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Sandstone
After-Sale
Warranty:12 Months
Supplier
Eatablished :Dec 31,2000
Main Product:
CNC-Numerical Control Machining Centres- Floor Honing Machines- Water-Jet Cutting Machines -Block Cutting Machines-Cutters|
Machinery Function Features
Bridge milling machine up to 5 interpolated axes.
Sturdy structure, cast iron side supports and working head to ease vibration while working.
This machine executes several cutting operation (orthogonal, circular or angled cuts) and profiling operations.

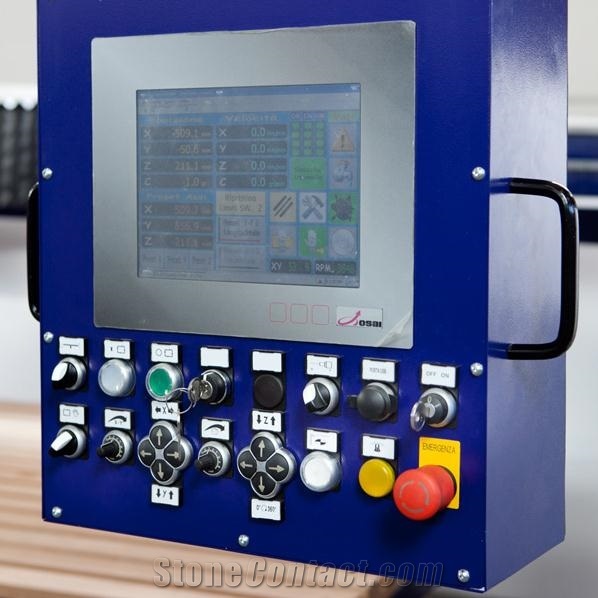

Advanced CNC system and brushless motors to manage all machine movements (axis X-Y-Z-C-A).

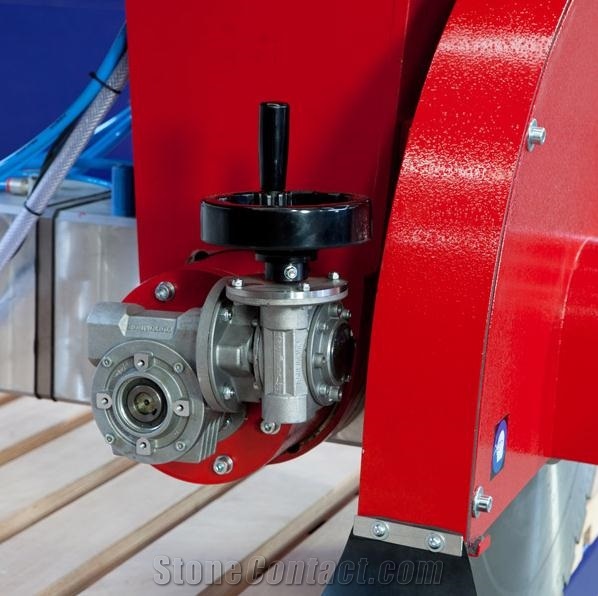

The C-axis is managed by a 0 backlash gearbox for high accuracy.
Strengthened basement frames equipped with linear guides and bearings; Endless screw and bearing unit; PVC protective caps for transmission units. Fixed working bench made of a double crossed marine wood layer.
This machine model was designed to meet the needs of professional marble workers and allows high performance manufacturing processes.
Technical Data
Parameters |
Unit |
ENZO 650S FULL |
Disc diameter |
mm |
Max.650 , Min.400 |
Head raising/lowering stroke(Z axis travel) |
mm |
500 |
C axis blade rotation |
° |
0°-365° |
Spindle diameter |
mm |
40 |
Disc motor power |
kw |
20 |
Bridge transversal stroke(Y axis travel) |
mm |
2500 |
Dimensions of the work table(L×W) |
mm |
3000 x 2000 |
Horizontal stroke(X axis travel) |
mm |
3200 |

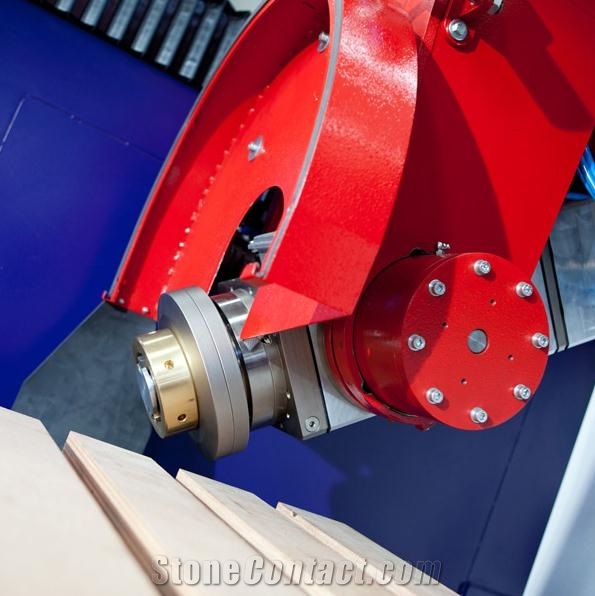

Tools holder head inclination(A axis blade rotation) |
° |
-5°-95° |
