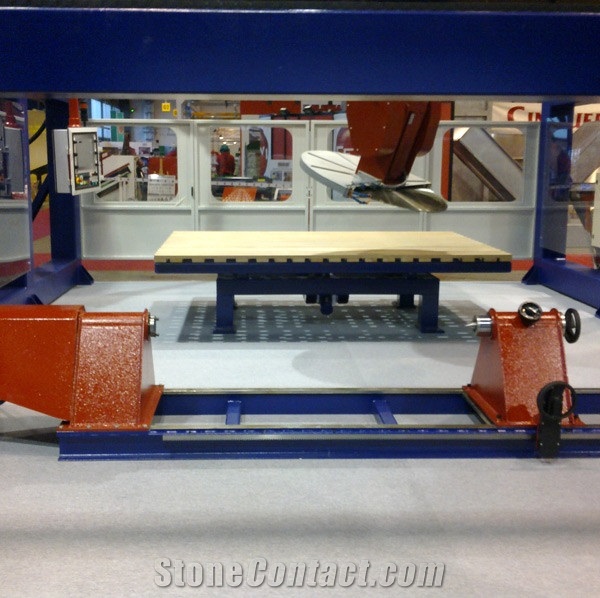

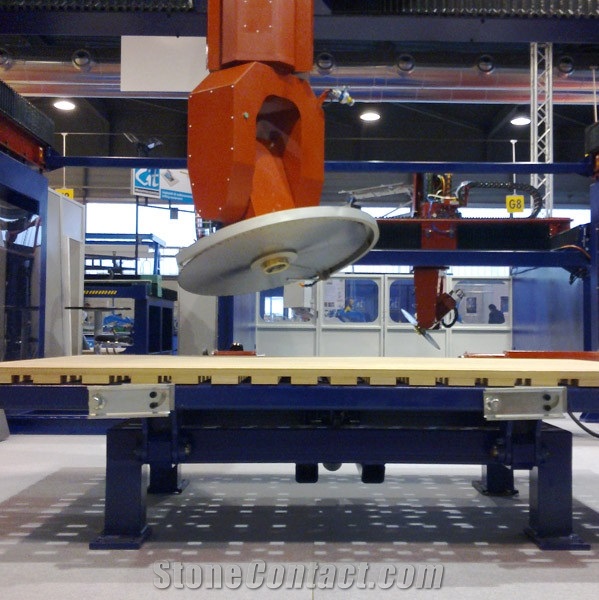

ENZO 1400S FULL CNC BRIDGE MILLING MACHINE
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Sandstone
After-Sale
Warranty:12 Months
Supplier
Eatablished :Dec 31,2000
Main Product:
CNC-Numerical Control Machining Centres- Floor Honing Machines- Water-Jet Cutting Machines -Block Cutting Machines-Cutters|
Machinery Function Features
Bridge milling machine up to 7 interpolated axes managed by CNC, Sturdy structure, cast iron based side supports and working head to ease vibration while working.
This machine executes several operations such as orthogonal, circular, angled cuts, shaping, edge trimming and other milling operations through an advanced software system.
Advanced CNC system and brushless motors to manage all machine movements (axis X-Y-Z-C-A).
Hydraulic electro spindle ISO 50; water cooling system and tool change.
Strengthened basement frames equipped with linear guides and bearings, endless screw and bearing unit, PVC protective caps for transmission units.
This model has no working operation limits and allows high performance manufacturing processes.
Technical Data
Parameters |
Unit |
ENZO 1400S FULL |
Horizontal stroke(X axis travel) |
mm |
4000 |
Disc motor power |
kw |
37 |
C axis blade rotation |
° |
0°-365° |
Disc diameter |
mm |
Min.800 , Max.1400 |
Bridge transversal stroke(Y axis travel) |
mm |
3800 |
Tools holder head inclination(A axis blade rotation) |
° |
-10°- 100° |
Dimensions of the work table(L×W) |
mm |
3000 x 3000 |
Head raising/lowering stroke(Z axis travel) |
mm |
1600 |

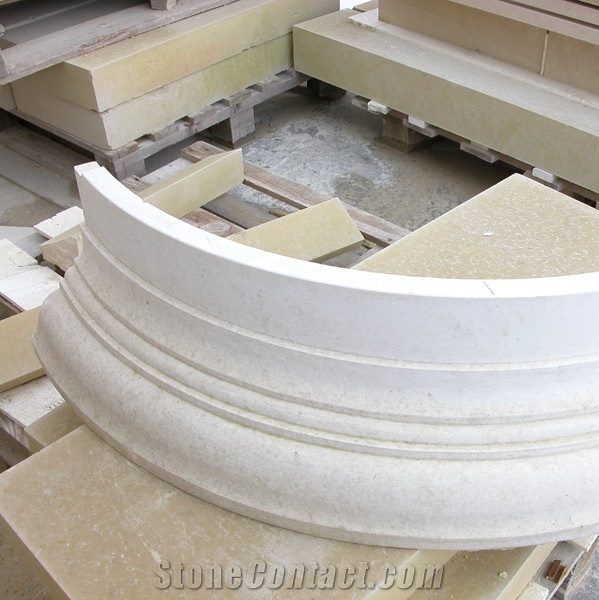

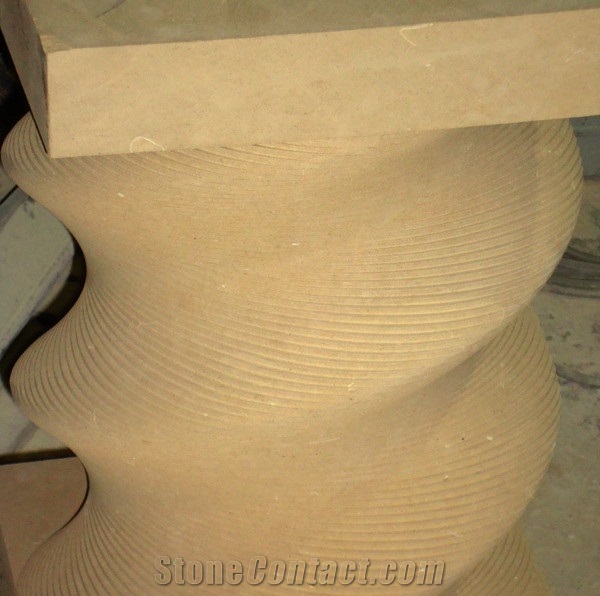

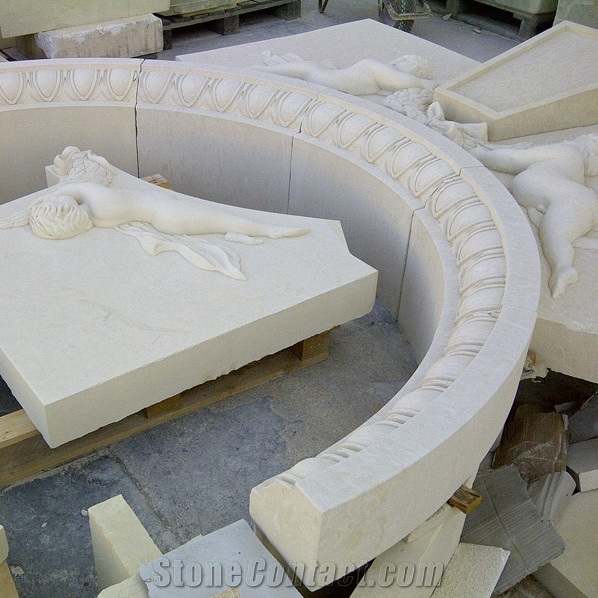

Processed Stone Photos
