ENZO 400A BRIDGE SAWING MACHINE - 2 AXES
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Sandstone
After-Sale
Warranty:12 Months
Supplier
Eatablished :Dec 31,2000
Main Product:
CNC-Numerical Control Machining Centres- Floor Honing Machines- Water-Jet Cutting Machines -Block Cutting Machines-Cutters|
Machinery Function Features

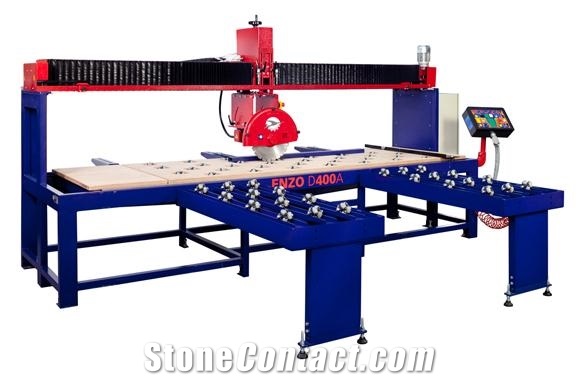

2-axes sawing machine (X-Y) based on sturdy structure with cast iron supports and working head to ease vibration while working. Very easy to use and high accurate cutting operations up to 3200mm length.

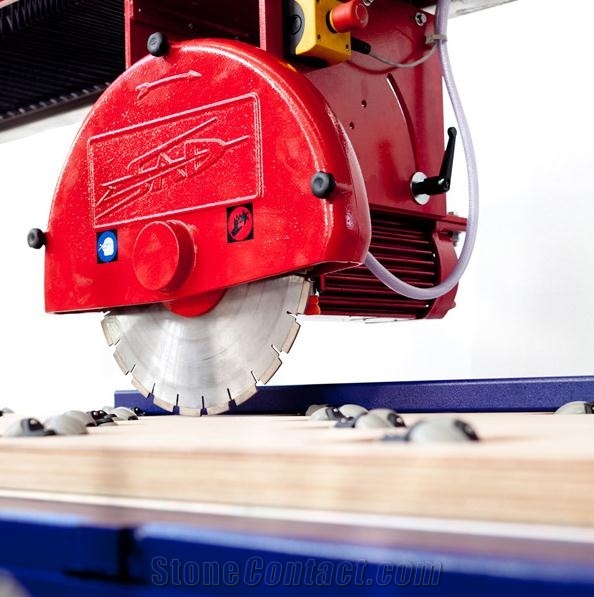

Automatic sliding of the working unit and inverter for speed control, cut operations program, motorized vertical adjustment. Head tilt for 0°-45° cuts.
The working unit slides along a sturdy frame with linear guides for the best cutting accuracy.

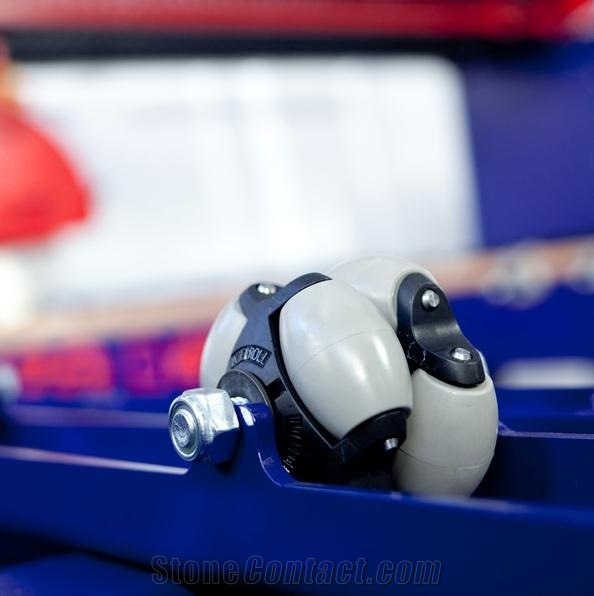

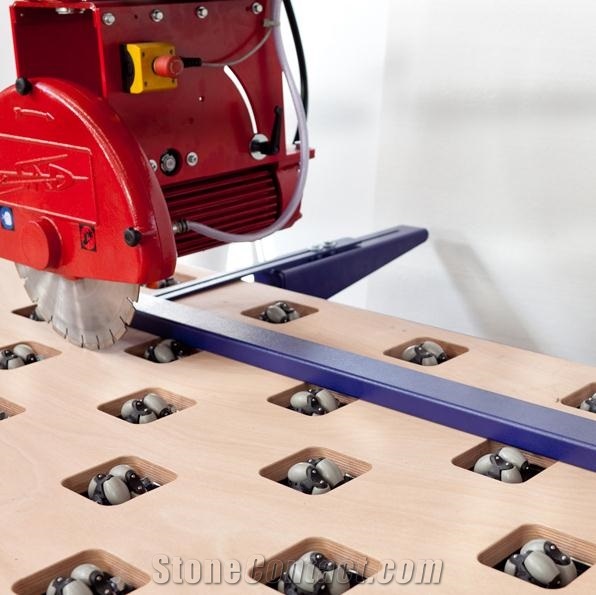

Marine wood working bench with rolls, pneumatic lifting, water tank with nr.2 pumps.
Enzo D400A is a basic machine for any stone working company.
Technical Data
Parameters |
Unit |
ENZO 400A |
Horizontal stroke(X axis travel) |
mm |
3200 |
Spindle diameter |
mm |
40 |
Disc diameter |
mm |
Max.500 , Min.350 |
Disc motor power |
kw |
8 |
Head raising/lowering stroke(Z axis travel) |
mm |
270 |
