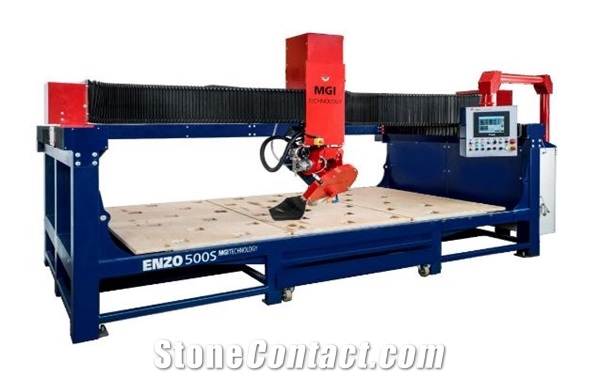

ENZO 500S CNC BRIDGE CUTTING MACHINE AT 4 INTERPOLATED AXES
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Sandstone
After-Sale
Warranty:12 Months
Supplier
Eatablished :Dec 31,2000
Main Product:
CNC-Numerical Control Machining Centres- Floor Honing Machines- Water-Jet Cutting Machines -Block Cutting Machines-Cutters|
Machinery Function Features
Bridge sawing machine at 4 axes (manual fifth axis).
Sturdy monolithic structure, cast iron based side supports and working head to ease vibration while working.
Machine equipped with a simple CN to executes different working operations such as cutting of marble or granite sheets and profiling operation by means of blade.
Touch screen panel control with USB ports.
Strengthened basement frames equipped with linear guides and bearings; Endless screw and bearing unit;
The working bench is equipped with a kit rolls to place the sheets with pneumatic system.
This machine model was developed to suite medium/small marble workers especially for sheet section working operations.
Technical Data
Parameters |
Unit |
ENZO 500S |
Head rotation on Z axis |
° |
0-360° |
Disc diameter |
mm |
Max.525 , Min.400 |
Horizontal stroke(X axis travel) |
mm |
3200 |
Spindle diameter |
mm |
40 |
Disc motor power |
kw |
8 |
Head raising/lowering stroke(Z axis travel) |
mm |
300 |
Bridge transversal stroke(Y axis travel) |
mm |
1800 |
