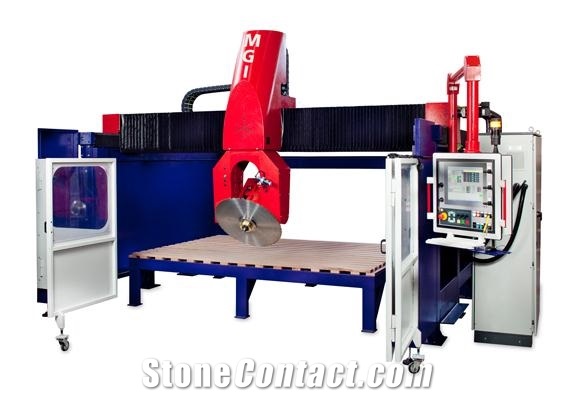

ENZO 850S FULL CNC BRIDGE MILLING MACHINE
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Sandstone
After-Sale
Warranty:12 Months
Supplier
Eatablished :Dec 31,2000
Main Product:
CNC-Numerical Control Machining Centres- Floor Honing Machines- Water-Jet Cutting Machines -Block Cutting Machines-Cutters|
Machinery Function Features
Sturdy structure, cast iron based side supports and working head to ease vibration while working.
This machine executes several operations such as orthogonal, circular, angled cuts, shaping, edge trimming and other milling operations.
Advanced CNC system to manage all machine movements (axis X-Y-Z-C-A). On board computer.

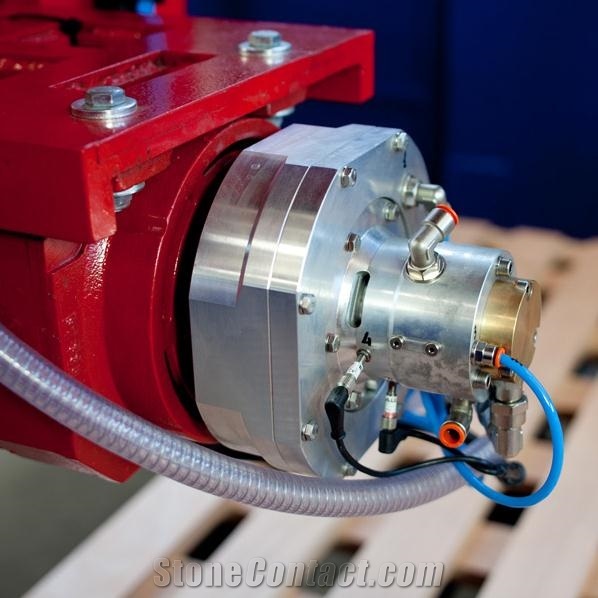

Pneumatic spindle ISO 40,water cooling system and tool change.
Y-axis managed by 2 brushless motors with 0 backlash gearbox for high accuracy.
Machine suitable to work with lathe Ø600mm. Power 52N.
Strengthened basement frames equipped with linear guides and bearings; Endless screw and bearing unit; PVC protective caps for transmission units. Fixed working bench made of a double crossed marine wood layer
This models allows high performance manufacturing processes.
Technical Data
Parameters |
Unit |
ENZO 850S FULL |
Tools holder head inclination(A axis blade rotation) |
° |
-5°-95° |
Head raising/lowering stroke(Z axis travel) |
mm |
700 |
Disc diameter |
mm |
Max. 850 , Min.500 |
Bridge transversal stroke(Y axis travel) |
mm |
2500 |
Dimensions of the work table(L×W) |
mm |
3200 x 2000 (3500x3000 upon request) |
Horizontal stroke(X axis travel) |
mm |
3000 |
C axis blade rotation |
° |
0°-365° |
Disc motor power |
kw |
25 |
