Donatoni ECHO TWIN and SPRINTER TWIN CNC Twin Bridge Saws
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting
Machinery Function Features
The TWIN bridge saws are the right solution for the companies willing to reduce costs, cut-off downtime, and increase production capacity. Thanks to the patented system of benches exchange the bridge saws, ECHO TWIN and SPRINTER TWIN, allow to increase productivity of kitchen tops, floors and coverings up to 70%.

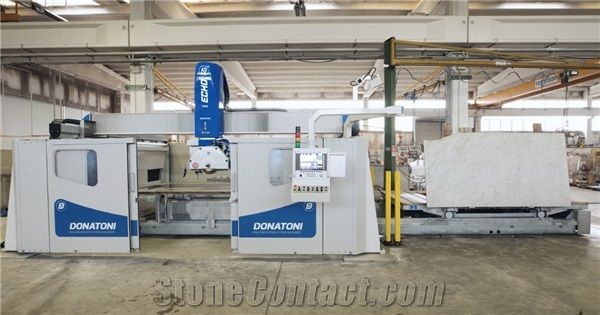

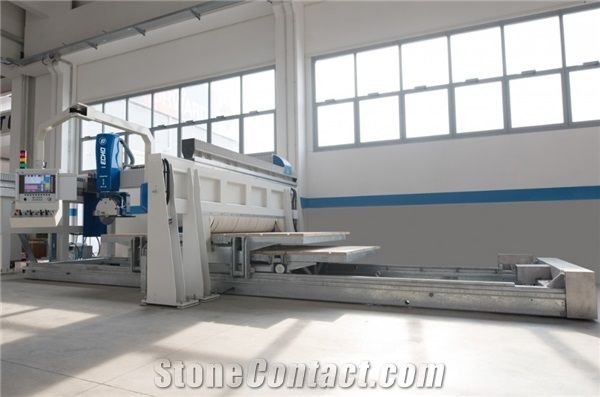

The Twin System consists of a double bench with automatic system of benches exchange, it lays on a rails-monoblock frame, on which the two benches are alternatively moving between cutting and unloading areas.
The operator can carry-out unloading, loading and programming operations on the 1st bench while the machine is working on the 2nd bench.
TWIN system advantages:
Increase of production capacity
Only 1 operator needed
2 saws in 1: possibility to use the machine for cutting (optimized with the advantages of the Twin System) and for shaping operations.
Technical Data
Parameters |
Unit |
ECHO TWIN |
SPRINTER TWIN |
Z-axis working travel vertical cutting spindles |
mm |
600 |
800 |
Max. workable thickness |
mm |
100 |
100 |
Disc diameter |
mm |
350 min, 750 max. |
350 min, 825 max. |
Max number of interpolated axes |
nr |
5/6 |
5/6 |
Tools holder head inclination(A axis blade rotation) |
° |
-0°/90° |
-0°/90° |
Max. cutting depth |
mm |
180 (superiore) 250 (inferiore) |
280 (superiore) 300 (inferiore) |
Dimensions of the work table(L×W) |
mm |
3800 x 2400 x H 900 (superiore) 3800 x 2300 x H 640 (inferiore) |
3800 x 2400 x H 900 (superiore) 3800 x 2300 x H 640 (inferiore) |
C axis blade rotation |
° |
-5°/+365° |
-5°/+365° |
