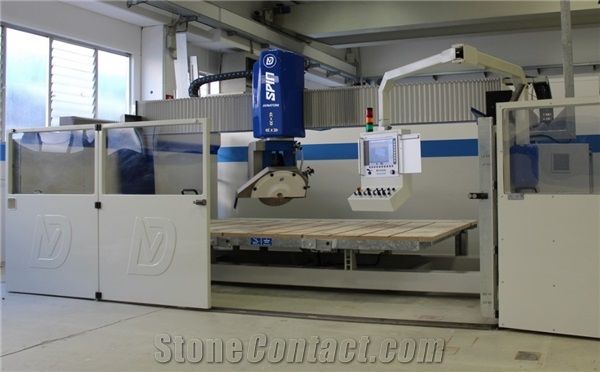

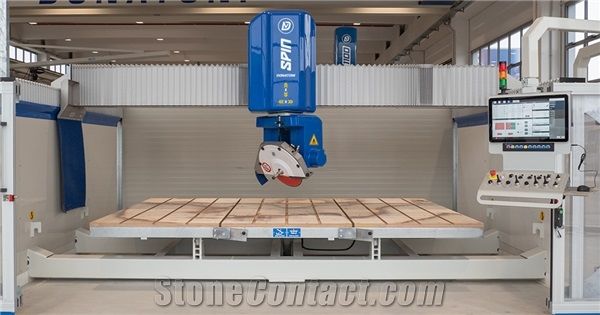

Donatoni Spin 625 CNC 5 Interpolated Axis Bridge Saw Machine

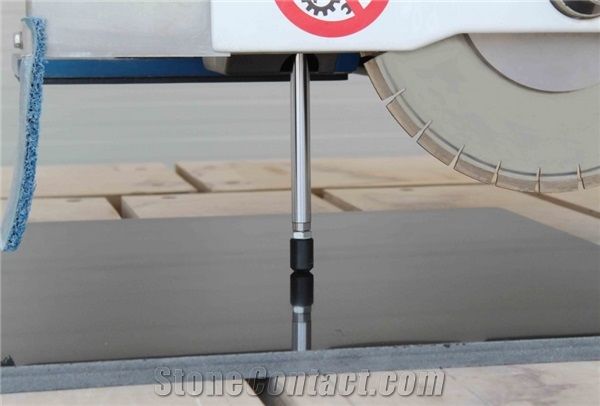

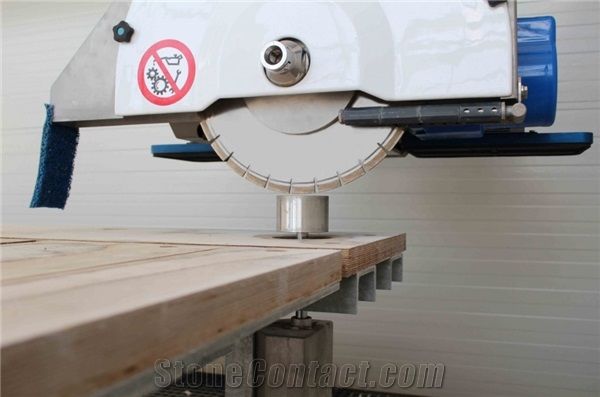

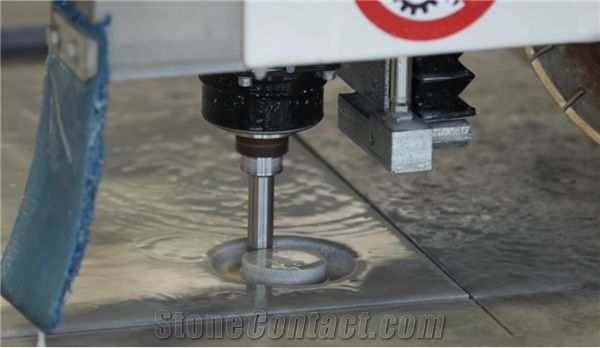

The SPIN 625 CNC is a 5 interpolated axis simple and compact bridge cutter, ideal for the production of kitchen tops, vanity tops, shower trays and claddings for the building industry in marble, granite and artificial stone. It allows to perform several types of processing such as orthogonal cuts up to 200 mm thickness, oblique, circular, elliptical, inclined, togheter with milling, drilling and straight, concave, convex, arched or elliptical shapes. The SPIN 625 CNC is equipped with invertercontrolled electro-spindle and is fitted with diamond tools, such as an end mill, excavation wheel and horizontal blade. Thanks to X and Y axes sliding system on linear guides with recirculating balls and racks with hardened and ground steel teeth both with automatic centralized grease lubrication, the SPIN 625 CNC allows to obtain finished products extremely fine and precise. The motion is given by brushless motors coupled to high precision gearboxes. It is supplied complete with a series of optional and hot-galvanized monoblock structure that does not require foundations, allowing installation and startup in a very short time.
