Two-Hammer Rock Driller For Quarrying- Quarry Drilling Machine
FOB Price:$17000-20000
Type:
Stone Quarry MachinesQuarry Drilling MachinePneumatic Drill Machine
Usage:
Granite, Marble, Limestone, Sandstone, Travertine
After-Sale
Lead Time:
20 WORKING DAYS AFTER DEPOSIT
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Regular guidance & maintenance
Trade Terms
Port:
XIAMEN- China
Delivery Details: FOB,CFR,CIF,EXW,CIP,FCA,Express Delivery
Payment :
Supplier
Eatablished :Dec 11,2020
Main Product:
Quanzhou Faithful Machinery, Stone Quarry Machine, Stone Processing Machine, Concrete Cutting Machine, Diamond Wire Saw, Diamond Tools|
Machinery Function Features

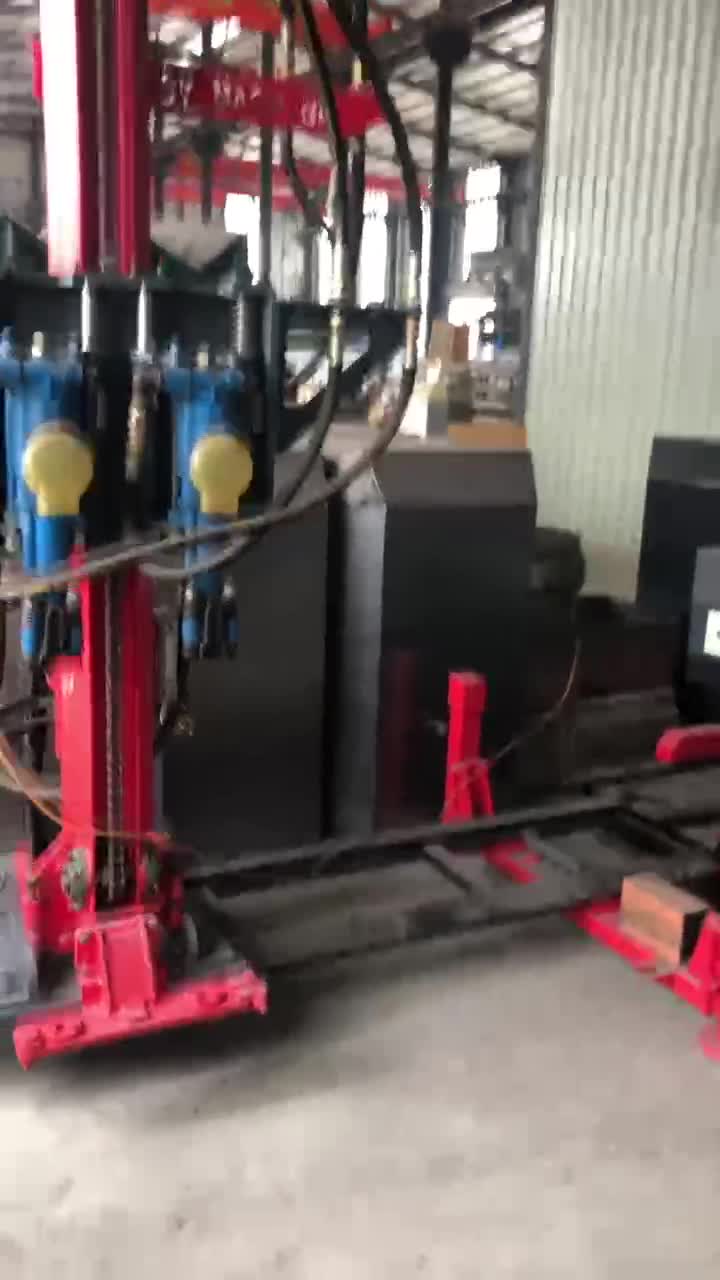

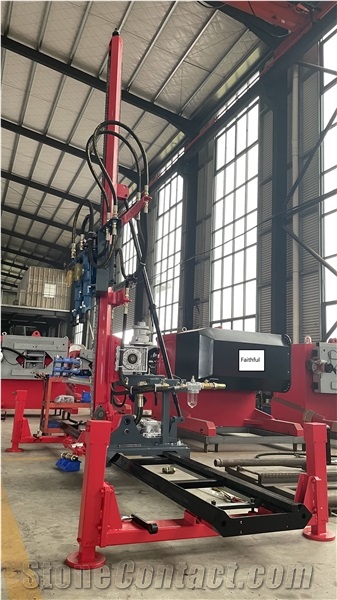

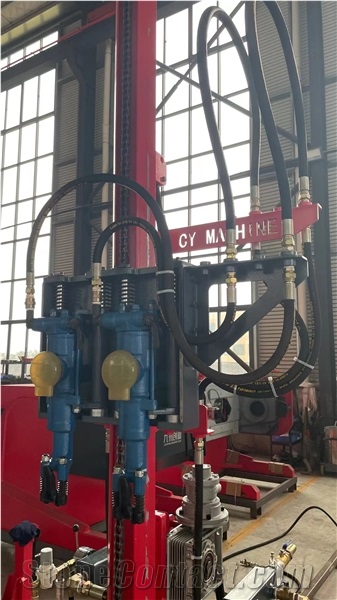

Two-Hammer Rock Driller

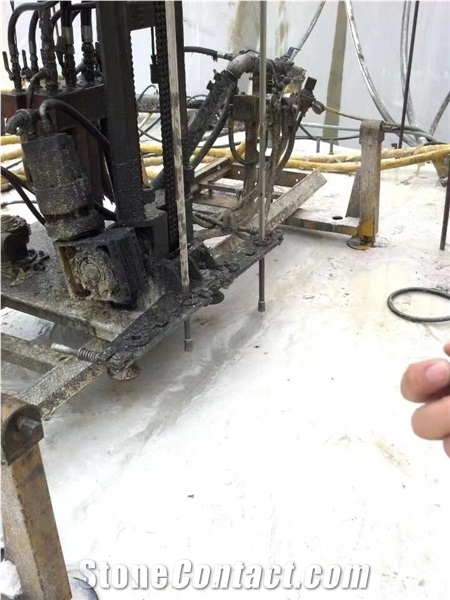

Multifunctional rock driller is mainly used in quarrying, available for horizontal, vertical, and slantwise drilling, and dividing large blocks into smaller pieces.
Technical Data
Parameters |
Unit |
FMPD-29-2H |
Air consumption at 6 bar |
29 |
8-10 |
Approximate Weight |
26 |
1000 |
Software
MODEL: FMPD-29-2H; HAMMER:2-YT29A; AIR COMSUMPTION:8-10M3/MIN; AIR PRESSURE:0.7MPA; WEIGHT:900KGS; OVERALL SIZE:360X380X120CM
|
Drill depth |
Max.6m |
|
Single rod drill speed |
5-20m/h |
|
Single advance |
2m |
|
Air consumption |
10-12m/min |
|
Air pressure |
0.5-0.7Mpa |
|
Track travel |
1x4m |
|
Advance power |
1.5KW |
|
Total weight |
1000KG |
Processed Stone Photos
Components
-

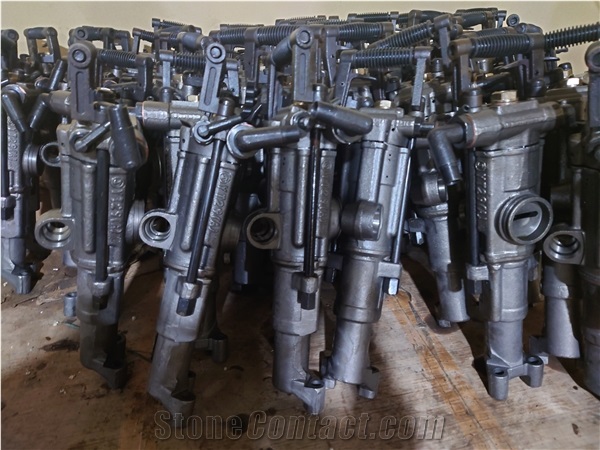

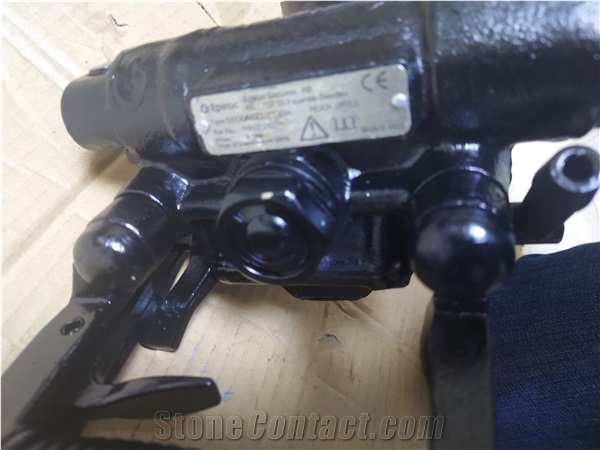

YT-29A
¥Payment Required
Consumables
-
YT-29A
Video
Install Video
Operation Video
