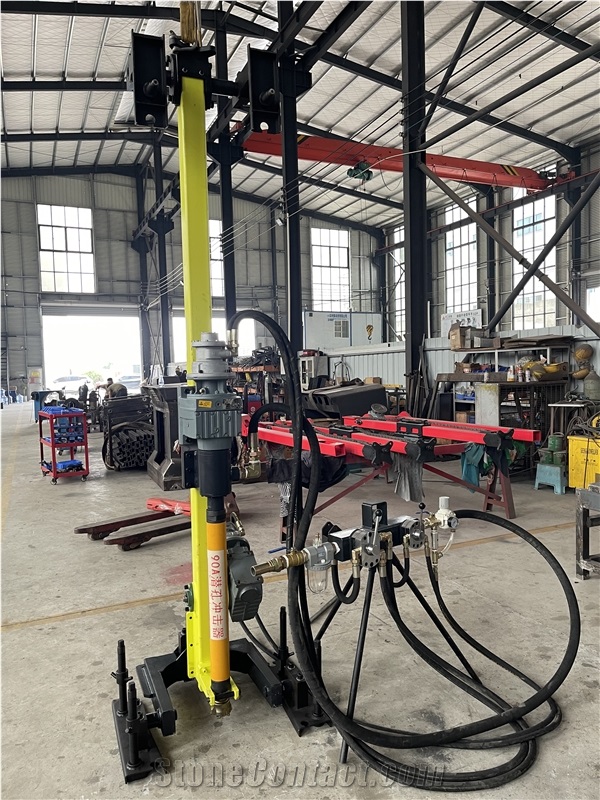

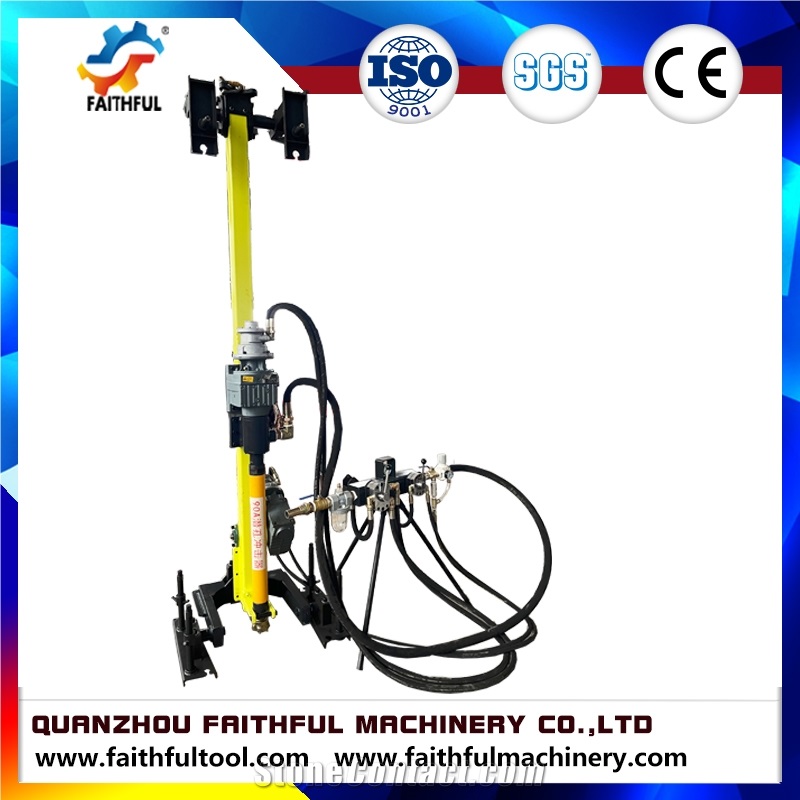

Pneumatic D-T-H Quarry Driller, Pneumatic Drill Machine
FOB Price:$3800-4200
Type:
Stone Quarry MachinesQuarry Drilling MachinePneumatic Drill Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
5-10 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Trade Terms
Port:
XIAMEN- China
Delivery Details: FOB,CFR,CIF,EXW,CIP,FCA,Express Delivery
Payment :
Supplier
Eatablished :Dec 11,2020
Main Product:
Quanzhou Faithful Machinery, Stone Quarry Machine, Stone Processing Machine, Concrete Cutting Machine, Diamond Wire Saw, Diamond Tools|
Machinery Function Features
It is driven by compressed air, available for horizontal, vertical and slantwise drilling holes for the passage of diamond wire. The machine is to assist diamond wire saw machine working in stone quarries.
Technical Data
Parameters |
Unit |
FMPD-90B |
Usable extension rods diameter Φ |
mm |
60-76 |
Theorical drilling speed for Granite |
cm/min |
600-800 |
Total compressed air consumption |
L/min |
13 |
Holes diametre Φ |
mm |
65-90 |
Total weight (without hammer) approx |
Kg |
380 |
Theorical drilling speed for Marble |
cm/min |
800-10000 |
Usable extension rods length |
mm |
1000-1500 |
Start of drilling process rod |
mm |
60-76 |
Height of Drill Guide |
mm |
2400 |
Processed Stone Photos
-
Marble
Components
-

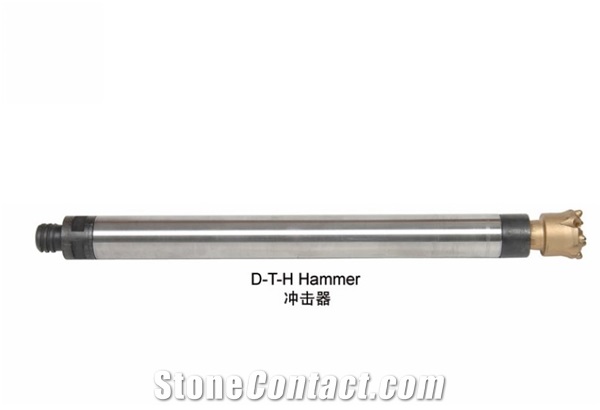

DTH HAMMER
¥Payment Required
Consumables
-

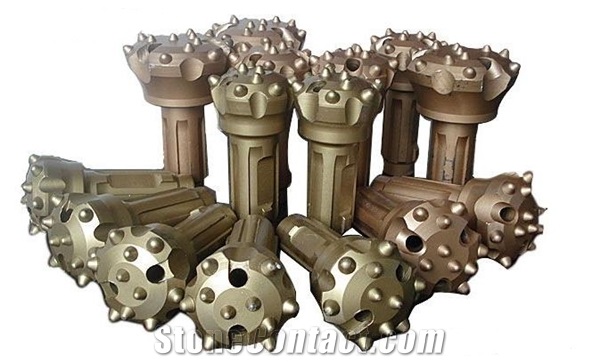

DTH BIT
CIR90
Video

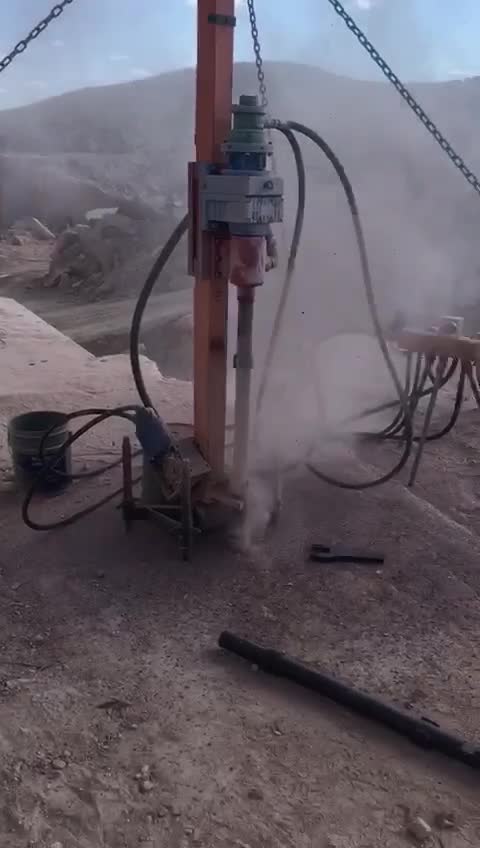

Operation Video
Screen.PrimaryScreen.Bounds.Height
