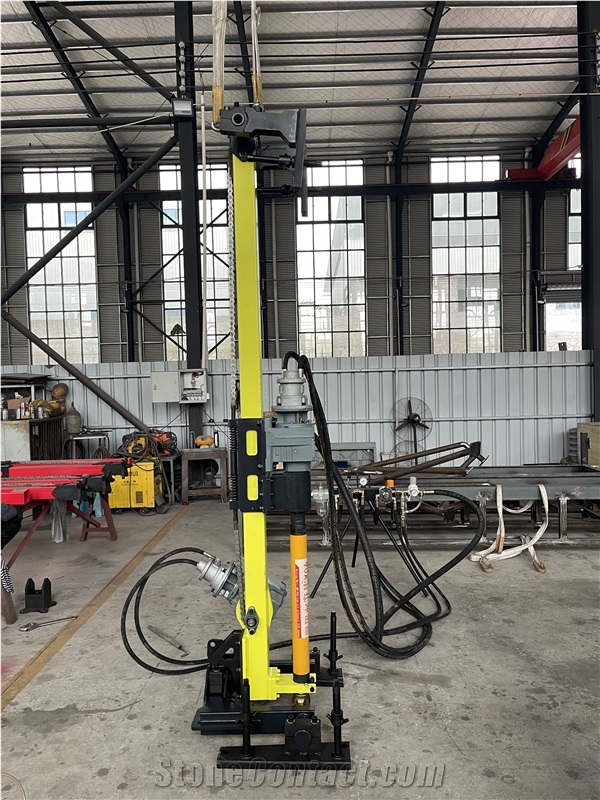

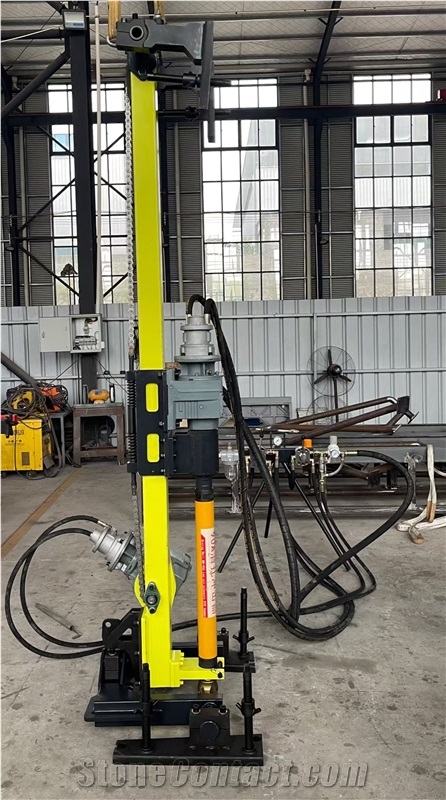

Pneumatic DTH Quarry Drilling Machine FMPD-90B
FOB Price:$3500-4250
Type:
Stone Quarry MachinesQuarry Drilling MachinePneumatic Drill Machine
Usage:
Granite, Marble, Limestone, Onyx, Artificial Stone, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
20 working days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Trade Terms
Port:
XIAMEN- China
Delivery Details: FOB,CFR,CIF,EXW,CIP,FCA,Express Delivery
Payment :
Supplier
Eatablished :Dec 11,2020
Main Product:
Quanzhou Faithful Machinery, Stone Quarry Machine, Stone Processing Machine, Concrete Cutting Machine, Diamond Wire Saw, Diamond Tools|
Machinery Function Features
Model: FMPD-90B
Pneumatic DTH drilling machine for vertical and horizontal drilling, total compressed air consumption:11-13 m³/min. including 1 DTH hammer, 6 tube and 1 DTH bit (it can adjust according to your needs)
Technical Data
Parameters |
Unit |
FMPD-90B |
drilling direction |
any direction |
|
Total weight (without hammer) approx |
Kg |
380 |
rotation device motor and power |
pneumatic motor 3kw, reducer |
|
single stroke |
m |
1 |
drilling depth |
m |
5-40 |
adjust height of the down jack |
mm |
220 |
min.air pressure |
mpa |
0.5-0.7 |
Theorical drilling speed for Granite |
m/h |
6-8 |
Length of Rails |
m |
1 |
feeding device motor and power |
pneumatic motor 1.5kw, reducer |
|
Total compressed air consumption |
m3/min |
11-13 |
Holes diametre Φ |
mm |
65-90 |

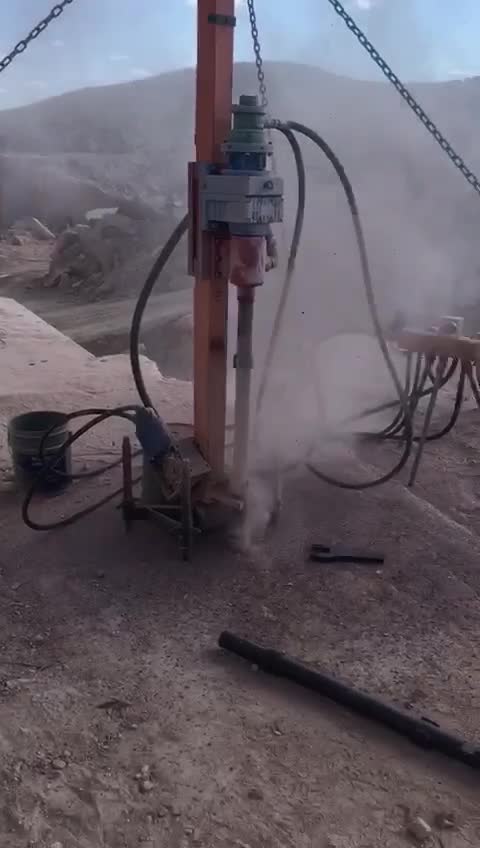

Processed Stone Photos
-

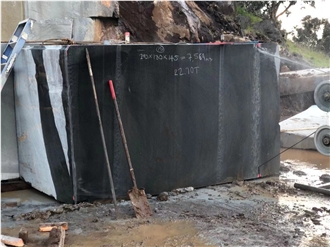

granite quarry
Components
-

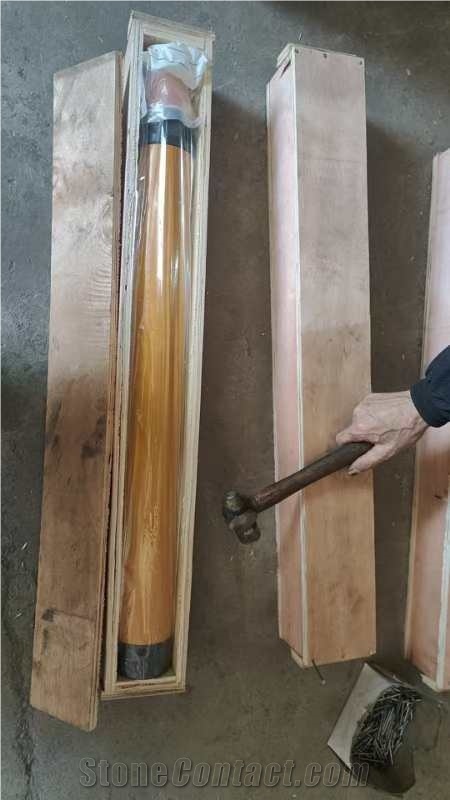

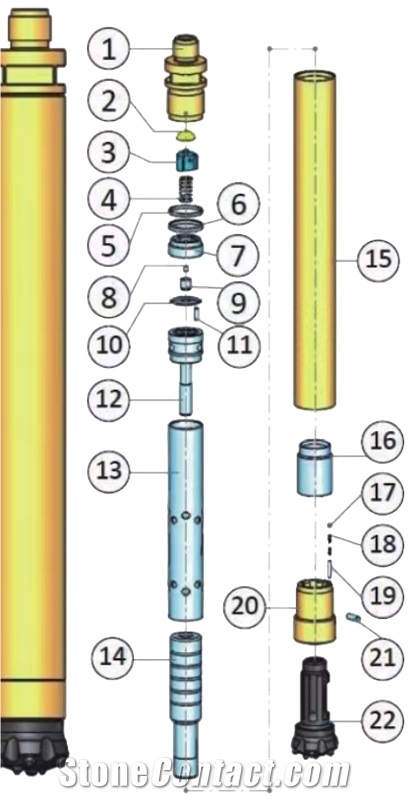

DTH hammer
¥Payment Required -

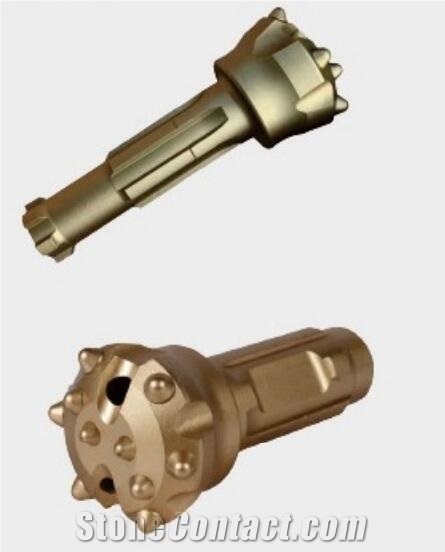

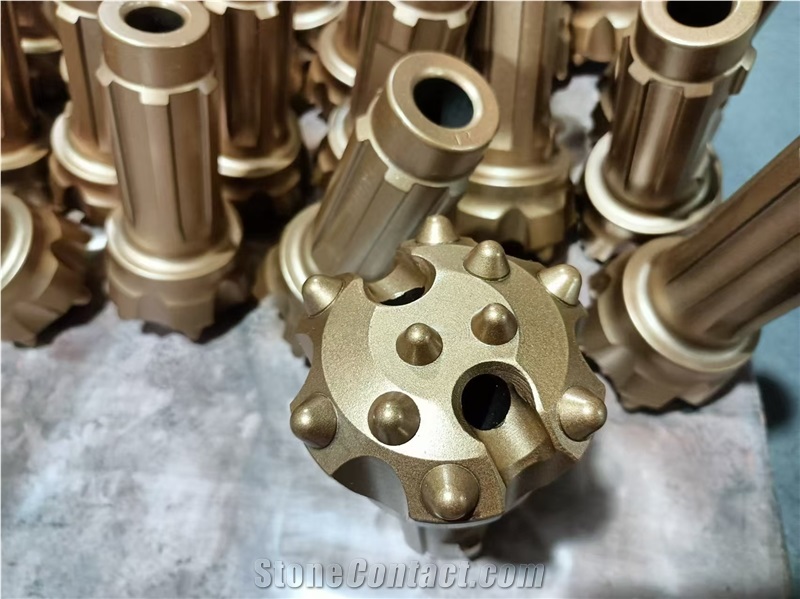

DTH Bit
¥Payment Required
Consumables
-
DTH hammer
-
DTH Bit

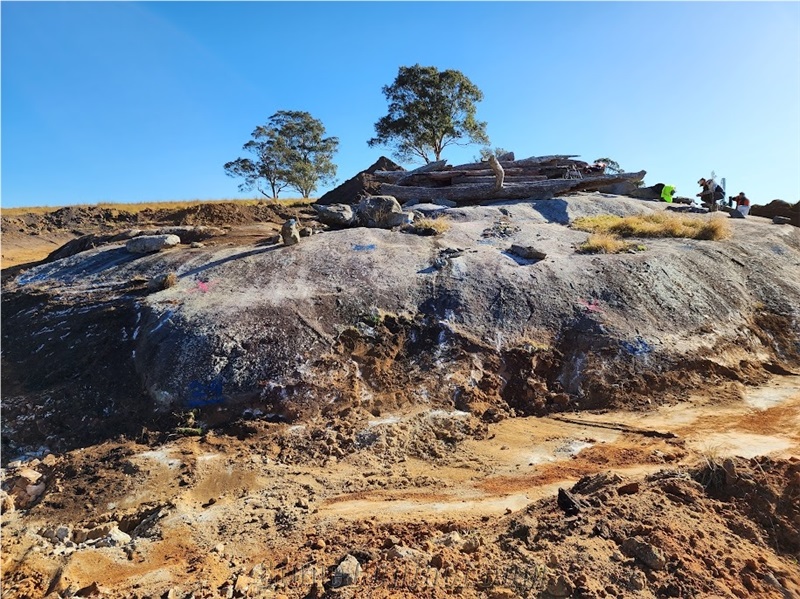

Customer Case
Mark
Australia
2023
Australia
2023
Video
Install Video
Operation Video
