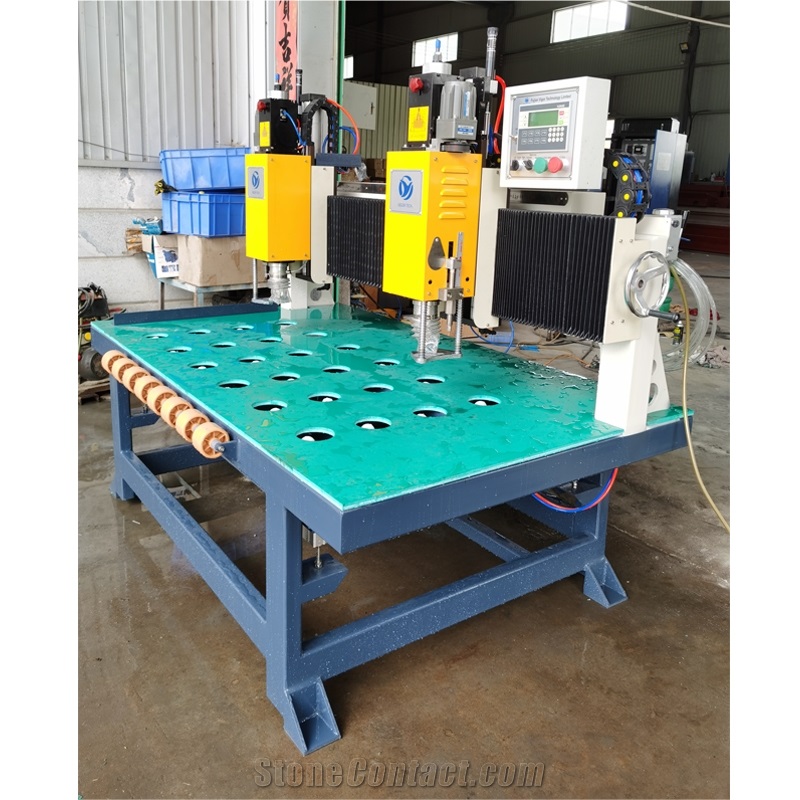

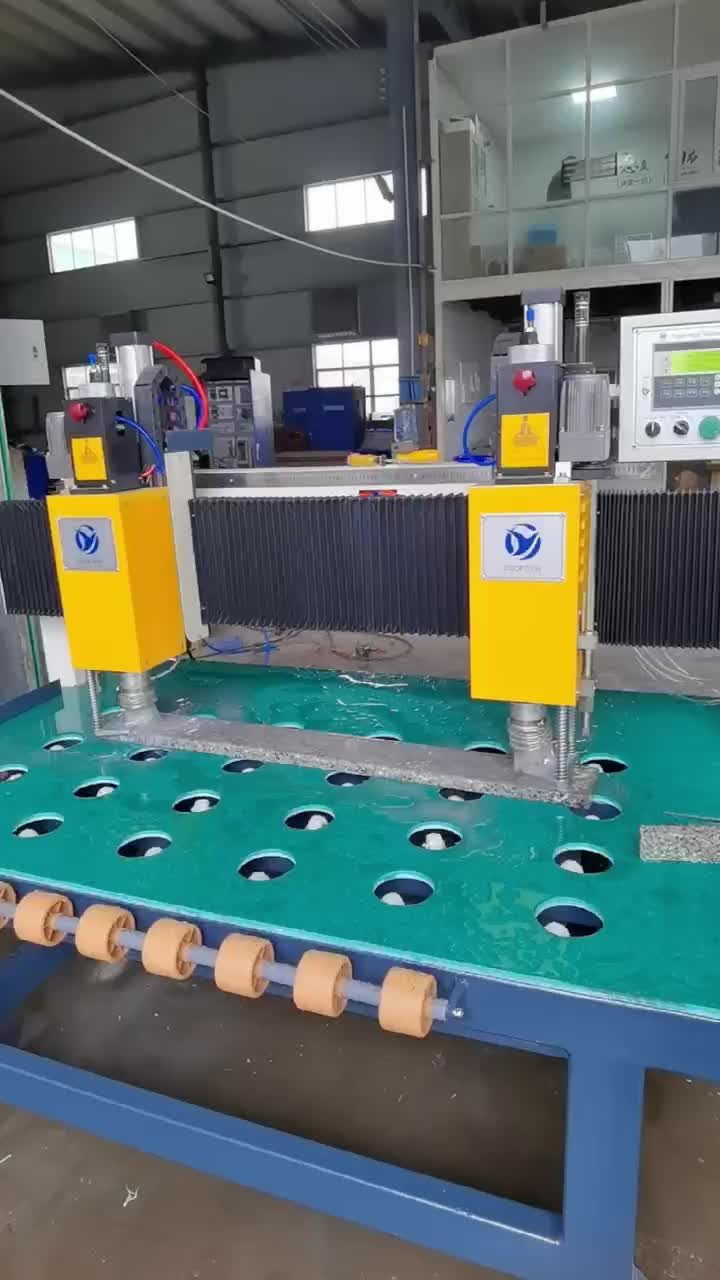

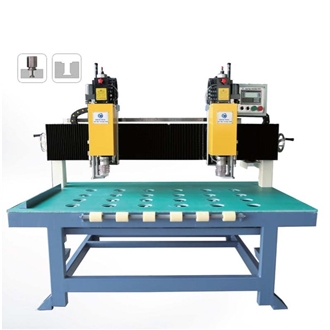

Automatic Stone Drilling Machine For Undercut Anchors

FOB Price:$5500-7000

Type: Stone Factory MachinesStone Finishing, Profiling MachinesStone Drilling, Slot Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 7-15 Days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Remote troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery
Payment : Payment

Supplier

Xiamen Vigor Technology Co., Ltd.

Xiamen Vigor Technology Co., Ltd.
Vigor

ChinaChina idicon

Eatablished :May 01,2010

Main Product:

Undercut Anchors, Aluminium Brackets, Stainless Steel Brackets, Stone Fixing Systems, Drill Bits, Drill Machines|

Contact supplier

Start Order

You may also like
STONE DRY HANGING SIDE SLOT MACHINE
STONE DRY HANGING SIDE SLOT MACHINE
Drilling Machine For Tactile Stone
Drilling Machine For Tactile Stone
Stone Drilling Machine
Stone Drilling Machine
Drilling Machine For Tactile Stone
Drilling Machine For Tactile Stone
Precision Marble & Granite Stone Hole Drilling Machine
Precision Marble & Granite Stone Hole Drilling Machine
  • Overview
  • Components
  • Trade Terms
Machinery Function Features
Automatic Stone Drilling Machine for Undercut Anchors  Equipment Introduction：This stone drilling machine is used to drill undercut anchor holes in stone panels, concrete panels,ceramic plates,and other cladding panels. Such as granite, marble, travertine, sand stone, crystal glass, quarz, ceramic, etc.  Equipment features： ·Easy to operate ·2 heads can work together or work by single head ·Automatic drill  Equipment configurations： ·Assembled with aqua storage tank and desk universal roller ·Electric control system ·Stone positioning system ·Plates can be adjusted in both X, Y directions ·Automatic drill technique of water cooling diamond ·Clear plate surface with water spraying·Checking tool of pore forming  Technical characteristics：Automatic air supply system, Automatic circulating water system, Drilling positioning system, Drill compensation regulation system.  Precision of drilling position：about 1mm.
Technical Data
Parameters
Unit
VTDM
Machine overall length
mm
2000
Min. distance between 2 holes
mm
250
Machine overall width
mm
1280
Drilling Diameter
mm
10-50
Number of drilling units
nr
2
Max. stroke
mm
1650
Drilling Depth
mm
10-50
Electric Voltage
V
380
Max. distance between 2 holes
mm
1650
Max. working width
mm
1200
Sound pressure level
dB
70
Revolutions
minute
2800
Each Spindle Motor Power
kw
1.5
Cutting Groove Depth
mm
0
Total motor power
kw
3
Speed
mm/min
2800
Max. working thickness
mm
100
Machine overall height
mm
1620
Rotation speed
r/min
2800
Cutting Groove Diameter
mm
0
Drilling Angle
°
0
Cutting Angle
°
0
Min. working thickness
mm
10
Number of milling machines for slot
nr
0
Approx. Weight
Kg
850
Max. working length
mm
2000
Number of mechanical stops
nr
2
Processed Stone Photos
  • Undercut Anchor Holt

    Undercut Anchor Holt

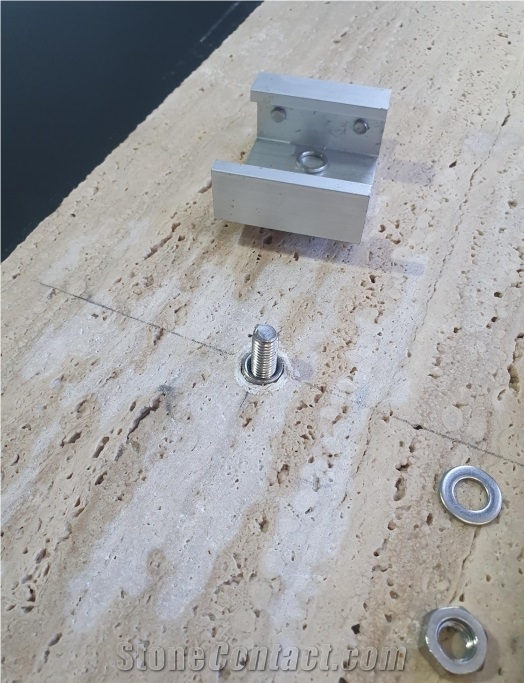

  • Undercut Hole fixed with anchor bolt and aluminium bracket

    Undercut Hole fixed with anchor bolt and aluminium bracket

Components

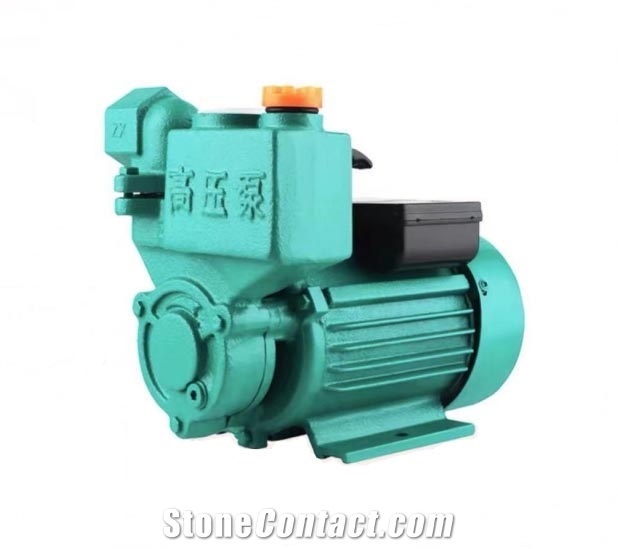

  • Water Pump

    Water Pump

    ¥Payment Required

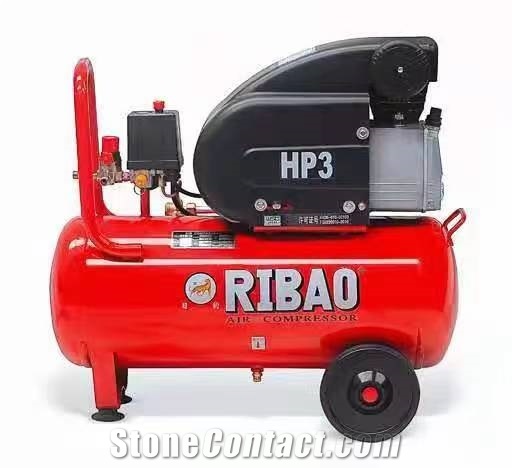

  • Air Compressor

    Air Compressor

    ¥Payment Required

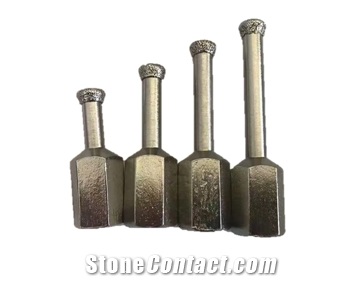

  • Diamond Drill Bit

    Diamond Drill Bit

    ¥Payment Required
Consumables
  • Diamond Drill Bit

    Diamond Drill Bit

    Need to be replaced.
