4 Head Horizontal Drilling Machine Anchor Hole Machine Side Drilling
FOB Price:$12000-15000
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Drilling, Slot Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
30 days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Remote troubleshooting
Trade Terms
Port:
Xiamen Port- China
Delivery Details: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery
Payment :
Supplier
Eatablished :May 01,2010
Main Product:
Undercut Anchors, Aluminium Brackets, Stainless Steel Brackets, Stone Fixing Systems, Drill Bits, Drill Machines|
Machinery Function Features

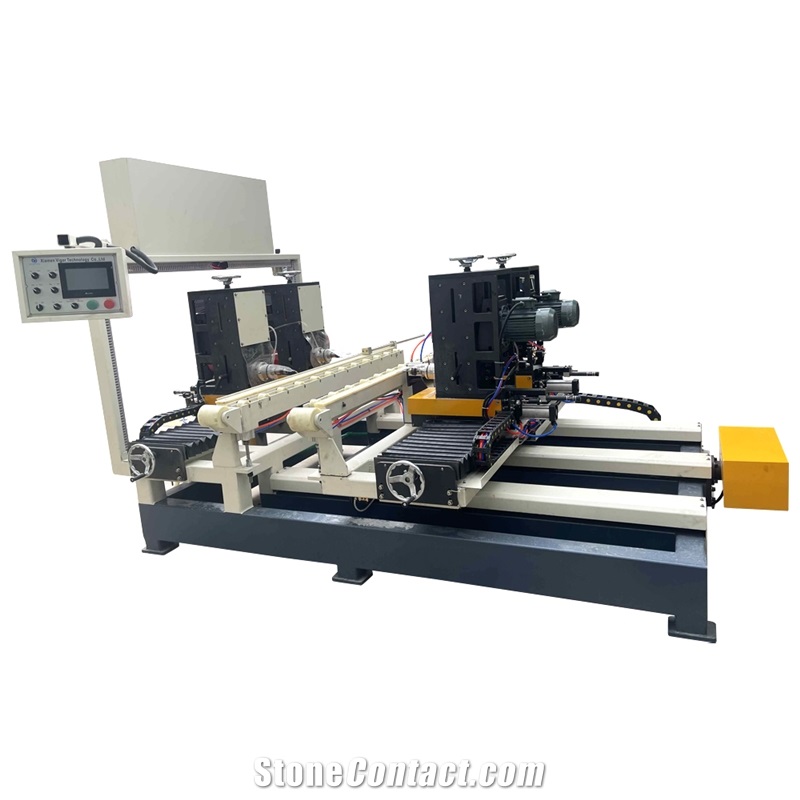

4 Head Horizontal Drilling Machine Anchor Hole Machine Side Drilling
Main application: This stone drilling machine is suitable for PC side drilling holes for stainless steel dowel pin anchors in various kinds of stone panels, such as marble, granite, sandstone, travertine, basalt, limestone, quartzite, artifical stone, high-density cement panels...etc. The main accessories are originally imported, manual control of advance and retreat, high-speed spindle drilling, and automatic control of drilling depth.
Equipment Technical Parameters:
Maximum package size: 3300*2200*2100 (mm)
Maximum vertical size: unlimited
Anchor hole drilling diameter: M5 - M50, can be customized.
Anchor hole drilling depth: 50mm, etc.
Technical Data
Parameters |
Unit |
VTDM |
Machine overall height |
mm |
2100 |
Drilling Diameter |
mm |
5--50 |
Double Head Size (2 rows) |
mm |
Min 250 / Max 1500 |
Drilling Depth |
mm |
50 |
Main motor power |
7 |
1.1 |
Machine overall length |
mm |
3300 |
Approx. Weight |
Kg |
1500 |
Machine overall width |
mm |
2200 |
Revolutions |
r/min |
2800 |
Electric Voltage |
V |
380 |
Processed Stone Photos
-

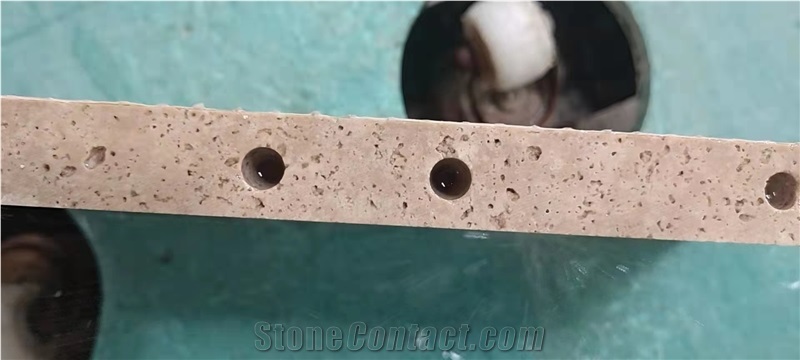

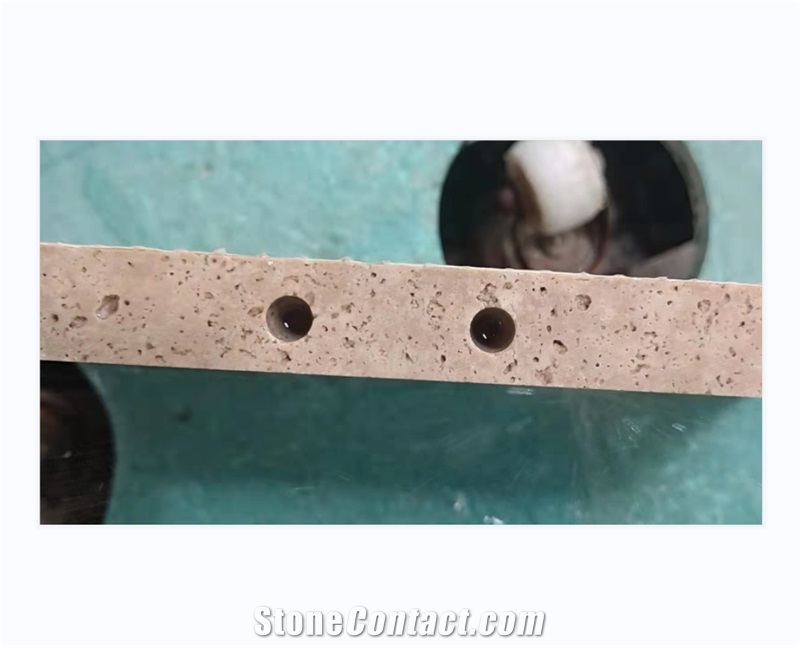

Holes
Components
-

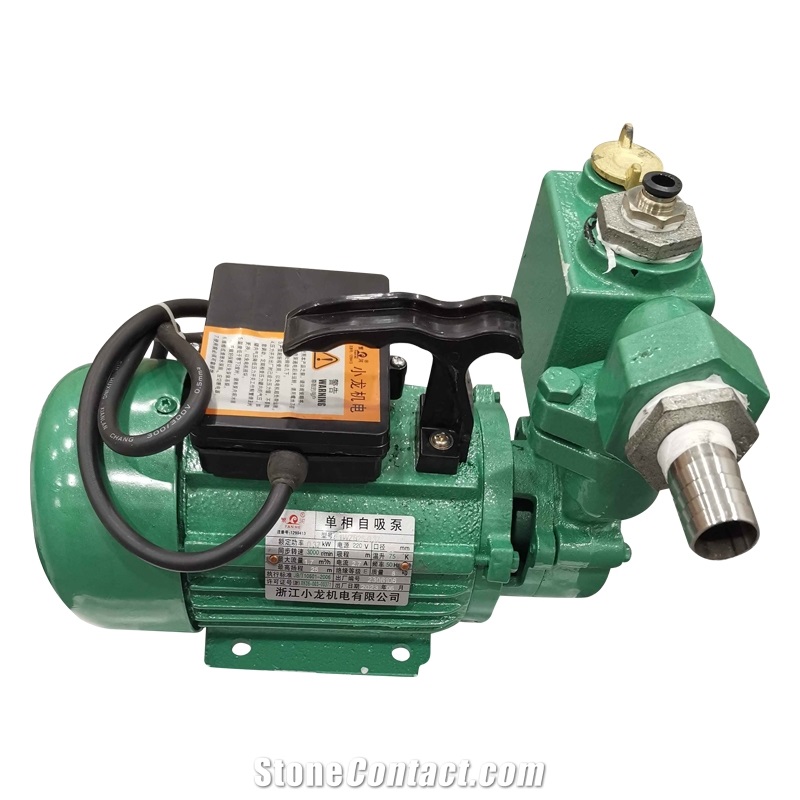

Water Pump
-

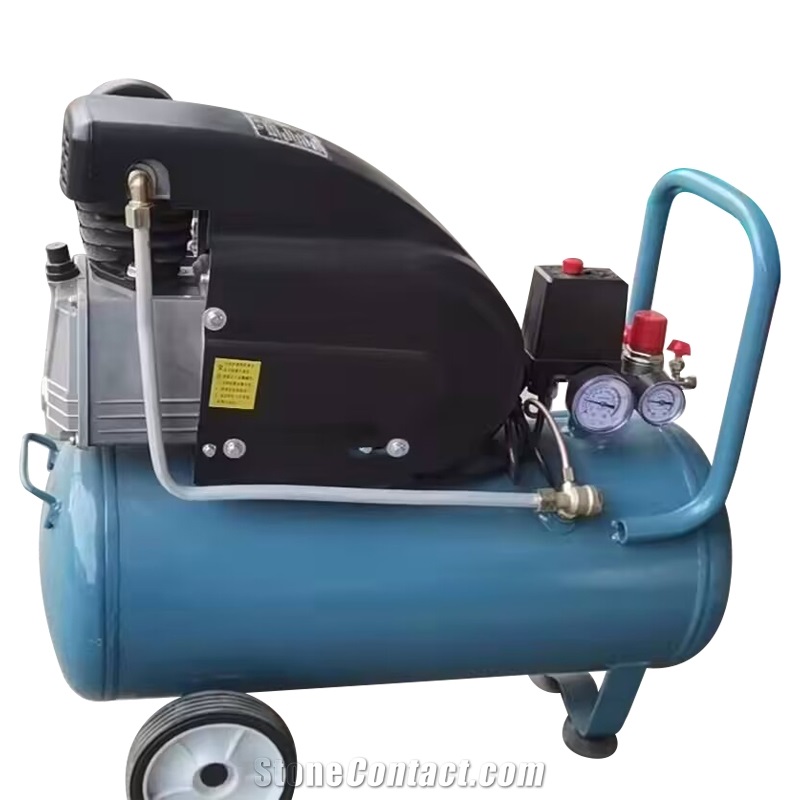

Air Compressor
Consumables
-

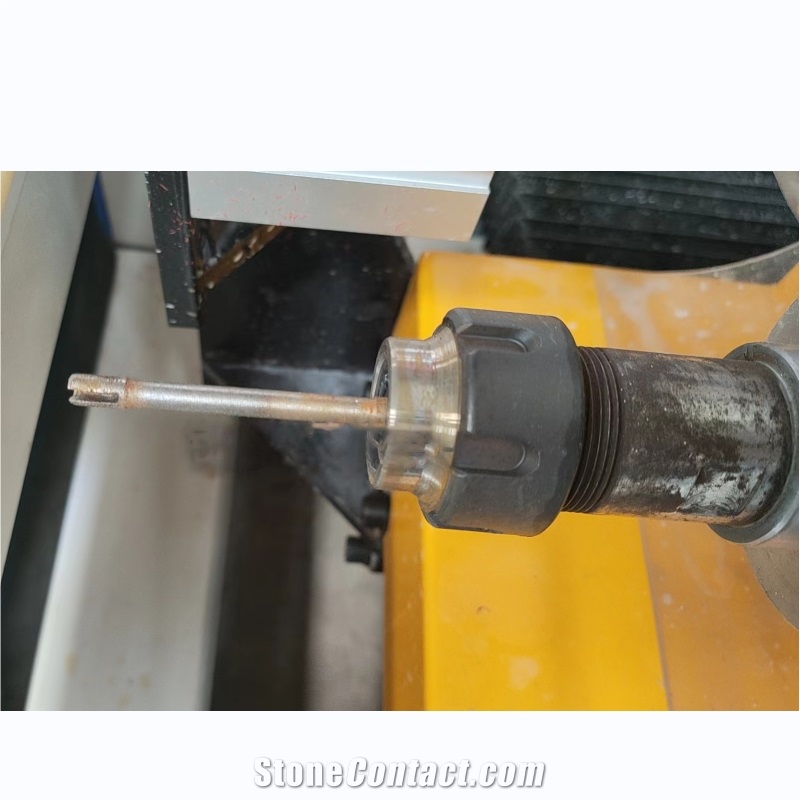

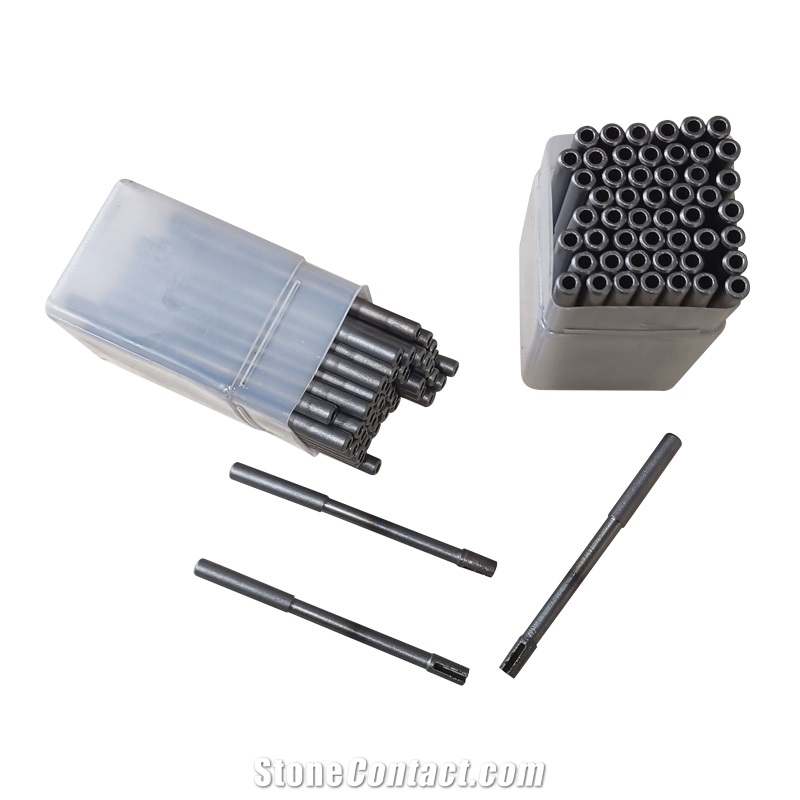

Drill Bit
Needs to be replaced with consumption
