Stone Drilling Equipment For Fixing Anchor
FOB Price:$5500-7000
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Drilling, Slot Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
7-10 Days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Remote troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery
Payment :
Supplier
Eatablished :May 01,2010
Main Product:
Undercut Anchors, Aluminium Brackets, Stainless Steel Brackets, Stone Fixing Systems, Drill Bits, Drill Machines|
Machinery Function Features

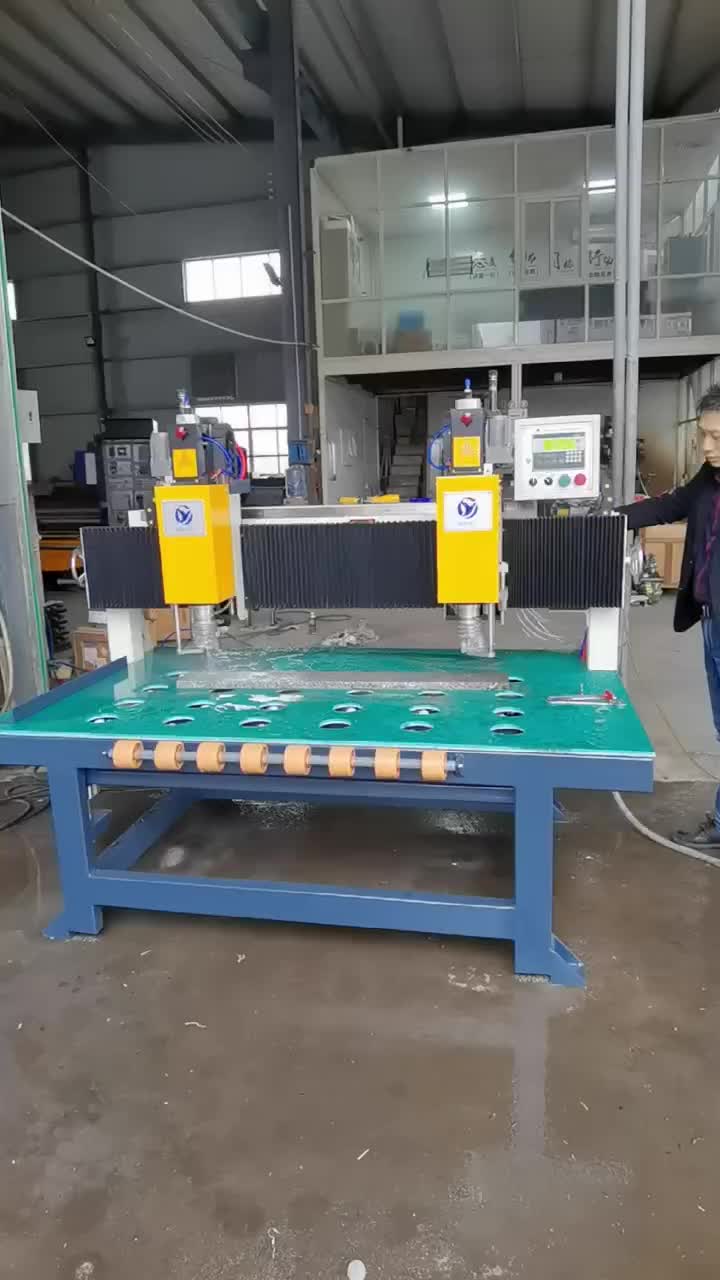

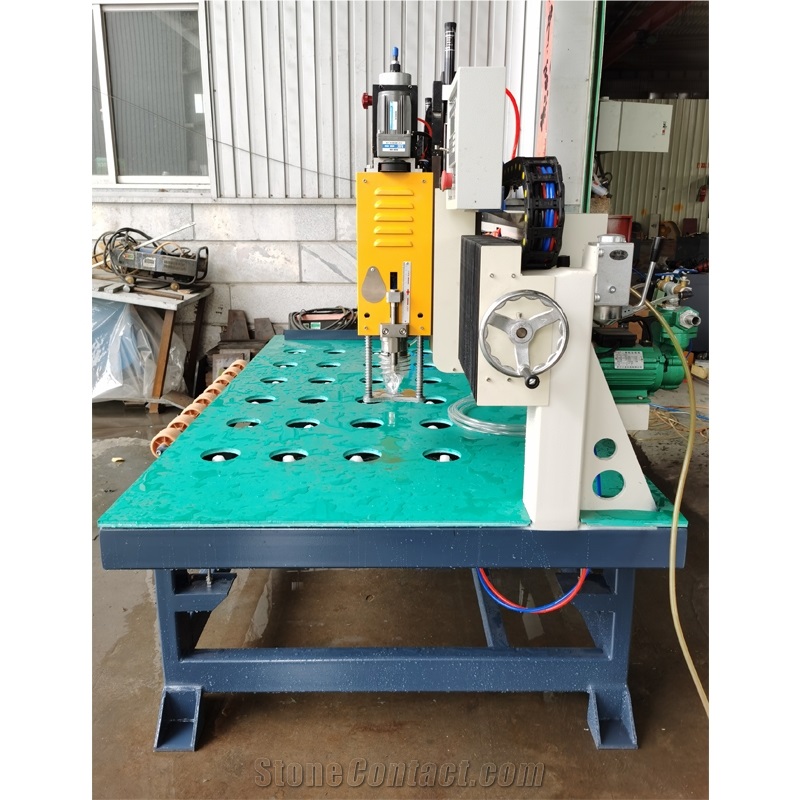

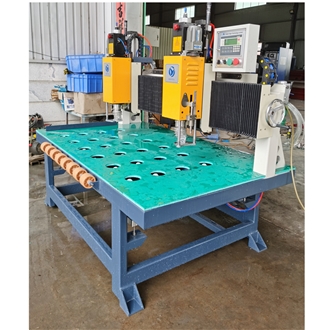

Stone Drilling Equipment For Fixing Anchor
Equipment Introduction：This is used to drill undercut anchor holes in stone panels, concrete panels,ceramic plates,and other cladding panels. Such as granite, marble, travertine, sand stone, crystal glass, quarz, ceramic, etc.
Equipment features：
·Easy to operate
·2 heads can work together or work by single head
·Automatic drill
Equipment configurations：
·Assembled with aqua storage tank and desk universal roller
·Electric control system
·Stone positioning system
·Plates can be adjusted in both X, Y directions
·Automatic drill technique of water cooling diamond
·Clear plate surface with water spraying·Checking tool of pore forming
Technical characteristics：Automatic air supply system, Automatic circulating water system, Drilling positioning system, Drill compensation regulation system.
Precision of drilling position：about 1mm.
Technical Data
Parameters |
Unit |
VTDM |
Max. working length |
mm |
2000 |
Max. distance between 2 holes |
mm |
1650 |
Revolutions |
s |
2800 |
Cutting Angle |
° |
0 |
Sound pressure level |
dB |
70 |
Max. working thickness |
mm |
100 |
Max. stroke |
mm |
1650 |
Machine overall width |
mm |
1280 |
Drilling Depth |
mm |
10-50 |
Number of drilling units |
nr |
2 |
Cutting Groove Diameter |
mm |
0 |
Drilling Angle |
° |
0 |
Cutting Groove Depth |
mm |
0 |
Machine overall height |
mm |
1620 |
Number of milling machines for slot |
nr |
0 |
Machine overall length |
mm |
2000 |
Max. working width |
mm |
1200 |
Number of mechanical stops |
nr |
2 |
Min. distance between 2 holes |
mm |
250 |
Min. working thickness |
mm |
10 |
Total motor power |
kw |
3 |
Electric Voltage |
V |
380 |
Rotation speed |
r/min |
2800 |
Approx. Weight |
Kg |
850 |
Drilling Diameter |
mm |
10-50 |
Speed |
mm/min |
2800 |
Each Spindle Motor Power |
kw |
1.5 |

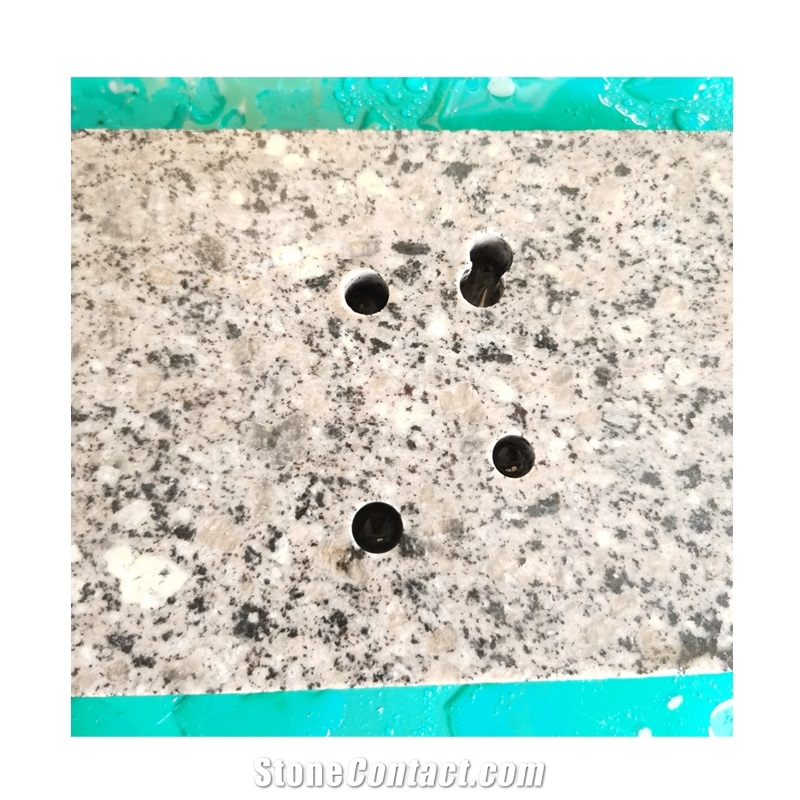

Processed Stone Photos
-
-

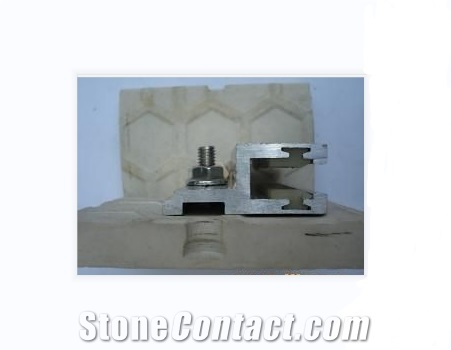

Undercut Hole in Ceramic
Components
-

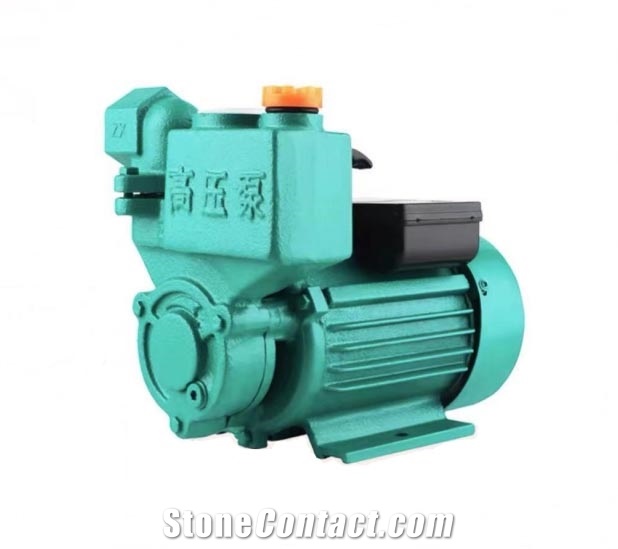

Water Pump
¥Payment Required -
Air Compressor
¥Payment Required -
Diamond Drill Bit
¥Payment Required
Consumables
-
Diamond Drill Bit
Need to be replaced
