Anchor Bolt Drilling Tool For Undercut System
FOB Price:$5500-7000
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Drilling, Slot Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
7-10 Days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Remote troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery
Payment :
Supplier
Eatablished :May 01,2010
Main Product:
Undercut Anchors, Aluminium Brackets, Stainless Steel Brackets, Stone Fixing Systems, Drill Bits, Drill Machines|
Machinery Function Features

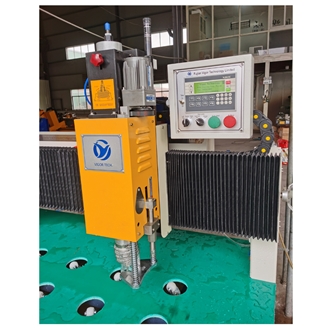

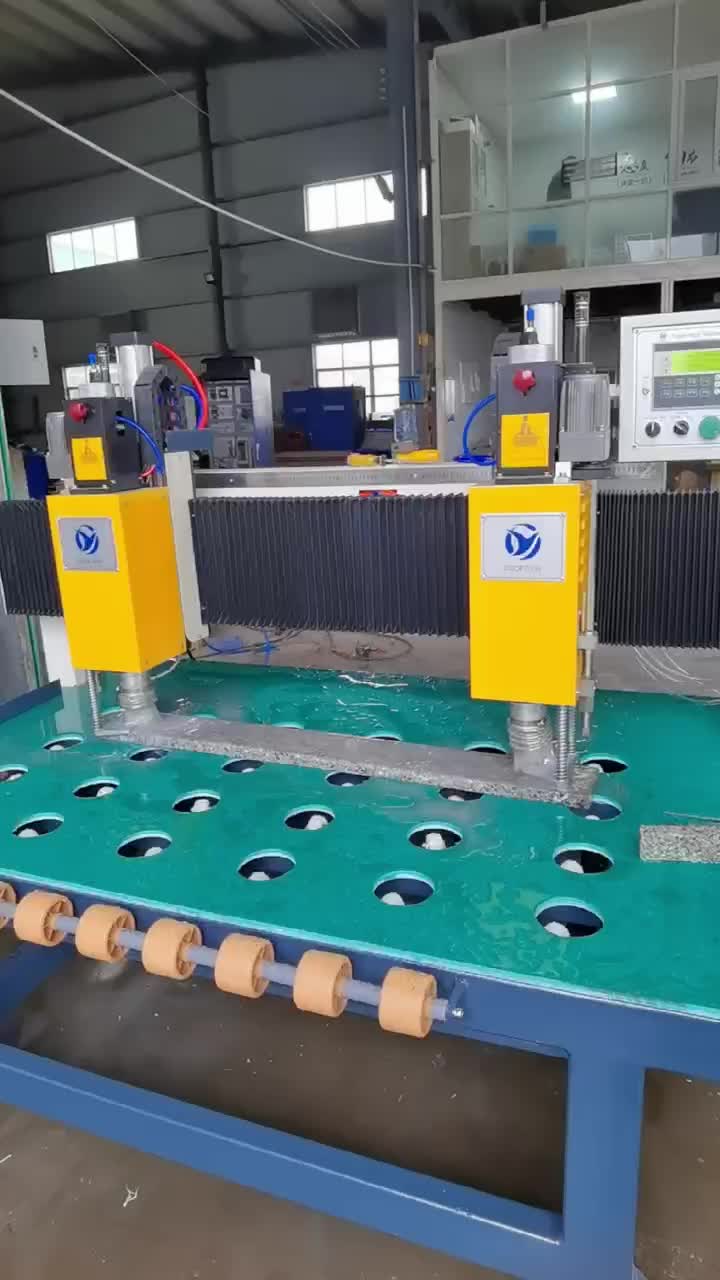

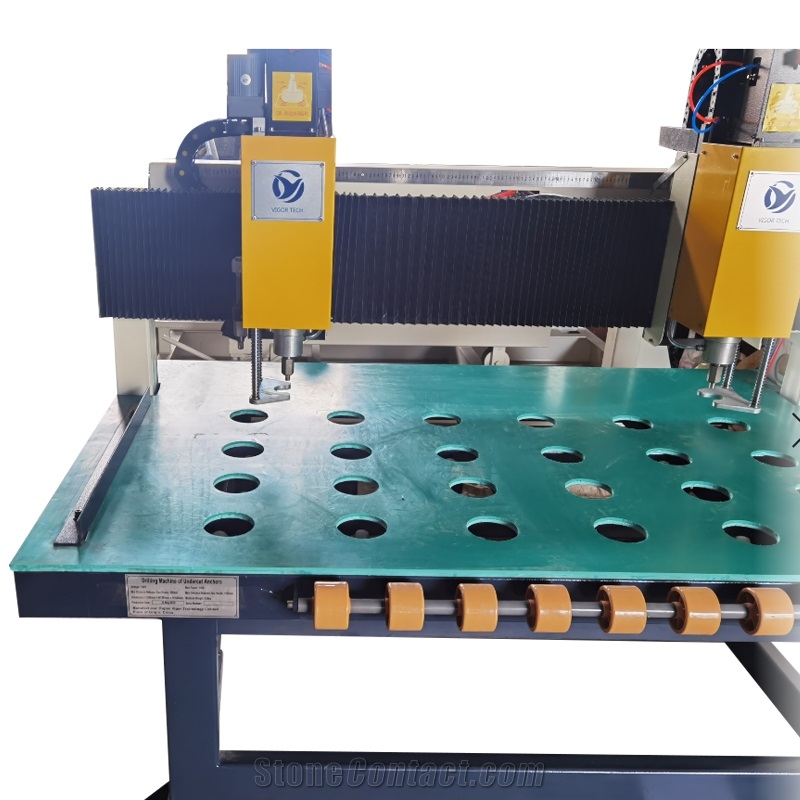

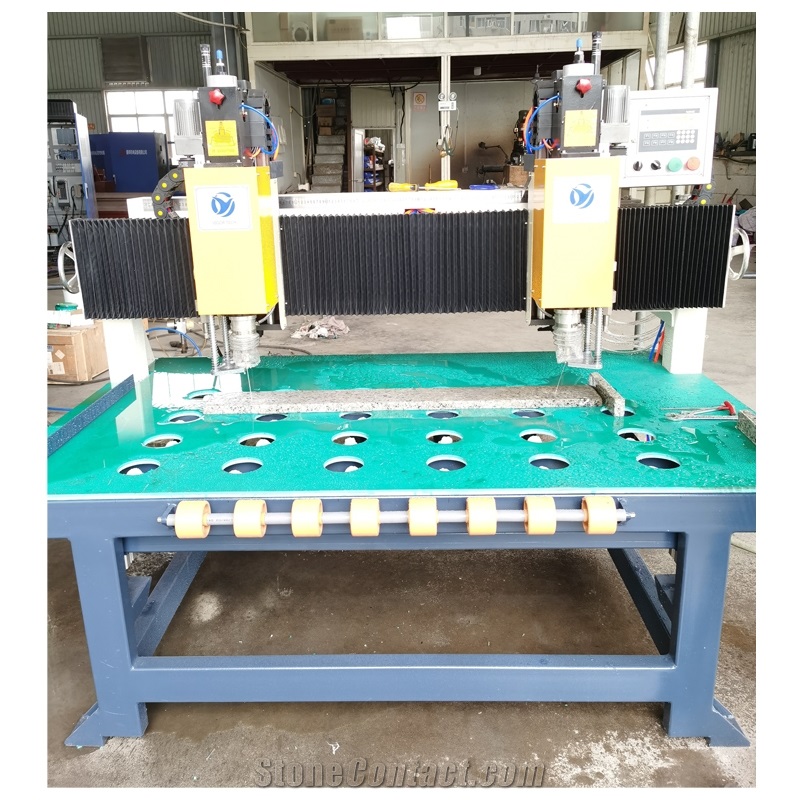

Anchor Bolt Drilling Tool For Undercut System
Equipment Introduction：This stone drilling machine is used to drill undercut anchor holes in stone panels, concrete panels,ceramic plates,and other cladding panels. Such as granite, marble, travertine, sand stone, crystal glass, quarz, ceramic, etc.
Equipment features：
·Easy to operate
·2 heads can work together or work by single head
·Automatic drill
Equipment configurations：
·Assembled with aqua storage tank and desk universal roller
·Electric control system
·Stone positioning system
·Plates can be adjusted in both X, Y directions
·Automatic drill technique of water cooling diamond
·Clear plate surface with water spraying·Checking tool of pore forming
Technical characteristics：Automatic air supply system, Automatic circulating water system, Drilling positioning system, Drill compensation regulation system.
Precision of drilling position：about 1mm.
Technical Data
Parameters |
Unit |
VTDM |
Max. stroke |
mm |
1650 |
Number of mechanical stops |
nr |
2 |
Revolutions |
s |
2800 |
Sound pressure level |
dB |
70 |
Approx. Weight |
Kg |
850 |
Drilling Depth |
mm |
10-50 |
Cutting Groove Depth |
mm |
0 |
Min. distance between 2 holes |
mm |
250 |
Drilling Diameter |
mm |
10-50 |
Max. distance between 2 holes |
mm |
1650 |
Machine overall length |
mm |
2000 |
Max. working length |
mm |
2000 |
Rotation speed |
r/min |
2800 |
Speed |
mm/min |
2800 |
Machine overall height |
mm |
1620 |
Number of milling machines for slot |
nr |
0 |
Cutting Angle |
° |
0 |
Total motor power |
kw |
3 |
Max. working thickness |
mm |
100 |
Electric Voltage |
V |
380 |
Cutting Groove Diameter |
mm |
0 |
Machine overall width |
mm |
1280 |
Each Spindle Motor Power |
kw |
1.5 |
Min. working thickness |
mm |
10 |
Max. working width |
mm |
1200 |
Drilling Angle |
° |
0 |
Number of drilling units |
nr |
2 |

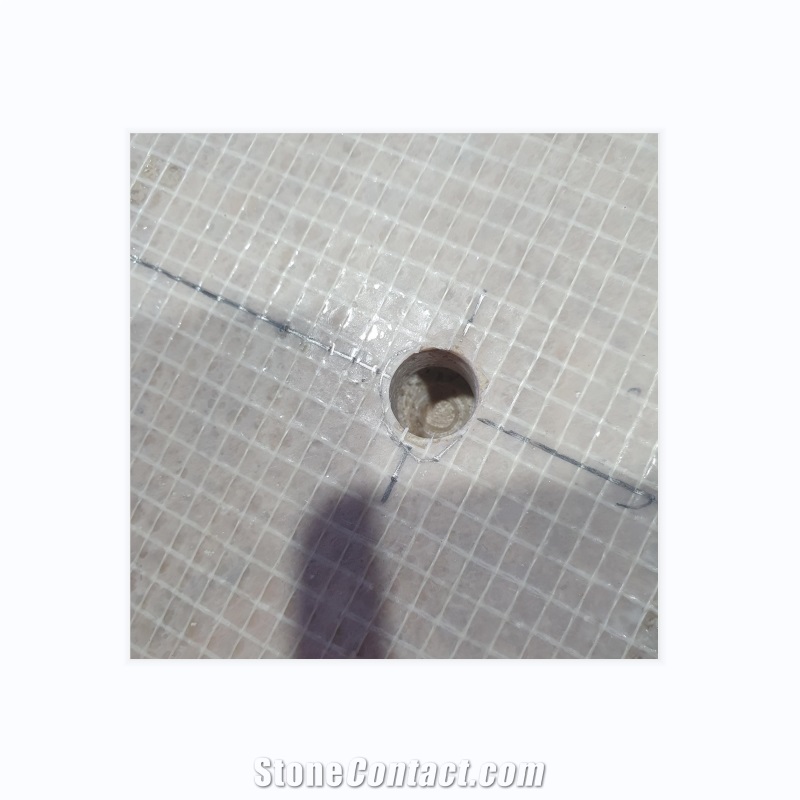

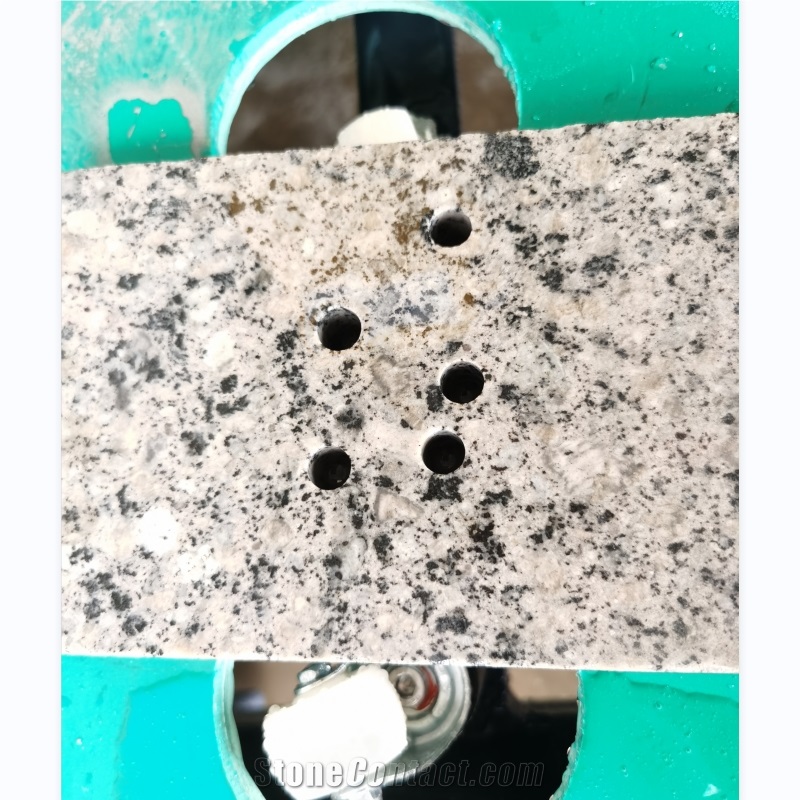

Processed Stone Photos
Components
-
Water Pump
¥Payment Required -

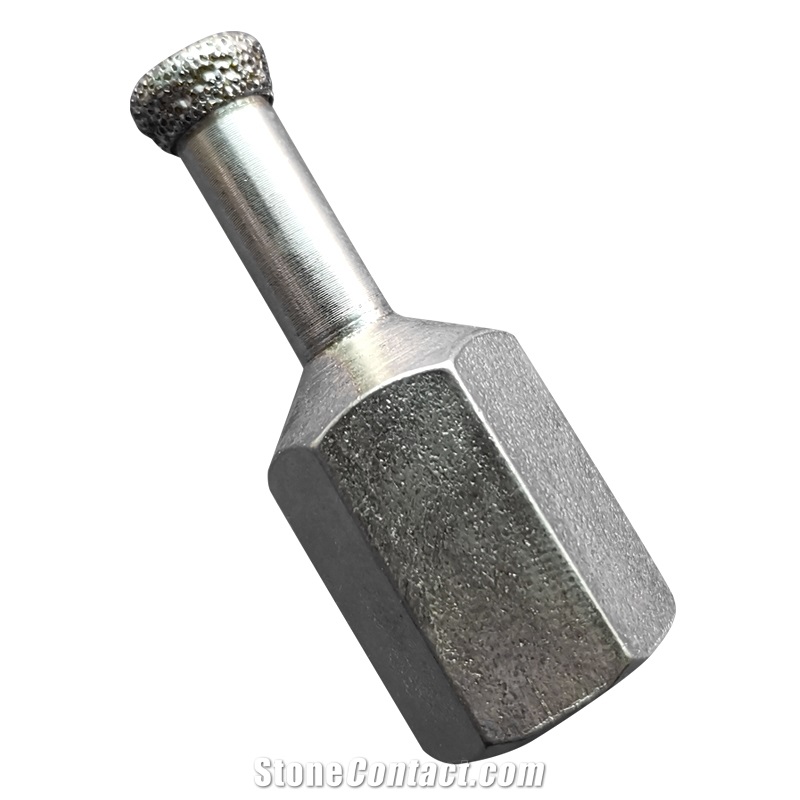

Diamond Drill Bit
-

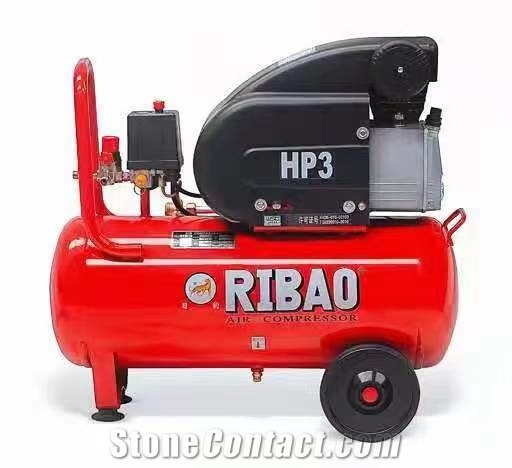

Air Compressor
¥Payment Required
Consumables
-

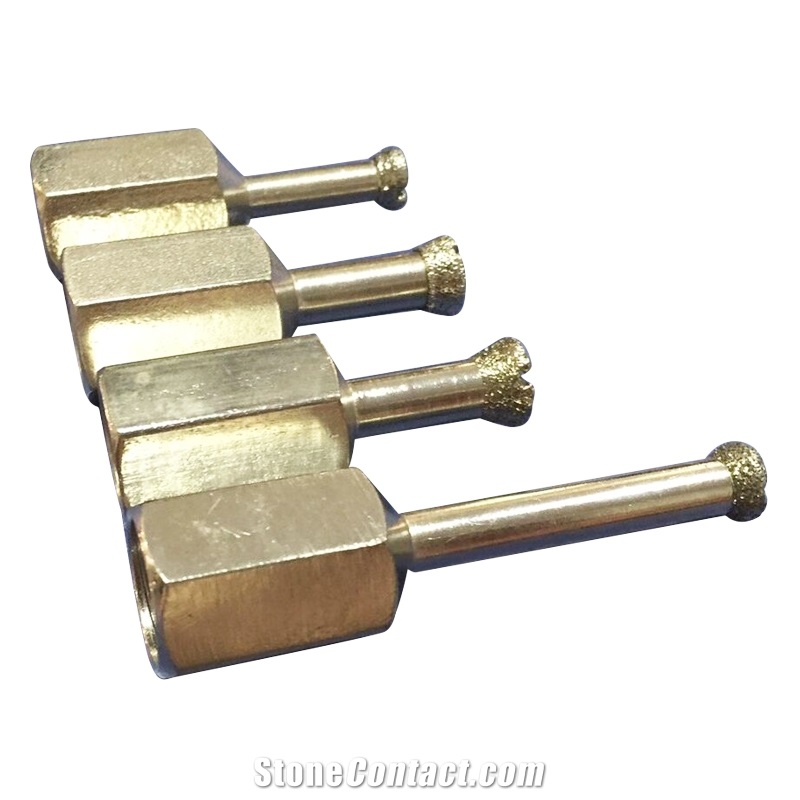

Diamond Drill Bit
Need to be replaced
