Back Bolt Tools Undercut Holing Machine For Stone Anchors
FOB Price:$5500-7000
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Drilling, Slot Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
7-15 Days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Remote troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery
Payment :
Supplier
Eatablished :May 01,2010
Main Product:
Undercut Anchors, Aluminium Brackets, Stainless Steel Brackets, Stone Fixing Systems, Drill Bits, Drill Machines|
Machinery Function Features

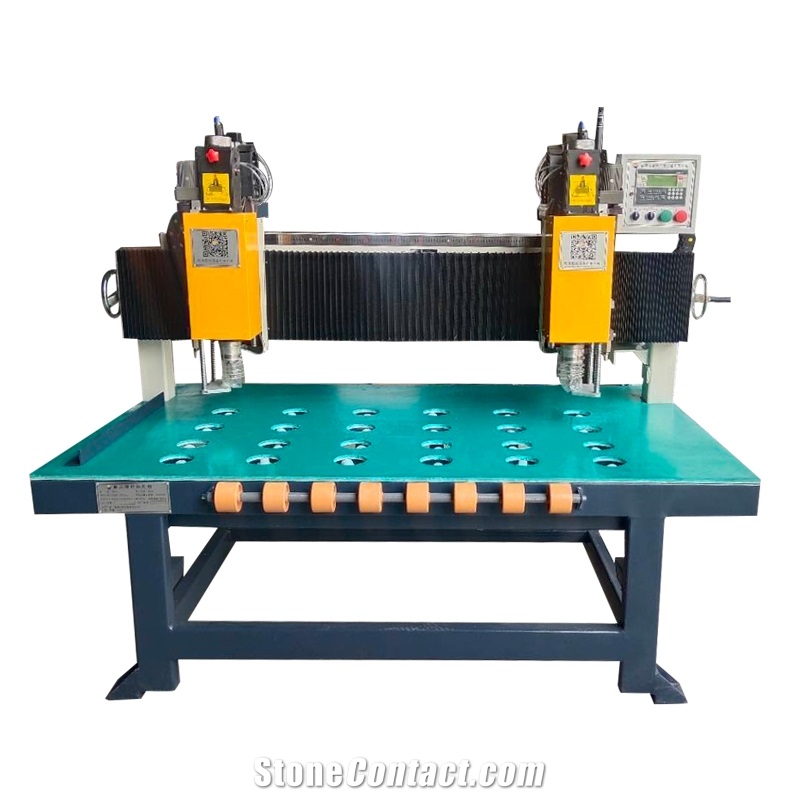

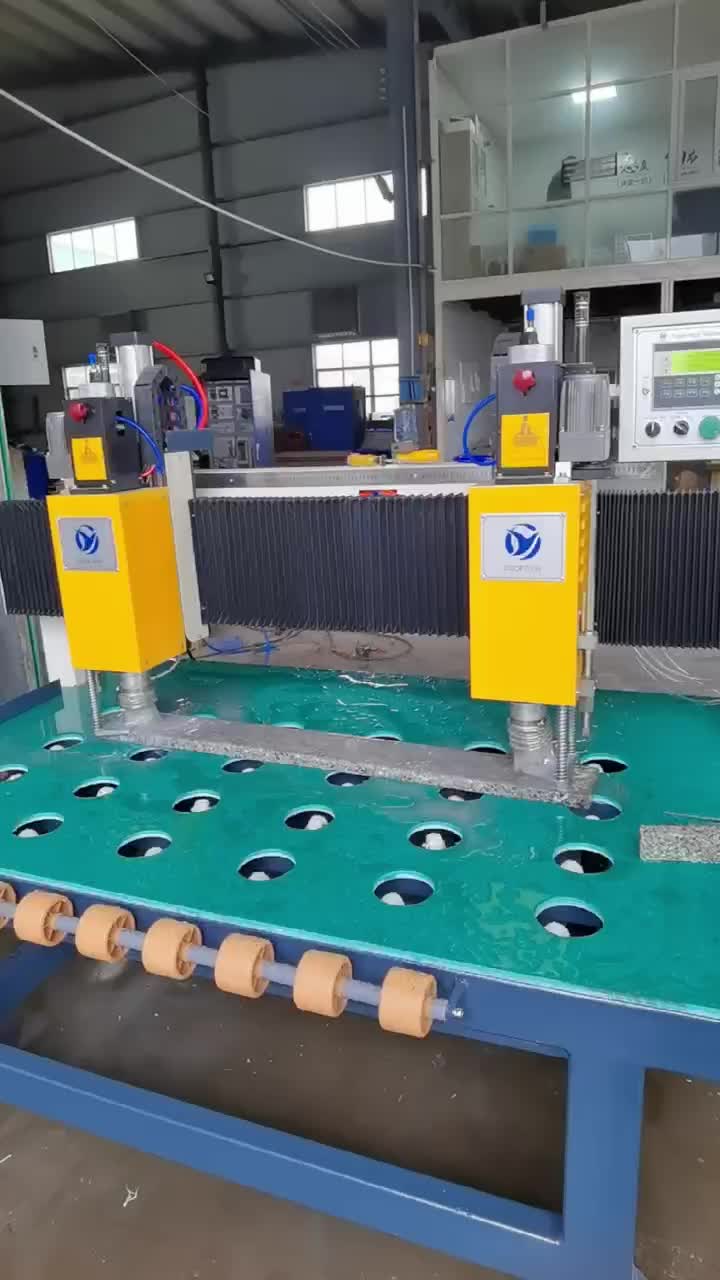

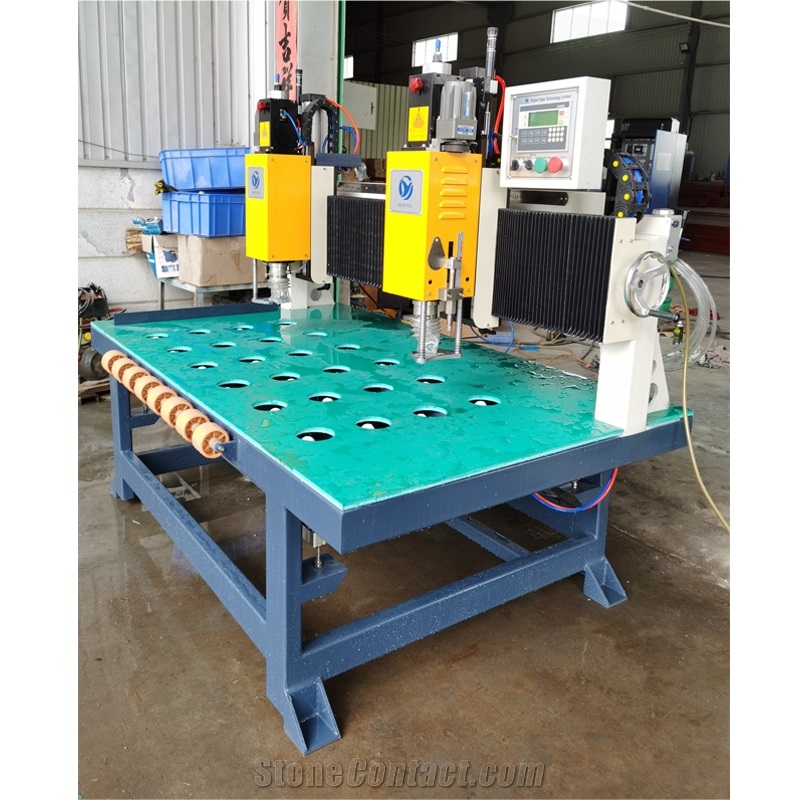

Back Bolt Tools Undercut Holing Machine for Stone Anchors
Equipment introduction：Applicable for stone drilling, concrete panels,ceramic plates,and other cladding panels. Such as granite, marble, travertine, sand stone, crystal glass, quarz, ceramic, etc.
Equipment features：
·Easy to operate
·Single die
·Automatic drill
Equipment configurations：
·Stainless steel frame, assembled with aqua storage tank and desk universal roller

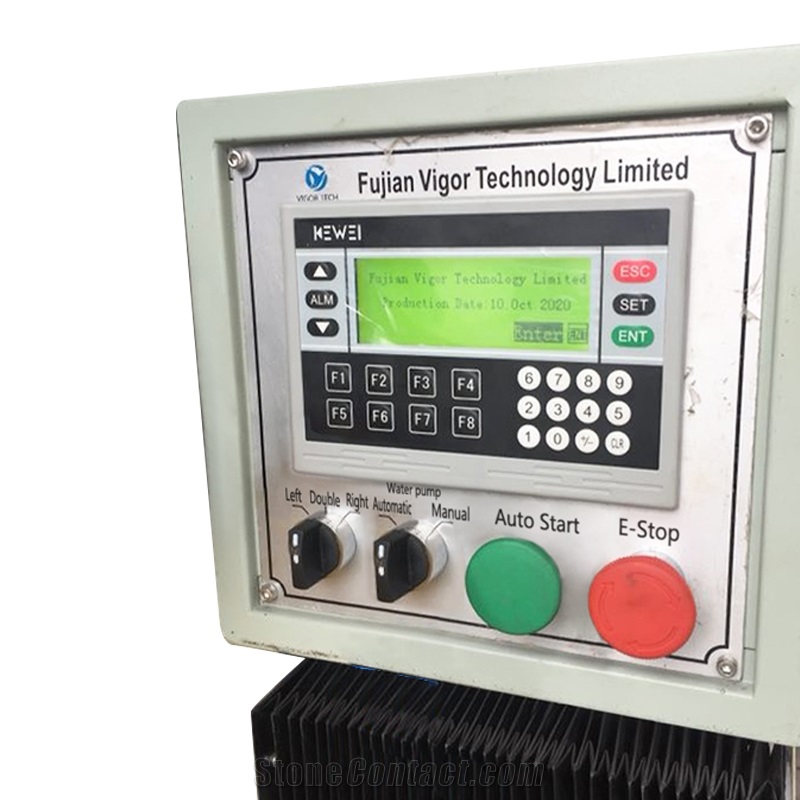

·Electric control system
·Stone positioning system
·Plates can be adjusted in both X, Y directions
·Automatic drill technique of water cooling diamond
·Clear plate surface with water spraying·Checking tool of pore forming
Technical characteristics：Automatic air supply system, Automatic circulating water system, Drilling positioning system, Drill compensation regulation system.
Precision of drilling position：about 1mm.
Technical Data
Parameters |
Unit |
VTDM |
Approx. Weight |
Kg |
850 |
Max. working length |
mm |
2000 |
Machine overall width |
mm |
1280 |
Min. working thickness |
mm |
10 |
Max. stroke |
mm |
1650 |
Machine overall height |
mm |
1620 |
Revolutions |
s |
2800 |
Machine overall length |
mm |
2000 |
Drilling Diameter |
mm |
10-50 |
Number of milling machines for slot |
nr |
0 |
Speed |
mm/min |
2800 |
Each Spindle Motor Power |
kw |
1.5 |
Sound pressure level |
dB |
70 |
Electric Voltage |
V |
380 |
Max. working thickness |
mm |
100 |
Number of drilling units |
nr |
2 |
Cutting Groove Depth |
mm |
0 |
Rotation speed |
r/min |
2800 |
Drilling Angle |
° |
0 |
Cutting Angle |
° |
0 |
Cutting Groove Diameter |
mm |
0 |
Max. distance between 2 holes |
mm |
1650 |
Drilling Depth |
mm |
10-50 |
Total motor power |
kw |
3 |
Min. distance between 2 holes |
mm |
250 |
Number of mechanical stops |
nr |
2 |
Max. working width |
mm |
1200 |
Processed Stone Photos
-

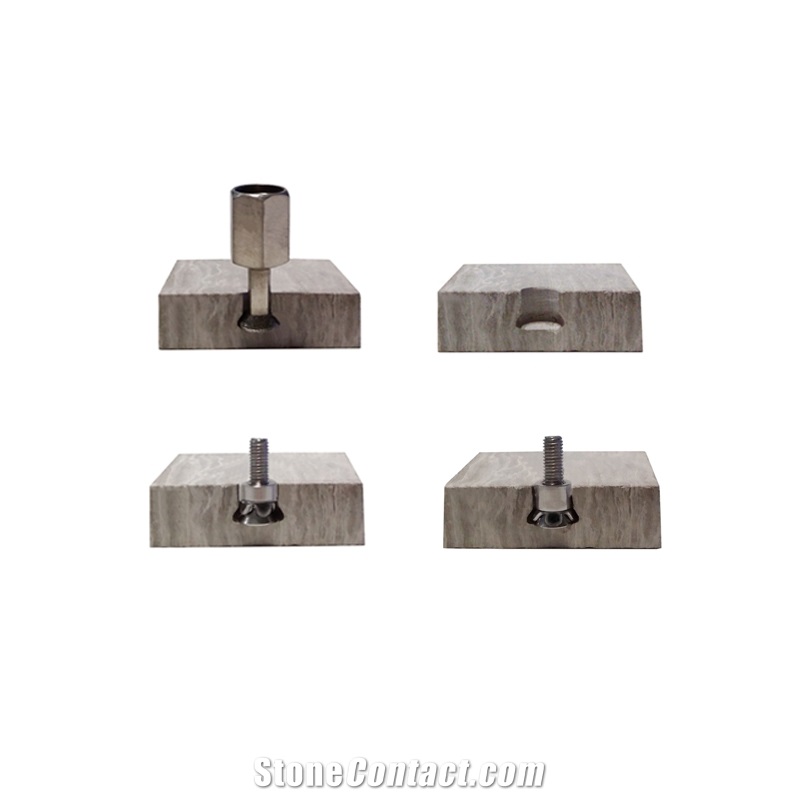

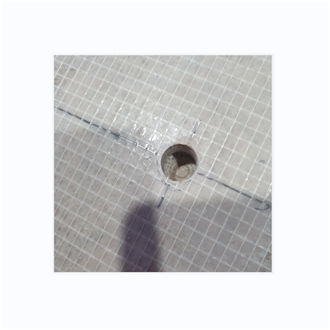

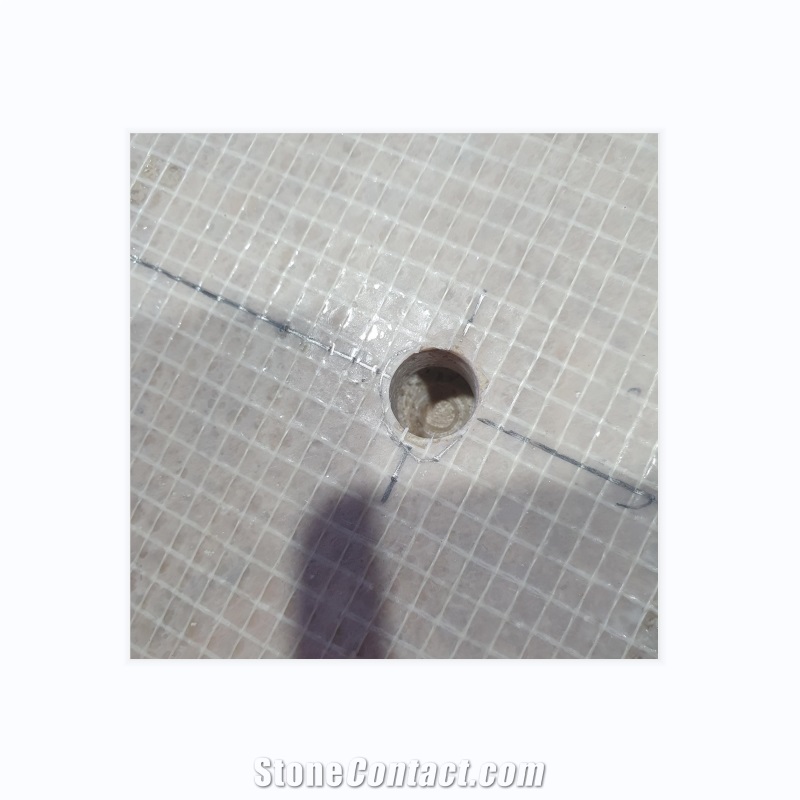

Undercut Anchor Hole
Components
-

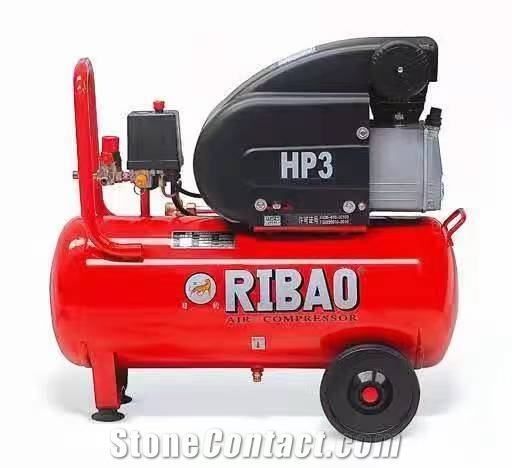

Air Compressor
¥Payment Required -

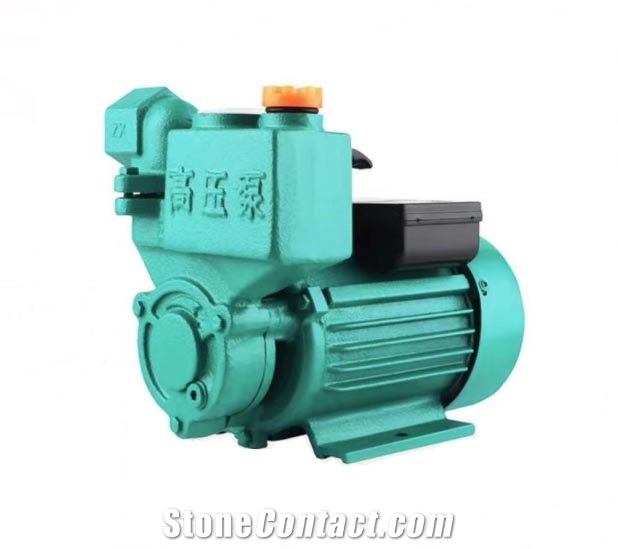

Water Pump
¥Payment Required

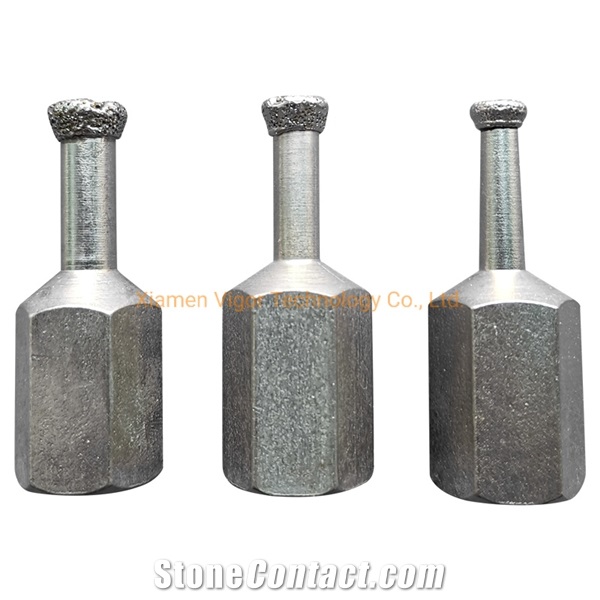

Consumables
