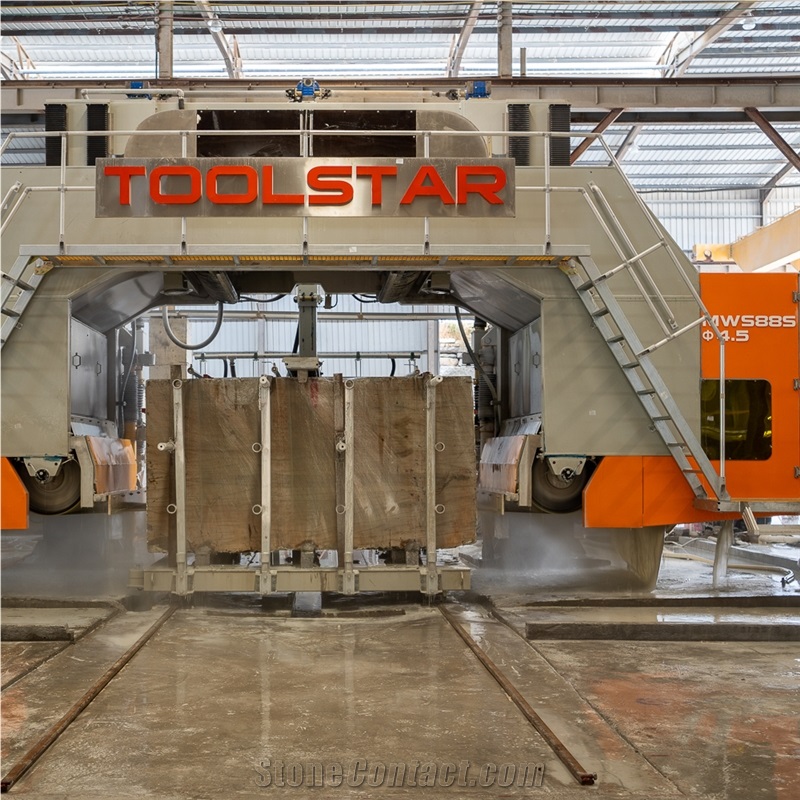

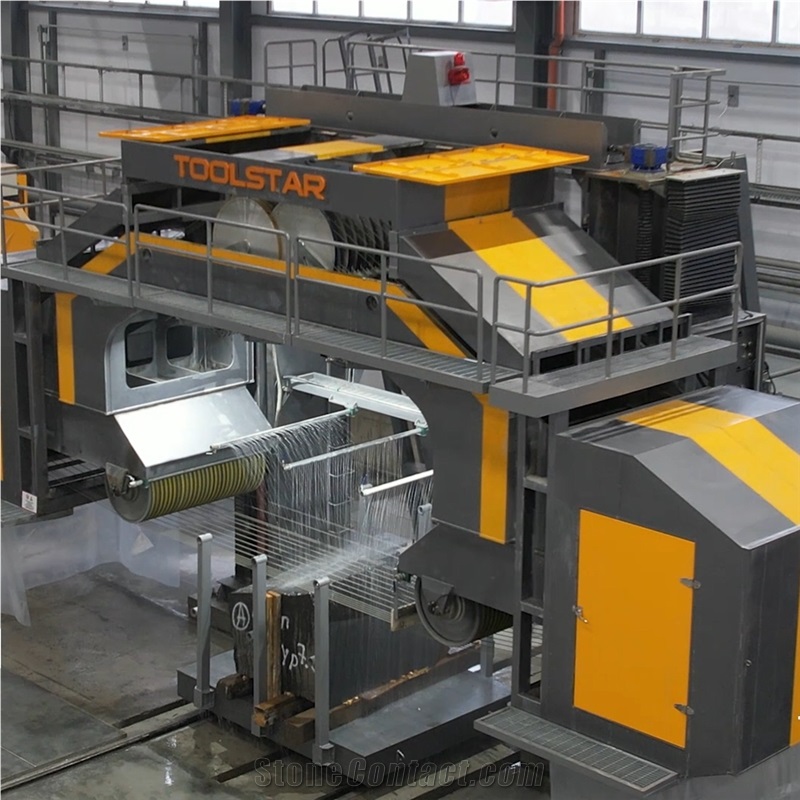

TOOLSTAR Multi Wire Saw Machine For Slabs Cutting

Name: TOOLSTAR Multi Wire Saw Machine For Slabs Cutting
Brand: CHANGSHA TOOLSTAR MACHINERY MANUFACTURING CO., LTD
SKU: 4900
Price: 300000 USD
Availability: InStock

FOB Price:$300000-500000

Type: Stone Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: at least 3 months

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Trade Terms

Port: shenzhen- China

Delivery Details: FOB,CFR,CIF,EXW,FCA

Payment :

Supplier

CHANGSHA TOOLSTAR MACHINERY MANUFACTURING CO., LTD

TOOLSTAR

China level 3YR

Eatablished :Sep 15,2022

Main Product:

Multi Wire Saw Machine, Block Dressing Machine, Quarry Machine, Dth Bit, Diamond Wire Saw, Dth Hammer|

Contact supplier

Start Order

You may also like

Multi Wire Saw Machines For Marble Granite Slabs Cutting

ZJP72 Diamond Multi-Wire Saw Machine

Multi Wire Saw Machine

Reliable Quality Multi-Wire Saw Machine

QCXE-1500 cnc wire saw machine

Product Detail
Company Profile

Overview
Components
Video
Trade Terms
Customer Case

Machinery Function Features

1. Adopt international brand of motor/inverter/electronics to maintain the stable workingand excellent performance; 2. Stainless steel covers with three coating and painting ensures the good protection from the rusts,especially in the water and dust working condition. 3. Ergonomical and user-friendly design makes it easy for operator to run the machine, especially for assembling the wires and regular maintainence.

Technical Data

Parameters	Unit	T-Rex MWSXB with 7.3mm Diameter Wires	T-Rex MWSXN with 6.3mm Diameter Wires	T-Rex MWSXS with 4.3mm-4.8mm Diameter Wires
Max. Number of wires for sawing 20mm thick.	nr	76	76	88
Pitch groove wire driving	mm	2450	2450	2450
Diamond wire length	m	21.52	21.52±0.02	21.52
Voltage/Frequency	V/Hz	it depends on which country	it depends on which country	it depends on which country
Installed electrical power	kw	57-300	110-300	220-300
Wire pitch for sawing 30mm thick.	mm	38	37.2	none
Worktable load capacity	T	40-80	80	62
Machine height (H)	mm	6500	6500	6500
Max. Number of wires for sawing 30mm thick.	nr	76	76	88
Max. Cutting length	mm	3400	3400	3400
Cooling water(min. required pressure 3.5 bar)	L/min	150-1500	1000-1500	1500
Fast lowering unit power	kw	37	132	200
Worktable max. rotate angle	°	not allowed	not allowed	not allowed
Max. Cutting height	mm	2100	2100	2100
Max. individual diamond wire tension	Kg	220-260	180-220	160-200
Output number of slabs 20mm per linear mt.	nr	it depends	it depends	it depends
Slabs nominal thickness	mm	20/30/40/50/60/70/80/90/100	20/30	18
Wire pitch for sawing 20mm thick.	mm	28.5	27.9	24.8
Diamond wires speed	m/s	0~35	0~35	0~35
Machine length (L)	mm	11200	11200	11200
Production efficiency 20mm thick.	m2/h	it depends，contact us to know more details	it depends，contact us to know more details	it depends，contact us to know more details
Max. Cutting width	mm	600-2100	600-2100	1600-2100
Approximative Weight	Kg	25-62	50-62	50-62
Output number of slabs 30mm per linear mt.	nr	it depends	it depends	it depends
Machine width (W)	mm	2600-7400	4500-7400	4500-7400
Main motor power	kw	37-280	90-280	200-280
Wires set width	mm	7.3	6.3	4.3-4.8
Diamond bead diameter	mm	7.3	6.3	4.3-4.8
Dim. Trolley Size/Worktable size	mm	20002500-25003200	2500*3200	2500*3200
