Super Thin Diameter Cable Multi Wire Saw Machine For Marble Slabs Cutting
FOB Price:$395000-400000
Type:
Stone Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
Usage:
Marble, Limestone, Sandstone, Travertine
After-Sale
Lead Time:
60 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting
Trade Terms
Port:
shenzhen- China
Delivery Details: FOB,CFR,CIF,EXW,FCA
Payment :
More
Supplier
Eatablished :Sep 15,2022
Main Product:
Multi Wire Saw Machine, Block Dressing Machine, Quarry Machine, Dth Bit, Diamond Wire Saw, Dth Hammer|
Machinery Function Features
a. Tiny wire saws with only 0.5~0.7mm cutting groove brings yield rate up to 97%.
b. The machine main structure is made by castings to ensure stable operation and zero structural deformation.
c. The machine equips a set of advanced servo system, securing smooth and reliable performance.
d. The main motor adopts a direct-drive structure, enabling precise and controllable operation during the machine's running process.
e. With less cutting vibration to avoid edge breakage, the machine can produce Ultra-thin slabs below 10mm.
f. Convenient grooving can satisfy various slab thicknesses requirements.
Technical Data
Parameters |
Unit |
DX3623 |
Diamond wires speed |
m/s |
30m/s |
Main motor power |
kw |
60KW |
Machine height (H) |
m |
6.8 |
Max. Cutting length |
m |
3.6 |
Output number of slabs 30mm per linear mt. |
pcs |
60pcs |
Max. Number of wires for sawing 30mm thick. |
pcs |
60 |
Pitch groove wire driving |
mm |
0.5mm |
Approximative Weight |
T |
43 |
Machine width (W) |
m |
5.4 |
Diamond wire length |
m |
30000 |
Wire pitch for sawing 20mm thick. |
mm |
0.5mm |
Wire pitch for sawing 30mm thick. |
mm |
0.5mm |
Diamond bead diameter |
mm |
0.5mm |
Machine length (L) |
m |
8.2 |
Dim. Trolley Size/Worktable size |
m |
L3.2*W2.35 |
Output number of slabs 20mm per linear mt. |
pcs |
90pcs |
Production efficiency 20mm thick. |
m2/h |
9.6cm/h |
Slabs nominal thickness |
mm |
10mm |
Installed electrical power |
kw |
300KW |
Max. individual diamond wire tension |
Kg |
260N |
Max. Number of wires for sawing 20mm thick. |
pcs |
90 |
Max. Cutting width |
m |
2.1 |

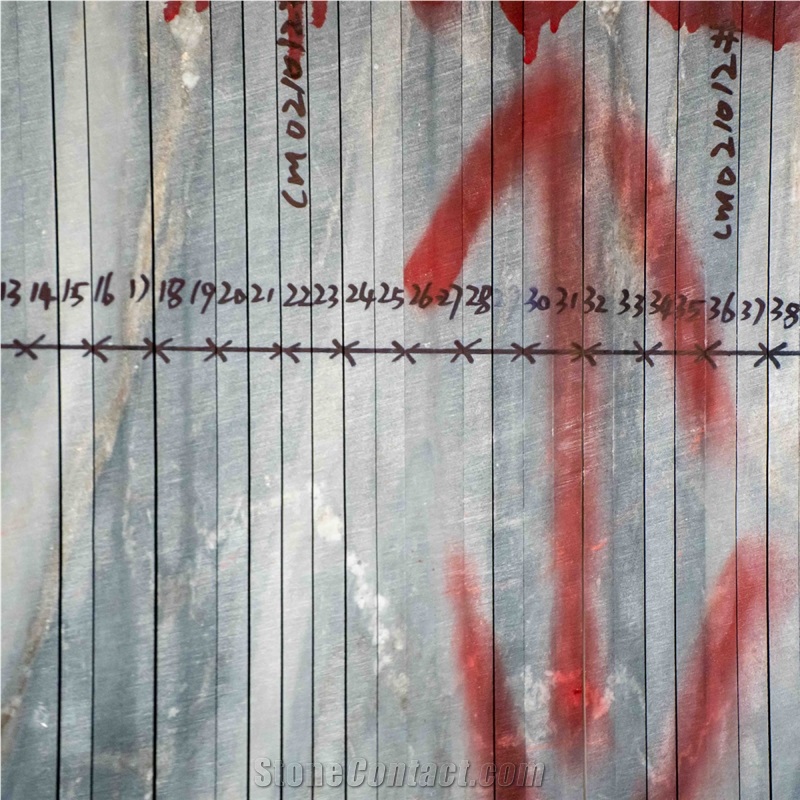

Processed Stone Photos
Components
-

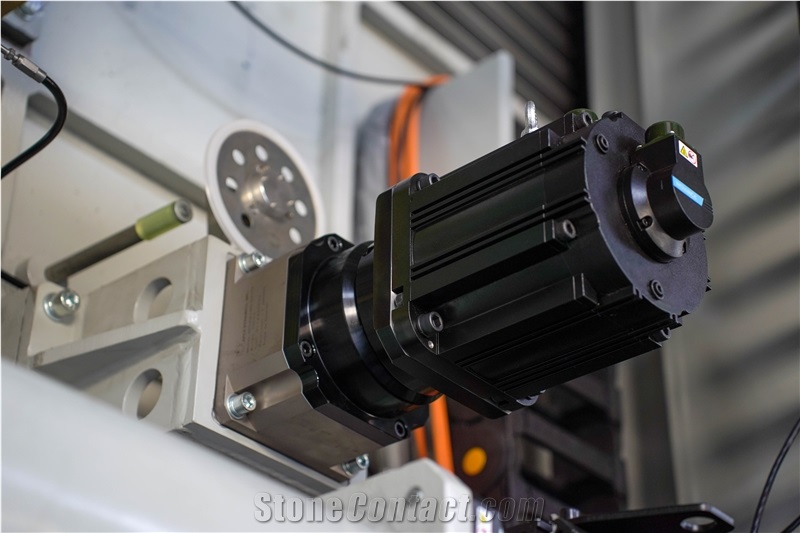

Servo system
¥Payment Required
Consumables
-
Rollers
2 sets included
