MILLENNIUM CNC 5-Axis Monoblock Bridge Cutter
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Remote troubleshooting, Field troubleshooting
You may also like
Machinery Function Features
Our MILLENNIUM range is designed for those who are willing to stay one step ahead of the world market and demand total reliability in a CNC machine.
Precision, productivity, efficiency, durability, design and maximum quality worldwide for each of its components, being the most valued equipment over the years.
The first CNC Intelligent equipment was presented for the first time at the ExpoPiedra Madrid 2000-2002 fair under the name of Millennium. After more than 15 years of development and continuous improvement, the new MILLENNIUM range represents the most intelligent machines on the market, Intelligent Performance, being REFERENCES IN THE INTERNATIONAL MARKET.

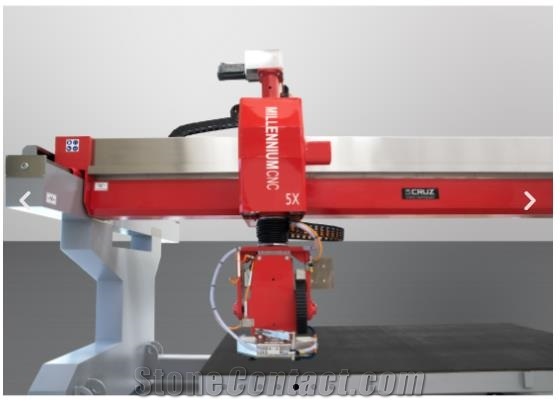

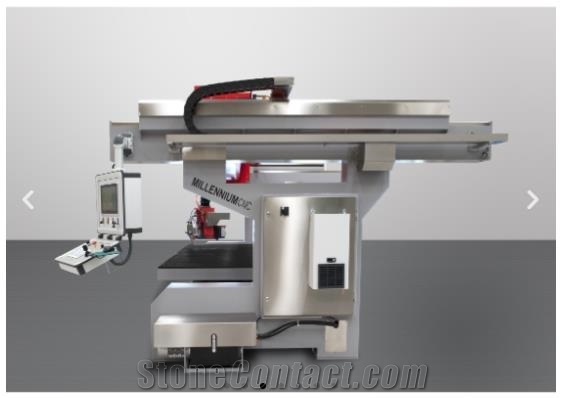

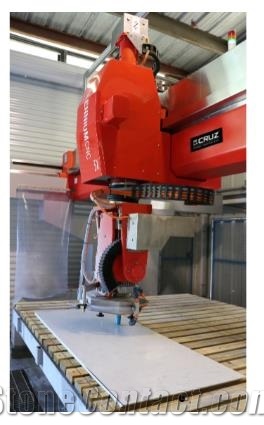

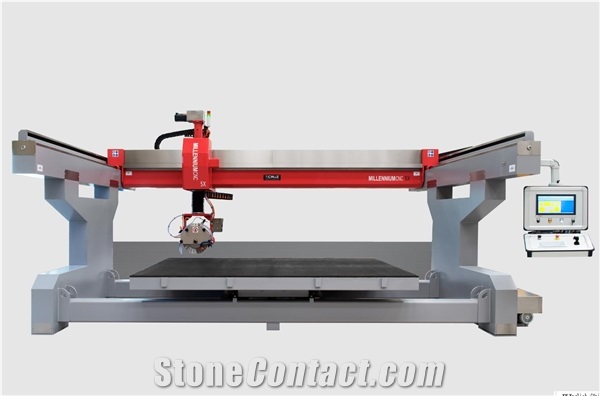

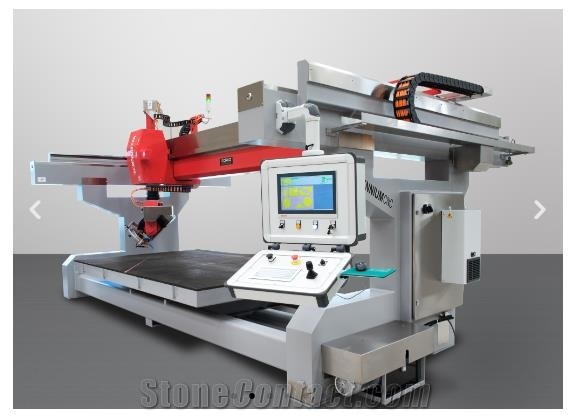

MILLENNIUM MONOBLOCK CNC 5X
The MILLENNIUM CNC 5-Axis Monoblock Cutter, the top machine in our range, is the reference in the market with more than 250 units installed throughout the world.
Technical Data
Parameters |
Unit |
MILLENNIUM MONOBLOCK CNC 5X |
Machine width |
mm |
3600 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
55 |
Machine height |
mm |
3100 |
Machine length |
mm |
6150 |
Head raising/lowering stroke(Z axis travel) |
mm |
65 |
Disc diameter |
mm |
350-400 |
Voltage / Frequency |
V/Hz |
400V / 50-60 Hz |
Transversal stroke speed (Y displacement speed) |
m/min |
50 |
Bridge transversal stroke(Y axis travel) |
mm |
2000 |
Cooling water requirement(1.5 bar min. pressure) |
L/min |
35 |
Installed electrical power |
kw |
15 |
Horizontal stroke(X axis travel) |
mm |
3300 |
Hydraulic station motor power |
kw |
1.5 |
Approximate weight without table |
Kg |
7690 |
Vertical stroke speed (Z displacement speed) |
m/min |
15 |
