Image5x CNC Bridge Cutting Machine
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jun 01,1970
Main Product:
CNC Machines, Bridge Cutting Machines, CNC Work Center|
Machinery Function Features

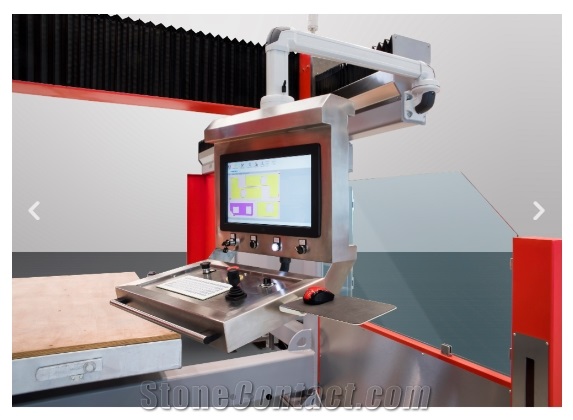

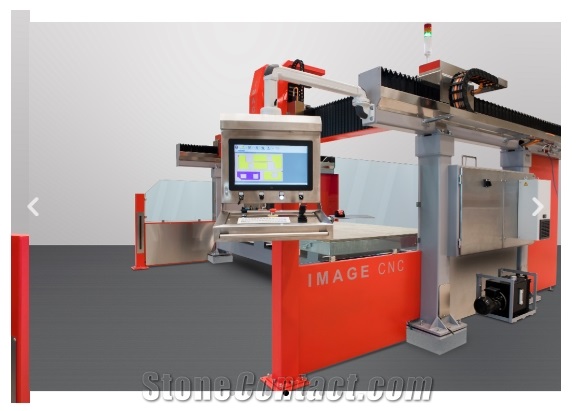

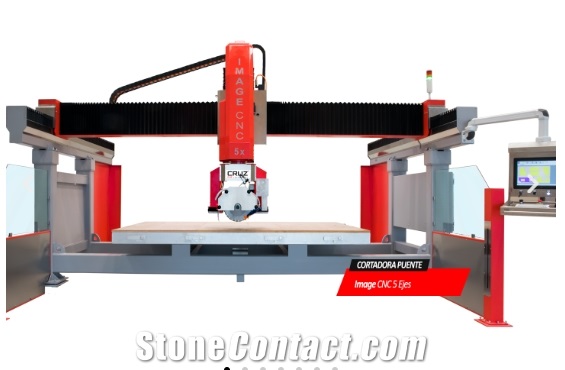

Bridge Image CNC cutter: equipped with high technology that allows high-precision and fast cuts.
Machine of easy placement and assembly that allows its rapid transfer, also occupying a reduced space.
The Image CNC Cutter allows the complete quartering of boards with great precision and speed, since its CNC control manages the sequence of all the movements and cuts of the process, reducing work time, both in its execution time and in its programming.
Technical Data
Parameters |
Unit |
Image5X |
Main motor power |
kW |
15 |
Hydraulic station motor power |
kw |
1.5 |
Machine height |
mm |
2750 |
Machine length |
mm |
6100 |
Approximate weight without table |
Kg |
6480 |
Cooling water requirement(1.5 bar min. pressure) |
L/min |
10-15 |
Voltage / Frequency |
V / Hz |
400V / 50-60 Hz |
Bridge transversal stroke(Y axis travel) |
mm |
2000 |
Speed Control: 20 hp. Speed variator |
hp |
20 hp. Speed variator |
Disc diameter |
mm |
350-400 |
Machine width |
mm |
4200 |
Head raising/lowering stroke(Z axis travel) |
mm |
350 |
Transversal stroke speed (Y displacement speed) |
m/min |
42 |
Horizontal stroke(X axis travel) |
mm |
3300 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
42 |
Vertical stroke speed (Z displacement speed) |
m/min |
15 |
