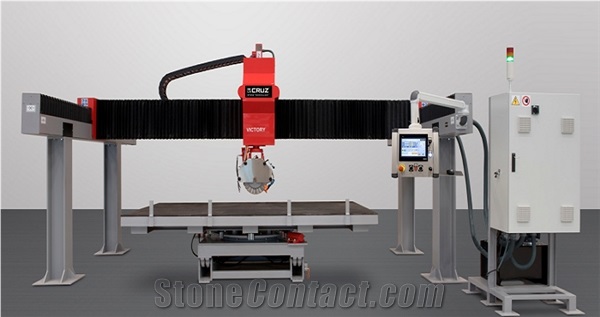

VICTORY Bridge Cutter With Rotary Head V2
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Remote troubleshooting, Field troubleshooting
You may also like
Machinery Function Features
VICTORY Bridge Cutter with Rotating Head equipped with an automatic head rotation system of 0° and 90°. The head movements in 3 axes plus the inclination of the head for miter cutting, allow high-speed cutting of boards and increase productivity by more than 30% compared to conventional bridge discs.
With the automatic head tilt, the 45° miter cut can be done very quickly and simply.
Automatic work programs for complete exploded views of boards thanks to rotation and the new software.
Automatic adjustment of the tool rotation speed depending on the type of material to regulate tool wear and energy consumption.
All this makes the VICTORY Bridge Cutter with Rotary Head V2 a practical solution that offers high productivity and space savings.
Technical Data
Parameters |
Unit |
VICTORY Cabezal Giratorio V2 |
Approximate weight without table |
Kg |
5200 |
Head raising/lowering stroke(Z axis travel) |
mm |
350 |
Hydraulic station motor power |
kw |
1.5 |
Cooling water requirement(1.5 bar min. pressure) |
L/min |
10-15 |
Crossbeam motor power |
kw |
1.5 |
Disc diameter |
mm |
350- 400 |
Main motor power |
kW |
15 kW |
Voltage / Frequency |
380V / 50 Hz |
|
Machine height |
mm |
2400 |
Horizontal stroke(X axis travel) |
mm |
3300 |
Bridge transversal stroke(Y axis travel) |
mm |
2000 |
Machine width |
mm |
4030 |
Head motor power |
kw |
1.5 |
V axis (optional automatic) |
° |
45º |
Machine length |
mm |
5800 |
