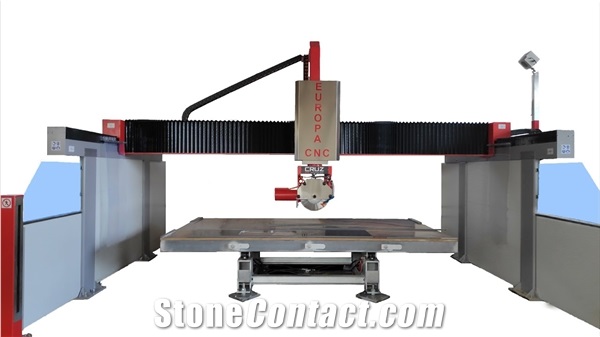

EUROPE 5X- 5 AXIS CNC Bridge Cutting Machine
FOB Price:
Supplier
Eatablished :Jun 01,1970
Main Product:
CNC Machines, Bridge Cutting Machines, CNC Work Center|
Parameters |
Unit |
EUROPE 5X |
Approximate weight without table |
Kg |
4950 |
Machine length |
mm |
6100 |
C axis blade rotation |
° |
0 – 365º |
Speed Control |
20 hp. Speed variator |
|
Vertical stroke speed (Z displacement speed) |
m/min |
10 |
Hydraulic station motor power |
kw |
1.5 |
Disc diameter |
mm |
330-700 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
45 |
Bridge transversal stroke(Y axis travel) |
mm |
2700 |
Main motor power |
kW |
15 |
Machine width |
mm |
4200 |
Tools holder head inclination(A axis blade rotation) |
° |
0 – 90º |
Horizontal stroke(X axis travel) |
mm |
3900 |
Head raising/lowering stroke(Z axis travel) |
mm |
450 |
Transversal stroke speed (Y displacement speed) |
m/min |
45 |
Voltage / Frequency |
V / Hz |
400V / 50-60 Hz |
Machine height |
mm |
2750 |
Cooling water requirement(1.5 bar min. pressure) |
L/min |
10-35 |

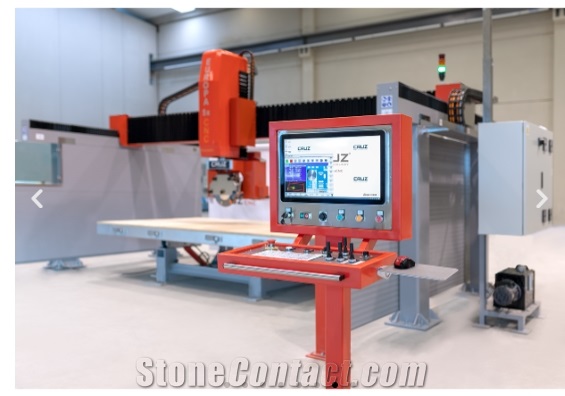

CAD/CAM software for the preparation and execution of the work to be carried out. It can be used both by the operator on the machine or previously in the office.Software with a large number of possibilities and easy to use for non-specialized personnel, this software is in continuous development to adapt to the changes and needs of the market.High resolution camera for positioning the pieces on the board to be cut, optimizing the material and with the possibility of joining grains.Suction cup system for the automatic separation of the material, with free displacement of pieces or assisted by the nesting software.
