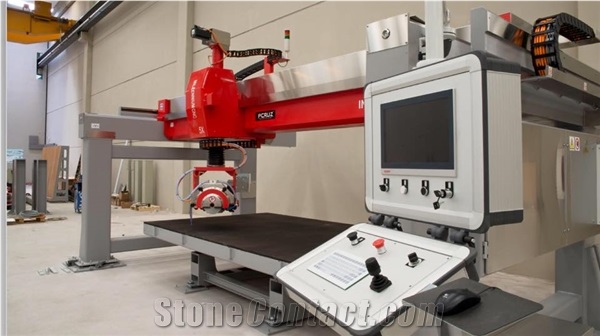

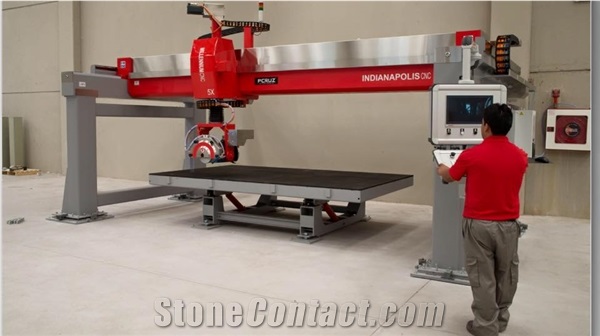

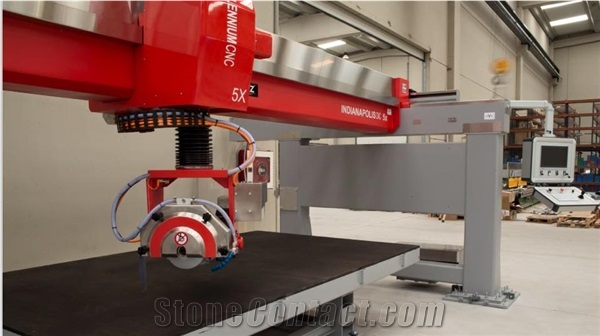

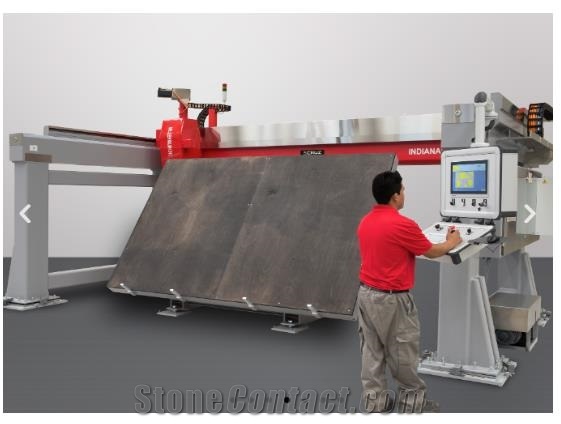

MILLENNIUM CNC 5X Indianapolis Monoblock Bridge Cutting Machine
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jun 01,1970
Main Product:
CNC Machines, Bridge Cutting Machines, CNC Work Center|
Machinery Function Features
The MILLENNIUM CNC 5X Indianapolis cutter is a new concept of cutter designed by De La Cruz Stone Technology. Our team of engineers and designers have worked tirelessly for years to create and refine this concept that will allow fabricators to customize machines to meet all of their future cutting needs.
This machine was designed during the creation of our top-notch MILLENNIUM CNC 5X Monoblock cutter and shares all of its top-tier features. This, together with the possibility of new modifications, makes the MILLENNIUM CNC 5X Indianapolis the ideal cutter for many manufacturers.
Technical Data
Parameters |
Unit |
MILLENNIUM CNC 5X Indianapolis |
Head raising/lowering stroke(Z axis travel) |
mm |
65 |
Transversal stroke speed (Y displacement speed) |
m/min |
50 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
55 |
Disc diameter |
mm |
350-400 |
Cooling water requirement(1.5 bar min. pressure) |
L/min |
35 |
Approximate weight without table |
Kg |
6950 |
Vertical stroke speed (Z displacement speed) |
m/min |
15 |
Installed electrical power |
kw |
15 |
Voltage / Frequency |
400V / 50-60 Hz |
|
Machine length |
mm |
6250 |
Machine height |
mm |
3100 |
Bridge transversal stroke(Y axis travel) |
mm |
2000 |
Hydraulic station motor power |
kw |
1.5 |
Horizontal stroke(X axis travel) |
mm |
3300 |
Machine width |
mm |
3910 |
