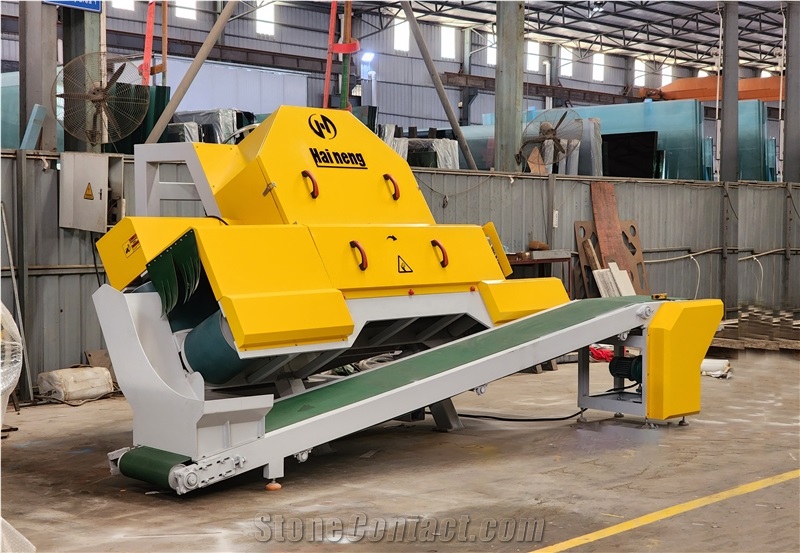

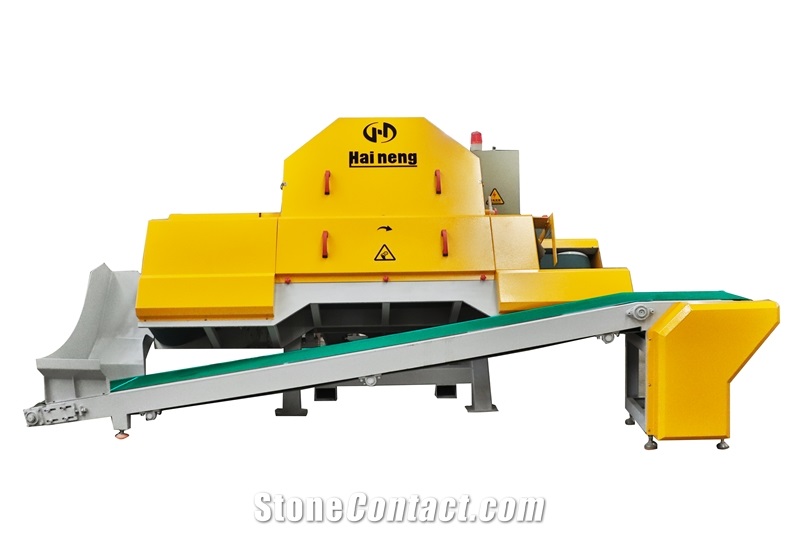

Thin Stone Veneer Saw With Return Conveyor
FOB Price:$12000-14000
Type:
Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
15 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|
Machinery Function Features
Our patented veneer saws make cutting thin stone veneer flats and 90-degree corners quick, simple, and profitable. The unique v-structured cutting surface easily cuts split-face or natural finished sandstone, brick, limestone, and other hard stones up to 16” high and 2.5” thick.
Technical Data
Parameters |
Unit |
ZQ-1000/22 |
ZQ-1200/45 |
Max blade diameter |
mm |
800-1000 |
1000-1200 |
Total power |
kw |
22.75 |
45.75 |
Overall length |
4 |
2850 |
3100 |
Max cutting width |
mm |
380 |
480 |
Max cutting thickness |
mm |
380 |
480 |
Overall height |
4 |
1750 |
2200 |
Main motor power |
kw |
22 |
45 |
Exhausted water |
m³/h |
4 |
4 |
Overall width |
4 |
1950 |
2200 |
Gross weight |
kg |
2200 |
3100 |
Processed Stone Photos
Components
-
limit switch
¥Payment Required
Consumables
-

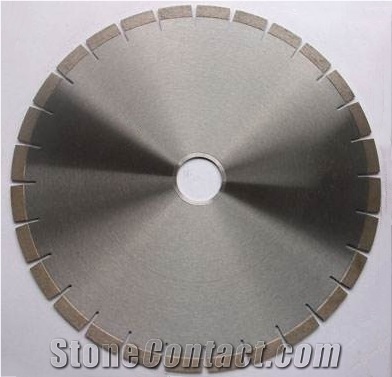

saw blade
800-1200mm
Video
Install Video
Operation Video
