Hydraulic Blade Natural Stone Splitting Machine

FOB Price:$10000-11000

Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 25 Days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting

Supplier

Eatablished :Apr 13,2017

Main Product:

Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|

Contact supplier

Start Order

  • Overview
  • Components
Machinery Function Features

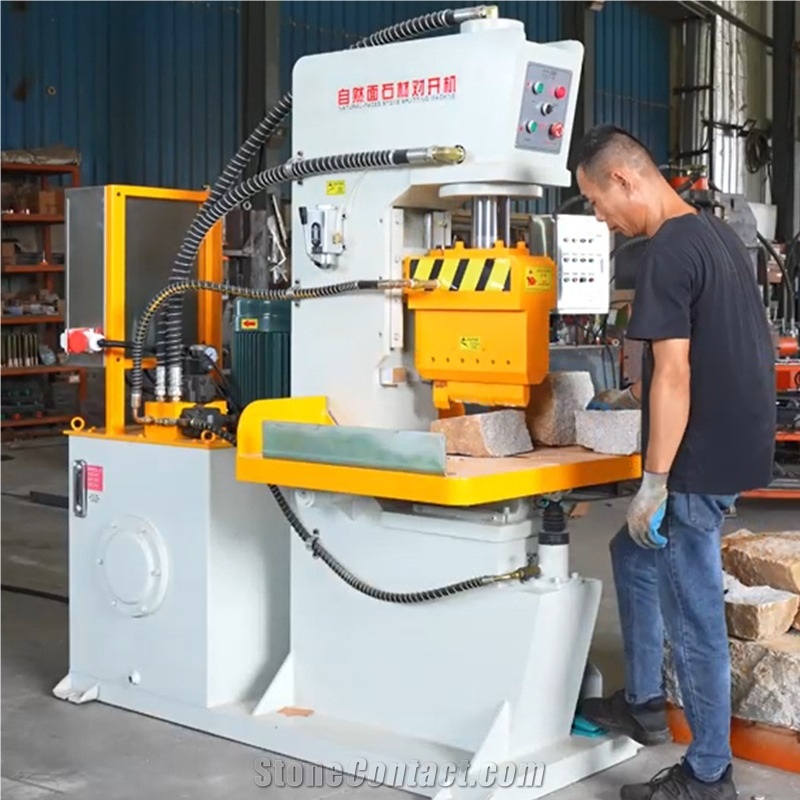

This stone splitter,with 60 tons of powerful hydraulic power, splits the stone into two cubes or blocks,for paving and wall decoration, such as sidewalks, facades and rustic walls. Adjustable splitting angle and depth to meet the needs of different sizes and shapes of stone to create a personalized architectural style. Main Features: Open frame machine model for easy maintenance. Made of sturdy cast iron and high-quality components to ensure stability while working. Rapid lifting motion greatly improves work efficiency. Wedge chisel balance system provides maximum contact with the stone surface for a cleaner edge line. Heat-treated and hardened high carbon steel sparks produce superior splitting every time.

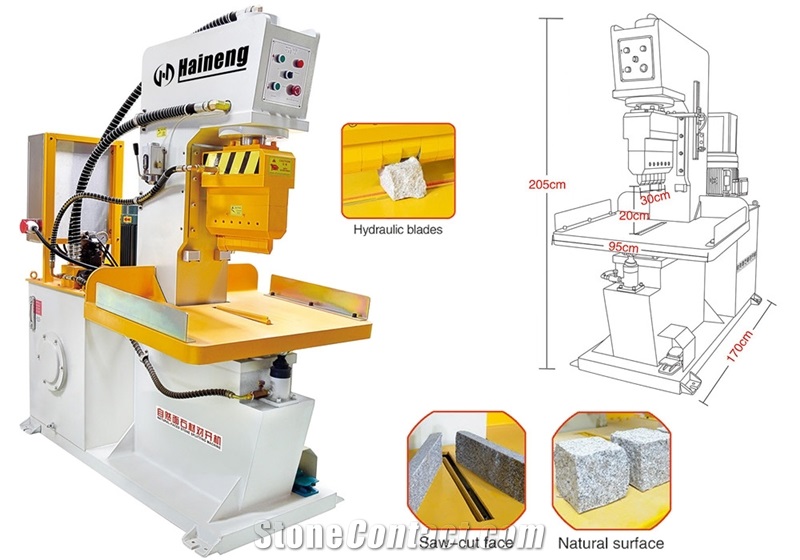

Technical Data
Parameters
Unit
SDKJ-60T-Y
Gross Weight
T
1.3
Total Power
7
7.5
Blade Feeding Speed
cm/S
12
Machine overall width
3
200
Machine approx. weight
25
1.2
Max. Processing Width
3
30
Machine overall height
3
95
Hydraulic Oil Grade
46
Flow Rate
L
40
Pressure
T
60
Output/Hour
45
Machine overall length
3
170
Max Working Height
cm
20
Oil Tank Capacity
KG
200

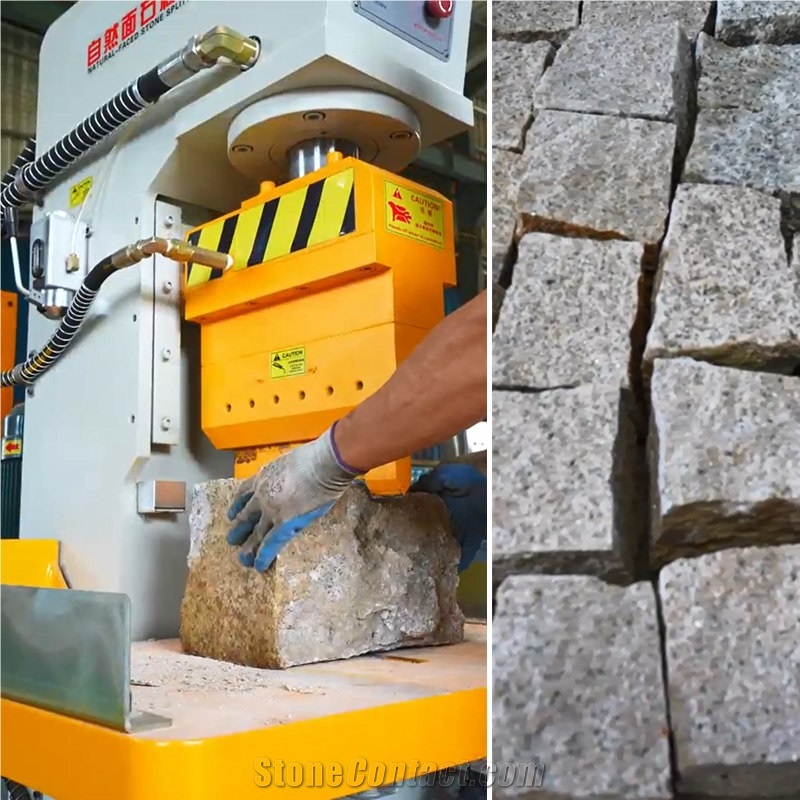

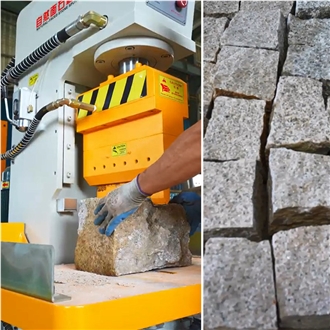

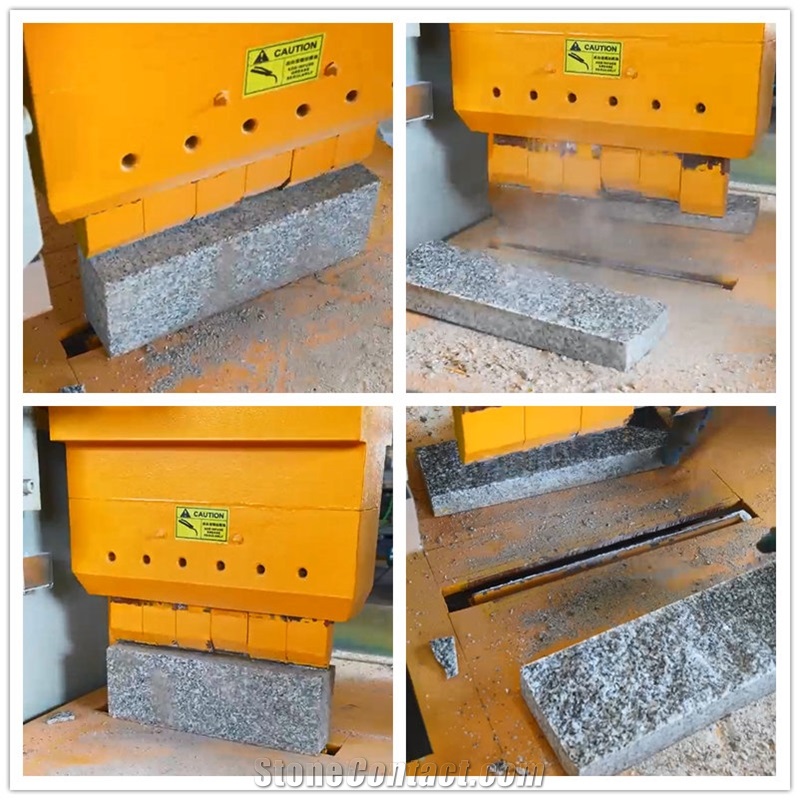

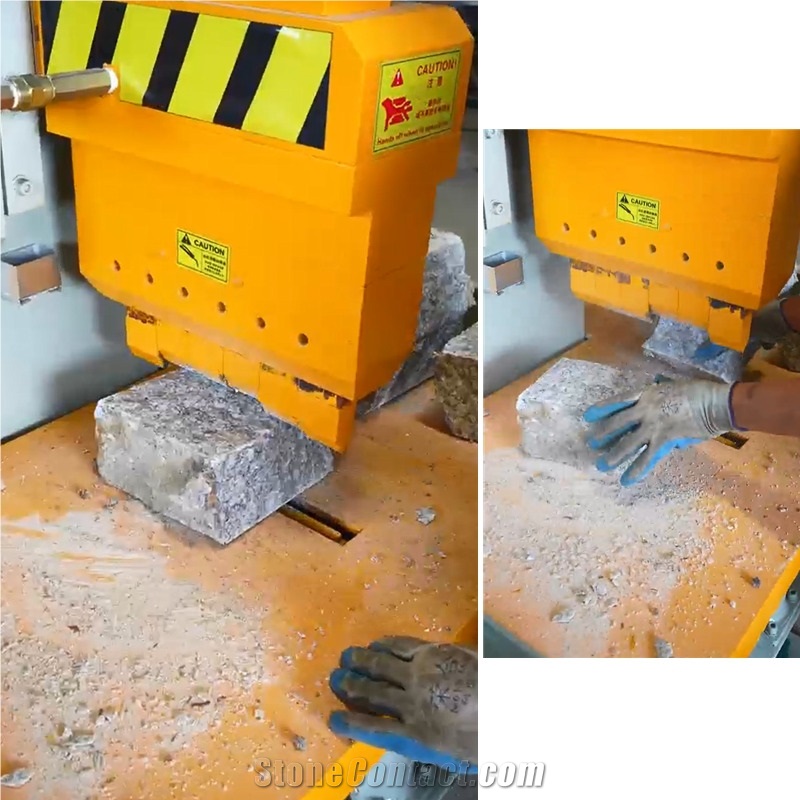

Processed Stone Photos
