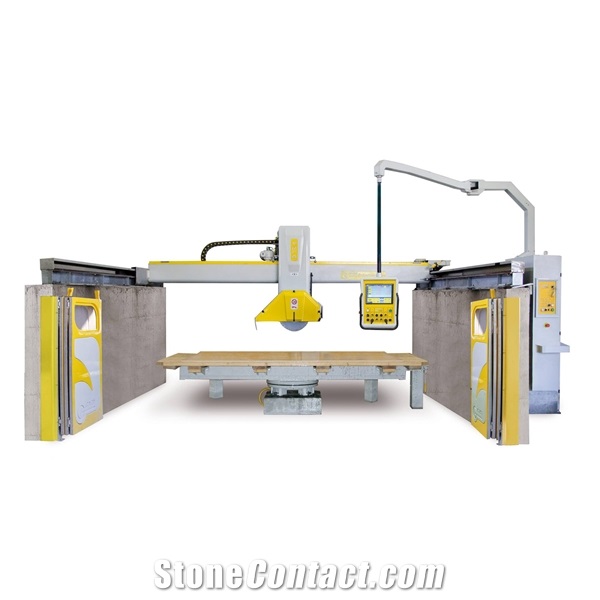

EURA 35 TS3 AUTOMATIC ELECTRONIC BRIDGE SAWING MACHINE
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Remote troubleshooting
Supplier
Main Product:
Sawing Bridge Machines, Polishers, Lathe Machine, Block Cutter, Bridge Saw Machines, CNC Machine, Calibrating Machine, Waterjet Machine, Wire Saw|
Machinery Function Features
Max blade size of 625 mm (24.6 in).
Main structures made of cast iron and stainless steel protections.
The basic version of this machine will be supplied complete of:

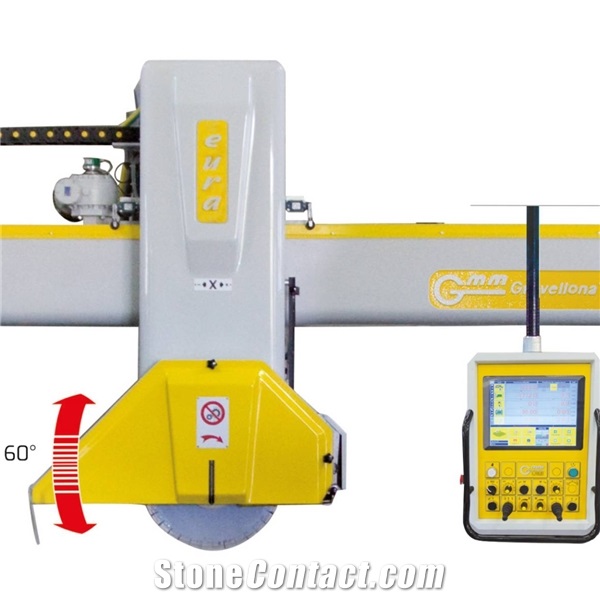

- tilting head from 0° to 60° for marble and granite;
- blade inverter;
- optical collimator;
- manual rotating table with blocking device from 0° to 360° (automatic - optional);
- multiple cutting program with colour display 12” Touch Screen;
- profile copier (optional);
- CE - ETL norms;
- folding door solid panel safety barrier.

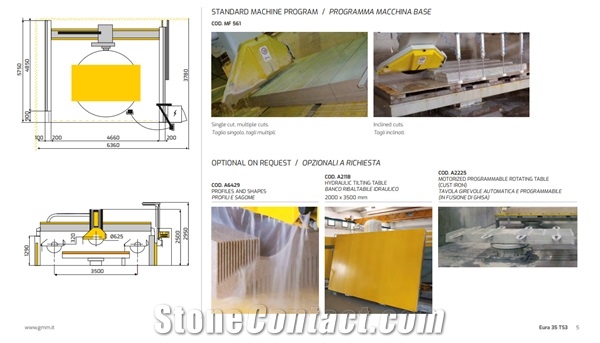

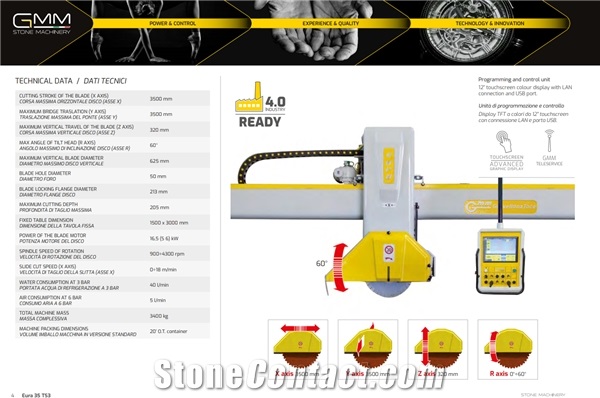

Technical Data
Parameters |
Unit |
EURA 35 TS3 |
Machine height |
mm |
2950 |
Vertical cutting spindles motor power |
kw |
16,5 (S 6) |
Dimensions of the work table(L×W) |
mm |
2000x3500 |
Cooling water requirement(1.5 bar min. pressure) |
L/min |
40 (at 3 bar) |
Approximate weight without table |
Kg |
3400 |
C axis blade rotation |
° |
60 |
Horizontal stroke(X axis travel) |
mm |
3500 |
Machine length |
mm |
6360 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
0÷18 |
Tools holder head inclination(A axis blade rotation) |
° |
0-360 |
Bridge transversal stroke(Y axis travel) |
mm |
3500 |
Max. cutting depth |
mm |
205 |
Blade hole diameter |
mm |
50 |
Blade locking flange diameter |
mm |
213 |
Air consumption |
L/min |
5 (at 6 bar) |
Machine width |
mm |
5750 |
Max. revolutions of the spindle unit |
r/min |
900÷4300 |
Head raising/lowering stroke(Z axis travel) |
mm |
320 |
Disc diameter |
mm |
625 |
