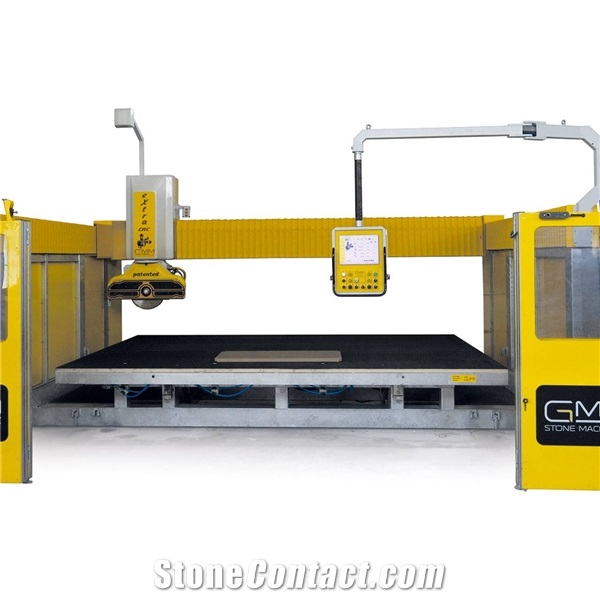

EXTRA 400 CN2 Monoblock CNC 5-Axis Sawing Machine

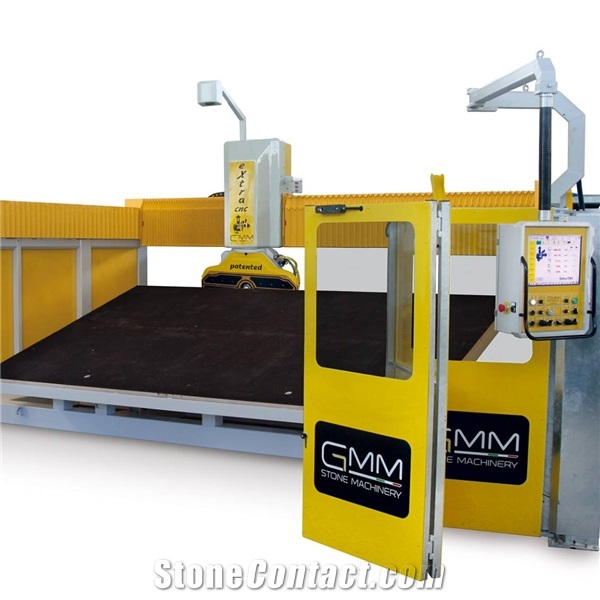

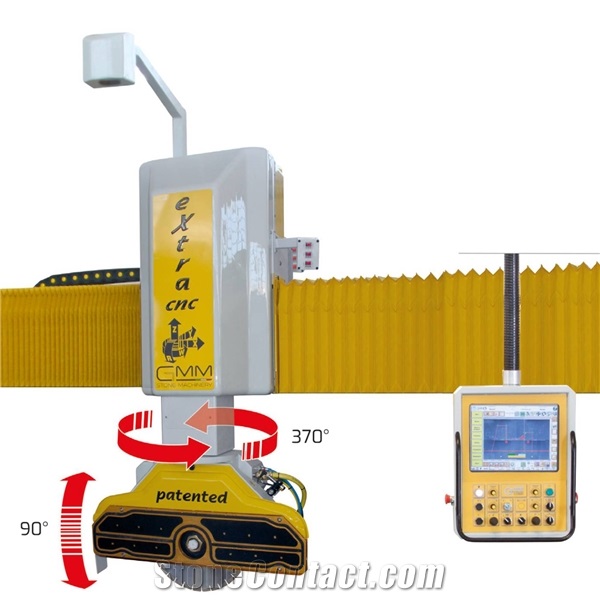

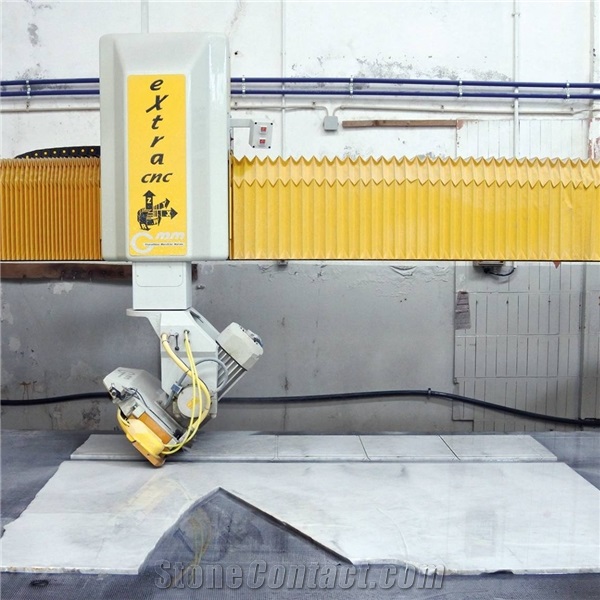

The machine combines extreme ease of use and intuitive programming of both basic operations than of the more advanced ones, such as offl ine programming, cad cuts, contouring, profiles and shapes, drilling, coring, bas-reliefs and lettering etc. Fully interpolated 5 axis movement with rotating head with 370° range, inclination from 0°-90°. Hot dipped galvanized steel fi xed with saw surface in high density plastic rubber matting (optional) with max blade size of 625 mm (24.6 in) and minimum blade size of 300 mm (11.8 in) with Z axis (rise and fall movement) of 400 mm (15.75 in). The complete structure is made up of hot dipped galvanized steel structures - supplied with folding door solid panel safety barriers. Fast and precise movements due to brushless motors with absolute encoders, recirculating ball bearing movement, precision gearboxes and interpolated axis controlled by CNC. Electro spindle running up to 4500 rpm (6000 on request with center water feed and a 36x2 or ½” gas fitting). Suspended pendant with 15” TFT color touchscreen. Machine is equipped with USB/Ethernet port for easy loading of programs. Stainless steel electrical panel. Upon request the machine can also be equipped with parametric drawings, Cuts From CAD, contouring, profiling and shaping, drilling with auto tool changer with magnetic connection, digital camera to provide a jpeg of the slab on screen. By using the integrated Vacuum head, (upon request) the machine performs automatic movement/unloading of sawn pieces, man power and raw material saving.
