AXIA 38 TS3 Automatic CNC Bridge Saw Machine
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Main Product:
Sawing Bridge Machines, Polishers, Lathe Machine, Block Cutter, Bridge Saw Machines, CNC Machine, Calibrating Machine, Waterjet Machine, Wire Saw|
Machinery Function Features

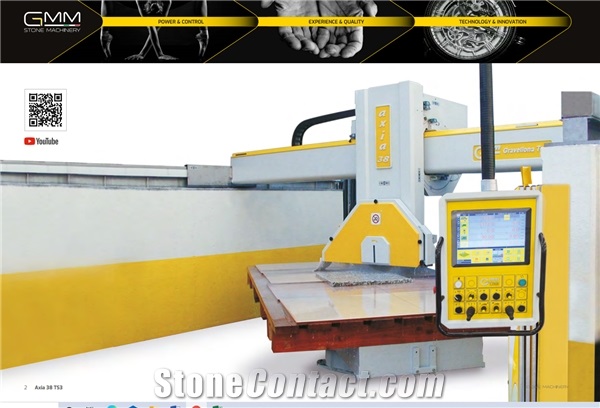

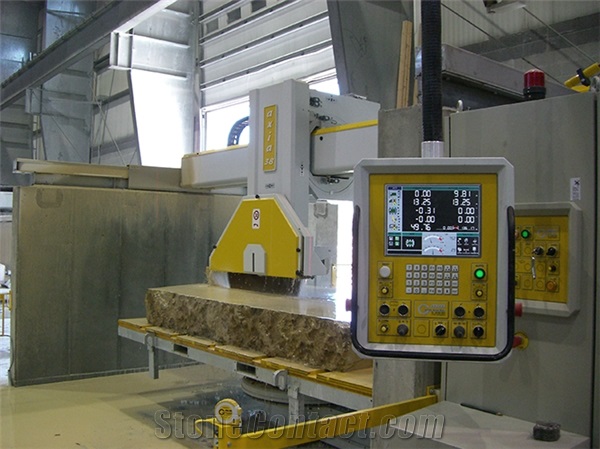

AUTOMATIC ELECTRONIC BRIDGE SAWING MACHINE
Large machine ideal for small,medium and large companies for cutting stone, marble and granite, both in manual and automatic cycle. This machine also performs complex profiles and shapes on a very large cutting surface.
Max blade size of 1050 mm (41.3 in) - 1200 mm (47.2 in) optional.
Machine built in cast iron and protection covers in stainless steel.
The standard machine is supplied with the following:
- motorized tilting and programmable head for marble and granite;
- optical template scanner;
- manual rotating table (optional: programmable automatic table);
- eletronic variable speed on the disc motor;
- 12" touchscreen colour display with LAN connection and USB port;
- folding door solid panel safety barriers.

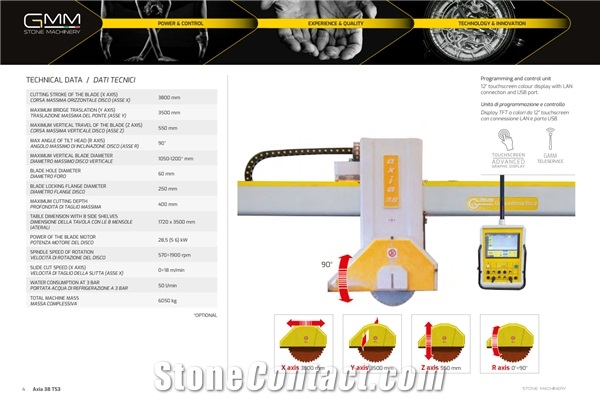

Technical Data
Parameters |
Unit |
AXIA 38 TS3 |
Disc motor power |
kw |
28,5 (S 6) |
Disc diameter |
mm |
1050-1200 |
Approximate weight without table |
Kg |
6050 |
C axis blade rotation |
° |
90° |
Max. revolutions of the spindle unit |
r/min |
570÷1900 |
Head raising/lowering stroke(Z axis travel) |
mm |
550 |
Machine height |
mm |
3340 |
Horizontal stroke(X axis travel) |
mm |
3800 |
Blade locking flange diameter |
mm |
250 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
0÷18 |
Bridge transversal stroke(Y axis travel) |
mm |
3500 |
Max. cutting depth |
mm |
400 |
Blade hole diameter |
mm |
60 |

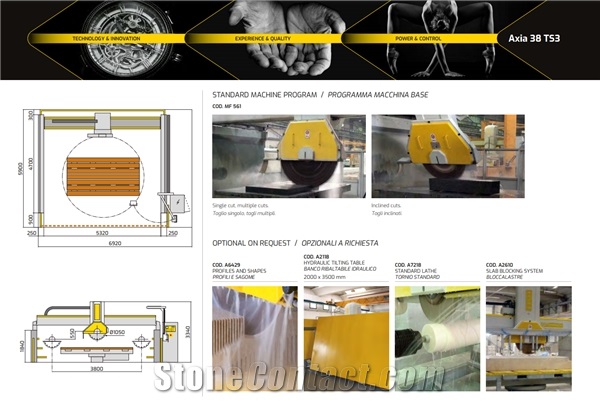

Machine width |
mm |
5900 |
Dimensions of the work table(L×W) |
mm |
1720x3500 (with 8 side shelves) |
Machine length |
mm |
6920 |
Cooling water requirement(1.5 bar min. pressure) |
L/min |
50 (at 3 bar) |
