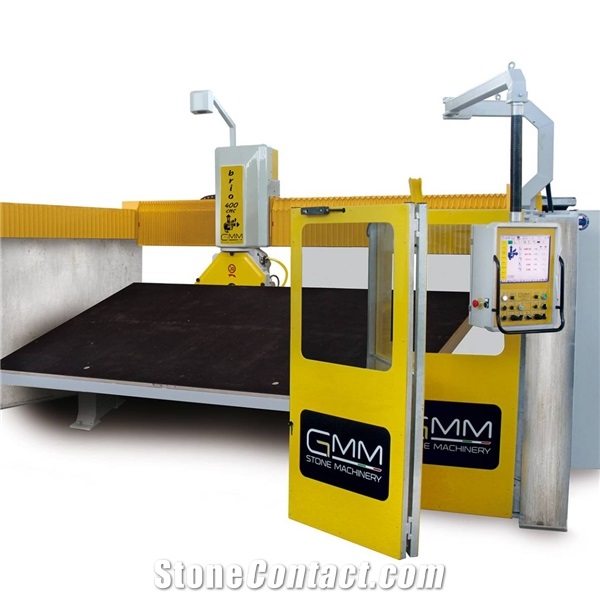

BRIO EASY 400 CN2 CNC 5-Axis Sawing Machine

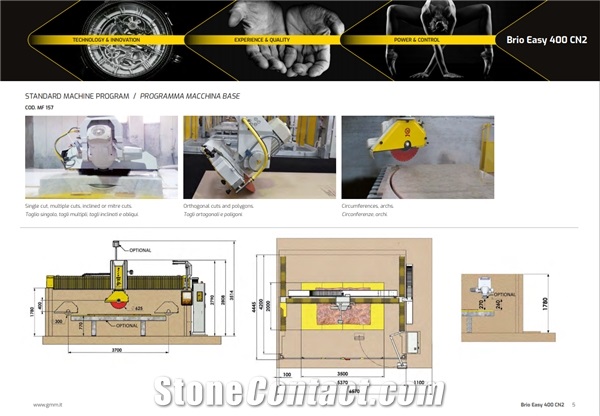

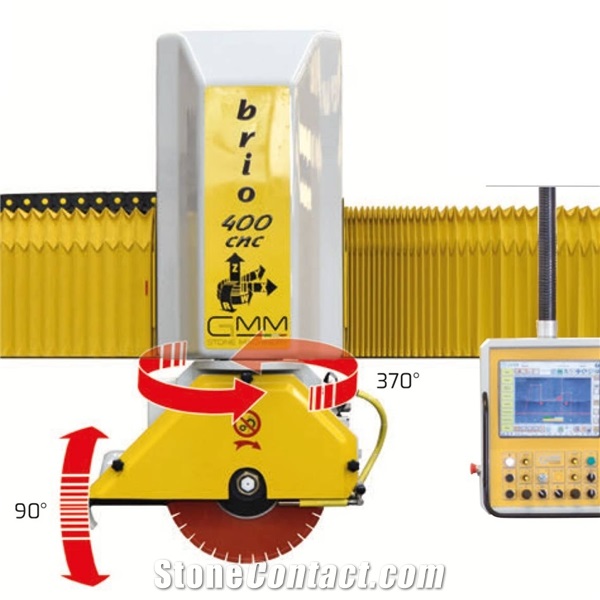

The Brio can be used completly in a manual mode, or can follow a range of automatic programs including single, multiple or orthogonal cuts. Inclined, oblique, or a combination of inclined and oblique, when directed, the machine can take step cuts in the direction of the blades axis by moving all the axis in an interpolated mode without the need for a rotating table. The Brio also has the ability to follow a series of cuts dictated by a dxf file and thus transform raw slab into finished sizes with almost no operator presence. The Brio can drill, carve or carry out lettering on request. The standard version it is supplied to be installed on concrete or carpentry shoulder support. The shoulder and the machine cutting table are optional and not included in the machine price. Full 5 axis interpolation with rotating head from 0°-370°, and tilting head fully automated (0°-90°). Max blade size 625 mm (25 in) with Z axis (rise and fall movement) 400 mm (15,6 in). Fast and precise movements due to brushless motors with absolute encoders, recirculating ball bearing movement, precision gearboxes and interpolated axis from the CNC. Electro spindle running up to 4500 rpm (6000 on request) with centre waterfeed and a 36x2 or ½ gas fitting (on request). Suspended pendant with 15” TFT colour touchscreen. Machine is equipped with USB/Ethernet port for easy loading of programs. Stainless steel electrical panel.
