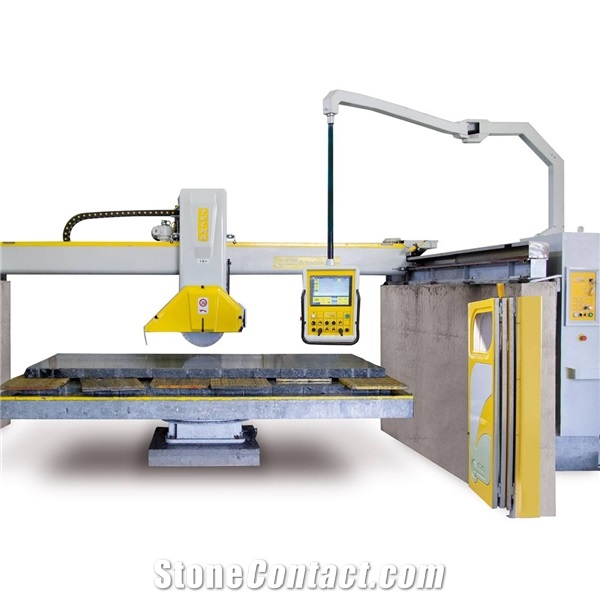

TECNA 36 TS3 Automatic CNC Bridge Saw Machine
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Remote troubleshooting
Supplier
Main Product:
Sawing Bridge Machines, Polishers, Lathe Machine, Block Cutter, Bridge Saw Machines, CNC Machine, Calibrating Machine, Waterjet Machine, Wire Saw|
Machinery Function Features
Max blade size of 825 mm (32.5 in).
Main structures made of cast iron and stainless steel protections.
The full version of this machine will be supplied complete of:
- manual tilting head from 0° to 90° for marble and granite;
- blade inverter;
- optical collimator;
- manual rotating table (optional: programmable automatic table);
- multiple cutting program with colour display 12” Touch Screen;
- electrical cabinet on fl oor;
- folding door solid panel safety barriers.

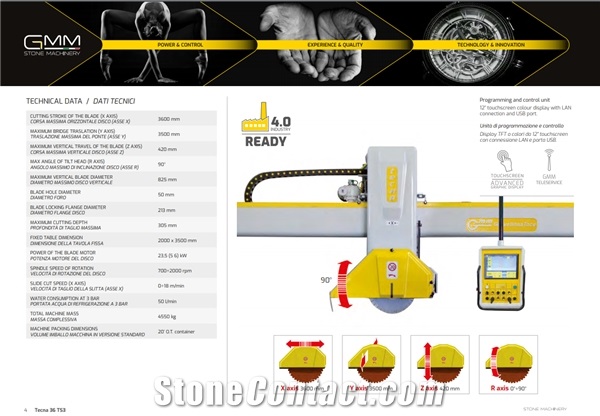

Technical Data
Parameters |
Unit |
TECNA 36 TS3 |
Dimensions of the work table(L×W) |
mm |
2000x3500 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
0÷18 |
Machine length |
mm |
6560 |
Approximate weight without table |
Kg |
4550 |
Max. revolutions of the spindle unit |
r/min |
700÷2000 |
Max. cutting depth |
mm |
305 |
Disc diameter |
mm |
825 |
Machine height |
mm |
3000 |
Horizontal stroke(X axis travel) |
mm |
3600 |
Head raising/lowering stroke(Z axis travel) |
mm |
420 |
C axis blade rotation |
° |
0° to 90° |
Cooling water requirement(1.5 bar min. pressure) |
L/min |
50 (at 3 bar) |
Machine width |
mm |
5800 |
Blade locking flange diameter |
mm |
213 |
Blade hole diameter |
mm |
50 |
Bridge transversal stroke(Y axis travel) |
mm |
3500 |
Disc motor power |
kw |
23,5 (S 6) |
