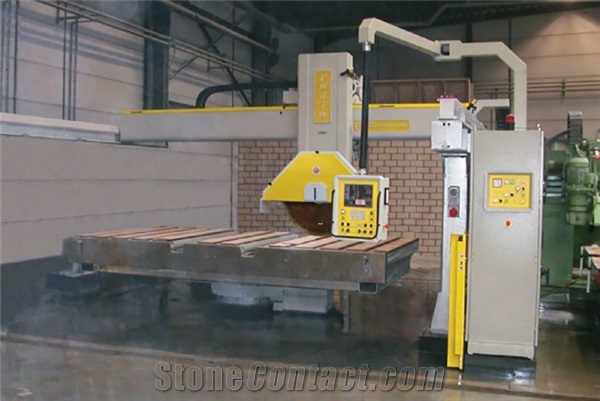

RADIA 38 TS3 Automatic CNC Bridge Saw Machine
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Main Product:
Sawing Bridge Machines, Polishers, Lathe Machine, Block Cutter, Bridge Saw Machines, CNC Machine, Calibrating Machine, Waterjet Machine, Wire Saw|
You may also like

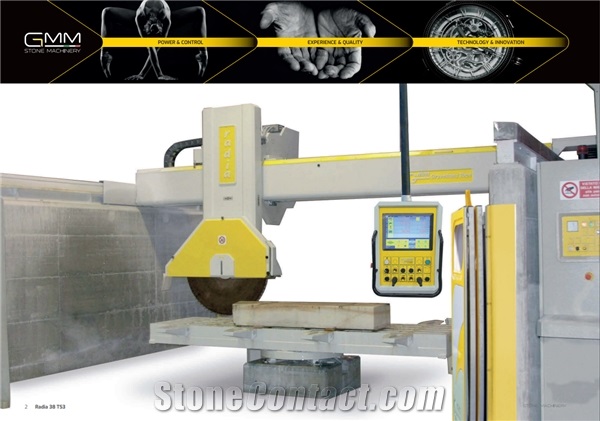

Machinery Function Features
Large machine ideal for small,medium and large companies for cutting stone, marble and granite, both in manual and automatic cycle. This machine also performs complex profiles and shapes on a very large cutting surface.
Max blade size of 1200 mm (47.2 in) - 1600 mm (62.9 in) optional.
Machine built in cast iron and protection covers in stainless steel.
The standard machine is supplied with the following:
- motorized tilting and programmable head for marble and granite;
- optical template scanner;
- manual rotating table (optional: programmable automatic table);
- eletronic variable speed on the disc motor;
- software POLIAX for control;
- 12" touchscreen colour display with LAN connection and USB port;
- folding door solid panel safety barriers.

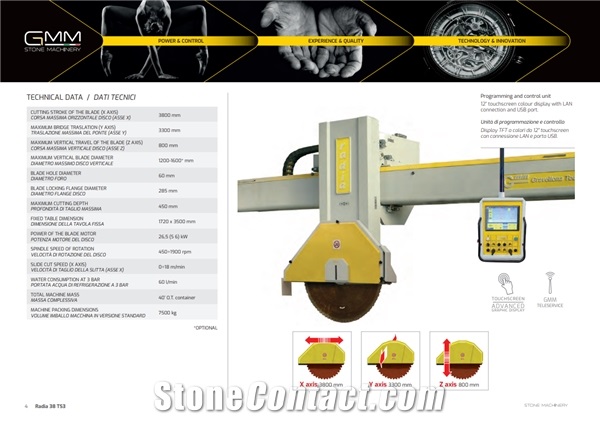

Technical Data
Parameters |
Unit |
RADIA 38 TS3 |
Blade locking flange diameter |
mm |
285 |
Disc diameter |
mm |
1200-1600 |
Max. cutting depth |
mm |
450 |
Bridge transversal stroke(Y axis travel) |
mm |
3300 |
Blade hole diameter |
mm |
60 |
Disc motor power |
kw |
26,5 (S 6) |
Hydraulic tilting table dim. |
mm |
2000x3500 |
Cooling water requirement(1.5 bar min. pressure) |
L/min |
60 (at 3 bar) |
Horizontal stroke(X axis travel) |
mm |
3800 |
Max. revolutions of the spindle unit |
r/min |
450÷1900 |
Machine length |
mm |
7160 |
Machine height |
mm |
3750 |
Dimensions of the work table(L×W) |
mm |
1720x3500 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
0÷18 |
Head raising/lowering stroke(Z axis travel) |
mm |
800 |
Machine width |
mm |
4700 |
Approximate weight without table |
Kg |
7500 |
