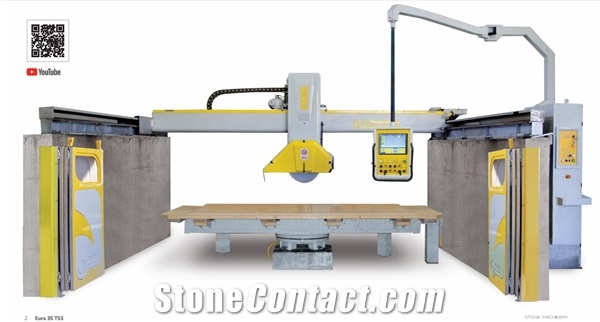

EURA 35 TS3 AUTOMATIC ELECTRONIC BRIDGE SAWING MACHINE
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble
After-Sale
Warranty:12 Months
Supplier
Main Product:
Sawing Bridge Machines, Polishers, Lathe Machine, Block Cutter, Bridge Saw Machines, CNC Machine, Calibrating Machine, Waterjet Machine, Wire Saw|
Machinery Function Features
Basic machine for all workshops: it may be fitted with blades, suitable for both marble and granite, and may be operated manually or automatically.
Max blade size of 625 mm (24.6 in).
Main structures made of cast iron and stainless steel protections.
The basic version of this machine will be supplied complete of:

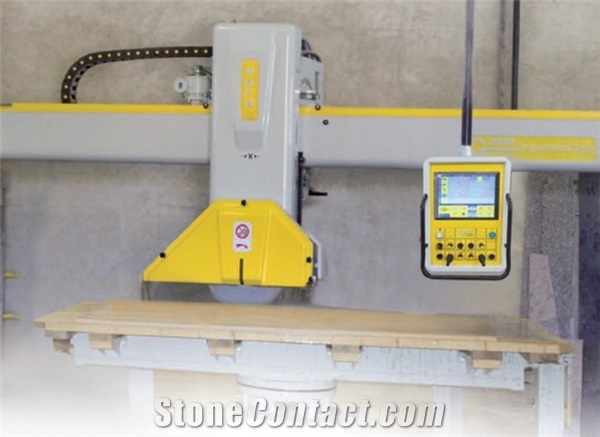

- tilting head from 0° to 60° for marble and granite;
- blade inverter;
- optical collimator;
- manual rotating table with blocking device from 0° to 360° (automatic - optional);
- multiple cutting program with colour display 12” Touch Screen;
- profile copier (optional);
- CE - ETL norms;
- folding door solid panel safety barrier.
Technical Data
Parameters |
Unit |
EURA 35 TS3 |
Blade hole diameter |
mm |
50 |
Horizontal stroke(X axis travel) |
mm |
3500 |
Blade locking flange diameter |
mm |
213 |
Max. revolutions of the spindle unit |
r/min |
900÷4300 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
0÷18 |
Water consumption at 3 bar |
l/min |
40 |
Air consumption at 6 bar |
l/min |
5 |
Bridge transversal stroke(Y axis travel) |
mm |
3500 |
Head raising/lowering stroke(Z axis travel) |
mm |
320 |

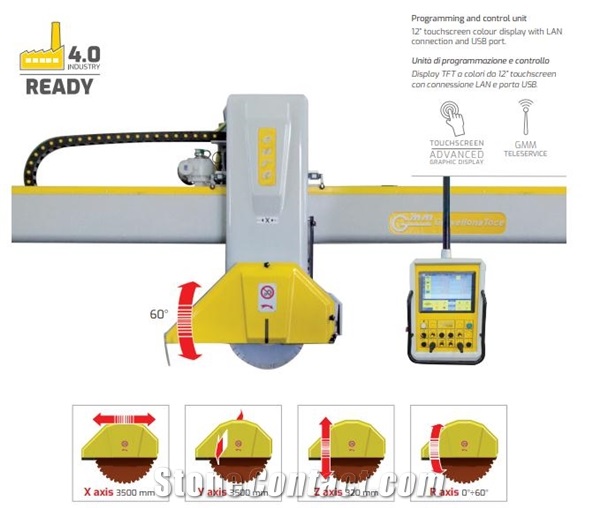

Tools holder head inclination(A axis blade rotation) |
° |
60° |
Disc motor power |
kw |
16.5 (S 6) |
Max. cutting depth |
mm |
205 |
Disc diameter |
mm |
625 |
Dimensione della tavola fissa |
mm |
1500x3000 |
Approximate weight without table |
Kg |
3400 |
