Categories:
Stone Block Cutting Machines (42)
Stone Slab Cutting Machines (41)
Stone Tile Cutting Machines (105)
Stone Surface Processing Machines (41)
Resin Line Machines (8)
Stone Finishing, Profiling Machines (77)
Stone Factory Cleaning Equipments (1)
Stone Handling, Loading Machines (74)
Show More
Suppliers:
-
Add To CompareType: Stone Factory MachinesStone Block Cutting MachinesClosed Frame Gang Saw
FOB Price:
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Basalt, Sandstone, Travertine
Machinery Function Features:
The Tornado gang saw is the result of over 23 years of ZMK’s experience in the natural stone sector. The gang saw was designed for the quick sawing of marble blocks. The model Tornado is available in the versions with 80 and 100 blades. The blade frame is at a fixed height and moved by a double connecting rod, whilst the block carrying trolley is installed on a platform which rises towards the diamond blades.
The frame moves on a system of V type sliders that run along oil bath steel guides. Thanks to the use of special metals and mechanisms this is an extremely efficient, simple system with very low friction resistance that does not require complex dynamic or hydraulic mechanisms and requires very little maintenance.
The block lifer platform moves precisely up on 4 slides (2 flat and 2 prismatic) fixed to the columns and plated with a thick coat of chrome to guarantee a long working life. The lifting of the platform is guaranteed by four big screws of large diameter working perfectly synchronized. All slides are opportunely protected by rubber or stainless steel guards, as to avoid water infiltration and sawing residuals that could compromise the efficiency of the gang saw as time goes by.
The flywheel weight 9.500 Kg and made of a cast iron. The diameter of the flywheel is 3.500 mm which is one of the heaviest and largest flywheels in the market. It guarantees a constant cutting speed.
The system with two connecting rods provides clear and time tested advantages over a single connecting rod system. All the power and mechanical thrust transferred to the blade holder are shared between two connecting rods instead of just one.
ZMK’s gang saw is supplied with touch screen control panel. This system allows the complete supervision and programming of the cutting phases. In fact, this system enables to set various cutting speeds according to the different cutting phases (beginning, intermediate and final).
· 1 pcs transfer waggon and 2 pcs block waggon are available.
· The machine stops in case of lack water and water cuts.
· The power panel is placed over the ground to prevent it from getting affected by water.
· The plugs of block and transfer waggons are water resistant.
· The flywheel and connecting rods are surrounded by safety barriers.
· The machine is controlled by PLC and touch screen.
· The block waggon can be locked vertically and horizontally.
· The machine is able to be accessed by internet connection for determining the problems.
· 10 tons hydraulic tensioner and spacers are available.
· Slab break sensors are available.
Zimek
Turkey
Zimek Machine Ltd.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
EM03 - Mini Hydraulic Stone Crushing Machine
• Working Height Range: 10 – 150 mm
• Working Width Range: 10 – 300 mm
• Working Length: Free Length
• Roller Conveyor Motor Power: 0,55 kW
• Hydraulic Tank Capacity: 90 lt
• Hydraulic Motor Power: 5,5 kW
• Max. Working Pressure: 180 bar
• Machine Dimensions ( W / L / H ): 970 / 660 / 2000 mm
• Automatic Sensor - Manual Pedal Crushing Control
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:

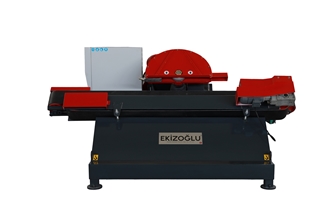

EM25-1 Stone Veneering Machine
• Belt Width: 200 mm
• Working Width: 250 mm
• Working Height: 300 mm
• Double 45 Degree Conveyor Belts
• Number Of Head: 1
• Disc Diameter: 900 mm
• Cutting Unit Motor Power: 22 kW
• Belt Motor Power: 2x 0,55 kW
• Belt Speed : 3 mt / min
• Machine Dimensions ( W / L / H ) : 2200 / 3200 / 1750 mm
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Handling, Loading MachinesGantry Crane, Overhead Cranes
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx
Arnikon crane
Turkey
Arnikon crane
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Handling, Loading MachinesGantry Crane, Overhead Cranes
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite
Machinery Function Features:
Wimac Crane Turkey to serve you for any handling equipments since has been founded.
- Wimac Double Girder EOT Crane Turkey
- Wimac Gantry Crane Turkey
- Wimac Electrical Crane Turkey
Wimac Crane Systems Turkey
Turkey
Wimac Crane Systems Turkey
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Handling, Loading MachinesGantry Crane, Overhead Cranes
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Travertine
Arnikon crane
Turkey
Arnikon crane
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Handling, Loading MachinesGantry Crane, Overhead Cranes
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Sandstone
Arnikon crane
Turkey
Arnikon crane
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
EM09 - Multi-Disc Cross-Cutting Machine
• Number Of Cutting Discs: 5
• Diameter of Disc: 350 – 400 mm
• Working Thickness: 10 – 80 mm
• Working Width Min. / Max. : 250 – 3000 mm
• Cutting Disc Motor Power: 5 x 7,5 x 11 kW
• Cutting Disc Distance Setting Motor Power: 4 x 0,55 kW
• Bridge Movement Motor Power: 2,2 kW
• Belt Motor Power: 0,75 kW
• Total Electrical Power: 43 x 61 kW
• Machine Dimensions ( W / L / H ): 2300 / 6000 / 2500 mm
• Linear Guide Bridge Movement
• Pneumatic Piston Pusher
• Automatic Cutting Dimensions Control
https://ekizoglumakina.com/en/product/multi-disc-cross-cutting-machine
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Handling, Loading MachinesGantry Crane, Overhead Cranes
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Quartzite
Arnikon crane
Turkey
Arnikon crane
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Handling, Loading MachinesGantry Crane, Overhead Cranes
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Arnikon crane
Turkey
Arnikon crane
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Handling, Loading MachinesGantry Crane, Overhead Cranes
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx
Arnikon crane
Turkey
Arnikon crane
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Handling, Loading MachinesGantry Crane, Overhead Cranes
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Sandstone
Arnikon crane
Turkey
Arnikon crane
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Surface Processing Machines Bush Hammering Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
EM17 - 2+4 Calibrating and Bush-Hammered Machine
• Belt Width: 700 mm
• Number Of Calibrating Heads: 2
• Calibrating Motor Power: 22 kW
• Calibrating Up–Down Motor Power: 0,55 kW
• Diameter of Calibrating Disc Tray: 650 mm
• Working Thickness: 10 – 80 mm
• Diameter Of Bush Hammering Tray: 650 mm
• Number Of Bush Hammering Heads: 4
• Bush Hammering Motor Power: 1,1 kW (126 Rpm)
• Minimum Working Width: 300 mm
• Maximum Working Width: 610 mm
• Belt Motor Power: 0,75 kW
• Belt Speed: 0 – 400 mm / min
• Total Electric Power: 51 kW
• Machine Dimensions ( W / L / H ): 1400 / 6000 / 2200 mm
https://ekizoglumakina.com/en/product/calibrating-hammered-machine-em17
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Handling, Loading MachinesGantry Crane, Overhead Cranes
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx
Arnikon crane
Turkey
Arnikon crane
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
With double side chamfering machine, marble edges are chamfered. Our double-sided machine is also capable of taking the dropper at the same time. The machine features and details are as follows. The machine features and details are as follows.
Minimum : 15 cm and maximum : 65 cm polishing.
45 angle polishing, edge polishing, drop hole can open.
Machine control system PLC.
There are abresive head sensors.
It is possible to turn on / off automatically by writing stone size information from the control unit.
Pneumatic systems are from Germany.
Marble can be easily taken to bevel machine via tape
The number of abrasive engines can optionally be reduced and multiplied. -
Add To Compare
Type: Stone Factory MachinesStone Handling, Loading MachinesGantry Crane, Overhead Cranes
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx
Arnikon crane
Turkey
Arnikon crane
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite
Machinery Function Features:
The machine, which is mounted on a steel chassis, has a closed and oil reservoir rail system, and the speed control and the dimensions given with the desired cut precision cuts.
Saw speed and car speed tab is the target of the desired cut, while the target is to exit at high speed
Fully Steel is Used on the Side Cutting Machine with Wagon, Anti-Rust Epoxy Paint Reinforcement, Special Transmission Rail System Closed Slide is Supported with Water-Free Protective Guards.
Our machine works with the help of cutting 90 degrees and 45 degrees reducers.
Flat Water Motor Has Been Used On Our Machine Head Cutting Up Down Inner Shell System Using Special Materials To Provide Precise Cutting In Bridge Cutting Machines, It Serves As A Sliding Coupling.
Our Wagon Side Cutting Machine is Designed as Both Cutting Sizing and Side Sizing.
Our machine Head rotation folk movement (C axis) is Manual
Our machine is 45 degree movement manual with reducer
Our machine is Slide Movement (Y axis) AUTOMATIC / Manual
Our machine is WAGON Movement (X axis) AUTOMATIC / Manual
It can be used both manually and automatically.
Head System is fixed at 45 degrees by cutting 0 to 90 degrees.
The Machine Has Been Made Completely Steel NPL-U
With the help of a reducer, it provides speed controlled automatic cutting.
Information on the materials used in the machine
Electric Motors: Reducers
* Motorized Gearbox for Slip Ways (Transmission 0.75 gamak motor transmission)
* Piston Sliding Motorized gearbox (Transmission 0.75 gamma motor gearbox)
* Motorized transmission for transport wagon movements (Transmission between 0.75 motorized transmission)
* Gear box for 45 degree cutting movements (Flywheel / Gear Box)
* Straight waterproof motor for marble and granite cutting works (9.3 kW 1500/3000 double rounded peasant motor)
Movement / Walking Systems:
* 0.5 '' steel gear mechanism for transport wagon movement
* Head cutting motion system with the help of trapeze.
* Cable transport systems, sliding paths are applied on the motion functionality.
* Transport wagon Closed sliding track walking equipment is provided with transmission crank.
Steel Construction of the Machine
* Side cutting machine is steel monoblock and massive.
* The chassis is made of 320 NPLU material.
* The transport wagon is designed from 80 X 20 material.
* The carrier wagon also has a steel chassis and is processed in 6 axes on CNC machines.
* The rear tower is made of 10 mm thick solid sheet metal and designed to reduce the vibration of the machine.
* Top slide ways are processed from 10 mm solid sheet metal to 8 mm between the grid in CNC machines.
* Wagon parts, wagon wheels are made of chiffon gg50 alloy to resist wear.
* Piston System is solid steel thick pipe.
* All head cutting group parts are cleaned in the milling machine.
* Head group parts are covered with anti-corrosion and rusty parts.
…… .. …… .. WORKING PROCEDURE OF THE MACHINE ………………
Periodic maintenance of the machine should be done daily, weekly and annually.
Lubrication of critical parts of the machine should be done regularly. (such as hubs of pressure impellers, slide ways, engine lubrication pump, etc.)
In case of problems caused by poor maintenance or lack of maintenance, the buyer company covers the repair and repair costs.
Our company provides technical support as soon as possible depending on the conditions.
In case of any malfunction or incorrect operation depending on the user, any intervention will be performed after an expert inspection on the machine.
It is under warranty for 1 year.
It is the buyers' duty to supply on-machine cutting saws.
The machine's consumables are not covered by the warranty. (such as cut-off saws)
Accommodation and transportation costs of the assembly team belong to the buyer company.
… ..…. ACTIONS THAT MUST BE TAKEN BY YOUR PARTY DURING THE INSTALLATION PHASE… ...
An electrician is required for the installation of the cable connections to provide 13 kW of electricity near the fuse board of the machine.
To provide plumbing next to the machine.
Cutting saws must be provided on the installation.
Required space for machine installation: 7000 mm X 3000 mm X 2500 mm (height)
One can of machine oil (30 size), one can of Grease.
Marble Side Cutting ...
Som-maK
Turkey
Som-maK Mermer Granit Makina Ltd Sti
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Handling, Loading MachinesGantry Crane, Overhead Cranes
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx
Arnikon crane
Turkey
Arnikon crane
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Handling, Loading MachinesGantry Crane, Overhead Cranes
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Sandstone
Arnikon crane
Turkey
Arnikon crane
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Handling, Loading MachinesGantry Crane, Overhead Cranes
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Quartzite
Arnikon crane
Turkey
Arnikon crane
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesResin Line MachinesAutomatic Filling-Resining Machine
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
EM 18 - Travertine Filling Machine
• Number Of Filling Heads: 6
• Filling Motor Power: 1,1 kW
• Diameter Of Filling Area: 680 mm
• Belt Motor Power: 0,75 kW
• Belt Width: 700 mm
• Working Width: 650 mm
• Working Thickness Min. / Max.: 10 – 50 mm
• Total Electric Power: 7,5 kW
• Water Consumption: 85 lt / min
• Air Consumption: 25 lt / min
• Machine Dimensions ( W / L / H ): 1400 / 6000 / 2200 mm
https://ekizoglumakina.com/en/product/travertine-filling-machine
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Handling, Loading MachinesGantry Crane, Overhead Cranes
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Sandstone
Arnikon crane
Turkey
Arnikon crane
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Handling, Loading MachinesGantry Crane, Overhead Cranes
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx
Arnikon crane
Turkey
Arnikon crane
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Handling, Loading MachinesGantry Crane, Overhead Cranes
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx
Arnikon crane
Turkey
Arnikon crane
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Handling, Loading MachinesGantry Crane, Overhead Cranes
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx
Arnikon crane
Turkey
Arnikon crane
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Simple and Strong Structure: Özteknik multiwire machine has an open frame structure which is both strong and functional. All parts undergo thorough structural checks with the aid of Computer Aided Engineering (CAE) software. Two columns are robustly fixed to foundation and one connecting transversal beam that have been built with wide closed section in large thickness normalized steel work. The weight on nuts, which are caused by the effect of the operational elements connected to sliders, are supported with N2 pistons in the columns. Utilizing two columns makes accessing the machine very convenient. The wires can be replaced or moved to obtain different thickness requirements very quickly and smoothly as the machine can be easily accessible from all sides.
Low Maintenance Cost: Özteknik multiwire cutting machine possesses low operating and maintenance costs and our company ensures the delivery of spare parts to meet the needs of the user at reasonable prices. Due to the design practices employed during the
Ozteknik Makine
Turkey
Ozteknik Makine
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesMosaic Cutting Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Travertine
Machinery Function Features:
the thrilling mosaic cutting machine of the age hard to find even on the second hand market
order now start counting your golden münze
precise cutting called C1-500
1x1 cm 1,5x1,5 cm 2x2cm 2,3x2,3cm all american sizes available
custom design assembly molds
cutting molds with availability of cutting triangle ; octagon and many other custom shapes
Kimmco
Turkey
Kimmco Koray International Marble & Machinery Co.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesStone Profiling Line Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
EM13 - The Profiling Machine
• Belt Width: 500 mm
• Number Of Heads *Optional: 4
• Working Thickness: 10 – 100 mm
• Head Motor Power: 7,5 kW
• Belt Motor Power: 0,75 kW
• Total Electric Power: 31 kW
• Belt Speed: 0 – 4,9 m / min
• Diameter Of Socket: 240 – 300 mm
• Water Consumption: 120 Lt / min
• Machine Dimensions ( W / L / H ): 1500 / 4000 / 1800 mm
https://ekizoglumakina.com/en/product/profilling-machine-em13
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Surface Processing Machines Slab Polishing Line Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Sandstone
TOKSEL MACHINE
Turkey
TOKSEL MACHINE LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
CNC Bridge Cutting Machine 6 Axis
Tuto Mermer
Tuto Mermer Dis Tic Ltd Sti.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
SCHIND CC01 Marble and Granite Cross Cutting Machine
Only the transverse cutting machine cuts jagged edges without any difficulty with its powerful motor.
It cuts straight on Y axis… No 45 ° cutting, No head rotation to another directions,
Cutting ability is net 800 mm on Y axis,
Cutting head group moves on the linear slides by button / joystick. Saw Forward – Saw Backward,
Marble slabs can be easily load on the plastic rolls for squaring,
Cutting speed is adjustable
Option: assembling bellows to cover upper body moving linear with additional cost
SCHIND MACHINES
Turkey
SCHIND MACHINES
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesSingle Wire Block Squaring Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
MTX 2000 Single Wired Block Cutting Machine
Single Wire Block Squaring Machine -
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
tile sizing line
Konmak
Turkey
Konmak A.S.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
€-1
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
EM25-2 STONE VENEERING MACHINE: • Belt Width: 200 mm • Working Width: 250 mm • Working Height: 300 mm • Double 45 Degree Conveyor Belts • Number Of Heads: 2 • Disc Diameter: 900 mm • Head Motor Power: 2 X 22 kW • Belt Motor Power: 2 X 0,55 kW • Belt Speed: 2 mt / min • Machine Dimensions ( W / L / H ): 2350 / 4400 / 2000 mm
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
EM25-3 STONE VENEERING MACHINE • Belt Width: 210 mm & 300 mm • Working Width: 250 mm • Working Height: 50 - 300 mm • Double 45 Degree Conveyor Belts • Number Of Heads: 3 • Disc Diameter *Optional: 900 mm - 700 mm - 500 mm • Head Motor Power *Optional: 2 x 22 kW, 1 x 11 kW • Belt Motor Power: 2 x 0,55 kW • Up-Down Motor Power: 0,55 kW • Belt Speed: 3- 5,5 mt / min • Machine Dimensions ( W / L / H ) : 2550 / 5700 / 2100 mm
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
1- The table of our machine is portable ( its able to detach and attach). If there will occur a defect or deforming on the table , you can scan it according to blade and it will work with ZERO defect again.
2- Stronger Chassis (you can compare with weight of machine).
Zimek
Turkey
Zimek Machine Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite
Machinery Function Features:
The machine, mounted on a steel frame, has a closed and oil reservoir rail system, with Linear Slide Kremier Transfer. The desired cut with the measurements given with the speed control makes precise cutting.
(AUTOMATIC) System Is Switched To Automatic Mode, The Barrel Moves Down Manually, The Wagon Starts To Cut The Stone, The Wagon Stops The Wagon Waits For The Head.
(SEMI-AUTOMATIC) Sizing values are entered on the screen. The system is taken to the sizing mode, the dimensions of the stone are entered, the hive moves automatically downward, the wagon starts to cut the stone, the hive is raised automatically when the wagon comes out of the ship, the wagon comes to the beginning. BiteR when the menstruation is complete
(XY FULLY AUTOMATIC) It is taken to the screen in full automatic mode, XY values are entered. The length of the parts to be cut is entered, the number of the parts, the dimensions are written, the hive moves automatically downwards, the car moves automatically, the stone starts to cut, the barrel automatically rises up when the wagon comes off, the wagon comes to the head tower counts the skid gauge and The Hive Retracts The Cutting (X AXIS When Cutting Is Finished, The System Turns Its Head Automatically, It Starts To Diminish The (Y) Minus In This Way, It Continues Up To The Plate Bit.
Fully Steel is Used on the Side Cutting Machine with Wagon, Anti-Rust Epoxy Paint Reinforcement, Special Transmission Rail System Closed Slide System is Purified from Water, LİNER RAIL, Protective Bellows System is Integrated.
Our Machine Cutting 90 degrees and 45 degrees Reducer Works Automatically.
Flat Water Motor Has Been Used On Our Machine Head Cutting Up Down Inner Sleeve System Compare In Bridge Cutting Machines By Using Special Materials To Provide Precise Cutting, It Serves As A Sliding Coupling.
Our Wagon Side Cutting Machine is Designed as Both Cutting Sizing and Side Sizing, XY Sizing with full size system.
Our machine Head rotation circular movement (C axis) is AUTOMATIC
Our machine is AUTOMATIC with 45 Degree movement reducer.
Our machine is Slide Movement (Y axis) AUTOMATIC / Manual
Our machine is WAGON Movement (X axis) AUTOMATIC / Manual
Both Manual, Automatic, Semi-Automatic. Fully Automatic, Usable.
Head System is fixed at 45 degrees by cutting 0 to 90 degrees.
With the help of a reducer, it provides speed controlled automatic cutting.
Som-maK
Turkey
Som-maK Mermer Granit Makina Ltd Sti
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Handling, Loading MachinesGantry Crane, Overhead Cranes
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Wimac 32t Portal Cranes to serve worldwide particularly for use of marble granite blocks. to enlighten your heavy blocks, Wimac Crane to assist you.
Wimac Crane Systems Turkey
Turkey
Wimac Crane Systems Turkey
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Handling, Loading MachinesGantry Crane, Overhead Cranes
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Wimac Crane Systems, double girder gantry crane systems with the weight of a person can lift the weight of the floor and the floor is more easily and safely transport and we are helping you to remove. As Wimac Crane Systems, we manufacture double girder gantry cranes up to 200 ton lifting capacity.
Wimac Crane Systems Turkey
Turkey
Wimac Crane Systems Turkey
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Handling, Loading MachinesGantry Crane, Overhead Cranes
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
Double Girder Gantry Cranes from Turkey are ready to dispatch to you whenever you would like to.
Usually use in open space which fixed rails on the ground, it move by different height legs. This crane presents new and different look and appearance by having extensions of the sides. In addition, it would be produced without extention also. Generally is used in marble, granite, steel contsruction, building, open area storing, lifting and loading purposes. Main hoisting unit, bridge travelling unit, bridge steel construction and legs are used as movement groups. For double girder gantry crane's electricity installation we use different type system such as cable carriage, c type cornice feeding, enclosed conducting busbar and cable drum. With extention or without, according to customer request, it produce and present to serve in different capacity and bridge led axles which is determined by engineers..
Wimac Crane Systems Turkey
Turkey
Wimac Crane Systems Turkey
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesMosaic Cutting Machine
$1-1
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Travertine
Machinery Function Features:
Description:
MOSAIC STONE CUTTING MACHINE, STONE POLISHING MACHINE, STONE BREAKING MACHINE, STONE PROFILLING MACHINE
Technical Information
Motor Power 1,5 kW
Number of Strokes 140 min / pcs
Min. Max. Stone Highest Range 10 - 50 mm
Min. Max. Stone Thickness Range 10 - 50 mm
Max. stone length 200mm
Machine Dimensions ( W / L / H ) 1100 / 1330 / 860 mm
Turkey
Grotto Group
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Surface Processing Machines Stone Sandblasting Machine
$20000-25000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Marble Blasting Machine (overall): L: 5.200 W: 3000 H:4500 mm
Blasting stone dimensions (max): H:200 W:700 mm
Blasting cabinet armor: X120Mn12
Rubber Curtains: 4 set
Wheel (Turbine): 1 pcs
Conveyor Speed: 0,5-2m/min (with invertor)
Elevator: Belt bucket system
Separator: Air wash system
Cyclone: Front dust holder
Platform and stairs: necessary places
Control Panel: Inside materials Siemens/ Schneider (plc screen can be done if desired)
Turkey
Turk Blast Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesSingle Wire Block Squaring Machine
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
AOSM 25 ELECTRICALLY ANGLED AUTOMATIC SIZING MACHINE :
The diamond wire cuts the block marble by a rolling pulley. When the machine starts, engine moves the motor shaft and it turns the pulley. The gap creating while cutting on the diamond wire resolved by automatic walking engine, so that the cutting process occurs. Water is sending to the cutting zone by hoses controlled with valves. The water protects the cutting equipment from warming up and takes the marble dust away.
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The machine does full circular cutting, arrow, prism ve polygon cutting.
It does 45 degree cutting.
Have a Question? Ask our expert
Ask now
