Add To CompareType: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
FOB Price:€45500-45500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:

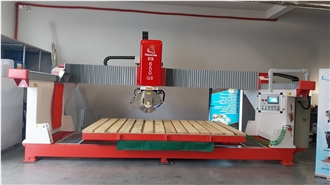

Stone circular saw machine with the possibility of both straight and 45° cutting. Machine with tilting work table up to 85°, with rotation of the work table in increments of 1°. Monobloc machine – no additional costs such as pouring a foundation for the table, possibility to move the machine to another location at any time. Head tilting 0° – 45° and with rotation of 0° – 90° – 180°- 270°. The machine is very solid and stable due to its weight (~6t).
The machine uses a hydraulic oil cooler and automatic central lubrication, as well as helical gears, which makes the operation of the machine much quieter and also means it will work for longer. The maximum saw blade diameter is 650mm. The circular machine uses top-quality Siemens and Schneider components. Control on the machine is controlled by a touchscreen and joysticks as well as buttons on the control panel, and also by a wireless remote controller. The main motor has an inverter, which allows smooth regulation of the rotational speed. The circular saw machine has a built-in water hose for rinsing.
The built-in laser can be used to position cutting lines. Z-axis operation is carried out on a screw. To determine the limit position, it is necessary to move the disc to the table and confirm the current position with a single button on the touchscreen.
Types of cutting
In manual mode, the operation of the machine is controlled mainly by joysticks on the control panel. There is also an option to move the head by a predefined distance in a specific axis (“Manual travel distance”). With this option, we can move the blade edge precisely by, for example, 200mm to the right.
In automatic mode, up to 12 cutting programmes can be stored in the X axis (left-right) and in the Y axis (front-back). In addition, the head will return to the safe-home position automatically at the end of the program.
Machine design
Solid main bridge – cast iron
tool-head with tilting angle 0° – 45°, rotation 0° – 90° – 180° – 270° and laser pointer
monolithic steel base with 2 horizontal beams ( which replace the foundations)
work table, swivelling up to 85°, and rotating in 1° increments
automatic central lubrication
Movement in specific axes
X axis – Movement of the tool slide on the bridge, driven by an helical rack and gear wheel; supported by linear carriages
Y axis – Movement of the bridge along horizontal guideways, powered by an helical rack and gear wheel; bearing on linear carriages
C axis – Rotation of the head with blade 0° – 90° – 180° – 270°
A axis – Disc rotation between 0° and 45°
Z axis – Screw drive for even greater accuracy and precision in cutting
Did you know?
We provide warranty and post-warranty service and spare parts. We will organize the transportation of the machine (priced individually) and install the machine and provide training for you and your employees. As one of the few machine suppliers we mill the working table.
Dianormet
Poland
Dianormet Machinery
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Finishing, Profiling MachinesColumn, Balustrade Lathe Machine
FOB Price:$42400-52200
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:

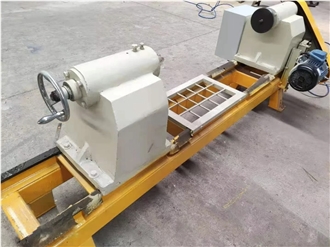

DLMZ-600 CNC stone lathe with a head for pre-polishing, numerically controlled
price: 168.000,00zł net (206.640,00zł gross)
The stone lathe is an advanced numerically controlled device designed for precise stone processing. Equipped with a head for pre-polishing and two disks - horizontal for longitudinal cutting (grooving) and vertical for profiling (shaping), it ensures versatility and high quality of processing. The machine reads projects in DXF format, which allows easy import and implementation of complex projects.
Max. length of processed material: 800 - 1800 mm
Max. diameter of processed material: 200 - 1200 mm
*the dimensions of the processed material may be larger - to receive an offer, please contact me by e-mail: [email protected]
Dianormet
Poland
Dianormet Machinery
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving,Engraving Machine
FOB Price:$2600-2650
Warranty: 12 Months
Usage: Granite, Marble, Basalt
Machinery Function Features:
Engraving plotters.
Engraved portraits, images and other graphic motifs are becoming more and more popular, but their execution often causes great problems. Thanks to the use of our engraving plotter, the transition from the photo to the finished engraving on granite is quick and does not require artistic skills.
Technical specifications:
- weight 15-30 kg (depending on the model)
- 230V power supply
- resolution of the obtained image up to 200dpi
Set contains:
- plotter
- control unit
- software with controller
- diamond tips 3 pcs.
- delivery to the customer and training in the use of the device
- graphics gallery
What distinguishes our devices are:
- simple and reliable construction
- possibility to work in two resolution ranges - 100dpi or 200dpi
- the possibility of starting work or its continuation from any place on the schedule
- 3; years of warranty for all components
Models available:
Models:........Price:
400x540 mm 10500 zł
500x700 mm 14 000 zł
700x700 mm 15 000 zł
700x900 mm 16 000 zł
700x1200 mm 17 500 zł
PZ Grawerki
Poland
PZ Grawerki CNC
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Quartzite, Sandstone, Travertine
Machinery Function Features:
BRIDGE SAWS AND MILLING MACHINES
QUALITA ACESSIBILE "AVAILABLE QUALITY" - this is the motto and a very short description of Gmm machines, machines whose reliability has been appreciated by customers all over the world. The construction of such a product was possible thanks to high specialization, application of advanced technologies, perfect organization and many years of experience in the stone sector in the design and production of bridge saws.
The best recommendation for any company is the number of machines sold. Currently, Gmm can boast about 9,000 working machines around the world - making Gmm the undisputed leader in this field.
TECHNICAL DESCRIPTION
The maximum horizontal stroke of the blade (X axis) 3700 mm
The maximum travel of the bridge (Y axis) 2500 mm
Maximum vertical blade stroke (Z axis) 400 mm
Minimum / Maximum disc diameter to be used 300/625 mm
Maximum cutting depth 205 mm
Disc bore diameter 50/60 mm
Blade motor power 13 (S6) kW
Spindle speed 800 ÷ 4500 ÷ 6000 Rpm
Adjustable cutting feed speed 0 ÷ 35 m / min
Adjustable travel speed of the bridge 0 ÷ 35 m / min
Adjustable horizontal speed of the blade 0 ÷ 7.5 m / min
Water consumption (pressure 3 bar) 40 l / min
Total machine weight 4200 Kg...
GMM
Poland
Euro Arss S.C.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Sandstone
Machinery Function Features:
FAST 500- monoblock bridge saw with turning head
The fast and precise monoblock bridge saw with CN functionalities.
Equipped with turning head and fixed bench, multipurpose sawing machine for straight or inclined cuts (0 to 90°) with disc max diameter 500 mm.
Accurate and sturdy, it is perfect for executing very quickly the cut of polygonal shapes even if very complex. It assures high speed of working because run by brushless motors. It is controlled by a GeFanuc NC, and executes works by means of the interpolation of the axes.
Rotating head 360° (continuously)
Simec s software, simple and intuitive
Monobloc structure
The head can be inclined in a a range of 0° up to 90°
Lubrification facilitated of all the slides
The bridge travels on rolling elements permitting greater speed
New generation GeFanuc digital numerical control
MC DIAM Sp. z o.o.
Poland
MC DIAM Sp. z o.o.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
$1515-
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
SW Series C € some of the best blades for tile size size ranges on the market, extremely stable and robust at the same time lightweight...\
motor with 230V power supply with a capacity of 2.0 kW or 400V power of 2.9 kW, 2,800 revs / min.
Mobile ideal saw for work on construction and renovation areas
customer
by a system of folding legs and quick release head for easy transportation
in the car combi
very simple to operate rail to cut 45%
long-lived 12 - bearing sliding head
galvanized worktable
integrated water pump 40
height-adjustable cutting head to discs 250 mm and 300 mm
-25.4 shaft diameter mm
Maximum cutting depth of 80 mm
Maximum cutting length 80 cm
**Net price: PLN 4,600.00 - delivery from the factory to customers in Poland
Porsfeld Lukasz Pikul
Poland
Porsfeld Lukasz Pikul
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Quartzite
Machinery Function Features:
Stone Splitting Machine PLK/300-50T/4 is a machine used for producing low-dimensioned stone blocks out of natural stone as well as artificial one. The construction of the machine allows creating single workplaces or connecting a couple of machines in production line.
The machine has body adapted for endurance strong forces during work, the tilting table with wear-resistant steel and the hydraulic power unit to supply mains hydraulic cylinder. Compact construction enables users to do quick assembly and disassembly of the machine. All the hydraulic and mechanical elements are situated in easily available places which shortens the time of servis operations to a minimum.
Characteristics:
strong boody
tilting table
splitting knifes
hydraulic pressure of knives
PROMECH S.A.
Poland
PROMECH S.A.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Handling, Loading MachinesAutomatic Loader, Unloader for Slabs
€5000-
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
Machinery Function Features:
Elevator lifting platform - price 5.800 EUR
Producent - italian producer TRANSPORTCAR
Production year - 2008
Capacity - 1000 kg
Lift stroke - 3,1 meters
Lenght of platform - 2,5 m
Width of platform - 1,2 m
Condition - 100 %, occasionally used, perfect condition
Price of new elevator lift - 8.000 EUR
jabo Marmi S.A.
Poland
jabo Marmi S.A.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
The most frequently purchased machines are those with workspace dimensions 2000X4000. They are perfect for the stone industry and for companies which deal with cutting metal. They are perfect both for production plants and for service shops.
The lowest costs of pump and head maintenance
The Kimla waterjet machines are equipped with high pressure pump with intensifier pump and Accustream accessories (Accustream - a renowned American company). Pumps produced by Accustream distinguish the lowest maintenance costs, which amount to approximately U.S. $ 1.25 per hour of work. It is worth noting that the maintenance costs of some producers are even four times higher. This is especially important as in a competitive waterjet market operating costs can determine the success of the project.
Adjusting the amount of abrasive
Kimla machines are equipped with Accustream abrasive regulator with smoothly regulated amount of garnet supplied to the head. This allows you to fine-tune the amount of abrasive to cut material and the specific conditions of the machining.
Compact space-saving design
Waterjet machines produced by Kimla company are characterized by an extremely compact design which requires little space and is convenient to use. Access to the material lying on the bath grate is accessible from four sides and allows the operator to manipulate the material freely and enables the collection of cut pieces.
200l abrasive tank with the hopper system
Abrasive tanks supplied with Kimla machines have a capacity of 200 liters, which allows for hours of cutting without stopping to refill the abrasive. The hopper allows for convenient refilling of abrasive through the use of automatic lifting the mushroom valve.
KIMLA
Poland
KIMLA
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Multiple saw PW5 TK1600 to machine stone (cutting transversely to walls, cart running with a block)
Maximum 5 discs separated with distance rings can be mounted.
ZPU PROMASZ
Poland
ZPU PROMASZ
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Grinding and edge polishing machine: Hensel model 521/549. Age 1989. Working table, length: 6m. with automtic polishing. Easy to dismantling. Thickness of polishing slab to: 200mm, to straight edges and profiles- round 10 cm. With tools: diamond tools, diamond spindles and changing tools. Machina with dashboard. With full specifications and instruction. Machine in good condition.
PPHU Mazurski
Poland
PPHU Mazurski
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Surface Processing Machines Single Head Polishing Machine
€28000-28000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
SHAMP-3200 single-head stone polishing machine, automatic polishing machine, is a professional machine that is used for polishing, grinding and brushing the stone surface and calibrating the thickness with diamond wagons. Monoblock design ensures that there are no additional costs such as pouring a foundation for the table. An additional advantage is the ability to move the machine to another location at any time and ease of installation. The bridge-type single-head stone polisher is convenient to use and allows you to quickly and efficiently perform polishing work on most stone surfaces. The slide is guided by a linear guide immersed in oil, with long service life, high machining accuracy and advanced control system.
The machine is equipped with a PLC and high-quality components: touch screen Xinje, Zhengtai contactor, Schneider switching power supply, Omron relay, proximity sensor: Omron.
Did you know?
We provide warranty and post-warranty service and spare parts. We will organize the transportation of the machine (priced individually) and install the machine and provide training for you and your employees. As one of the few machine suppliers we mill the working table.
Dianormet
Poland
Dianormet Machinery
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving,Engraving Machine
$7250-7300
Warranty: 12 Months
Usage: Granite, Marble
Machinery Function Features:
Milling machine for letters - The only such devices on the market !!!
A milling and engraving plotter is a universal device for milling letters or engraving portraits and images. With the device you can also drill holes for embedding letters made of stainless steel and bronze. We have a font database of leading letter manufacturers with marked drilling points.
As a standard, the device is made in the size of the working area of 500x700mm. The drive transmission through ball screws allows you to work both horizontally and vertically, also directly on the writing wall. You don't have to buy many heavy devices for tens of thousands. Now all you need is one portable milling and engraving plotter to meet the expectations of the most demanding customers.
On request, we also make devices with other dimensions of the working area.
Set contains:
- plotter
- control unit
- software with controller
- diamond tips (3 pcs.)
- 2.2kW spindle
- engraving head
- 10mm V cutter 1 pc
- 4mm diamond drill bit 1 pc.
- delivery and training in the use of the device
Models available:
Working field ...... Gross price
700x900 ... 29,000
1000x900 ... 31,000
1000x1200 ... 33,000
1000x1500 HD ... 61500
PZ Grawerki
Poland
PZ Grawerki CNC
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
€33700-33700
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The DLQ 700H45 stone cutting machine with a bridge design, is designed to cut stone slabs to a specific dimension. The machine features a programmable logic controller and interpolated axes. An accessible interface combined with high-precision positioning of the rotary encoder and infrared device ensures excellent cutting quality and repeatability. The work table is rotatable and tilting. The cutting head can bevel at a 45° angle. We can work with single-cut as well as multi-cut. The main spare parts of the machine are made of high-quality materials. As a result, the whole machine has high cutting performance, high precision cutting, stability, easy operation. It is possible to install a disc with a diameter of 700mm.
Did you know?
We provide warranty and post-warranty service and spare parts. We will organize the transportation of the machine (priced individually) and install the machine and provide training for you and your employees. As one of the few machine suppliers we mill the working table.
Dianormet
Poland
Dianormet Machinery
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
$2288-
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
motor with 230V power supply with a capacity of 2.0 kW or 400V power of 2.9 kW, 2,800 revs / min.
Mobile ideal saw for work on construction and renovation areas
customer
by a system of folding legs and quick release head for easy transportation
in the car combi
very simple to operate rail to cut 45%
long-lived 12 - bearing sliding head
galvanized worktable
integrated water pump 40
height-adjustable cutting head to discs 250 mm and 300 mm
-25.4 shaft diameter mm
Maximum cutting depth of 80 mm
maximum cutting length of 150 cm
reinforced cutting head rail 2 x 60 mm x 60 mm
**Cena netto: PLN 6.950,00, - dostawa z fabryki do odbiorcy w Polsce
Porsfeld Lukasz Pikul
Poland
Porsfeld Lukasz Pikul
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The RADIA automatic bridge saw is a large machine ideal for small, medium and large companies for cutting stone, marble and granite, in both manual and automatic cycles. This machine also produces complex profiles and shapes on a very large cutting surface. The ability to use a blade with a diameter of 1200 to 1600 mm The saw is made of cast iron and stainless steel guards.
The standard machine ships with the following options:
* with motor drive and programmable head for marble and granite,
* optical template scanner,
* manual rotary table,
* electronically variable speed of the disk motor,
* 12 "color touch screen with LAN connection and USB port,
* machine program and original instructions in Polish,
* protective barriers.
Additionally, the machine can be equipped with:
* heads automatically tilting from 0 ° to 90 °,
* hydraulic automatic table 2000x3500 mm,
* lathe,
* element locking system.
GMM
Poland
Euro Arss S.C.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite, Travertine
PROMECH S.A.
Poland
PROMECH S.A.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Sandstone
Machinery Function Features:
Monobloc machine for polishing of the edge and chamfers
FLOTTER 520/540
The conveyor belt edge-polishing machine Mod. FLOTTER 520/540 has been developed for the polishing of the edge and chamfers on natural stone like marble or granite. The main characteristics are the small overall dimensions, easy use and maintenance, for example the abrasive changing thanks to the large tool access area at the rear of the machine.
The machine is equipped in the special “floating system” with oscillation of the heads +/- 1° from horizontal position. This ensures perfect polishing of flat edges on granite slabs with thickness till 60 mm.
MC DIAM Sp. z o.o.
Poland
MC DIAM Sp. z o.o.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Surface Processing Machines Single Head Polishing Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Those devices are designed for grinding and polishing natural stone slabs of rectangular shape (AS-01.1) or for slabs of any shape (AS-01.2).
ZPU PROMASZ
Poland
ZPU PROMASZ
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Artificial Stone
Machinery Function Features:
Cross cutting machine Suprax, model SL 1600
SUPRAX
Ref number: 04-011
Saw Suprax. Easy saw with close water circulation. The saw can cut in angle. Bridge construction welded in high kind of steel. Travel of the bridge on cogged slats. Bath is inside of the table. Manual support with fetter gear and handle. Manual go down.
Lenght of cutting: 2000 mm
Length x width of machine: 2930 x 1000 mm
Height of the table: 770 mm
Weight: 425 kg
Motor power:
(on request power: 3 kW for extra payment) 2,2 kW
Rotation: 2800 UpM
Depth of cutting
disc 300 mm:
disc 250 mm:
80 mm
55 mm
Power supply: 220V/50Hz
Mechanical travel of support on request (with power of motor: 037 kW with controle speed from 0,5 to 6,0 meters/min Mitsubishi) – for extra payment
Guarantee: 12 months.
Delivery: 4-6 weeks.
Saw with 1 edge table. Second edge table - for extra payment.
Available saw Suprax, model: SL 1600
PPHU Mazurski
Poland
PPHU Mazurski
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
€51000-51000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Stone circular machine, steel wall bridge saw DSL1200-45Q controlled automatically, can be fully automated. Parts of the machine are made of high-quality materials. Automatic control ensures the accuracy of cutting. The maximum diameter of the blade is as much as 1200mm. Our bridge saw is an ideal machine for small, medium and large plants needing the ability to cut stone in manual and automatic mode. This saw with a bridge design, is designed to cut stone slabs to a specific size. A tilt up to 45° with step cutting capability (stopping the tilt every 1°) enables prop cutting. The multi-cutting works both when cutting straight and at an angle. The machine has a hydraulically controlled table raised to 85°, rotating 0° – 360° with stopping every 90°, so working with this machine allows fast and convenient stone processing.
A convenient touchscreen control panel allows precise settings of this machine. This is a saw of the highest quality, for which we provide a warranty, installation and service of the machine and access to spare parts.
Dianormet
Poland
Dianormet Machinery
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
AUTOMATIC ELECTRONIC BLOCK CUTTER FOR MARBLE AND GRANITE
The GIGA 3500 is a machine capable of processing marble and granite blocks into slabs with a maximum height of 1500mm and the desired thickness.
An electronically controlled block transfer trolley with adjustable speed and equipped with a locking handle. The disc is moved by means of a rack on guides in an oil bath (maintenance-free solution) with stainless steel protection. Separate regulation of cutting speed and disc return. Pre-programmable precipitation reduction at cycle start to facilitate blade entry into block.
The columns, bridge and machine head are made of highly resistant cast iron for excellent dimensional stability and long service life.
GMM
Poland
Euro Arss S.C.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
$4808-
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Sandstone
Machinery Function Features:
motor 2,9 KW, 400 V, 2,800 rev. / min
with special earthing switch and 3 m
Special connection cable with plug
water pump with a capacity of about 40 W
the space between the motor base and table approximately 145 mm
the ability to connect from 1 to 4 auxiliary side tables
maximum cutting length of 200 cm
dimensions 275x87x74
weight 270kg
Optionally can be mounted
auxiliary table-sided in 3 dimensions
gauge with a scale
*** Cena netto: PLN 14.160,00 -dostawa z fabryki do odbiorcy w Polsce
Porsfeld Lukasz Pikul
Poland
Porsfeld Lukasz Pikul
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Sandstone
Machinery Function Features:
Edge Profiler B1PK2000.1. Please check out our Edge Profiler. We hope that pictures will help you make the best choice of the most adequate solution for your company . Edge Profiler is adjusted to milling and polishing modes, depending on suitable working program: chamfers, flat sides (also ‘zigzag’ motion ), quarter rounds, half rounds, rounds and other profiles.
ZPU PROMASZ
Poland
ZPU PROMASZ
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Handling, Loading MachinesStone Scanner
€6500-7000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
AZTECH is a leading POLISH manufacturer of industrial machinery on both Polish and foreign markets. Our company is selling new and used machines and also spare parts for machines.
Our specialized staff will help you choose the right machine based on specific guidelines and intended use.
SALES OFFER
MAGNETIC SEPARATOR SM-500 (FOR ABOVE CONVEYOR BELT)
MODEL: SM-500
magnet dimensions: 500x500x200mm
tape width: 500mm
tape length: 1700mm (one-sided)
magnet power - 5000 Gauss !! attracts objects from a distance of 25 cm from the conveyor belt weighing up to 15 kg !!!
THE GIVEN PRICES ARE NET PRICES
IN OUR OFFER WE HAVE OTHER SIZES OF SEPARATORS. PLEASE ASK FOR MORE DETAILS
Aztech
Poland
Aztech Sp. z o.o.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite, Sandstone, Travertine
Machinery Function Features:
The single line cutting system is a machine designed to cut rectangular blocks or granite slabs into large slab thicknesses. The device consists of a supporting structure with two flywheels, 2500 mm in diameter, which move the diamond wire for cutting. The speed of the wheels, and therefore of the rope, is variable and controlled by an inverter. The downward movement of the rope takes place by means of two roller carriages that move along a square column. This type of system allows high stiffness and, at the same time, very good smoothness. The rope tension is hydraulically regulated at constant pressure. The device can be equipped with fixed or rotating trolleys. They are always driven by a geared motor, controlled by an inverter and an encoder for precise positioning of the trolley.
Socomac
Poland
Euro Arss S.C.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesColumn, Balustrade Lathe Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Sandstone
Machinery Function Features:
Set of Column Processing Machines. The whole set of machines includes a milling machine, polishing machine and pneumatic drill. Those machines are used, inter alia, for production of vases and columns
ZPU PROMASZ
Poland
ZPU PROMASZ
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The 70 rope cutting system is a machine designed to cut granite blocks into various thicknesses of plates. The machine consists of four columns on which four carriages move
in the hydraulic system. Additionally, the structure has integrated hydraulic locks that enable the installation of lines. The drive drum is 2200 mm in diameter while on the other hand two drums are 880 in diameter and a group of hydraulic cable tensions. The machine is complete with an automatic locking system for the cut plates. The machine is equipped with a modern, hydraulic rope lowering / lifting system. The hydraulic system consists of four electronically controlled cylinders. The shifts can be with the same speed or with different - independent. You can also control the left and right sides of the columns separately, which allows you to perfectly align the ropes to uneven blocks.
Socomac
Poland
Euro Arss S.C.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesCNC Diamond Wire Shaping Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
The machine is designed to cut decorative profiles from stone blocks. It is equipped with 2 flywheels with a diameter of 2,350 mm and 2 pairs of small flywheels with a diameter of 400 mm to guide the rope in any direction. Small flywheels are mounted on movable arms to reduce the distance between them and the material and increase the precision of the cut. The flywheel motor is equipped with an inverter to adjust the circumferential speed of the rope.
Socomac
Poland
Euro Arss S.C.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
TORO 64 ÷ 66 is a multi-head automatic belt polisher for processing straight and rounded sides (half-round, quarter-round, etc.). It has been designed to work on all types of stones, marble and granite with a thickness of 20 to 100 mm. Complete and universal machine suitable for small, medium and large plants.
TORO, THE RIGHT REASONS FOR CHOICE:
fully automated processing,
oscillating stick driven by two connected brushless motors with simplified mechanics,
the highest quality and efficiency of working spindles with a long service life thanks to special stainless steel and internal air pressure to improve water resistance
easy configuration and flexibility - a fully electronic computer platform with a friendly operator interface. Software developed in GMM, which can additionally remember a lot of useful data and information, such as working time, various statistics, alarm history, rules for standard jobs or profiles,
surface protection against rust - all surface treatments are performed
inside GMM: from sandblasting, cold galvanized treatment, to final painting.
GMM
Poland
Euro Arss S.C.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Surface Processing Machines Slab Polishing Line Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
"Storm" Series LCG / LCM 600/2200 is a polishing machine from the Italian company CO.M.E.S., which is the result of 40 years of experience in the production of polishing heads for marble, granite and ceramics.
Ergonomics, efficiency and safety are the principles that inspire our work, so that we can provide each buyer with the highest quality CO.M.E.S. Every detail of the machine has been designed with incomparable accuracy. Countless hours of development and factory testing of STORM polishing lines ensure that the strictest standards are met.
Co.Mes
Poland
Euro Arss S.C.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Surface Processing Machines Stone Flaming Machine
Warranty: 12 Months
Usage: Granite, Basalt, Quartzite
Machinery Function Features:
Flame machine mod. KOMPATTA for processing boards with maximum dimensions of 2200x150h mm, including:
roller conveyor with passive rollers for loading panels; dimensions 2000 x 2200 mm
independent bridge for vertical displacement of the slide and left-right movement of the flame tube group
1 or 2-burner flame system and bushing system for 1 to 4 bush hammers.
motorized conveyor belt to move the plates under the processing bridge; dimensions
roller conveyor with passive rollers for plate unloading; dimensions 2000 x 2200 mm.
serial voltage / frequency Volt / Hz 400 /
Maema
Poland
Euro Arss S.C.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Surface Processing Machines Stone Flaming Machine
Warranty: 12 Months
Usage: Granite, Basalt, Quartzite
Machinery Function Features:
RAPIDA- 8 BURNERS
The multi-burner flame machine is a device with very high production capacity. It uses very special burners to obtain a flame, and an independent bridge for vertical movements from right to left allows for a very wide working area. It processes boards with maximum dimensions of mm. 2200x500h, consisting of:
* an independent bridge allowing vertical movement along the sliding belts
* 8 special burners 270 mm wide, complete with an independent combustion control unit, in full compliance with the current CE and ATEX standards
* sliding cover of the flame zone
Maema
Poland
Euro Arss S.C.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Surface Processing Machines Water Blast Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
StonDeck is an innovative and revolutionary bridge water firebox patented by Maem, which is able to make a rough finish on the natural stone of the slab surface thanks to the power of water under high pressure, up to 2000 bar. The water output is between 18 and 42 liters per minute. The possibility of using various types of water jets and the rotating head allows the machine to create straight lines, curved lines and a selected geometric shape. The three processing heads installed on the bridge can move in the following directions:
longitudinal guide for drawing lines along the length of the plates
transverse guide for drawing lines along the width of the plates
transverse + longitudinal for drawing squares on plates
diagonal guiding along the diagonals of both plates for drawing rhombuses
free running for drawing free-form drawings on plates
4-column bridge, allowing for the displacement of the processing heads, suitable for processing components with a maximum working width of 200 mm and a maximum working thickness of 500 mm
Maema
Poland
Euro Arss S.C.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Surface Processing Machines Stone Sandblasting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
STL / A 1500 SHOT GUN
This machine is particularly suitable for shot blasting concrete, agglomerate, marble, stone, granite and other neutral materials of various shapes and sizes.
Main characteristics:
* Shot blasting only on the upper outer surface of parts and on the side of parts as an option
* Operated with a turbine system with centrifugal ejection of steel shot.
* Closed mesh metal mesh mat.
* The speed of the mat is regulated by the control board.
* Turbine speed adjustable by control board.
Cogeim Europe
Poland
Euro Arss S.C.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Surface Processing Machines Stone Sandblasting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone
Machinery Function Features:
STL / A 2200 SHOT GUN
This machine is particularly suitable for shot blasting concrete, agglomerate, marble, stone, granite and other neutral materials of various shapes and sizes.
Main characteristics:
* shot-blasting only on the upper outer surface of the parts and on the side of the parts as an option
* operating with a turbine system with centrifugal ejection of steel shot
* closed mesh metal mesh mat
* speed of the mat is regulated by the control board
* turbine speed adjustable by control board
Cogeim Europe
Poland
Euro Arss S.C.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The Softec ™ waterjet cutting software was developed by TECHNI Waterjet ™ with two very clear goals:
1.cutting at minimum cost with the highest accuracy,
2. simple and intuitive interface facilitating the operator's work.
The result is a comprehensive "All In One" software, specifically designed for waterjet cutting, that maximizes productivity and can be learned quickly and easily by anyone with computer experience without any problems.
At the heart of Softec ™ software is Tru-Cut ™ technology, which is a highly advanced database of algorithms that determines optimal cutting speeds and machine performance characteristics. After selecting the right material for cutting, all you need to do is enter the thickness and edge finish of the element, the computer will do the rest, ensuring minimal cutting time for any element. All with one software!
Softec Nest uses advanced nesting algorithms that have been developed by one of the world's largest and award-winning CAD software developers - Geometric Global.
The benefits include:
- improving profitability by minimizing feeding time.
- increasing the optimization of cutting along with the material efficiency.
GMM
Poland
Euro Arss S.C.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Gmatic 3000 is a machine with a solid structure and an indispensable tool magazine, which facilitates the production of kitchen countertops, shower boards, drainers, decorative elements, bas-reliefs and inscriptions.
The large monoblock frame allows the positioning and processing of large slabs, such as synthetic and ceramic materials. The work table is made of natural stone, leveled by the machine itself.
The Gmatic 3000 uses 4 brushless motors to move the axes on linear guides with ball bearings. The machine is available for manual tool change or with automatic tool change. The control interface is a console equipped with a comfortable, large, 21.5 "touch screen, GCAM's own software, which was developed especially for the stone industry.
Ghines
Poland
Euro Arss S.C.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Factory Cleaning EquipmentsAir Dust Collector
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
Machinery Function Features:
XAERO suction table with a double dry dedusting system, which bases its operation on the basis of two laws of physics, guaranteeing 100% dust extraction. The powerful XAERO extraction system is distributed over the entire surface of the work table, creating the so-called "CYKLON" that removes 70% of dust. On the other hand, the rest of the dust is captured by the filters, which are automatically cleaned by the blasts of air that occur each time the machine is turned on. Additionally, cleaning cycles can be performed manually at any time.
Ghines
Poland
Euro Arss S.C.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Factory Cleaning EquipmentsAir Dust Collector
Warranty: 12 Months
Usage: Granite, Marble, Artificial Stone, Basalt
Machinery Function Features:
Xagua is a suction table with water purification. The use of a powerful motor in combination with a high pressure system and advanced dust extraction technology effectively keeps the plant clean and protects the health of employees. The high power of the suction motor and special metal separators with a plate structure inside the device bind the dust through the water mist, which condenses on the droplet separator. The resulting dust droplets fall to the bottom of the tank, where they are then completely washed away by the constant flow of water at the outlet. Installation does not require bricklaying work - only electrical, hydraulic or pneumatic connection (depending on the model). Thanks to the simple control, the training and commissioning of the device is immediate. Massive and compact metal structure, painted with epoxy paint, galvanized inner tank and droplet separator, guarantee low noise level and long service life of the device. In addition, thanks to the use of innovative technologies, GHINES products do not have pumps, filters and moving mechanical components, which reduces the need for maintenance to a minimum and guarantees long, trouble-free use. Xagua is a stand that has a single-phase plug for connecting an electric device, e.g. a grinder, and an additional stand for used tools, as well as a solenoid valve for automatic control of the water level at the outlet.
Ghines
Poland
Euro Arss S.C.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Surface Processing Machines Slab Polishing Line Machine
Warranty: 12 Months
Usage: Granite, Quartzite
Poland
RR GRANITY A. Rogoz i wspolnicy Spolka Jawna
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
€51000-51000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Stone circular machine, steel wall bridge saw DSL1200-45Q controlled automatically, can be fully automated. Parts of the machine are made of high-quality materials. Automatic control ensures the accuracy of cutting. The maximum diameter of the blade is as much as 1200mm. Our bridge saw is an ideal machine for small, medium and large plants needing the ability to cut stone in manual and automatic mode. This saw with a bridge design, is designed to cut stone slabs to a specific size. A tilt up to 45° with step cutting capability (stopping the tilt every 1°) enables prop cutting. The multi-cutting works both when cutting straight and at an angle. The machine has a hydraulically controlled table raised to 85°, rotating 0° – 360° with stopping every 90°, so working with this machine allows fast and convenient stone processing.
A convenient touchscreen control panel allows precise settings of this machine. This is a saw of the highest quality, for which we provide a warranty, installation and service of the machine and access to spare parts.
Dianormet
Poland
Dianormet Machinery
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving,Engraving Machine
$7250-7300
Warranty: 12 Months
Usage: Granite, Marble
Machinery Function Features:
Milling machine for letters - The only such devices on the market !!!
A milling and engraving plotter is a universal device for milling letters or engraving portraits and images. With the device you can also drill holes for embedding letters made of stainless steel and bronze. We have a font database of leading letter manufacturers with marked drilling points.
As a standard, the device is made in the size of the working area of 500x700mm. The drive transmission through ball screws allows you to work both horizontally and vertically, also directly on the writing wall. You don't have to buy many heavy devices for tens of thousands. Now all you need is one portable milling and engraving plotter to meet the expectations of the most demanding customers.
On request, we also make devices with other dimensions of the working area.
Set contains:
- plotter
- control unit
- software with controller
- diamond tips (3 pcs.)
- 2.2kW spindle
- engraving head
- 10mm V cutter 1 pc
- 4mm diamond drill bit 1 pc.
- delivery and training in the use of the device
Models available:
Working field ...... Gross price
700x900 ... 29,000
1000x900 ... 31,000
1000x1200 ... 33,000
1000x1500 HD ... 61500
PZ Grawerki
Poland
PZ Grawerki CNC
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Handling, Loading MachinesStone Scanner
€6500-7000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
AZTECH is a leading POLISH manufacturer of industrial machinery on both Polish and foreign markets. Our company is selling new and used machines and also spare parts for machines.
Our specialized staff will help you choose the right machine based on specific guidelines and intended use.
SALES OFFER
MAGNETIC SEPARATOR SM-500 (FOR ABOVE CONVEYOR BELT)
MODEL: SM-500
magnet dimensions: 500x500x200mm
tape width: 500mm
tape length: 1700mm (one-sided)
magnet power - 5000 Gauss !! attracts objects from a distance of 25 cm from the conveyor belt weighing up to 15 kg !!!
THE GIVEN PRICES ARE NET PRICES
IN OUR OFFER WE HAVE OTHER SIZES OF SEPARATORS. PLEASE ASK FOR MORE DETAILS
Aztech
Poland
Aztech Sp. z o.o.
Contact Supplier
Have a Question? Ask our expert
Ask now
