Add To CompareType: Stone Quarry MachinesQuarry Wire Saw Machine
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite, Travertine
Machinery Function Features:
Diamond Wire machines VIP 910
ELECTRONIC DIAMOND WIRE SAW
Machine properly studied and manufactured to cut big blocks, boulders and benches, when diamond wire speed adjustment is required. An inverter device is used to control and constantly adjust the diamond wire speed from 0 to 40 m/sec., according to the type of stone. The combination with the automatic feeding system by means of “supercard” or inverter, allows a very accurate management of the cutting tool and a very smooth and precise movement of the machine on the rails. It is possible to make two parallel cuts 170 or 200 cm wide and a complete rotation of 360° to cut on any angle, by means hydraulic device. The same device allows to make horizontal cuts at ground level without the use of any auxiliary accessories.
Starter: Star delta diretto/Star Delta or direct
Travel motor: Motore CC 1 HP vel. varianile1/Hp variable DC motor
Wire tension: automatic controlled by a supercard
Benetti
Italy
Benetti Macchine Spa
Contact Supplier
-
Add To CompareType: Stone Quarry MachinesQuarry Wire Saw Machine
FOB Price:
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Main engine power 55 kW 1000 rpm
Travel motor 0.75 kW 1400 rpm
Slewing motor 0.75 kW 1400rpm
Hydraulic motor 2.2 kW 1400 rpm
Machine control Wired remote control
Electrical equipment 380 v 3 phase star delta
Pulley diameter 800 mm
Installation Operated hydraulic feet
Cutting capacity 14-22 m2 per hour (depending on the hardness of the marble)
Wire capacity 70-130 meters
Width / height / height. 1250x6520x2190 mm
Weight 3300 kg
Auxiliary pulleys (500mm)-(300mm)
Cutting method 3-way cutting method
WITH MOBILE MOTOR OPTION
Dilmer Makina
Turkey
Dilmer Makina
Contact Supplier
-
Add To CompareType: Stone Quarry MachinesQuarry Wire Saw Machine
FOB Price:
Warranty: 12 Months
Usage: Marble, Limestone, Quartzite, Sandstone, Travertine
Machinery Function Features:
Electrical Motor: 18,5kw 1500 rpm
FlywheelDiameter: 500 mm
Ramp Length : 3 meters
Electrical Components: Siemens
Control: Remote control with cable 8 meters
CuttingSpeed: 4-15 m2/hr
Weigth: 400 kg
Width: 1200mm
Heigth: 400mm
Length: 3100mm
Notes: Big Wheel installed for comfort transportation. Electrical distribution and control panel fixed on machine. Ratchet-pawl mechanism protect to slide down of motor / fly Wheel groups in case of diamond wire break. -
Add To CompareType: Stone Quarry MachinesQuarry Wire Saw Machine
FOB Price:$12000-20000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Artificial Stone, Quartzite, Sandstone, Travertine
Machinery Function Features:
Functions and Features:
Being controlled by two sets of inverters and applying constant tension control principle, the moving speed of the machine can be adjusted automatically according to the changes of the cutting force to make sure the diamond wire saw be in the best cutting condition all the time.
The machine is without phase request. It doesnot need to change or distinguish the power phase. The machien has the following protection functions: wire broken protection, over-loading protection, open-phase protection, terminal limit, and so on.
The lateral moving and the rotation angle of the cutting haed are controlled and driven by electric motor. There is photoelectric procimity switch installed on the cutting head for position limitation protection. This function enables the machine to work normally under harsh circumstance with moisture and dust.
The real time parameters are displayed on the control platform, such as the set current of the main motor, the current and the rotation speed of the main motor,etc. It makes the operation and adjustment of the machine more convenient.
The machine can be operated manually and automatically. The manual and automatic functions can be shafted from each other. Under the automatic funstion, the machine can be unattended operated, and one worker is able to operate multiple machines.
Using Permanent Magnet Synchronous Motor, the wire saw machine is more energy-saving, larger torque, and higher efficient.
HUALONG
China
Fujian Province Hualong Machinery CO., LTD.
Contact Supplier
-
Add To CompareType: Stone Quarry MachinesQuarry Wire Saw Machine
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS
Motor Cinsi / Engine Type Elektrikli / Electricity
Motor Gücü / Motor Power 30 kw 40 hp, 380 v 1500 dev/dk (Rpm)
Yürüyüş Sistemi / Movement System Redüktörlü Otamatik Hız Kontrolü
Automatic Speed Control with Reducer
Kullanılacak Tel / Wire Type Elmas / Diamond
Kesme Hızı Saat / Cutting speed (Hour) 8-9 m Yüzey / Surface / Per Hour
Tel Çevirme Kapasitesi / Wire Rotating Capacity 45-50 m
Kasnak Çapı / Pulley Diameter 60 cm
Ağırlık / Weight 830 kg
Şase Uzunluğu / Chassis Length 4 mt
GÖLER MAKİNA
Turkey
Goler Makine Rulman San Tic. Ltd. Sti.
Contact Supplier
-
Add To CompareType: Stone Quarry MachinesQuarry Wire Saw Machine
$11998-12298
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite, Sandstone, Travertine
Machinery Function Features:
HQSJ-37A Wire Saw Machine is available for cutting in any direction: horizontal, vertical and acclivitous, is suitable for quarry to mine large specification and regular blocks, such as marble, granite, quartzite, basalt, etc. also good for bridge, reinforced concrete and other construction cutting.
Faithful Machinery
China
Quanzhou Faithful Machinery Co.,Ltd
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite, Sandstone, Travertine
Machinery Function Features:
Model KM / KG
Power of main electric motor 50 / 60 Hp
Diamond wire saw speed ( with inverter ) from 0 up to 41mt/sec
Rotation cutting head 360°
Hydraulic lateral translation 1600mm
Weight of the machine 1560 / 1600 kg
The wirecutters KORFMANN are equipped with hydraulic positioning system and electronic control of advance. The version G for granite have diamond wire speed control by electronic inverter.
Korfmann Cut Machinery
Italy
Korfmann Cut Machinery s.r.l
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Travertine
Machinery Function Features:
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS
Motor Cinsi / Engine Type Elektrikli / Electricity
Motor Gücü / Motor Power 18,5 kw, 25 hp, 380 V, 1500 dev/dk (Rpm)
Yürüyüş Sistemi / Movement System Redüktörlü Otamatik Hız Kontrolü
Automatic Speed Control with Reducer
Kullanılacak Tel / Wire Type Elmas / Diamond
Kesme Hızı Saat / Cutting Speed (Hour) 8-9 m Yüzey / Surface / Per Hour
Tel Çevirme Kapasitesi / Wire Rotating Capacity 30 - 35 m
Su İhtiyacı Saat / Water Consumption (Hour) 200 lt / Hour
Kasnak Çapı / Pulley Diameter 50 cm 1 Adet / Piece
Ağırlık / Weight 320 kg
Kontrol / Control Kablolu Uzaktan Kumanda
Remote Control with Cable
GÖLER MAKİNA
Turkey
Goler Makine Rulman San Tic. Ltd. Sti.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Marble, Limestone, Quartzite, Sandstone, Travertine
Machinery Function Features:
Main Engine: 55 kW - 75 hp / 1000 rpm 380 V
Main Engine Torque: 550 Nm
Output System: Star - Delta
Motion Motor: 0,75 kW - 1 bg / 1500 rpm 380 V
Movement System Torque: 2865 Nm
Movement System: Rear Wheel Drive
Motion control: Speed control + ammeter
360 setting motor: 1,1 kW - 1,5 hp / 1500 rpm 380 V
360 input system Torque: 2310 Nm
360 direction system control: switch
XY motion, motor: 0,75 kW - 1 bg / 1500 rpm 380 V
XY Motion system torque: 1216 Nm
XY Motion system control: Switch
XY Movement system setting: Automatic
XY Motion Wig: 1.6 meters
Continuous Cutting Technology: 10 measurements / second
Pixel Phase Change Technology: Phase Line Relay
Master flyer eating: 800 mm
Aux. Volcano Purchase: 300 mm
Wire turning capacity: 100m / traverten ~ 130m / beige
Wire speed: 42 m / s
Cutting speed: 28m2 / s traverten ~ 20m2 / h beige
Rail Length: 3 units 2 meters
Total machine weight: 1900 K
IREN MAKINA
Turkey
IREN Marble Cutting and Drilling Machines A.S.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
Bridge Mountain Quarry Cutting Machine-Block Dressing Machine
Adelsan Makine
Turkey
ADELSAN QUARRY MACHINERY
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Quarry Wire Saw Cutting Machine
Stock : In Stock
Engine Power 45 Kw 1450 RPM
Electrical Equipment 380 volts 3 phase star-delta
Main Engine Starting Torque (Oiled Cable)
Walking System 1,1 Kw 1400 RPM
Walkway 3 Mt X 2 Pieces
Machine Control Wired Remote Control
Electrical Equipment 380 V 3 Phase Star Triangle
Pulley Diameter 800 mm
Cutting Capacity 6-10 m2 per hour (according to Marble Hardness)
Wire Capacity 80-100 Mt
Width/Length/Height 1000 x 2000 x 1300 mm
Weight 1150 Kg
Dilmer Makina
Turkey
Dilmer Makina
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Onyx, Basalt, Travertine
Machinery Function Features:
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS
Motor Cinsi / Engine Type Elektrikli / Electricity
Motor Gücü, Voltajı, Devri /
Engine Power, Voltage, Revolution 20 / 25 hp, 15 / 18 kw 380 V 1500 dev/dk (Rpm)
Yürüyüş Sistemi / Movement System Makaralı (El ile) / with Roller (with Hand)
Makinanın Hareket Şekli / Machine Movement Type Yıldız Üçgen Yol Verme / Star Triangle Connection
Kullanılacak Tel / Wire Type Elmas / Diamond
Kesme Hızı Saat / Cutting Speed (Hour) 3-5 m Yüzey / Surface / Hr.
Tel Çevirme Kapasitesi / Wire Rotating Capacity 10-25 m.
Su İhtiyacı Saat / Water Consumption (Hour) 200 lt / Per Hour
Kasnak Çapı / Pulley Diameter 50 cm 1 Adet / Piece
Ağırlık / Weight 300 kg.
GÖLER MAKİNA
Turkey
Goler Makine Rulman San Tic. Ltd. Sti.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Travertine
IREN MAKINA
Turkey
IREN Marble Cutting and Drilling Machines A.S.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
Stock : In Stock
Engine Power 15 Kw or 18.5 kW 1450 RPM 380 volts
Walking System Roles
Machine Control Wired Remote Control
Cutting Capacity 4-6 m2 per hour (according to Marble Hardness)
Pulley Diameter 500mm
Wire Capacity 15-30 Mt
Width/Length/Height 130 x 300 x 160 cm
Weight 325 Kg
Dilmer Makina
Turkey
Dilmer Makina
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
The machine cuts on the top rail on its own. Since the machine is fixed in 5 different regions while cutting, there is no gap and continuous cutting when cutting, this means more cutting than rail machines.
Machine control wired remote controller
Feet hydraulic system adjustable
IREN Quarrying Machines
Turkey
IREN Quarrying Machines
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
75 Kw Electric Motor
Wire breakage by 20-30%
reduces.
Cutting speed compared to other machines
raises.
Pulley movement right – left – bottom
cut. Pulley in its field
30 cm without moving the machine
has the freedom to move.
Racking gear system machine
because it is located in the bridge
sludge accumulation does not occur.
Speed controlled
The machine is also used in the upper sections on the mirror.
Wire turning 80-180 meters
Main pulley 80 cm
Rail length 6 mt
When the wire tension increases, the walking slows down, if the tension continues to increase
walking stops automatically
There is no need for anyone to stand next to the machine during operation.
It stops automatically at the end of the cutting. There is a light warning.
It has a CE certificate of conformity to European standards.
Slow cutting start and electric motor speed adjustment
PLC controlled with 7 inch touch screen
90-110 kw driver controlled – can be adjusted according to all stone cuts
ability to cut.
The 2 hind legs and the front legs all have pistons.
IREN MAKINA
Turkey
IREN Marble Cutting and Drilling Machines A.S.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Hydraulic walls overturning system, it's works by means hydraulic pistons with a high pressure pump up to 1000 bar.
Korfmann Cut Machinery
Italy
Korfmann Cut Machinery s.r.l
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS
Motor Gücü / Engine Power 55 Kw (75 hps) 1000 dev/dk (Rpm) 380 volt
Yürüyüş Sistemi / Movement System 1.1 KW 2 hp Turbo Beyin Kontrollü / Turbo Intellegence Controls
Makine Kontrolü / Machine Control Kablolu Uzaktan Kumanda / Remote Controller with cable
Elektrik Motor Kalkış Sistemi Engine
Starting System Hız Kontrollü / Speed Controller
Kesme Kapasitesi / Cutting Capacity 18-28 m2/ Saat Mermer Sertliği ve Elmas Tele Göre Değişir
18-28 m2 / Hour Change by Marble Hardness and Diamond Wires
Kafa / Head
270o Derece Dönerek 3 Yönlü kKesim İmkanı
3 Ways Cutting Capacity with Rotating 270o
Kurulum / Setup Joystick Kontrollü Hidrolik Ayaklar
Hydraulic Legs with Joystick Control
Tel Kapasitesi / Wire Capacity 80-140 mt
Ölçüler / Dimensions 120 cm x 600 cm x 200 cm
Ağırlık / Weight 3.500 kg
Özellikler / Specification Kasnak Kaydırma, Tel Kopunca Stop Eder, Kalkış Desteği Pulley
Scrolling, Stop When the Wire Break, Take off Support -
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Quartzite, Sandstone, Travertine
Machinery Function Features:
Dazzini Macchine Series 1000-Diamond wire cutting machine
Wirecutter of last generation, it can be considered as a landmark in its field. It can be used on all the types of marble, granite and stone, with top performance and life of the diamond wire, at maximum cutting speed. The whole controls are fully automatic and don't require the constant presence of the operator.Technical features:
Diamond wire running system by electric motor
The electronic system of feed control is extremely accurate and complete, thanking to the combined action of two motors:
•2 HP motor for the quick positioning of the machine on the rail.
•0.5 Hp motor with automatic reduction gear for fine regulations.
The feeding on the rail is performed on a double central self-cleaning rack with double gear wheel. This system allows the machine to work even in slope position, preventing the risk of sliding. The " S 1000" is featured by a special "electro-hydraulic" system for flywheel positioning. The rotation and a lateral movement of 40 cm per side are hydraulic, with solenoid valve control. A further lateral movement is possible by electric motor and endless screw. This system allows to perform ground level cuts and two parallel cuts, maximum width 2.0 mt. without moving the machine.
Special feature:
The machine is provided with special blower heating system for flywheel, to reduce icing during winter work.
Technical details:
Main motor power 50-60-75-100Hp
Feed motors power 2 Hp fast - 0.5 slow
Flywheel Ø 1000 mm
Wire speed : 40 Mt / Sec.
Width of cuts 0 - 2,0 Mt
Total weight 1800 Kg.
Dazzini
Italy
Dazzini Macchine S.r.l.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
VIP 914 Diamond Wire Quarry Machines
The diamond wire saw mod. vip/914 is a compact design, which can cut in any direction, vertical, horizontal, or inclined, straight against the wall/floor of the benches, in quarries of marble or granite.
This machine allows to make two adjacent cuts at 160 cm distance from each other in a single positioning on rails.
The rotation and the lateral adjustment of the drive unit are motorized.
VIP 914 Inverter the model with vectorial inverter control system allows to vary the diamond wire speed from 0 to 40 m/sec. in order to optimize its consumption and get the best output, even on very difficult material.
Afi Hatzivarity S.A
Greece
Afi Hatzivarity S.A
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Spain
Brett Iberica Maquinaria SL
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite, Sandstone, Travertine
Machinery Function Features:
Main Motor: 55kW
Feed Motion Motor: 1,1kW with inverter
Flywheel Diameter: 800mm
Rails: 3 meters 2 ea. ( Total length: 6 meters)
Guide Flywheel: 300mm
Working Positions: Vertical and Horizantal
Cutting Speed: 10-25 m2/h (depend on hardness of stone)
Electrical Components: Siemens
Notes: Electrical distribution board and control board installed on machine. Unibody machine helps easy transportation. Main power (input) cable plug-in and run. Automatic feed motion gives two different speed. -
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Travertine
Machinery Function Features:
Let's think about the construction machinery work machinery first diesel engine by running the engine and the whole load is transferred to the hydraulic system hydraulic engine in our hydraulic machinery, leaving the whole engine to the hydraulic system
It offers more strong ropes than the machines in its own group.
Since it is hydraulic system, it offers cutting possibility at desired speed. Between 0-1200 cycles. Marble-Granite-Basalt-Travertine Due to the hydraulic system, electrical engine combustion or contactor problems are relatively low compared to other machines.
According to the machines in its group, the electricity consumption is 50% less.
IREN Quarrying Machines
Turkey
IREN Quarrying Machines
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The machine stops when wire severed. Machine stops at the end of motion after working 1 minute. -
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Diamond Wire Saw cutter Model: 003
The design of our Cable Cutter cut revolutionized the quarries of our country, were still the most popular in the market. Its main assets are the great functionality and operability as it is not necessary to place tracks on the ground for perfect operation. In addition to this advantage, our machine has a quick coupling plate for attachment bracket, which makes it suitable for transportation with great security and speed. -
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
TD 25 Diamond wire saw for block dressing and small cuts in the quarry.
This is the smallest and most manageable machine. The 18 kW GB 6-pole main motor drives a 60 cm flywheel and can be rotated
mechanically over 360° for cuts at any angle.
OPTIONAL: inverter on a mobile control panel for variable wire
speed (0-30 m/s)
Pellegrini
Italy
Pellegrini Meccanica SpA
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Marble, Limestone, Quartzite, Sandstone, Travertine
Machinery Function Features:
Machines for medium size cuts in massive rock. The main electric motor GB (30, 37 or 45 kW, 6 poles) carries the 80 cm aluminium flywheel. Two
reducer assemblies - manually operated for the basic machine, electrically for Super machines - allow 360° rotation and lateral shift of the fly-wheel so that two parallel cuts can be made.
Pellegrini
Italy
Pellegrini Meccanica SpA
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Marble, Limestone, Quartzite, Sandstone, Travertine
Machinery Function Features:
TELEDIAM 80 TD 80 (-100) Diamond wire saw for cutting large benches
Machine for large cuts in massive rock. The main electric motor (56
kW, 8 poles) is started by a star-delta system, and the motor shaft
carries the 102 cm aluminium flywheel. Two reducer assemblies
with electric drive allow 360° rotation and lateral shift of the flywheel
so that two parallel cuts can be made. OPTIONAL: inverter for
variable wire speed (0-30 m/s).
Pellegrini
Italy
Pellegrini Meccanica SpA
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Rail Quarry Saw-Engine Driven
MAVECO Stone Machinery BV
Netherlands
MAVECO Stone Machinery BV
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
TDD 100-120 Super Diamond wire saw with a Diesel engine and a hydraulic converter to cut benches of any size in marble and/or granite.
Machine designed for large quarry cuts. The Diesel engine (VM, 4 cylinders, 90kW, air-cooled) is connected GB to the main aluminium flywheel Ø 102 cm through a hydraulic converter and an orthogonal gearbox. The gearbox unit can rotate 360° and can be shifted across the machine on chromed guides to allow two parallel cuts to be made at adjustable distance. Two electric sockets are provided (single phase 220V and threephase 380 V) with automatic switches, for small external loads
Pellegrini
Italy
Pellegrini Meccanica SpA
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite, Sandstone, Travertine
Machinery Function Features:
Ref.: 51
Head Rotation Diamond Wire machine for cutting stone benches with a wire diamond. The 315o rotation allows the machine to be quickly put into position. Allows horizontal and angled cuts. Allows vertical cuts at a distance of 2.2 m. Automatic stop at the end of cutting and if the wire breaks. Water is switched off at the end of cutting. Easy access for maintenance. High starting torque. Data management and storage.
The fastest machine on the market.
Fravizel
Portugal
Fravizel - Equipamentos Metalomecanicos, S.A.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Ref.: 49
Standard Diamond Wire Machine for cutting benches with a diamond wire. Reduced power consumption at start-up. Automatic stop at the end of cutting and if the wire breaks. Automatic adjustment of cable tension. Wheel easy to remove to replace rubber. High cutting speed and easy to assemble. Can be used in serial block cutting. Data management and storage.
Fravizel
Portugal
Fravizel - Equipamentos Metalomecanicos, S.A.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Ref.: 52
Tracked Extensible Wire Diamond Machine for squaring (to transform mass into blocks). It has Allows the cutting of masses in less time. It is self-propelled, moves on tracks and is easily positioned by the operator. The hydraulic levelling system allows the operator to quickly adjust the start of the cutting process. Does not require a rail. Reduced costs compared to the traditional method. Horizontal adjustment to bench size. Data management and storage.
The machine of the future.
Fravizel
Portugal
Fravizel - Equipamentos Metalomecanicos, S.A.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite, Sandstone, Travertine
Machinery Function Features:
Ref.: 50
Wire Diamond machine for cutting stone benches with a wire diamond. Ideal for narrow and difficult to reach areas, as it does not require a rail because the wire is in a vertical position. The machine is easy to move and be placed into cutting position as there is no need for any other machine. Automatic stop at the end of cutting and automatic adjustment of wire tension. Allows tilted cuts. Patented.
Fravizel
Portugal
Fravizel - Equipamentos Metalomecanicos, S.A.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Marble, Limestone, Quartzite, Sandstone, Travertine
Machinery Function Features:
The worm screw remove the dust produced by the dry cut during the vertical cut.
The dust coming from the chain is collected in a hopper inside which a worm screw brings it 1 m. sideway of the cutting area.
Fantini
Italy
Fantini Sud SPA
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite, Sandstone, Travertine
Machinery Function Features:
TL 920 is a machine with powerful chassis. With compact and simple operation and maintenance, it rotates electrically around its axis and can cut at any angle.
A separate panel for movement and automation, 10 m distance from the main machine ensures operator's safety. The start is made through star / delta, the promotion with motor of controlled speed while it has a kit of keys and 2 exemption's pulleys.
Intermek
Greece
INTERMEK S.A.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Strong, compact and easy to use machine, manufactured with a special steel frame connected to the flywheel rotation group. It is designed to perform large primary cuts and block squaring on marble, granite and abrasive stones.
The model with vectorial inverter control system allows to vary the diamond wire speed from 0 to 40 m/sec. The machine moves on rails by means of rack/pinion system. The feed system consists of a super card device, that allows a constant tension and control of the diamond wire during all the cutting phase. The particular design allows to easily make the horizontal cut at ground level.
Intermek
Greece
INTERMEK S.A.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite, Sandstone, Travertine
Machinery Function Features:
TRIMWIRE harmonizes the advantages of a stationary machine with a mobile quarry machine.
Very unique, it is composed of a single wire structure installed on a tracks vehicle equipped with a diesel engine that makes the system independent from any external energy source.
The machine is designed to be easily configured for transport from quarry to quarry on trailer.
Once the machine has been stabilized on the side of the block by 4 hydraulic stabilizers, the cutting arch is brought to the desired height and opened to align the wire to the face of the block to be cut.
The cut is performed vertically thanks to the movement of the arch structure along the column.
The wire is driven by a motor flywheel 1000 mm diameter and guided by 600 mm diameter wheels.
The entire cutting structure can also move along the rails (4 meters) placed on the top of the vehicle to allow the realization of different thicknesses with a single positioning of the vehicle.
All the drives are hydraulic and the main controls are operated by radio control device.
Pellegrini
Italy
Pellegrini Meccanica SpA
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
$1650-1880
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Basalt, Sandstone, Travertine
Machinery Function Features:
9kw,11kw,15kw diamond wire saw machine can be used for block dressing in quarry or in stone factory.Low cost ,easy operation,portable and easy mainttainance in stone mine!
Controlled by inverter.it can adjust feeding speed according to cutting situation.And guarantee the perfect cutting condition!.
China
Nanan Ruilong Machinery Co.,Ltd
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
$20000-26000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
1.Controlled by inverters and PLC industrial control module, the moving speed of the machine can be adjusted automatically with the changes of the cutting force so that the diamond wire saw be in the best cutting condition all the time.
2.The lateral moving and the rotation angle of the cutting head are controlled and driven by electric motor,which enables the machine to work normally under harsh circumstance with moisture and dust.
3.The machine can be operated manually and automatically.
4.The real-time parameters are displayed on the touch screen of the control platform, such as the set current of the main motor, cutting current, linear speed, walking speed, etc.
3YR
China
CHANGSHA TOOLSTAR MACHINERY MANUFACTURING CO., LTD
Contact Supplier
-
Add To Compare

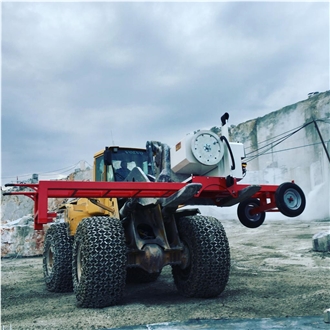

Type: Stone Quarry MachinesQuarry Wire Saw Machine
$0-0
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Functions and Features:
Being controlled by two sets of inverters and applying constant tension control principle, the moving speed of the machine can be adjusted automatically according to the changes of the cutting force to make sure the diamond wire saw be in the best cutting condition all the time.
The machine is without phase request. It doesnot need to change or distinguish the power phase. The machien has the following protection functions: wire broken protection, over-loading protection, open-phase protection, terminal limit, and so on.
The lateral moving and the rotation angle of the cutting haed are controlled and driven by electric motor. There is photoelectric procimity switch installed on the cutting head for position limitation protection. This function enables the machine to work normally under harsh circumstance with moisture and dust.
The real time parameters are displayed on the control platform, such as the set current of the main motor, the current and the rotation speed of the main motor,etc. It makes the operation and adjustment of the machine more convenient.
The machine can be operated manually and automatically. The manual and automatic functions can be shafted from each other. Under the automatic funstion, the machine can be unattended operated, and one worker is able to operate multiple machines.
Using Permanent Magnet Synchronous Motor, the wire saw machine is more energy-saving, larger torque, and higher efficient.
10YR
China
Fujian Xiapu Zhongyuan Machinery Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Wire Saw Machine
$3700-7000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
WE MANUFACTURE WIRE SAW IN 20 HP, 40 HP, 60 HP AND 75 HP VARIANTS.
OUR WIRE SAWS ARE USED IN STONE QUARRIES, EARTHMOVING AND RCC CUTTING APPLICATIONS.
THIS WIRE SAW IS DESIGNED IN CONFORMATION TO INTERNATIONAL STANDARDS.
India
SOMANI INDUSTRIES
Contact Supplier
Have a Question? Ask our expert
Ask now
