Double Blade Mining Machine
( 63 )Double Blade Mining Machine, as the name suggests, is a machine type with large diameter cutting discs on both sides and used in natural stone quarries. Double Blade Quarry Machine is designed and manufactured for extracting low hardness natural stones such as sandstone, limestone, and tuff stone blocks from quarries. Double Blade Quarry Machine is one of the large stone processing equipment, widely used for cutting sandstone, limestone mining quarries. For the high efficiency production, well-processing, flexible operation, stable function, high degree of automation, convenience of installation, operation and maintenance, Double Blade Mining Machine is the most preferred equipment for the sandstone, limestone mining quarry enterprises.
More Hide-
Add To CompareType: Stone Quarry MachinesDouble Blade Mining Machine
FOB Price:$25500-31500
Warranty: 12 Months
Usage: Granite
Machinery Function Features:

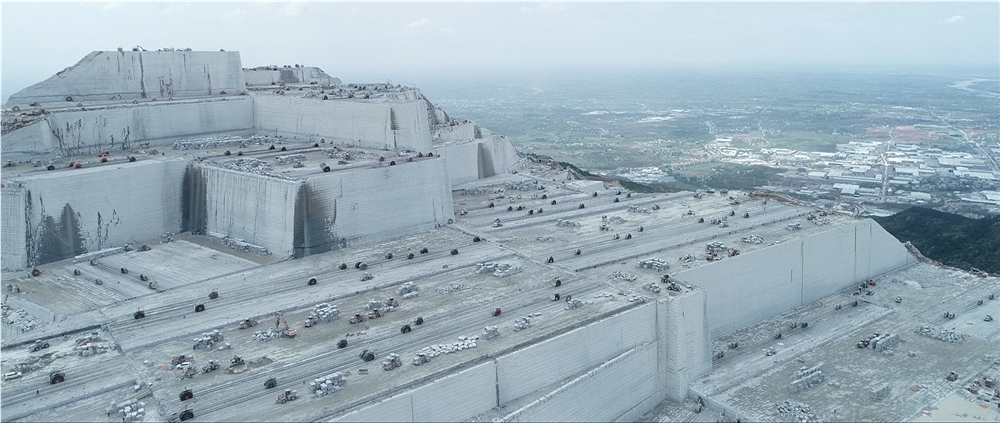

Which country has the largest output of granite for mining in the world?
China is the world’s largest producer of granite for mining. In 2024, China produced approximately 11 million tons of granite building-stone—about 36% of global output.

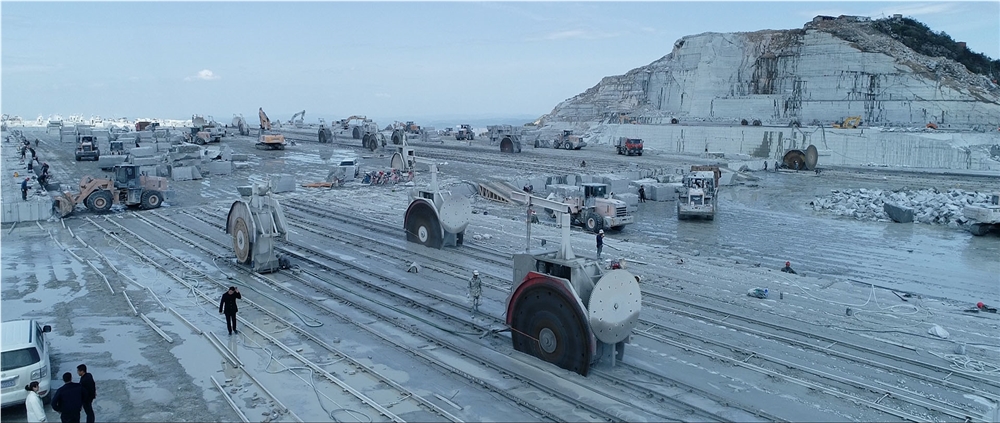

What is the popular granite mining method in China?
By double blade mining machine for vertical cutting combined with wire saw machine for bottom horizontal cutting.
Why this solution?
Use the advantages of double blade quarrying machine
* High speed --- It can cut est. 15 sqm/hour, while the wire saw cuts about 10 sqm/hour.
* Low consumption --- It cost about USD1.00/sqm, while the wire saw cost USD1.5-2.3/sqm.
Disadvangtages of double blade quarry cutting machine: It can only make straight and vertical cutting.
So, for bottom horizontal cutting, we use quarry wire saw, which can cut flexibly in any direction.

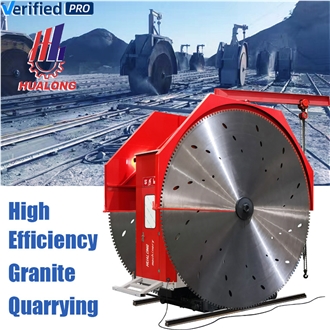

Hualong 2QYKZ Series Twin-Blade Mining Machine
The Industry Benchmark for Granite Quarry Cutting in ChinaEngineered with dual large-diameter circular blades, this rail-guided stone cutting system delivers high-precision, high-efficiency granite extraction . As the 10th-generation flagship stone mining equipment, its innovations include:
Core Advantages
1. Automated High-Performance Operation
* PLC-controlled adaptive drive system with real-time frequency conversion
* Auto-adjusts travel speed & blade rotation based on stone hardness
* Maximizes motor power utilization → +25% cutting efficiency
2. Energy-Optimized & Extended Lifespan
* Permanent magnet main motor reduces energy consumption by ≥10%
* Low thermal operation design → 30% longer service life
3. IoT-Enabled Remote Management
* Real-time monitoring of cutting parameters via cloud platform
* Predictive maintenance alerts reduce downtime by 18%
4. Proven Reliability & Stability
* Brand-certified electrical components (Schneider/Siemens)
* FEA-optimized structural design → 0.05mm/m cutting toleranceWhy Choose Hualong Machinery?
As China's leading granite quarry machinery supplier and original manufacturer of double blade quarrying machines, Hualong Machinery brings over 35 years of industry expertise since 1990. We are proud drafters of 3 Chinese national standards for stone quarrying equipment.
Quality Excellence
--- Engineered with 35+ years expertise & 87+ patents
--- CE certified & ISO9001:2015 compliant
Pre-Sales Advantage
--- Extensive machinery selection
--- Customized solutions
--- Expert technical consultation
Global After-Sales Support
--- Rapid parts & accessories supply
--- 24/7 troubleshooting via phone/email/WhatsApp/WeChat
--- Comprehensive installation & operation training
--- Overseas technician dispatch
--- On-demand professional work teams
Hualong
3YR
China
Fujian Province Hualong Machinery Co.,Ltd
Contact Supplier
-
Add To CompareType: Stone Quarry MachinesDouble Blade Mining Machine
FOB Price:$18500-30000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite, Sandstone
Machinery Function Features:
1.This machine adopts the new all-wheel-drive walking mechanism,needn’t daily maintenance. While avoiding the resulting security risks when the chain break. Running at constant speed,improve the cutting speed greatly, and reduce the loss of the cutting segments sharply, reduce the power consumption. 2.The spindle box connect with the motor directly instead of belt ,play to maximize the effective power of the motor. 3.Electrical control box with the Siemens technology,microcomputer tracks automatically, automatic deceleration in advance when the motor overwork and the blade is caught,prevent burning the main motor, improve the main motor’s life and production efficiency.
-
Add To CompareType: Stone Quarry MachinesDouble Blade Mining Machine
FOB Price:$17000-22000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
1.This machine adopts the new all-wheel-drive walking mechanism,needn’t daily maintenance. While avoiding the resulting security risks when the chain break. Running at constant speed,improve the cutting speed greatly,
and reduce the loss of the cutting segments sharply, reduce the power consumption.
2.The spindle box connect with the motor directly instead of belt ,play to maximize the effective power of the motor.
3.Electrical control box with the Siemens technology,microcomputer tracks automatically, automatic deceleration in advance when the motor overwork and the blade is caught,prevent burning the main motor, improve the main motor’s life and production efficiency.
ASIAN STONE
14YR
China
Xiamen Asian Stone Imp.& Exp. Co.,Ltd.
Contact Supplier
-
Add To CompareType: Stone Quarry MachinesDouble Blade Mining Machine
FOB Price:$24000-28500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
1. This machine adopts the new all-wheel-drive walking mechanism, needn’t daily maintenance. While avoiding the resulting security risks when the chain break. Running at a constant speed, improve the cutting speed greatly,
and reduce the loss of the cutting segments sharply, reduce the power consumption.
2.The spindle box connect with the motor directly instead of belt ,play to maximize the effective power of the motor.
3. Electrical control box with the Siemens technology, microcomputer tracks automatically, automatic deceleration in advance when the motor overwork and the blade is caught,prevent burning the main motor, improve the main motor’s life and production efficiency.
Technical Data
EASTERN PEGASUS
7YR
China
XIAMEN EASTERN PEGASUS CO., LTD.
Contact Supplier
-
Add To CompareType: Stone Quarry MachinesDouble Blade Mining Machine
FOB Price:$17000-24000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
1.This machine adopts the new all-wheel-drive walking mechanism,needn’t daily maintenance. While avoiding the resulting security risks when the chain break. Running at constant speed,improve the cutting speed greatly,
and reduce the loss of the cutting segments sharply, reduce the power consumption.
2.The spindle box connect with the motor directly instead of belt ,play to maximize the effective power of the motor.
3.Electrical control box with the Siemens technology,microcomputer tracks automatically, automatic deceleration in advance when the motor overwork and the blade is caught,prevent burning the main motor, improve the main motor’s life and production efficiency.
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To CompareType: Stone Quarry MachinesDouble Blade Mining Machine
$12000-17000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
1.Two-cylinder guide is used for lifting the blades , which makes the whole structure more stable and flexible. Higher automatically, it is suitable for all kinds of sandstone.
2.Using automatic intelligent frequency control technology,more convenient ,exact and high efficiency when operated.
3.Unique design of rocker arm, swing arm and main transmission frequency controls the speed, to achieve lift and down the blade quickly and smoothly to meet different cutting requirements.
ASIAN STONE
14YR
China
Xiamen Asian Stone Imp.& Exp. Co.,Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$21500-24100
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Quartzite, Sandstone
Machinery Function Features:
This kind of saw machine is special for over-sized quarrying which materials are quality and uniform, it's the most economical method to extract the dimensional blocks from quarry, suitable for granite, marble and sand stone quarries. Advantage: stable performance, convenient operation, better shape, less quarrying dust and waste stock debris, safety, protect environment, high efficiency, save mining cost, increase output and recovery. -
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$18500-24500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Sandstone, Travertine
Machinery Function Features:
1.It has a compact structure, with mechanical system, hydraulic system and electrical system integrated, high degree of automation, simple operation and easy-to-use feature.
2.The cylindrical guide rail is fully sealed to ensure that the guide rail id pollution-free and machine has an original lubrication system, so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced. It is a mine quarrying machine with significantly increased comprehensive benefits.
3.Unique cylindrical guide, hydraulic elevator design and super wide chassis, so the structure is more stable and longer service life.
4.Equipped with super giant saw blades, it can be used for the processing of ultra-large rocks and blocks to improve output percentage of the mine and make full use of the mineral resource.
5.Disc saw blades cutting is more secure, environmental, lower cost and more efficient than traditional blasting mining method.
6.The machines can be designed according to your request.I.e.machine type depends on the width and height of block dimension! Such as 1.36-1.9meter,1.5-2meter,2-2.5meter,2.6-3.1meter!
Ruisheng
China
Nanan Ruilong Machinery Co.,Ltd
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$21500-24100
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone
Machinery Function Features:
This kind of saw machine is special for over-sized quarrying which materials are quality and uniform, it's the most economical method to extract the dimensional blocks from quarry, suitable for granite, marble and sand stone quarries. Advantage: stable performance, convenient operation, better shape, less quarrying dust and waste stock debris, safety, protect environment, high efficiency, save mining cost, increase output and recovery. -
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$31000-36000
Warranty: 12 Months
Usage: Sandstone
Machinery Function Features:
Quantity Of Blade (pCs): 1-6
Diameter Of Blade (mm) 1400(vertical) +700 (horizontal )
Thickness Of Blade (mm) 12
Power Of Main Motor (vertical) kw 75
Power Of Main Motor (horizontal) kw 45
Total Power kw 130
Max. Lifing Stroke (mm) 950
Max. Moving Stroke Of Blade (mm) 240
Max.Cuting Depth (mm) 500
Max. Cutting Dimension (mm) 400X200X200 (adjustable)
Dimension (mm) 3600X2350X2600
Approximate Weight (kg) 7000
Quantity Of Vertical Blades pcs 4
Quantity Of Horizontal Blades pcs 2
EASTERN PEGASUS
7YR
China
XIAMEN EASTERN PEGASUS CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$23000-27000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Machine Introduction
In the traditional rock quarry mining which using dynamic blasting, the rate of finish product is only about 30-35%. DAFON is a quarry equipment manufacturers for the year has rich mining experience in granite/marble/limestone etc.
The new mining method is to apply a double blade stone quarry mining machine to cut the quarry rock directly, the finish product rate can be up to 90%, it improves the utilization of natural resources. Meanwhile double blades quarry mining machine is environmentally friendly equipment which avoids slag dust and smoke pollution during the opening process.
The quality of quarry is improved due to lack of shock and blasting, it is safer for a worker in open pit quarry mining.
This surface mining equipment adopts hydraulic pressure elevating, vibration running, simple circuit, and easy maintenance, which bring high efficiency and economic benefits to customers.
Machine Features:
The quarry surface mining equipment is the transformation of the original two-blade mining machine and suitable for marble and granite quarries. The stone quarry machine is widely used in domestic and aboard, the speed is faster than diamond wire saws. The completed sealed cylindrical guide rail ensure that the guide rail is free from contamination. The machine uses the original lubrication system to effectively improve the service life and utilization rate, and reduce the number of maintenance and cost. It is a significant improvement in the overall efficiency of a mining machine.
The main advantages are easy operation and low investment, small clearance, low wear, no vibration, stable structure, high cutting precision, and improved service life of the cutter head.
Machine Advantage
Increased productivity: Quarry mining machines are designed to work efficiently and effectively, allowing for increased productivity and reduced labor costs.
Cost-effective: Quarry mining machines are designed to operate for a long time and require minimal maintenance, which makes them a cost-effective option for quarry operators.
Safety: Quarry mining machines are designed with safety in mind, with features like backup cameras, automatic braking systems, and other safety features to prevent accidents and protect workers.
Precision: Quarry mining machines are designed to cut through stone and other materials with precision, allowing for accurate cuts and shaping of materials.
Versatility: Quarry mining machines can be used for a wide range of applications, including cutting, drilling, and shaping stone, making them a versatile tool for quarry operators.
Overall, the use of quarry mining machines can provide significant benefits to quarry operators, including increased productivity, cost-effectiveness, safety, precision, and versatility.
Installation Instructions:
1.Pave the track, if the site is not flat, use wood blocks or stones to pad the track basically and fix it, place the machine horizontally on the preset platform to check whether the four wheels are correctly erected on the track and ensure that the four wheels of the machine touch the track at the same time.
2.Installation of tap water supply pipe.
3.saw blade installation: according to the height required to install the required saw blade first loosen the lock nut, take out the outer clamp, then put on the saw blade, saw blade hole placed on the inner clamp tab, then install the outer clamp, lock nut tight.
4.set up the machine cable, connect the machine power, the machine track must be grounded to prevent leakage.
DAFON
6YR
China
Quanzhou DAFON Machinery Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$180000-250000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The quarry surface mining equipment is the transformation of the original two-blade mining machine and suitable for marble and granite quarries. The stone quarry machine is widely used in domestic and aboard, the speed is faster than diamond wire saws. The completed sealed cylindrical guide rail ensure that the guide rail is free from contamination. The machine uses the original lubrication system to effectively improve the service life and utilization rate, and reduce the number of maintenance and cost. It is a significant improvement in the overall efficiency of a mining machine.
The main advantages are easy operation and low investment, small clearance, low wear, no vibration, stable structure, high cutting precision and improved service life of the cutter head.
Technical data
Model DFKSQ-1900 DFKSQ-2450
diameter of driving wheel Ø3500*2 mm Ø4800*2
cutting width 1900 mm 2450 mm
max cutting height 1500 mm 2150 mm
main motor power 55kw *2 65 kw*2
water comsumption 5 m³/h 5 m³/h
total power 117.7 kw 139.2 kw
dimension 3540*1600*2710 mm 5210*2150*3600 mm
total weight 8000 kg 11500 kg
Dafon
3YR
China
Quanzhou Dafon Time Technology Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$15000-23000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone
Machinery Function Features:
The Introduction of Quarry mining machine
In the traditional rock quarry mining which using dynamic blasting, the rate of finish product is only about 30-35%. DAFON is a quarry equipment manufacturers for the year has rich mining experience in granite/marble/limestone etc.
The new mining method is to apply a double blade stone quarry mining machine to cut the quarry rock directly, the finish product rate can be up to 90%, it improves the utilization of natural resources. Meanwhile double blades quarry mining machine is environmentally friendly equipment which avoids slag dust and smoke pollution during the opening process.
The quality of quarry is improved due to lack of shock and blasting, it is safer for a worker in open pit quarry mining.
This surface mining equipment adopts hydraulic pressure elevating, vibration running, simple circuit, and easy maintenance, which bring high efficiency and economic benefits to customers.
The Feature of quarry mining machine
The quarry surface mining equipment is the transformation of the original two-blade mining machine and suitable for marble and granite quarries. The stone quarry machine is widely used in domestic and aboard, the speed is faster than diamond wire saws. The completed sealed cylindrical guide rail ensure that the guide rail is free from contamination. The machine uses the original lubrication system to effectively improve the service life and utilization rate, and reduce the number of maintenance and cost. It is a significant improvement in the overall efficiency of a mining machine.
The main advantages are easy operation and low investment, small clearance, low wear, no vibration, stable structure, high cutting precision, and improved service life of the cutter head.
The Advantage of quarry block mining machine
Increased productivity: Quarry mining machines are designed to work efficiently and effectively, allowing for increased productivity and reduced labor costs.
Cost-effective: Quarry mining machines are designed to operate for a long time and require minimal maintenance, which makes them a cost-effective option for quarry operators.
Safety: Quarry mining machines are designed with safety in mind, with features like backup cameras, automatic braking systems, and other safety features to prevent accidents and protect workers.
Precision: Quarry mining machines are designed to cut through stone and other materials with precision, allowing for accurate cuts and shaping of materials.
Versatility: Quarry mining machines can be used for a wide range of applications, including cutting, drilling, and shaping stone, making them a versatile tool for quarry operators.
Overall, the use of quarry mining machines can provide significant benefits to quarry operators, including increased productivity, cost-effectiveness, safety, precision, and versatility.
Installation instructions:
1.Pave the track, if the site is not flat, use wood blocks or stones to pad the track basically and fix it, place the machine horizontally on the preset platform to check whether the four wheels are correctly erected on the track and ensure that the four wheels of the machine touch the track at the same time.
2.Installation of tap water supply pipe.
3.saw blade installation: according to the height required to install the required saw blade first loosen the lock nut, take out the outer clamp, then put on the saw blade, saw blade hole placed on the inner clamp tab, then install the outer clamp, lock nut tight.
4.set up the machine cable, connect the machine power, the machine track must be grounded to prevent leakage.
Dafon
3YR
China
Quanzhou Dafon Time Technology Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$15000-23000
Warranty: 12 Months
Usage: Granite, Marble, Sandstone
Machinery Function Features:
Machine Introduction
In the traditional rock quarry mining which using dynamic blasting, the rate of finish product is only about 30-35%. DAFON is a quarry equipment manufacturers for the year has rich mining experience in granite/marble/limestone etc.
The new mining method is to apply a double blade stone quarry mining machine to cut the quarry rock directly, the finish product rate can be up to 90%, it improves the utilization of natural resources. Meanwhile double blades quarry mining machine is environmentally friendly equipment which avoids slag dust and smoke pollution during the opening process.
The quality of quarry is improved due to lack of shock and blasting, it is safer for a worker in open pit quarry mining.
This surface mining equipment adopts hydraulic pressure elevating, vibration running, simple circuit, and easy maintenance, which bring high efficiency and economic benefits to customers.
Machine Features:
The quarry surface mining equipment is the transformation of the original two-blade mining machine and suitable for marble and granite quarries. The stone quarry machine is widely used in domestic and aboard, the speed is faster than diamond wire saws. The completed sealed cylindrical guide rail ensure that the guide rail is free from contamination. The machine uses the original lubrication system to effectively improve the service life and utilization rate, and reduce the number of maintenance and cost. It is a significant improvement in the overall efficiency of a mining machine.
The main advantages are easy operation and low investment, small clearance, low wear, no vibration, stable structure, high cutting precision, and improved service life of the cutter head.
Machine Advantage
Increased productivity: Quarry mining machines are designed to work efficiently and effectively, allowing for increased productivity and reduced labor costs.
Cost-effective: Quarry mining machines are designed to operate for a long time and require minimal maintenance, which makes them a cost-effective option for quarry operators.
Safety: Quarry mining machines are designed with safety in mind, with features like backup cameras, automatic braking systems, and other safety features to prevent accidents and protect workers.
Precision: Quarry mining machines are designed to cut through stone and other materials with precision, allowing for accurate cuts and shaping of materials.
Versatility: Quarry mining machines can be used for a wide range of applications, including cutting, drilling, and shaping stone, making them a versatile tool for quarry operators.
Overall, the use of quarry mining machines can provide significant benefits to quarry operators, including increased productivity, cost-effectiveness, safety, precision, and versatility.
Installation Instructions:
1.Pave the track, if the site is not flat, use wood blocks or stones to pad the track basically and fix it, place the machine horizontally on the preset platform to check whether the four wheels are correctly erected on the track and ensure that the four wheels of the machine touch the track at the same time.
2.Installation of tap water supply pipe.
3.saw blade installation: according to the height required to install the required saw blade first loosen the lock nut, take out the outer clamp, then put on the saw blade, saw blade hole placed on the inner clamp tab, then install the outer clamp, lock nut tight.
4.set up the machine cable, connect the machine power, the machine track must be grounded to prevent leakage.
Dafon
3YR
China
Quanzhou Dafon Time Technology Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$30000-33000
Warranty: 12 Months
Usage: Limestone, Sandstone
Machinery Function Features:
1. Two-cylinder guide is used for lifting the blades , which makes the whole structure more stable and flexible. Higher automatically, it is suitable for all kinds of sandstone.
2. Using automatic intelligent frequency control technology,more convenient ,exact and high efficiency when operated.
3. Unique design of rocker arm, swing arm and main transmission frequency controls the speed, to achieve lift and down the blade quickly and smoothly to meet different cutting requirements.
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$15000-23000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Sandstone, Travertine
Machinery Function Features:
Machine Introduction
In the traditional rock quarry mining which using dynamic blasting, the rate of finish product is only about 30-35%. DAFON is a quarry equipment manufacturers for the year has rich mining experience in granite/marble/limestone etc.
The new mining method is to apply a double blade stone quarry mining machine to cut the quarry rock directly, the finish product rate can be up to 90%, it improves the utilization of natural resources. Meanwhile double blades quarry mining machine is environmentally friendly equipment which avoids slag dust and smoke pollution during the opening process.
The quality of quarry is improved due to lack of shock and blasting, it is safer for a worker in open pit quarry mining.
This surface mining equipment adopts hydraulic pressure elevating, vibration running, simple circuit, and easy maintenance, which bring high efficiency and economic benefits to customers.
Machine Features:
The quarry surface mining equipment is the transformation of the original two-blade mining machine and suitable for marble and granite quarries. The stone quarry machine is widely used in domestic and aboard, the speed is faster than diamond wire saws. The completed sealed cylindrical guide rail ensure that the guide rail is free from contamination. The machine uses the original lubrication system to effectively improve the service life and utilization rate, and reduce the number of maintenance and cost. It is a significant improvement in the overall efficiency of a mining machine.
The main advantages are easy operation and low investment, small clearance, low wear, no vibration, stable structure, high cutting precision, and improved service life of the cutter head.
Machine Advantage
Increased productivity: Quarry mining machines are designed to work efficiently and effectively, allowing for increased productivity and reduced labor costs.
Cost-effective: Quarry mining machines are designed to operate for a long time and require minimal maintenance, which makes them a cost-effective option for quarry operators.
Safety: Quarry mining machines are designed with safety in mind, with features like backup cameras, automatic braking systems, and other safety features to prevent accidents and protect workers.
Precision: Quarry mining machines are designed to cut through stone and other materials with precision, allowing for accurate cuts and shaping of materials.
Versatility: Quarry mining machines can be used for a wide range of applications, including cutting, drilling, and shaping stone, making them a versatile tool for quarry operators.
Overall, the use of quarry mining machines can provide significant benefits to quarry operators, including increased productivity, cost-effectiveness, safety, precision, and versatility.
Installation Instructions:
1.Pave the track, if the site is not flat, use wood blocks or stones to pad the track basically and fix it, place the machine horizontally on the preset platform to check whether the four wheels are correctly erected on the track and ensure that the four wheels of the machine touch the track at the same time.
2.Installation of tap water supply pipe.
3.saw blade installation: according to the height required to install the required saw blade first loosen the lock nut, take out the outer clamp, then put on the saw blade, saw blade hole placed on the inner clamp tab, then install the outer clamp, lock nut tight.
4.set up the machine cable, connect the machine power, the machine track must be grounded to prevent leakage.
Dafon
3YR
China
Quanzhou Dafon Time Technology Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$23000-27500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone
Machinery Function Features:
The quarry surface mining equipment is the transformation of the original two-blade mining machine and suitable for marble and granite quarries. The stone quarry machine is widely used in domestic and aboard, the speed is faster than diamond wire saws. The completed sealed cylindrical guide rail ensure that the guide rail is free from contamination. The machine uses the original lubrication system to effectively improve the service life and utilization rate, and reduce the number of maintenance and cost. It is a significant improvement in the overall efficiency of a mining machine.
The main advantages are easy operation and low investment, small clearance, low wear, no vibration, stable structure, high cutting precision and improved service life of the cutter head.
Technical data
Model DFKSQ-1900 DFKSQ-2450
diameter of driving wheel Ø3500*2 mm Ø4800*2
cutting width 1900 mm 2450 mm
max cutting height 1500 mm 2150 mm
main motor power 55kw *2 65 kw*2
water comsumption 5 m³/h 5 m³/h
total power 117.7 kw 139.2 kw
dimension 3540*1600*2710 mm 5210*2150*3600 mm
total weight 8000 kg 11500 kg
DAFON
6YR
China
Quanzhou DAFON Machinery Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$23000-27000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Basalt
Machinery Function Features:
Machine Introduction
In the traditional rock quarry mining which using dynamic blasting, the rate of finish product is only about 30-35%. DAFON is a quarry equipment manufacturers for the year has rich mining experience in granite/marble/limestone etc.
The new mining method is to apply a double blade stone quarry mining machine to cut the quarry rock directly, the finish product rate can be up to 90%, it improves the utilization of natural resources. Meanwhile double blades quarry mining machine is environmentally friendly equipment which avoids slag dust and smoke pollution during the opening process.
The quality of quarry is improved due to lack of shock and blasting, it is safer for a worker in open pit quarry mining.
This surface mining equipment adopts hydraulic pressure elevating, vibration running, simple circuit, and easy maintenance, which bring high efficiency and economic benefits to customers.
Machine Features:
The quarry surface mining equipment is the transformation of the original two-blade mining machine and suitable for marble and granite quarries. The stone quarry machine is widely used in domestic and aboard, the speed is faster than diamond wire saws. The completed sealed cylindrical guide rail ensure that the guide rail is free from contamination. The machine uses the original lubrication system to effectively improve the service life and utilization rate, and reduce the number of maintenance and cost. It is a significant improvement in the overall efficiency of a mining machine.
The main advantages are easy operation and low investment, small clearance, low wear, no vibration, stable structure, high cutting precision, and improved service life of the cutter head.
Machine Advantage
Increased productivity: Quarry mining machines are designed to work efficiently and effectively, allowing for increased productivity and reduced labor costs.
Cost-effective: Quarry mining machines are designed to operate for a long time and require minimal maintenance, which makes them a cost-effective option for quarry operators.
Safety: Quarry mining machines are designed with safety in mind, with features like backup cameras, automatic braking systems, and other safety features to prevent accidents and protect workers.
Precision: Quarry mining machines are designed to cut through stone and other materials with precision, allowing for accurate cuts and shaping of materials.
Versatility: Quarry mining machines can be used for a wide range of applications, including cutting, drilling, and shaping stone, making them a versatile tool for quarry operators.
Overall, the use of quarry mining machines can provide significant benefits to quarry operators, including increased productivity, cost-effectiveness, safety, precision, and versatility.
Installation Instructions:
1.Pave the track, if the site is not flat, use wood blocks or stones to pad the track basically and fix it, place the machine horizontally on the preset platform to check whether the four wheels are correctly erected on the track and ensure that the four wheels of the machine touch the track at the same time.
2.Installation of tap water supply pipe.
3.saw blade installation: according to the height required to install the required saw blade first loosen the lock nut, take out the outer clamp, then put on the saw blade, saw blade hole placed on the inner clamp tab, then install the outer clamp, lock nut tight.
4.set up the machine cable, connect the machine power, the machine track must be grounded to prevent leakage.
DAFON
6YR
China
Quanzhou DAFON Machinery Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$23000-27000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Machine Introduction
In the traditional rock quarry mining which using dynamic blasting, the rate of finish product is only about 30-35%. DAFON is a quarry equipment manufacturers for the year has rich mining experience in granite/marble/limestone etc.
The new mining method is to apply a double blade stone quarry mining machine to cut the quarry rock directly, the finish product rate can be up to 90%, it improves the utilization of natural resources. Meanwhile double blades quarry mining machine is environmentally friendly equipment which avoids slag dust and smoke pollution during the opening process.
The quality of quarry is improved due to lack of shock and blasting, it is safer for a worker in open pit quarry mining.
This surface mining equipment adopts hydraulic pressure elevating, vibration running, simple circuit, and easy maintenance, which bring high efficiency and economic benefits to customers.
Machine Features:
The quarry surface mining equipment is the transformation of the original two-blade mining machine and suitable for marble and granite quarries. The stone quarry machine is widely used in domestic and aboard, the speed is faster than diamond wire saws. The completed sealed cylindrical guide rail ensure that the guide rail is free from contamination. The machine uses the original lubrication system to effectively improve the service life and utilization rate, and reduce the number of maintenance and cost. It is a significant improvement in the overall efficiency of a mining machine.
The main advantages are easy operation and low investment, small clearance, low wear, no vibration, stable structure, high cutting precision, and improved service life of the cutter head.
Machine Advantage
Increased productivity: Quarry mining machines are designed to work efficiently and effectively, allowing for increased productivity and reduced labor costs.
Cost-effective: Quarry mining machines are designed to operate for a long time and require minimal maintenance, which makes them a cost-effective option for quarry operators.
Safety: Quarry mining machines are designed with safety in mind, with features like backup cameras, automatic braking systems, and other safety features to prevent accidents and protect workers.
Precision: Quarry mining machines are designed to cut through stone and other materials with precision, allowing for accurate cuts and shaping of materials.
Versatility: Quarry mining machines can be used for a wide range of applications, including cutting, drilling, and shaping stone, making them a versatile tool for quarry operators.
Overall, the use of quarry mining machines can provide significant benefits to quarry operators, including increased productivity, cost-effectiveness, safety, precision, and versatility.
Installation Instructions:
1.Pave the track, if the site is not flat, use wood blocks or stones to pad the track basically and fix it, place the machine horizontally on the preset platform to check whether the four wheels are correctly erected on the track and ensure that the four wheels of the machine touch the track at the same time.
2.Installation of tap water supply pipe.
3.saw blade installation: according to the height required to install the required saw blade first loosen the lock nut, take out the outer clamp, then put on the saw blade, saw blade hole placed on the inner clamp tab, then install the outer clamp, lock nut tight.
4.set up the machine cable, connect the machine power, the machine track must be grounded to prevent leakage.
DAFON
6YR
China
Quanzhou DAFON Machinery Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$23000-27000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Machine Introduction
In the traditional rock quarry mining which using dynamic blasting, the rate of finish product is only about 30-35%. DAFON is a quarry equipment manufacturers for the year has rich mining experience in granite/marble/limestone etc.
The new mining method is to apply a double blade stone quarry mining machine to cut the quarry rock directly, the finish product rate can be up to 90%, it improves the utilization of natural resources. Meanwhile double blades quarry mining machine is environmentally friendly equipment which avoids slag dust and smoke pollution during the opening process.
The quality of quarry is improved due to lack of shock and blasting, it is safer for a worker in open pit quarry mining.
This surface mining equipment adopts hydraulic pressure elevating, vibration running, simple circuit, and easy maintenance, which bring high efficiency and economic benefits to customers.
Machine Features:
The quarry surface mining equipment is the transformation of the original two-blade mining machine and suitable for marble and granite quarries. The stone quarry machine is widely used in domestic and aboard, the speed is faster than diamond wire saws. The completed sealed cylindrical guide rail ensure that the guide rail is free from contamination. The machine uses the original lubrication system to effectively improve the service life and utilization rate, and reduce the number of maintenance and cost. It is a significant improvement in the overall efficiency of a mining machine.
The main advantages are easy operation and low investment, small clearance, low wear, no vibration, stable structure, high cutting precision, and improved service life of the cutter head.
Machine Advantage
Increased productivity: Quarry mining machines are designed to work efficiently and effectively, allowing for increased productivity and reduced labor costs.
Cost-effective: Quarry mining machines are designed to operate for a long time and require minimal maintenance, which makes them a cost-effective option for quarry operators.
Safety: Quarry mining machines are designed with safety in mind, with features like backup cameras, automatic braking systems, and other safety features to prevent accidents and protect workers.
Precision: Quarry mining machines are designed to cut through stone and other materials with precision, allowing for accurate cuts and shaping of materials.
Versatility: Quarry mining machines can be used for a wide range of applications, including cutting, drilling, and shaping stone, making them a versatile tool for quarry operators.
Overall, the use of quarry mining machines can provide significant benefits to quarry operators, including increased productivity, cost-effectiveness, safety, precision, and versatility.
Installation Instructions:
1.Pave the track, if the site is not flat, use wood blocks or stones to pad the track basically and fix it, place the machine horizontally on the preset platform to check whether the four wheels are correctly erected on the track and ensure that the four wheels of the machine touch the track at the same time.
2.Installation of tap water supply pipe.
3.saw blade installation: according to the height required to install the required saw blade first loosen the lock nut, take out the outer clamp, then put on the saw blade, saw blade hole placed on the inner clamp tab, then install the outer clamp, lock nut tight.
4.set up the machine cable, connect the machine power, the machine track must be grounded to prevent leakage.
DAFON
6YR
China
Quanzhou DAFON Machinery Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$23000-25600
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
1. This machine adopts the new all-wheel-drive walking mechanism, which does not need daily maintenance. While avoiding the resulting security risks when the chain break. Running at a constant speed, improve the cutting speed greatly,
and reduce the loss of the cutting segments sharply, reduce the power consumption.
2. The spindle box connects with the motor directly instead of the belt, playing to maximize the effective power of the motor.
3. Electrical control box with the Siemens technology, microcomputer tracks automatically, automatic deceleration in advance when the motor overwork and the blade is caught, prevent burning the main motor, improve the main motor’s life and production efficiency.
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$21500-22000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
1.It has a compact structure, with mechanical system, hydraulic system and electrical system integrated, high degree of automation, simple operation and easy-to-use feature.
2.The cylindrical guide rail is fully sealed to ensure that the guide rail no pollution and machine has an original lubrication system, so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced. It is a mine quarrying machine with significantly increased comprehensive benefits.
3.Unique cylindrical guide, hydraulic elevator design and super wide chassis, so the structure is more stable and longer useful life.
4.With the super giant saw blades, it can be used for the processing of ultra-large rocks and blocks to improve out turn percentage of the mine and make full use of the mineral resource.
5.Disc saw blades cutting is more secure, environmental, lower cost and more efficient than traditional blasting mining method.
New Haineng
4YR
China
Quanzhou Xinhaineng Machinery Co,. Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$13500-31500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite
Machinery Function Features:
1) Equipped with powerfull permament magnet motors with high rated speed of 11000 rpm and high reliability. 2) To regulate the main motors speed by frequency converter, make it possible to adjust cutting speed according to the hardness of the stone cutted. 3) Productivity improved 10% + higher. 4) 10-15% energy saving than 2QYKT series. 5) Safer, more stable.
HUALONG
China
Fujian Province Hualong Machinery CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$20000-25000
Warranty: 12 Months
Usage: Granite, Marble
Machinery Function Features:
Granite and marble Stone Quarry Machine Equipment
1.It has a compact structure, with mechanical system, hydraulic system and electrical system integrated, high degree of automation, simple operation and easy-to-use feature.
2.The cylindrical guide rail is fully sealed to ensure that the guide rail no pollution and machine has an original lubrication system, so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced. It is a mine quarrying machine with significantly increased comprehensive benefits.
3.Unique cylindrical guide, hydraulic elevator design and super wide chassis, so the structure is more stable and longer useful life.
4.With the super giant saw blades, it can be used for the processing of ultra-large rocks and blocks to improve out turn percentage of the mine and make full use of the mineral resource.
5.Disc saw blades cutting is more secure, environmental, lower cost and more efficient than traditional blasting mining method.
SHUINAN
China
Shuinan Stone Machinery Co.,ltd
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$22000-25000
Warranty: 12 Months
Usage: Granite, Marble, Limestone
Machinery Function Features:
1.It has a compact structure, with mechanical system, hydraulic system and electrical system integrated, high degree of automation, simple operation and easy-to-use feature.
2.The cylindrical guide rail is fully sealed to ensure that the guide rail no pollution and machine has an original lubrication system, so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced. It is a mine quarrying machine with significantly increased comprehensive benefits.
3.Unique cylindrical guide, hydraulic elevator design and super wide chassis, so the structure is more stable and longer useful life.
4.With the super giant saw blades, it can be used for the processing of ultra-large rocks and blocks to improve out turn percentage of the mine and make full use of the mineral resource.
5.Disc saw blades cutting is more secure, environmental, lower cost and more efficient than traditional blasting mining method.
SHUINAN
China
Fujian Shuinan Stone Co.,Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$17000-23000
Warranty: 12 Months
Usage: Granite, Marble, Limestone
Machinery Function Features:
1，It has a compact structure,with mechanical system,hydraulic system and electrical system integrated,high degree of automation,simple operation and easy-to-use feature.
2，The cylindrical guide rail is fully sealed to ensure that guide rail no pollution and machine has an original lubrication system,so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced.It is a mine quarrying machine with significantly increased comprehensive benefits.
3，Unique cylindrical guide,hydraulic elevator design and super wide chassis,so the structure is more stable and longer useful life.
4，With the super giant saw blades,it can be used for the processing of ultra-large rocks and blocks to improve out turn percentage of the mine and make full use of the mineral resource.
5，Disc saw blades cutting is more secure,environmental,lower cost and more efficient than traditional blasting mining method.
SHUINAN
China
Shuinan Stone Machinery Co.,Ltd
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$15000-45000
Warranty: 12 Months
Usage: Granite, Marble, Quartzite, Sandstone
Machinery Function Features:
Characteristics
The main spindle lifting : utilizes four cylinders as guide rails, allowing for precise rising and falling through the hydraulic pressure of the oil cylinder. This design offers several key advantages: small clearance, less wear, no vibration, stable structure, high cutting precision, and greatly improve the service life of the saw blade.
Cylinder guide: adopts full closed protection, to ensure no pollution, with the original lubrication system, greatly improve the service life of the machine and mining efficiency, and greatly reduce the number of maintenance and cost.
LILANSHENG MACHINERY
China
Liansheng Machinery Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$1-1
Warranty: 12 Months
Usage: Limestone, Sandstone
Machinery Function Features:
Low-benching machine “Prima” is designed for wall stone blocks extraction in the quarries, the size of blocks is 390*190*188 mm.
Experimental Plant
Russian Federation
Experimental Plant LLC
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$6000-30000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Excavator Rock Saws are used in demolition, construction, quarry, and mining. SC Rock Saws are designed to cut aluminum, asphalt, concrete caliche, ductile iron, granite, limestone, sandstone, steel, and many other materials. We have different blades for these materials and ranging from 600mm through to 3000mm. These blades can be tipped with diamond segments to extend more service life. SC rock cutting saw easily attaches to your excavator or skid steer in minutes, providing quick and effective rock cutting. [email protected] whatsapp：+86 18615930860
SC
China
Yantai SC Equipment Co.,Ltd
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
Warranty: 12 Months
Usage: Granite
Machinery Function Features:
The granite quarry saw machine has a compact structure, with mechanical system, hydraulic system and electrical system integrated, high degree of automation, simple operation and easy-to-use feature.
The cylindrical guide rail is fully sealed to ensure that the guide rail id pollution-free and machine has an original lubrication system, so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced. It is a mine quarrying machine with significantly increased comprehensive benefits.
Unique cylindrical guide, hydraulic elevator design and super wide chassis, so the structure is more stable and longer service life.
Equipped with supergiant large diamond saw blades, it can be used for the processing of ultra-large rocks and blocks to improve outturn percentage of the mine and make full use of the mineral resource.
Large diamond saw blades is more secure, environmental, lower cost and more efficient than traditional blasting mining method.
DINOSAW
China
Quanzhou Dinosaw Machinery Technology Co.Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
Warranty: 12 Months
Usage: Sandstone
Machinery Function Features:
The Magisa machines represent a highly reliable product, both the operation, which for the duration, because constructed so craft , and with the precision of control machines .
In the 40 years of experience in the construction of construction machinery, Magisa was able to use the active collaboration of the customer up to obtain patents. Magisa only builds with quality materials and parts selected with the utmost care, produced by known companies. The dislocation logistics of these companies allows easy retrieval of spare parts anywhere in the world. The production is diversified with a wide range of models, from 20 to 180 hp with different depths of cut.
Magisa is able to meet special customer requirements thanks to the extreme possibility of customization of its machines. Another strong point of Magisaè machines ease of use by the operator, who is able to obtain from them the maximum yield in a short time.
All the machines we manufacture meet the directives of the European Community (EC).
Magisa
Italy
Officina Meccanica Magisa
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$6000-8000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Double Blade Stone Cutting Machine
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$17500-25000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Basalt, Sandstone, Travertine
Machinery Function Features:
This machine is fit for granite, marble, limestone, travertine,basalt and sand stone cutting. High speed, high efficiency,low cost,environment friendly.That is why all China stome mine use this machine to cut quarry. In some medium hardness granite mine, 3600mm machine can cut 300 meters in 15 hours! Structure Characteristics： 1. It has a compact structure, with mechanical system, hydraulic system and electrical system integrated, high degree of automation, simple operation and easy-to-use feature. 2. The cylindrical guide rail is fully sealed to ensure that the guide rail id pollution-free and machine has an original lubrication system, so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced. It is a mine quarrying machine with significantly increased comprehensive benefits. 3. Unique cylindrical guide, hydraulic elevator design and super wide chassis, so the structure is more stable and longer service life. 4. Equipped with supergiant saw blades, it can be used for the processing of ultra-large rocks and blocks to improve outturn percentage of the mine and make full use of the mineral resource. 5. Disc saw blades cutting is more secure, environmental, lower cost and more efficient than traditional blasting mining method. The efficiency is aboutt 4 times compare to wire saw machine! At present, we have developped many types including 3300mm,3500mm,3600mm,4200mm,4500mm,4800mm. And we can design special machine according to your request! We have exported this machine to many countries around world ! Hope you can try! Please feel free to contact us if you have any question in it!
Ruisheng
China
Nanan Ruilong Machinery Co.,Ltd
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$18000-25000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
1. This machine adopts the new all-wheel-drive walking mechanism, needn’t daily maintenance. While avoiding the resulting security risks when the chain break. Running at a constant speed, improve the cutting speed greatly,
and reduce the loss of the cutting segments sharply, reduce the power consumption.
2.The spindle box connect with the motor directly instead of belt ,play to maximize the effective power of the motor.
3. Electrical control box with the Siemens technology, microcomputer tracks automatically, automatic deceleration in advance when the motor overwork and the blade is caught,prevent burning the main motor, improve the main motor’s life and production efficiency.
Technical Data
Faithful Machinery
China
Quanzhou Faithful Machinery Co.,Ltd
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$20000-25000
Warranty: 12 Months
Usage: Granite, Marble, Quartzite, Sandstone
Machinery Function Features:
1.It has a compact structure, with mechanical system, hydraulic system and electrical system integrated, high degree of automation, simple operation and easy-to-use feature.
2.The cylindrical guide rail is fully sealed to ensure that the guide rail no pollution and machine has an original lubrication system, so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced. It is a mine quarrying machine with significantly increased comprehensive benefits.
3.Unique cylindrical guide, hydraulic elevator design and super wide chassis, so the structure is more stable and longer useful life.
4.With the super giant saw blades, it can be used for the processing of ultra-large rocks and blocks to improve out turn percentage of the mine and make full use of the mineral resource.
5.Disc saw blades cutting is more secure, environmental, lower cost and more efficient than traditional blasting mining method.
SHUINAN
China
Shuinan Stone Machinery Co.,ltd
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$18500-28500
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Double Disc Granite and Marble Stone Quarry Machine
1.It has a compact structure, with mechanical system, hydraulic system and electrical system integrated, high degree of automation, simple operation and easy-to-use feature.
2.The cylindrical guide rail is fully sealed to ensure that the guide rail no pollution and machine has an original lubrication system, so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced. It is a mine quarrying machine with significantly increased comprehensive benefits.
3.Unique cylindrical guide, hydraulic elevator design and super wide chassis, so the structure is more stable and longer useful life.
4.With the super giant saw blades, it can be used for the processing of ultra-large rocks and blocks to improve out turn percentage of the mine and make full use of the mineral resource.
5.Disc saw blades cutting is more secure, environmental, lower cost and more efficient than traditional blasting mining method.
SHUINAN
China
Fujian Shuinan Stone Co.,Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$19500-26500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
1.It has a compact structure, with mechanical system, hydraulic system and electrical system integrated, high degree of automation, simple operation and easy-to-use feature.
2.The cylindrical guide rail is fully sealed to ensure that the guide rail no pollution and machine has an original lubrication system, so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced. It is a mine quarrying machine with significantly increased comprehensive benefits.
3.Unique cylindrical guide, hydraulic elevator design and super wide chassis, so the structure is more stable and longer useful life.
4.With the super giant saw blades, it can be used for the processing of ultra-large rocks and blocks to improve out turn percentage of the mine and make full use of the mineral resource.
5.Disc saw blades cutting is more secure, environmental, lower cost and more efficient than traditional blasting mining method.
SHUINAN
China
Fujian Shuinan Stone Co.,Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$16500-18500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
1.It has a compact structure, with mechanical system, hydraulic system and electrical system integrated, high degree of automation, simple operation and easy-to-use feature.
2.The cylindrical guide rail is fully sealed to ensure that the guide rail id pollution-free and machine has an original lubrication system, so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced. It is a mine quarrying machine with significantly increased comprehensive benefits.
3.Unique cylindrical guide, hydraulic elevator design and super wide chassis, so the structure is more stable and longer service life.
4.Equipped with supergiant saw blades, it can be used for the processing of ultra-large rocks and blocks to improve outturn percentage of the mine and make full use of the mineral resource.
5.Disc saw blades cutting is more secure, environmental, lower cost and more efficient than traditional blasting mining method.
Ruisheng
China
Nanan Ruilong Machinery Co.,Ltd
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$27500-30000
Warranty: 12 Months
Usage: Limestone, Sandstone
Machinery Function Features:
Sandstone Quarry Cutting Machine
HKSS-1400 is suitable for mining the sandstone, limestone and lieterate, cutting into blocks for building.
1) The longitudinal cutting relies on the large main column vertical guide rail, the structure of which is simple and strong,straight up and down runs stably.
2) Simple interface, easy to operate. A worker is able to employ it at best after having a try of few hours.
3) Crosscutting with the thick and big swing arm structure, the cutting is stable and fast.
4) Powerful motors with 93% efficiency, tall output and low consumption.
Control Companent
Name: Joystick
Quantity: 5 pcs
It's simply and easy to control the machine up/down, the spindle up/down, left/right, the blade cover open/close.
Main Motor
Name: Three-phase asymchronous motor
Brand: XDDJ
Efficiency: 93.1%
Domestic famous engines, strong driving force, good efficiency, high economic benefits.
Power Connection & Operation Panel
Brand: Siemens, Schneider, SANCH
Quality certificated by CE
Blade
Blades are made of Q460c manganese steel(difficult deformation)+heat treatment,HR up to 52. The cutter heads are made of cemented
carbide,hard,wear-resisting,heat-resisting and corrosion resisting.
HUALONG
China
Fujian Province Hualong Machinery CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$18500-22000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Basalt, Sandstone, Travertine
Machinery Function Features:
1.It has a compact structure, with mechanical system, hydraulic system and electrical system integrated, high degree of automation, simple operation and easy-to-use feature.
2.The cylindrical guide rail is fully sealed to ensure that the guide rail id pollution-free and machine has an original lubrication system, so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced. It is a mine quarrying machine with significantly increased comprehensive benefits.
3.Unique cylindrical guide, hydraulic elevator design and super wide chassis, so the structure is more stable and longer service life.
4.Equipped with supergiant saw blades, it can be used for the processing of ultra-large rocks and blocks to improve outturn percentage of the mine and make full use of the mineral resource.
Disc saw blades cutting is more secure, environmental, lower cost and more efficient than traditional blasting mining method.
Ruisheng
China
Nanan Ruilong Machinery Co.,Ltd
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$25500-31500
Warranty: 12 Months
Usage: Granite
Machinery Function Features:
Which country has the largest output of granite for mining in the world?
China is the world’s largest producer of granite for mining. In 2024, China produced approximately 11 million tons of granite building-stone—about 36% of global output.
What is the popular granite mining method in China?
By double blade mining machine for vertical cutting combined with wire saw machine for bottom horizontal cutting.
Why this solution?
Use the advantages of double blade quarrying machine
* High speed --- It can cut est. 15 sqm/hour, while the wire saw cuts about 10 sqm/hour.
* Low consumption --- It cost about USD1.00/sqm, while the wire saw cost USD1.5-2.3/sqm.
Disadvangtages of double blade quarry cutting machine: It can only make straight and vertical cutting.
So, for bottom horizontal cutting, we use quarry wire saw, which can cut flexibly in any direction.
Hualong 2QYKZ Series Twin-Blade Mining Machine
The Industry Benchmark for Granite Quarry Cutting in ChinaEngineered with dual large-diameter circular blades, this rail-guided stone cutting system delivers high-precision, high-efficiency granite extraction . As the 10th-generation flagship stone mining equipment, its innovations include:
Core Advantages
1. Automated High-Performance Operation
* PLC-controlled adaptive drive system with real-time frequency conversion
* Auto-adjusts travel speed & blade rotation based on stone hardness
* Maximizes motor power utilization → +25% cutting efficiency
2. Energy-Optimized & Extended Lifespan
* Permanent magnet main motor reduces energy consumption by ≥10%
* Low thermal operation design → 30% longer service life
3. IoT-Enabled Remote Management
* Real-time monitoring of cutting parameters via cloud platform
* Predictive maintenance alerts reduce downtime by 18%
4. Proven Reliability & Stability
* Brand-certified electrical components (Schneider/Siemens)
* FEA-optimized structural design → 0.05mm/m cutting toleranceWhy Choose Hualong Machinery?
As China's leading granite quarry machinery supplier and original manufacturer of double blade quarrying machines, Hualong Machinery brings over 35 years of industry expertise since 1990. We are proud drafters of 3 Chinese national standards for stone quarrying equipment.
Quality Excellence
--- Engineered with 35+ years expertise & 87+ patents
--- CE certified & ISO9001:2015 compliant
Pre-Sales Advantage
--- Extensive machinery selection
--- Customized solutions
--- Expert technical consultation
Global After-Sales Support
--- Rapid parts & accessories supply
--- 24/7 troubleshooting via phone/email/WhatsApp/WeChat
--- Comprehensive installation & operation training
--- Overseas technician dispatch
--- On-demand professional work teams
Hualong
3YR
China
Fujian Province Hualong Machinery Co.,Ltd
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt
India
Alfa Estates Pvt Ltd
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$6000-8000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Double Blade Stone Cutting Machine
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesDouble Blade Mining Machine
$18000-24000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone
Machinery Function Features:
1.This machine adopts the new all-wheel-drive walking mechanism,needn’t daily maintenance. While avoiding the resulting security risks when the chain break. Running at constant speed,improve the cutting speed greatly,
and reduce the loss of the cutting segments sharply, reduce the power consumption.
2.The spindle box connect with the motor directly instead of belt ,play to maximize the effective power of the motor.
3.Electrical control box with the Siemens technology,microcomputer tracks automatically, automatic deceleration in advance when the motor overwork and the blade is caught,prevent burning the main motor, improve the main motor’s life and production efficiency.
SHUINAN
China
Shuinan Stone Machinery Co.,ltd
Contact Supplier
Have a Question? Ask our expert
Ask now
Questions & Answers on Double Blade Mining Machine
What are the approximate weights of these machines?
Posted by Visitor
Reply to this question
Post ReplyCancel
It is between 7500 and 12500 depending on the model.
Answered by StoneContact
Like
What is the width between the two blades (cutting width)?
Posted by Visitor
Reply to this question
Post ReplyCancel
Depending on the model, there are variations from 1300 mm to 3200 mm.
Answered by StoneContact
Like
How deep can a Double Blade Mining Machine cut?
Posted by Visitor
Reply to this question
Post ReplyCancel
The cutting depths of these machines are generally from 850 mm to 2250 mm.
Answered by StoneContact
Like
What is the diameter of Double Blade Machine discs?
Posted by Visitor
Reply to this question
Post ReplyCancel
Diameters of Double Blade Machine discs can vary as a radius of 2200 to 4800mm in general.
Answered by StoneContact
Like
