Onyx Tile Cutting Machines in Turkey
( 72 )After the large stone blocks are cut into 2 or 3 cm wide sheets, they need to be cut into various sizes according to your project. Sometimes these sizes are standard, sometimes they just need to be cut to the sizes your project requires. Cutting Natural Stone slabs to desired sizes is not easy to standard and requires high-tech machinery to do it accurately. It is easy to find stone tile cutting machines of all models and prices related to these works in the Stonecontact.com global stone portal. Stonecontact.com website has all kinds of brands and models of stone tile cutting, chamfering, polishing machines. Therefore, if you need a new stone tile cutting machine, it is inevitable that you will encounter many options. There are CNC machining centers, wire saws and many more type machines for cutting, shaping, edge profiling and grinding stone.
More Hide
Categories:
Single Disc Cutting Machine (8)
Strip Cutting,Edge Trimming Machine (24)
Multi-Blade Cross-Cutter,Trimming (29)
Hydraulic Stone Splitting Machine (7)
Mitre Saw, Edge Cutting Machine (4)
Show More
Suppliers:
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
EM09 - Multi-Disc Cross-Cutting Machine
• Number Of Cutting Discs: 5
• Diameter of Disc: 350 – 400 mm
• Working Thickness: 10 – 80 mm
• Working Width Min. / Max. : 250 – 3000 mm
• Cutting Disc Motor Power: 5 x 7,5 x 11 kW
• Cutting Disc Distance Setting Motor Power: 4 x 0,55 kW
• Bridge Movement Motor Power: 2,2 kW
• Belt Motor Power: 0,75 kW
• Total Electrical Power: 43 x 61 kW
• Machine Dimensions ( W / L / H ): 2300 / 6000 / 2500 mm
• Linear Guide Bridge Movement
• Pneumatic Piston Pusher
• Automatic Cutting Dimensions Control
https://ekizoglumakina.com/en/product/multi-disc-cross-cutting-machine
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
SCHIND CC01 Marble and Granite Cross Cutting Machine
Only the transverse cutting machine cuts jagged edges without any difficulty with its powerful motor.
It cuts straight on Y axis… No 45 ° cutting, No head rotation to another directions,
Cutting ability is net 800 mm on Y axis,
Cutting head group moves on the linear slides by button / joystick. Saw Forward – Saw Backward,
Marble slabs can be easily load on the plastic rolls for squaring,
Cutting speed is adjustable
Option: assembling bellows to cover upper body moving linear with additional cost
SCHIND MACHINES
Turkey
SCHIND MACHINES
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
FOB Price:€-1
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
EM25-2 STONE VENEERING MACHINE: • Belt Width: 200 mm • Working Width: 250 mm • Working Height: 300 mm • Double 45 Degree Conveyor Belts • Number Of Heads: 2 • Disc Diameter: 900 mm • Head Motor Power: 2 X 22 kW • Belt Motor Power: 2 X 0,55 kW • Belt Speed: 2 mt / min • Machine Dimensions ( W / L / H ): 2350 / 4400 / 2000 mm
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:

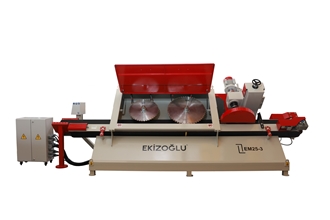

EM25-3 STONE VENEERING MACHINE • Belt Width: 210 mm & 300 mm • Working Width: 250 mm • Working Height: 50 - 300 mm • Double 45 Degree Conveyor Belts • Number Of Heads: 3 • Disc Diameter *Optional: 900 mm - 700 mm - 500 mm • Head Motor Power *Optional: 2 x 22 kW, 1 x 11 kW • Belt Motor Power: 2 x 0,55 kW • Up-Down Motor Power: 0,55 kW • Belt Speed: 3- 5,5 mt / min • Machine Dimensions ( W / L / H ) : 2550 / 5700 / 2100 mm
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS
Çalışma Genişliği / Working Width 680 mm
Çalışma Kalınlığı / Working Thickness 75 mm
Bant Motor Gücü / Band Engine Power 2 hp
Testere Motoru / Saw Engine 15 kw 3000 dev/dak (Rpm)
Testere Çapı / Saw Diameter 450 mm
Kesim Hareket Motoru Gücü / Cutting Movement Engine Power 2 hp
Toplam Güç Tüketimi / Total Electricity Consumption 6,25 kw
Ebatlar / Dimensions 190 x 190 x 480 cm
Ağırlık / Weight 1500 kg
Kontrol Paneli / Control Panel PLC Otomasyon / Automation
GÖLER MAKİNA
Turkey
Goler Makine Rulman San Tic. Ltd. Sti.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Sandstone, Travertine
KONMAK MARBLE MACHINERY
Turkey
KONMAK MARBLE MACHINERY
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS
Çalışma Genişliği / Working Width 680 mm
Çalışma Kalınlığı / Working Thickness 75 mm
Bant Motor Gücü / Band Engine Power 2 hp
Testere Motoru / Saw Engine 15 kw 3000 dev/dak (Rpm)
Testere Çapı / Saw Diameter 450 mm
Kesim Hareket Motoru Gücü / Cutting Movement Engine Power 2 hp
Toplam Güç Tüketimi / Total Electricity Consumption 6,25 kw
Ebatlar / Dimensions 190 x 190 x 480 cm
Ağırlık / Weight 1500 kg
Kontrol Paneli / Control Panel PLC Otomasyon / Automation
GÖLER MAKİNA
Turkey
Goler Makine Rulman San Tic. Ltd. Sti.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Slate, Onyx, Basalt, Sandstone, Travertine
Machinery Function Features:
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS
Çalışma Genişliği / Working Width 480 mm
Faydalı Kesim Genişliği / Useful Cutting Width 430 mm
Kesim Kafa Sayısı / Cutting Head Number 1 Adet / Piece
Takılabilir Disk Sayısı / Attechable Saw Number 30 Adet / Piece
Çalışma Kalınlığı / Working Depth 40 mm
Kesim Motor Gücü / Cutting Engine Power 22 kw
Konveyör Bant Hızı / Conveyor Band speed 0-4, 9 m/dk 0-4, 9 mt/min
Disk Çapı / Disk Diameter 300 mm
En Küçük Kesim Ebadı / The Smallest Cutting Dimensions 10x10
Kesim Motor Devri / Cutting Engine Revulations 2940 dev/dk (Rpm)
Makina Ebatları / Machine Dimensions 2450mm / 1840mm
GÖLER MAKİNA
Turkey
Goler Makine Rulman San Tic. Ltd. Sti.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
It is our Monoblock Machine mounted on a steel frame. Resistant Flawless Cutting Accuracy Unique Design.
All Steel Used on the Side Cutting Machine with Wagon, Anti-Rust Epoxy Paint Reinforcement, Special Transmission Rail System
RAIL SYSTEM IS DONE WITH OPEN AND CLOSED MANUFACTURING BY REQUEST.
Our machine is with Slide Movement (Up Down) / Reducer
Our machine is with Slide Movement (Y axis) / Reducer
Our machine is WAGON Movement (X axis) / Manual
Our machine has 45 DEGREES cutting feature.
Machine Slide System is the Linerr Guiding System Preferred for CNC Use.
Som-maK
Turkey
Som-maK Mermer Granit Makina Ltd Sti
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
* Cutting course 3400 mm.
* Saw Diameter 350-400- mm.
* Saw engine 7.5 / kv 1400/2800
* Wagon movement / Manual
* Wagon dimensions are 3000 x 1300 mm.
* Up and down motor 0.75 kv
* Reciprocating motor 0.75 kv
* Slide action / FORWARD BACK Liner Slide
* Steel Npu Chassis
* Machine length - 5500 mm.
* Machine width 2500 mm.
* Machine height 2000 mm.
* Approximate weight 2000 kg. - 2300 kg.
* Wagon manual
* Total Required Power 10 KW
* Required Water Flow 8 Lt./Min.
* 45 degree cut is with flywheel reductor
It is our Monoblock Machine mounted on a steel frame. Resistant Flawless Cutting Accuracy Unique Design.
All Steel Used on the Side Cutting Machine with Wagon, Anti-Rust Epoxy Paint Reinforcement, Special Transmission Rail System
RAIL SYSTEM IS DONE WITH OPEN AND CLOSED MANUFACTURING BY REQUEST.
Our machine is with Slide Movement (Up Down) / Reducer
Our machine is with Slide Movement (Y axis) / Reducer
Our machine is WAGON Movement (X axis) / Manual
Our machine has 45 DEGREES cutting feature.
Machine Slide System is the Linear Guiding System Preferred for CNC Use.
Marble Side Cutting
Som-maK
Turkey
Som-maK Mermer Granit Makina Ltd Sti
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
Cross Cutting Machine for marble,travertine
Merkon Machine
Turkey
Merkon Machine
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
$2150-2200
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
MK Serie is a marble, granite, glass, brick, hard and soft stone transverse and lengthwise cutting multipurpose machine.
MK serie is portable with all parts demountable.
Main frame of the machine is the water tank.
By the help of recycling system, pulverized water allows fast and easy cutting and prolongs the diamond saw life.
Between 90° and 45° cutting and groowing feature.
SEN-MAK Koll.
Turkey
SEN-MAK Koll.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Sandstone
KONMAK MARBLE MACHINERY
Turkey
KONMAK MARBLE MACHINERY
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
MULTIPLE CUTTING MACHINE
TECHNICIAL SPECIFICATIONS
Cutting Engine Power 22/30 kw
Cutting Engine Speed 2800 rpm
Band Motor Power 0,55 kw
Belt Speed 65 cm / min
Saw Lowering / Lifting Motor Power 0,18 kw
Press Up Down Motor Power 0,18 kw
Maximum Cutting Width 650 mm
Minimum Cutting Width 50 mm
Maximum Cutting Thickness 120 mm
Minimum Cutting Thickness 10 mm
Saw Diameter 250-350 mm
Number of Saws Min: 2 / Max: 13 pcs
Control System Manuel Button PLC optional
Miter System Available
Water Consumption 60 liters / min
Machine Dimensions (width - length - height) 2100 - 3550 - 2000 mm
Machine Weight 1500 kg
Machine dimensions can be changed according to customer demand.
Som-maK
Turkey
Som-maK Mermer Granit Makina Ltd Sti
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
HEAD CUT SIZING MACHINE
Machine Dimensions (mm) 4000x2000x1500
Cutting head movement (mm) 800
Maximum Saw Size (mm) / 400
Saw Speed (rpm) 1400/2900
Saw Engine Power (kW) 9 kw Installed Power (kW) 1
Machine Weight (kg) 1800
Som-maK
Turkey
Som-maK Mermer Granit Makina Ltd Sti
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
TRM 600 Multi-Blade Cross-Cutter, Strip Cutting, Edge Trimming Machine -
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Sandstone, Travertine
Machinery Function Features:
Excalibur ® Lenght Sizing Machine
It is used for sensitive sizing any kind of natural and artificial stones such as marble, granite, composite and ceramics.
It provides solution through different width chassis frames for raw materials in different measurements. Due to 650 mm., 2100 mm is current width of raw material, its physical structure is standardized in respect to these measurements.
The energy costs of stone processing industry are minimized through machines equipped with energy-saving engines.
Heads in Excalibur® are not moved on a shaft as it is done in non-professional systems. Movement of heads to(right-left) slithered on heavy sledge and rollers (linear sledge and roller) are located with near-zero friction.
Motion of Excalibur®’s cutting heads is supplied with servo technology. Mobility and stance abilities are in top-end precision in servo engines. Excalibur®, with servo technology, offers high-class cutting precision to customers.
TOKSEL MACHINE
Turkey
TOKSEL MACHINE LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
You can cut marble slabs at 90° and 45° in X and Y directions with PLC controlled 3-axis movement capability. With the strong chassis structure due to NPU steel, you can obtain a smooth surface in cutting your granite slabs. Natural stone processing...
Longitudinal, transverse and 45 ° cutting machine,
X and Y axis cuts,
Cutting head and its table works fully automatic,
It has both manual and automatic double-page digital touchscreen management panel,
It can make automatic sizing in 10 different sizes,
Linear slide system is used for upper body movements,
Technical support is possible to the machine brain with internet connection,
Made of NPU 260 chassis.
Table height from floor: 90cm
SCHIND MACHINES
Turkey
SCHIND MACHINES
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Sandstone, Travertine
Machinery Function Features:
Longitudinal, transverse and 45 ° cutting machine,
Cuts on X and Y axis,
The wagon forward and backward movement is automatic and is provided with joystick,
The rotation of the width, length and 45 cutting angles is done automatically from the control panel,
Cutting speed adjustable,
The shaft bearing which the wagon moves on is completely filled with oil and is closed,
The wooden wagon is used, the shaft bearing that drives the upper body is closed with bellows,
Made of NPU 240 chassis.
SCHIND MACHINES
Turkey
SCHIND MACHINES
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
In marble industry, horizontal splitting machines are utilized in acquiring two separate pieces by horizontally cutting the strips which originally are obtained by block cutting machines. Horizontal splitting machines are designed to process marble strips of maximum 160 mm thickness and maximum 630 mm width, and may come in different designs depending on how many cutting disks the machine has.
In general; machines with 2, 4, 6 and 8 cutting disks are used for horizontal splitting processes. They are also known for improving the efficiency at tile production. In particular, they are employed to minimize errors that may ocur during block cutting and loading/unloading operations.
Ozteknik Makine
Turkey
Ozteknik Makine
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Alligator® provides unique production experience to its customers in sizing natural and artificial products such as ceramic, glass, composite material, marble, travertine and granite.
Its first quality certified steel manufactured body is equipped with top-end quality machine elements and apparatus.
Alligator which also called crocodile, multi disc cutting machine, mosaic cutting machine, multi-cutting machine
has single and multiple heads versions and each heads can have several blades. Alligator does the process of cutting
Stones, marbles, ceramic, brick and granite. With it’s 500, 700, 900 and 1250 mm. Cutting width versions,
Alligator® can produce thousands of product in different dimensions.
TOKSEL MACHINE
Turkey
TOKSEL MACHINE LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
Longitudinal, transverse and 45 ° cutting machine,
Cuts on X and Y axis,
Head, left and right movements are managed from the control panel,
The rotation angles are fully manual,
Forward and backward movement of the wagon is done manually.
Made from 240 NPU chassis.
SCHIND MACHINES
Turkey
SCHIND MACHINES
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
Marble, limestone, travertine tile Trimming Machine
Merkon Machine
Turkey
Merkon Machine
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Alligator® in 2 headed, 3 headed, 4 headed mosaic sizing and cutting heads’ back and forth up and down fine movements in drawing operations are controlled from touch-operated operator panel. In precut cuttings the saw on the second head following previous drawing route may be exposed to various corrosions. Alligator ® provides an opportunity for the setting of precision of back and forth Alligator ® , despite the cutting problems that may arise from abrasion, it allows for forward-backward wear adjustment with a precision of 1/10 of a millimeter.
Alligator which also called crocodile, multi disc cutting machine, mosaic cutting machine, multi-cutting machine has single and multiple heads versions and each heads can have several blades. Alligator does the process of cutting Stones, marbles, ceramic, brick and granite. With it’s 500, 700, 900 and 1250 mm. Cutting width versions, Alligator® can produce thousands of product in different dimensions.
TOKSEL MACHINE
Turkey
TOKSEL MACHINE LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
High quality, durable and long life marble cutting machine will make your job easier by cutting marble, natural stone and granite platters with side cutting feature.
Our machines, which we produce with our experience in the marble and granite sector developed in Turkey, have effective and efficient designs. With the Schind 16400 marble, granite, stone cutting machine, you can speed up your production process thanks to this effective and efficient design. You save work and time with the possibility of longitudinal and 45° marble cutting.
The chassis of Schind 16400 marble, granite, stone cutting machine is produced with NPU 240 iron. Thus, you can obtain smooth parts without vibration during cutting.
You can shape your production as you want with two different sawing speed options.
Longitudinal cutting machine
45° cutting
It cuts only on X axis
Cutting head can't turn
It can be used manually
Made of NPU 240 chassis
SCHIND MACHINES
Turkey
SCHIND MACHINES
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
It cuts side only and has 9-13 kW motor. It is used for cutting rough edges quickly. Linear slides are used for upper body movements.
It cuts straight on Y axis… No 45 ° cutting, No head rotation to another directions,
Cutting ability is net 800 mm on Y axis,
Cutting head group moves on the linear slides by button / joystick. Saw Forward – Saw Backward,
Marble slabs can be easily load on the plastic rolls for squaring,
Cutting speed is adjustable
SCHIND MACHINES
Turkey
SCHIND MACHINES
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Alligator which also called crocodile, multi disc cutting machine, mosaic cutting machine, multi-cutting machine
has single and multiple heads versions and each heads can have several blades. Alligator does the process of cutting
Stones, marbles, ceramic, brick and granite. Up to 300 mm. Cutting width versions, Alligator® can produce
thousands of product in different dimensions.
TOKSEL MACHINE
Turkey
TOKSEL MACHINE LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The marble or granite strips from the calibrating and polishing machine are positioned 90 ° to the saws and cut in series.
Our machine has a strong steel body structure and it is painted with epoxy paint.
Machine dimensions may be changed according to customer request. And double head is possible.
SCHIND MACHINES
Turkey
SCHIND MACHINES
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Number of Head : 2/3 Adet
Diameter of Blade : 350 mm
Blade Motor Power : 5,5 kW
Motor Rotation : 3000 devir/dk
Max. Working Thickness : 30 mm
Max. Working Width : 650-1200 mm
Min. Working Width : 70 mm
Ozteknik Makine
Turkey
Ozteknik Makine
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Sandstone
M.A.Y. Ucler Makine
Turkey
M.A.Y. Ucler Makine
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Sandstone, Travertine
Machinery Function Features:
DYK 1 Rotating Edge Cutting Machine- Strip Cutting,Edge Trimming Machine
TOKSEL MACHINE
Turkey
TOKSEL MACHINE LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
EM25-4 STONE VENEERING MACHINE • Belt Width: 300 mm & 300 mm • Working Width: 300 mm • Working Height: 50 - 300 mm • Double 45 Degree Conveyor Belts • Number Of Heads: 4 • Disc Diameter *Optional: 1000 mm - 900 mm - 800 mm - 600 mm • Head Motor Power *Optional: 3 x 22 kW, 1 x 7,5 kW • Belt Motor Power: 2 x 0,55 kW • Up-Down Motor Power: 0,55 kW • Belt Speed: 3- 5,5 mt / min • Machine Dimensions ( W / L / H ) : 2420 / 6880 / 2180 mm
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Travertine
Machinery Function Features:
Este - Cross Cutting Machine, Strip Cutting, Edge Trimming Machine
Tuto Mermer Dis Tic Ltd Sti.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Sandstone, Travertine
Machinery Function Features:
DYK 1 Rotating Edge Cutting Machine- Strip Cutting,Edge Trimming Machine
TOKSEL MACHINE
Turkey
TOKSEL MACHINE LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
*Machine works as hydraulic
*Max Stone Lengt 30 cm, 40 cm, 50 cm
*Max Stone Width 12 cm , 20 cm
* Avarage daily production is about 120-150 sqm
Turkey
EFARGE MAKINE IMALAT SAN. TIC.A.S.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
Marble, limestone, travertine tile Trimming Machine
Merkon Machine
Turkey
Merkon Machine
Contact Supplier
Have a Question? Ask our expert
Ask now
Questions & Answers on Onyx Tile Cutting Machines in Turkey
Can I cut stone with a table saw?
Posted by Visitor
Reply to this question
Post ReplyCancel
You can use a table saw to cut stone if the saw has a diamond blade that is kept continually wet while cutting. A regular table saw blade will not create a smooth cut. The blade will chip the stone and will also produce a large amount of dangerous silica dust. A table saw is great for everyday projects.
Answered by StoneContact
Like
How can natural stone be cut with a tile saw?
Posted by Visitor
Reply to this question
Post ReplyCancel
Wet your stone in a bowl or bucket of water to prevent an initial dry cut. Place the stone on the opposite end of the tile saw from yourself. Pull the stone gently towards you, using the saw blade to cut down your marked line. Allow the saw blade to cut the rock, rather than putting a lot of pressure on it.
Answered by StoneContact
Like
