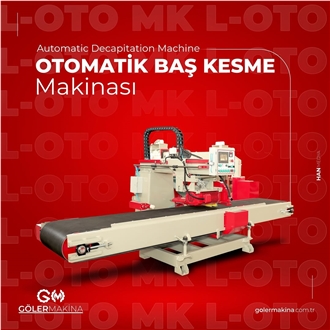

Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS
Çalışma Genişliği / Working Width 680 mm
Çalışma Kalınlığı / Working Thickness 75 mm
Bant Motor Gücü / Band Engine Power 2 hp
Testere Motoru / Saw Engine 15 kw 3000 dev/dak (Rpm)
Testere Çapı / Saw Diameter 450 mm
Kesim Hareket Motoru Gücü / Cutting Movement Engine Power 2 hp
Toplam Güç Tüketimi / Total Electricity Consumption 6,25 kw
Ebatlar / Dimensions 190 x 190 x 480 cm
Ağırlık / Weight 1500 kg
Kontrol Paneli / Control Panel PLC Otomasyon / Automation
GÖLER MAKİNA
Turkey
Goler Makine Rulman San Tic. Ltd. Sti.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
FOB Price:
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
The machine, mounted on a steel frame, has a closed and oil reservoir rail system, with Linear Slide Kremier Transfer. Measures given with speed control and makes precise cutting at the desired cutting speed.
(AUTOMATIC) System Is Switched To Automatic Mode, The Barrel Moves Down Manually, The Wagon Starts To Cut The Stone, The Wagon Arrives At The Head Waits.
(SEMI-AUTOMATIC) Sizing values are entered on the screen System is taken to the sizing mode, the dimensions of the stone are entered, the hive moves automatically downward, the wagon starts to cut the stone, the hive automatically rises when the wagon comes out of the boat, the wagon comes to the beginning. When completing the measures and pieces given without saying, BiteR
(XY FULL AUTOMATIC) Fully automatic mode is taken on the screen XY values are entered. The length, quantity and dimensions of the parts to be cut are entered. The hive moves automatically downwards. The wagon moves automatically and the stone starts to cut. When the wagon comes off, the hive automatically rises, the wagon comes to the head. And The Barrel Comes Against The Cutting (X AXIS When The Cutting Is Finished, The System Automatically Turns Its Head On The (Y) Minus The Dimensioning It Continues Up To The Plate Bit Without Hand In This Way.
(XY FULLY AUTOMATIC DOUBLE SIDED 4 SIDES 45 DEGREES) Our machine has the feature of cutting 45 degrees on 4 sides without moving the marble. You can input the xy axis values and cut the head and cut at the same time in different dimensions. THE PRODUCT HAS A TURKISH PATENT REGISTERED. Our machine rails become V-grooves and a machined surface.
Fully Steel is Used on the Side Cutting Machine with Wagon, Anti-Rust Epoxy Paint Reinforcement, Special Transmission Rail System Closed Slide System is Purified from Water, LİNER RAIL, Protective Bellows System is Integrated.
Our Machine Cutting 90 degrees and 45 degrees Reducer Works Automatically.
A Flat Waterproof Motor Has Been Used On Our Machine Head Cutting Up Down Inner Sleeve System Using Special Materials Used In Bridge Cutting Machines To Achieve Precision Cutting, It Serves As A Sliding Coupling.
Our Wagon Side Cutting Machine is designed as both Head Cutting Sizing and Side Sizing, X-Y Sizing with full size system.
Our machine Head rotation circular movement (C axis) is AUTOMATIC
Our machine is AUTOMATIC with 45 Degree movement reducer.
Our machine is Slide Movement (Y axis) AUTOMATIC / Manual
Our machine is WAGON Movement (X axis) AUTOMATIC / Manual
Both Manual, Automatic, Semi-Automatic. Fully Automatic, Usable.
Head System is fixed at 45 degrees by cutting 0 to 90 degrees.
With the help of a reducer, it provides speed controlled automatic cutting.
Som-maK
Turkey
Som-maK Mermer Granit Makina Ltd Sti
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Ozteknik Makine
Turkey
Ozteknik Makine
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Block Cutting MachinesMulti Blade Gang Saw
FOB Price:
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
SGX 100 THINCUT Multi Blade Gang Saw -
Add To CompareType: Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
Our surface polishing marble granite chamfering machine provides series and standard production.
Our fully automatic polishing machine is easy to use and maintain, and it chamfers from the bottom.
Our machine is controlled by front panel and all heads are working independently of each other.
The polishing heads automatically work and come out just after the entrance of the stone till finishing the relevant area, then automatically turns off and goes back.
Heads can be disabled according to the process.
The polished part of the marble must be placed on the production belt.
Conveyor belt movement is electronic speed controlled and width is 450mm...
Our machine is produced as 6+2, 8+2, 10+2, 12+2, 14+2 standard according to the sort of natural stone.
Our 12+2 machine has 1 caliber, 5 bottom chamfer, 6 side chamfer, 1 deburring and 1 drip saw.
The machine can process minimum 70/80 mm and up to 1500 mm with a bottom supported compasses mechanism.
The engine section of the machine is completely protected from water by internal and external protective parts.
The protective panels are opened and closed with the help of shock absorbers for lubrication channels maintenance and abrasive replacement.
Felt is used to be resistant of heat and abrasion to protect the head bearings behind the abrasive.
If the customer wants our machine can be integrated into the herringbone diamond.
SCHIND MACHINES
Turkey
SCHIND MACHINES
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Handling, Loading MachinesGantry Crane, Overhead Cranes
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Gantry Crane, Overhead Cranes
Tuto Mermer
Tuto Mermer Dis Tic Ltd Sti.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Bridge Cutting Machine provides precise and fast processing and cutting without vibration with its monoblock structure and All Steel Chassis.
(AUTOMATIC) System Is Switched To Automatic Mode, The Barrel Moves Down Manually, The Wagon Starts To Cut The Stone, The Saw Comes To The Entry Place With Its Exit From The Stone.
(SEMI-AUTOMATIC) Sizing values are entered on the screen. The system is taken to the sizing mode, the dimensions of the stone are entered, the barrel moves automatically downward the saw starts to cut the stone when the saw comes off the barrel automatically lifts up the saw comes to the beginning, the bridge counts to the desired size and the barrel moves forward again, BiteR when the given measurements and pieces are completed
(XY FULLY AUTOMATIC) Fully automatic mode is taken on the screen XY values are entered System lengths, numbers and dimensions of the parts to be cut are written, the barrel moves automatically downward the saw automatically starts to cut the stone when the saw comes off the barrel automatic raising saw comes to the beginning, the bridge slide counts the desired size And The Barrel Comes Against The Cutting (X AXIS When The Cutting Is Finished, The System Automatically Turns Its Head On The (Y) Minus The Dimensioning It Continues In This Way Without Hand Touching It Up To The Plate Bit.
All Steel is Used on Mono Block Bridge Cutting, Anti-Rust Epoxy Paint Reinforcement, Special Liner Rail System, Protective Bellows System Integrated.
Our Machine Cutting 90 degrees and 45 degrees Reducer Works Automatically.
Our Bridge Cutting Machine is designed as both Head Cutting Sizing and Side Sizing, X-Y Sizing with full size system.
Our machine Head rotation circular movement (C axis) is AUTOMATIC
Our machine is AUTOMATIC with 45 Degree movement reducer.
Our machine is Bridge Movement (Y axis) AUTOMATIC / Manual
Our Machine Saw Movement (X axis) is AUTOMATIC / Manual
Both Manual, Automatic, Semi-Automatic. Fully Automatic, Usable.
Head System is fixed at 45 degrees by cutting 0 to 90 degrees.
Braked Motor has been used in our machine.
Som-maK
Turkey
Som-maK Mermer Granit Makina Ltd Sti
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Slate, Onyx, Basalt, Sandstone, Travertine
Machinery Function Features:
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS
Çalışma Genişliği / Working Width 480 mm
Faydalı Kesim Genişliği / Useful Cutting Width 430 mm
Kesim Kafa Sayısı / Cutting Head Number 1 Adet / Piece
Takılabilir Disk Sayısı / Attechable Saw Number 30 Adet / Piece
Çalışma Kalınlığı / Working Depth 40 mm
Kesim Motor Gücü / Cutting Engine Power 22 kw
Konveyör Bant Hızı / Conveyor Band speed 0-4, 9 m/dk 0-4, 9 mt/min
Disk Çapı / Disk Diameter 300 mm
En Küçük Kesim Ebadı / The Smallest Cutting Dimensions 10x10
Kesim Motor Devri / Cutting Engine Revulations 2940 dev/dk (Rpm)
Makina Ebatları / Machine Dimensions 2450mm / 1840mm
GÖLER MAKİNA
Turkey
Goler Makine Rulman San Tic. Ltd. Sti.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
It is our Monoblock Machine mounted on a steel frame. Resistant Flawless Cutting Accuracy Unique Design.
All Steel Used on the Side Cutting Machine with Wagon, Anti-Rust Epoxy Paint Reinforcement, Special Transmission Rail System
RAIL SYSTEM IS DONE WITH OPEN AND CLOSED MANUFACTURING BY REQUEST.
Our machine is with Slide Movement (Up Down) / Reducer
Our machine is with Slide Movement (Y axis) / Reducer
Our machine is WAGON Movement (X axis) / Manual
Our machine has 45 DEGREES cutting feature.
Machine Slide System is the Linerr Guiding System Preferred for CNC Use.
Som-maK
Turkey
Som-maK Mermer Granit Makina Ltd Sti
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesMulti Blade Gang Saw
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
GANGSAW MACHINE
MADE IN TURKEY
80 lamas
110 kW
Kimmco
Turkey
Kimmco Koray International Marble & Machinery Co.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Marble, Limestone, Quartzite, Sandstone, Travertine
Machinery Function Features:
WHAT IS HORIZONTAL SPLITTING MACHINE IS?
Marble industry, the horizontal plates of the horizontal splitting machine known as ST two separate sheets making a cutting machines.Horizontal splitting machines are used in the process and with a maximum thickness of 160 mm to 630 mm wide strips. Splitting machine is different by the number of discs that perform the cutting operation designs can be seen.
In general, 2, 4, 6 and 8 can now be horizontal splitting machines with horizontal splitting drive. Horizontal splitting machines, marble tile production machines are also known as yield-enhancing features. In particular, the tiles produced in facilities, in order to minimize errors that may occur in the process of cutting ST, and also in order to avoid production errors that may occur during loading and unloading machinery used in the design.
Ozteknik Makine
Turkey
Ozteknik Makine
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
Bridge Cutting Machine provides precise and fast processing and cutting without vibration with its monoblock structure and All Steel Chassis.
(AUTOMATIC) System Is Switched To Automatic Mode, The Barrel Moves Down Manually, The Wagon Starts To Cut The Stone, The Saw Comes To The Entry Place With Its Exit From The Stone.
(SEMI-AUTOMATIC) Sizing values are entered on the screen. The system is taken to the sizing mode, the dimensions of the stone are entered, the barrel moves automatically downward the saw starts to cut the stone when the saw comes off the barrel automatically lifts up the saw comes to the beginning, the bridge counts to the desired size and the barrel moves forward again, BiteR when the given measurements and pieces are completed
(XY FULLY AUTOMATIC) Fully automatic mode is taken on the screen XY values are entered System lengths, numbers and dimensions of the parts to be cut are written, the barrel moves automatically downward the saw automatically starts to cut the stone when the saw comes off the barrel automatic raising saw comes to the beginning, the bridge slide counts the desired size And The Barrel Comes Against The Cutting (X AXIS When The Cutting Is Finished, The System Automatically Turns Its Head On The (Y) Minus The Dimensioning It Continues In This Way Without Hand Touching It Up To The Plate Bit.
All Steel is Used on Mono Block Bridge Cutting, Anti-Rust Epoxy Paint Reinforcement, Special Liner Rail System, Protective Bellows System Integrated.
Our Machine Cutting 90 degrees and 45 degrees Reducer Works Automatically.
Our Bridge Cutting Machine is designed as both Head Cutting Sizing and Side Sizing, X-Y Sizing with full size system.
Our machine Head rotation circular movement (C axis) is AUTOMATIC
Our machine is AUTOMATIC with 45 Degree movement reducer.
Our machine is Bridge Movement (Y axis) AUTOMATIC / Manual
Our Machine Saw Movement (X axis) is AUTOMATIC / Manual
Both Manual, Automatic, Semi-Automatic. Fully Automatic, Usable.
Head System is fixed at 45 degrees by cutting 0 to 90 degrees.
Braked Motor has been used in our machine.
Som-maK
Turkey
Som-maK Mermer Granit Makina Ltd Sti
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesMulti Blade Gang Saw
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Our SCH80 Gang Saw machine is created for rapid cutting of natural stone blocks with cast iron flywheel & double connecting rods which has a linear movement to minimize vibration.
Our machine is wagon uplift type. The blades frame is at a fixed height and the block transport trolley is raised towards the diamond blades by synchronized screw shaft system. Our Multi Blade Gang Saw Machine which works in the logic of mass production, provides energy efficiency thanks to excellent harmony between counterweighted cranks & connecting rods, moving diamond blade holder & tension tie rods.
It is designed as 2 pieces of cutting wagons + 1 piece of transfer wagon line + 2 pieces of waiting station.
The movement of the cutting wagon is provided by a trapezoidal screw with a diameter of 90 mm and a pitch of 12 mm, and the installed system has a block lifting capacity of 40 tons.
The block raising station is locked with zigzag wedges strongly. The station moves on two rigid chrome plated prismatic and two flat slides connected to 4 columns, preventing any deviation in the vertical axis.
80 flat diamond blades are connected to the hydraulic tensioning system that provides equal tension to each blade with tension tie rods.
There is an automatic brake stop, audible and light alarm system, if the oil is finished, the main bearings break down, the plate is broken, the flywheel speed decreased or any problem occurs.
PLC Control panel, Telemecanique brand materials, SKF or FAG Bearing.
Roller bearing guide way system working in the oil pool (saves energy compared to friction slides, has a longer life).
Power transmission between main engine and flywheel is provided by energy efficient multiple belt system.
When the block reaches a certain height during cutting (distance adjustable system), the machine automatically stops to fix the plates and the system gives an alarm.
The lifting speed of the block to be cut can be adjusted automatically according to the hardness of the stone. Thanks to the sensors, cutting is made a constant pressure between multi blade saws and stone block.
The up and down movement of the cutting wagon is on the square of friction resistant precision guides (bronze slides) without vibration.
All the mechanical parts and gears we used in our machines are our own production and there is no shortage of spare parts.
Our machine is covered by a 1 year warranty for electronic parts and 2 years for mechanics. And we give spare parts supply guarantee for next 10 years.
SCHIND MACHINES
Turkey
SCHIND MACHINES
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Surface Processing Machines Slab Polishing Line Machine
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
PLATE MARBLE POLISHING MACHINE
This efficiency proved machine has been specially designed for thickness gauging and polishing of strips with cut ends. And max. width dimensions 2100 mm. The new PLX 2000 series supported with high technology, can reach top production speeds, whilst reducing consumption, maintenance and depreciation. THE SPINDLE: The PLX 2000 G features powerful, high precision polishing spindles with pneumatic working pressure which easily and perfect polishing any kind of granite.The spindles are entirely processed on CNC using highest quality of the material. Every spindle is assembled in the center of the mobile beam.
The spindles are working at their centre of gravity on the rotation axis so the mechanical play is reduced and this eliminates maintenance works.
The spindle has two electrical motors special tothed belt transmission system that the motors drive by prevents loosening or slipping of the spindles even under stress. The pneumatic system makes use through counter air pressure of the considerable spindle mass to obtain stability to the polishing heads. Counter pressure pneumatic system allows to polish fragile and delicate materials, with low working pressure. The machine controls the lifting movement of the spindles automaticly according to feeding the material
THE BEAM: The spindle holding beam is made of electro - welded steel and moves on exteremely wear resistant cast iron and alloyed bronze slideways. Sliding components are working in an oilbath and protected by stainless steel labyrinth seals. Beam movement is done by two motor reducer system located at the end of the beam to ensure constant and regular beam motion. The beam moves on two side bridges made of electrowelded steel and it has very strong structure to eliminate vibration during the operation. The synchronization shaft located the rear side of the beam provides uniform movement at both beam ends. The bridge moves on bronze alloyed slideways working in oil bath The adjustments, quick format changes and performing very rapid arrangements are some minor themes of high technological feedbacks manufactured for productive flexibility in this machine.
THE TABLE: The uniblock steel chasis designed to provide high rigidity and stability. The surface of the table covered by hard stainless steel to ensure long life of table and conveyor belt. At the ends of the table 2 turned belt drive rollers are installed one of which is free moving, and other one is motorized. The belt drive rollers are made of special steel. The belt is driven by a planetary type gear –motor to provide safe and uniform movement during the process. The conveyor belt speed adjustment is obtained by electronic frequency inverter.
ELECTRICAL AND WATER CONNECTION: The electrical and water connection between machine stationary part and the mobile beam is made by flexible cable chains which assure safer working conditions and a longer life for components. The polishing heads cooling water feed is performed by steel pipes which operates in a fixed position in the center of the spindle. The water cooling pipes can be removed very easily for the periodical clearing for calcereous substances. THE HEADS: A polishing head with swinging arms to hold the tools (abrasive or diamond) is mounted on each spindle. The motion of each swinging arm is obtained by an extremely precise, kinematical and mechanical system that reduce any clearance therefore ensuring low noise and long tools life. The particular geometry, the oscillation angle and frequency of the arms help to obtain high tools efficiency. The lubrication of the mechanical parts is by means of permanent oil bath with automatic lubrication pump. The even operation of the abrasive-holder arm controlled by a gear kinematical motion and the axial elasticity of the head provide large removals and high slab polishing level.
MACHINE CONTROL: The machine is controlled by a PLC (programable logic control) system with a 12 inch Touch Screen color panel for managing to synchronize all the processing parameters by easy interface and operator controls.
PAINT TREATMENT: Surface protected with two coats of bicomponent epoxy paint applied after sand blasting operation. -
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
* Cutting course 3400 mm.
* Saw Diameter 350-400- mm.
* Saw engine 7.5 / kv 1400/2800
* Wagon movement / Manual
* Wagon dimensions are 3000 x 1300 mm.
* Up and down motor 0.75 kv
* Reciprocating motor 0.75 kv
* Slide action / FORWARD BACK Liner Slide
* Steel Npu Chassis
* Machine length - 5500 mm.
* Machine width 2500 mm.
* Machine height 2000 mm.
* Approximate weight 2000 kg. - 2300 kg.
* Wagon manual
* Total Required Power 10 KW
* Required Water Flow 8 Lt./Min.
* 45 degree cut is with flywheel reductor
It is our Monoblock Machine mounted on a steel frame. Resistant Flawless Cutting Accuracy Unique Design.
All Steel Used on the Side Cutting Machine with Wagon, Anti-Rust Epoxy Paint Reinforcement, Special Transmission Rail System
RAIL SYSTEM IS DONE WITH OPEN AND CLOSED MANUFACTURING BY REQUEST.
Our machine is with Slide Movement (Up Down) / Reducer
Our machine is with Slide Movement (Y axis) / Reducer
Our machine is WAGON Movement (X axis) / Manual
Our machine has 45 DEGREES cutting feature.
Machine Slide System is the Linear Guiding System Preferred for CNC Use.
Marble Side Cutting
Som-maK
Turkey
Som-maK Mermer Granit Makina Ltd Sti
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
MKS
Turkey
MKS Marble Cutting and Polishing Machines Co.Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
Cross Cutting Machine for marble,travertine
Merkon Machine
Turkey
Merkon Machine
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
$2150-2200
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
MK Serie is a marble, granite, glass, brick, hard and soft stone transverse and lengthwise cutting multipurpose machine.
MK serie is portable with all parts demountable.
Main frame of the machine is the water tank.
By the help of recycling system, pulverized water allows fast and easy cutting and prolongs the diamond saw life.
Between 90° and 45° cutting and groowing feature.
SEN-MAK Koll.
Turkey
SEN-MAK Koll.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
3 Axis CNC Waterjet can cut all kinds of materials existing in the nature up to 200 mm thickness with power generated by mixing pressurized water and abrasive sand. All materials cutting can be made with the same nozzle. Not only for thick but also for thin materials, it can realize 90 degrees corner, narrow angular and small radius precise cuttings. -
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Horizontal Splitting Machine
MKS Machinery Company
Turkey
MKS Machinery Company
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Ozen Is CNC L-3718 Bridge Cutting Machine - 8 Axis -
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Sandstone
KONMAK MARBLE MACHINERY
Turkey
KONMAK MARBLE MACHINERY
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesMulti Blade Gang Saw
Warranty: 12 Months
Usage: Granite, Marble, Onyx, Sandstone, Travertine
-
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesSingle Wire Block Squaring Machine
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
RSM 20 ELECTRICALLY RAMPED DIAMOND WIRED BLOCK CUTTING MACHINE :
The diamond wire cuts the block marble by a rolling pulley. When the machine starts, engine moves the motor shaft and it turns the pulley. The engine is fixed on a car and motor shaft is due to pulley. The chassis of the machine is ramped to resolve the gap creating while the diamond wire is cutting. Before cutting, the car is removed to the top of the inclined plane by a drum rope and ratchet mechanism. During cutting the car slides on the rail and maintains the tension on the wire. So that the cutting process occurs. Water is sent to the cutting zone by hoses controlled with valves. The water protects the cutting equipment from warming up and takes the marble dust away. -
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Marble industry, the horizontal plates of the horizontal splitting machine known as ST two separate sheets making a cutting machines.Horizontal splitting machines are used in the process and with a maximum thickness of 160 mm to 630 mm wide strips. Splitting machine is different by the number of discs that perform the cutting operation designs can be seen.
In general, 2, 4, 6 and 8 can now be horizontal splitting machines with horizontal splitting drive. Horizontal splitting machines, marble tile production machines are also known as yield-enhancing features. In particular, the tiles produced in facilities, in order to minimize errors that may occur in the process of cutting ST, and also in order to avoid production errors that may occur during loading and unloading machinery used in the design.
Ozteknik Makine
Turkey
Ozteknik Makine
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Surface Processing Machines Slab Polishing Line Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
Slab Polishing Machine
for technical details please contact Kimmco company
Kimmco
Turkey
Kimmco Koray International Marble & Machinery Co.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
MULTIPLE CUTTING MACHINE
TECHNICIAL SPECIFICATIONS
Cutting Engine Power 22/30 kw
Cutting Engine Speed 2800 rpm
Band Motor Power 0,55 kw
Belt Speed 65 cm / min
Saw Lowering / Lifting Motor Power 0,18 kw
Press Up Down Motor Power 0,18 kw
Maximum Cutting Width 650 mm
Minimum Cutting Width 50 mm
Maximum Cutting Thickness 120 mm
Minimum Cutting Thickness 10 mm
Saw Diameter 250-350 mm
Number of Saws Min: 2 / Max: 13 pcs
Control System Manuel Button PLC optional
Miter System Available
Water Consumption 60 liters / min
Machine Dimensions (width - length - height) 2100 - 3550 - 2000 mm
Machine Weight 1500 kg
Machine dimensions can be changed according to customer demand.
Som-maK
Turkey
Som-maK Mermer Granit Makina Ltd Sti
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesColumn, Arc Slab Cutting Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
SCHIND CNC 3210 is a CNC-based machine that allows the marble or granite, which is fixed to the lathe, to be rotated in a circular motion and turned into a cylindrical or conical part by sawing and processed the final design on the part with lathe tools.
Due to its extremely robust structure, it can process wood, metal and composite materials as well as marble and granite.
The main structure of our machine was designed considering the granite hardness and a column of maximum 15 tons to be processed and material selection was made accordingly.
There are limit protection sensors at the entrance and exit of all axes in the machine to prevent mechanical collisions.
In the lathe, with an inverter-supported servo motor, a cycle from 0 rpm to 70 rpm can be provided and parts from 30mm to 3000mm can be fixed.
SCHIND MACHINES
Turkey
SCHIND MACHINES
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesCalibrating Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
BMX 600 Banded Multi-Squaring-Calibrating Machine -
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving,Engraving Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
2000x9000mm Working with Water Cooling, which is produced to process and cut Marble, Marble, Cimstone, Granite, Sink, Rolyef processing Tombstone in 2 and 3 dimensions. Veye Increased special request Stone Floor mass processing capacity Cnc Router Marble Machine Cnc Marble Machines
CNC marble router Machine Models Sizes Can Be Sized According To Customer Requirements
Processing Dimensions
X-1000 Y-2000 z-200 mm
Motion Motors
X-0.75 Kw Y-0.75 Kw x 2 Pieces Z-0.75 Kw hybrid servo motor
Movement System
2 module helical induction rack gear
Reducer
X- i 10 Y- i 10 x 3 pieces backlash-free planetary gearboxes
Slide System
X-25 Y-25 Z-25mm Machined Slide
Spindle Motor
3,5 Kw spindle motor manual collet
Control Panel
MACH-3 Control Panel + PC (OPTIONAL DSP PANEL)
Stone Compaction PINOMATIC / optional
The Feature of Continuation From Where Power Failure Left
Machined CHASSIS Complete Machined Rail System Precision
Automatic Water OPTIONAL
Machine Slide Liner Kremier Bellows Protection System
Backlash-free Precision Planetary Reduktor Drive Systems
HomeSWICH 3PCS
Epoxy Paint Protection
Strong Monoblock Chassis Bridge Walkways
Cnc Router Som-maK is at your service with the quality of the machine.
Som-maK
Turkey
Som-maK Mermer Granit Makina Ltd Sti
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
CNC Bridge Cutting Machine Circular cutting, Cross Cutting, french balcony 45 degree angle cut to marble, Sink Cutting and profile scanning operations.
CNC Marble Bridge Cutting Machine In this machine, all axes are controlled by a servo motor. Servo motors are also coupled to backlash-free servo gearboxes. Thus, 0.1mm cutting precision has been achieved. Linear guideways are used as guideways, the forward axis drive operation; It is provided with precision, hardened, ground rack and pinion gear. The machine control system is CNC-based and supports G codes obtained by CAD-CAM in complex shapes. Since the cutting angles are provided from the rotary head in this type of machines, it is very easy to obtain the specified cutting processes.
Main Motor: 15 KW (0-3000 Min.) Speed Drive
Bridge Motion Motor: 1,5 KW Servo Driver
Saw Horizontal Motor: 1,5 KW Servo Driver
Up Down Motor: 0.75 KW 1500 Min.
360 Degree Head Motor: 0.75 KW Servo Driver
Hydraulic Tap Motor: 1,5 KW 1500 Min.
45 Degree Tilting: 1.5 KW Servo driver
Disc Diameter: 350 mm 500mm
Cutting Width: 1900 mm
Cutting Length: 3500 mm
Machine Width: 3000 mm
Machine Length: 5800 mm
Machine Height: 2750 mm
Machine Weight: 4500 mm
Som-maK
Turkey
Som-maK Mermer Granit Makina Ltd Sti
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Saw Motor Power: 20 kW
Max Saw Diameter: 700 mm
Maximum Working Length: 3500 mm
Maximum Working Width: 2100 mm
Maximum Working Thickness: 240 mm
Water Consumption: 50 lt/dk
Machine Length: 5500 mm
Machine Width: 3200 mm
Machine Height: 4000 mm
OZKKM 700/500 AQUILA is monobloc bridge sawing machines that, thanks to the advanced functionality, allow every stone fabrication shop to be equipped with accurate and quick machines, without giving up quality. The standard versions of AQUILA 700/500 is monobloc, i.e.: mounted on a monolithic structure of steel carpentry that assures utmost rigidity and stability levels, with no need of any concrete foundation. For this reason, if necessary, they can be easily moved elsewhere. The monobloc configuration can be exploited also for using these machines as “building“ equipment, i.e. it can be placed time by time near the factory where the coating, flooring, etc. are being done.
OZKKM 700/500 AQUILA is the result of the most advanced designing on computer and the massive use of FEM”* analysis in order to reach a very high rigidity level of the bridge and structures. Even though it is a sawing machines, both have technical solutions similar to the ones of a CNC machine. All the movements of the axes are on linear bearings which do not need to be adjusted. All the lubrication points have been gathered in areas which can easily be seen and reached, without disassembling guards or protections for facilitating ordinary maintenance. High level components are employed. The motors used, except for the Z axis, are servo motors with precision reducers. Especially the high speed of the X axis allows to cut down idle times as much as possible with a productivity increase (the percentage of the time that the disc stays on the material is higher with respect to the time for placing or returning to cut start)
The spindle, anchored in front of the beam to offer the utmost rigidity, can accommodate discs up to a diameter of 700 mm for the AQUILA 700, diameter of 500 mm for the AQUILA 500. The head of that machine can rotate “IN CONTINUOUS” i.e. always making the less route for positioning between one cut and another, for the benefit of productivity. Thanks to this peculiarity, it is possible to draw on the X-Y plane circles and circle arches of any size, in all the positions of the working area. The choice of placing the cutting disc in axis with the head rotation center reduces to zero the efforts on the axis for an excellent cutting quality. The inclination of the disc is manual from 0° to 90° and the possibility to interpolate the X and Y axes make the machine suitable for repetitive processing and single details even with vertical, inclined, parallel, orthogonal, diagonal and curved cuts. The machines, in the standard version are equipped with a fixed table and can be equipped with a tilting table (option) to facilitate the loading and unloading of the processed pieces
Ozteknik Makine
Turkey
Ozteknik Makine
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesMosaic Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
the thrilling mosaic cutting machine of the age hard to find even on the second hand market
order now start counting your golden münze
precise cutting
1x1 cm 1,5x1,5 cm 2x2cm 2,3x2,3cm all american sizes available
custom design assebly molds
cutting molds with availibity of cutting triangle ; octagon and many other custom shapes
Kimmco
Turkey
Kimmco Koray International Marble & Machinery Co.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
HEAD CUT SIZING MACHINE
Machine Dimensions (mm) 4000x2000x1500
Cutting head movement (mm) 800
Maximum Saw Size (mm) / 400
Saw Speed (rpm) 1400/2900
Saw Engine Power (kW) 9 kw Installed Power (kW) 1
Machine Weight (kg) 1800
Som-maK
Turkey
Som-maK Mermer Granit Makina Ltd Sti
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
TRM 600 Multi-Blade Cross-Cutter, Strip Cutting, Edge Trimming Machine -
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesVertical-Horizontal Block Cutting Machine
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
SCHIND Big Bro 3520 which is designed to process with small blocks and thick stones or to size more marble and granite slabs in one time. The operator has the opportunity to cut both vertically and horizontally at different angles by this new model.
SCHIND MACHINES
Turkey
SCHIND MACHINES
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
Profile machines are machines for turning the sections of marble or travertine VE Similar bars into profile. We have models with 4-5-6 heads. Various forms can be made to the edges of the stones with the profile blades attached to these heads. Heads can be adjusted manually up / down forward / backward.
There is a Guide Support System in the machine.
STONE THICKNESS 20 MM 60 MM
NUMBER OF HEAD 5 PIECES
SOCKET DIAMETER 250/300 MM
MOTOR POWER 7.5 KW
BAND MOTOR 1.5 KW
LENGTH 4500 MM
EN 2000 MM
WEIGHT 2000 KG
BAND WIDTH 300 MM
MAXIMUM WIDTH STONE 150 MM
Som-maK
Turkey
Som-maK Mermer Granit Makina Ltd Sti
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
CNC system, Hydraulic Power Unit and Steel body with ideal features, durable, long-lasting machine. This machine which can cut at 45, 0, 360 degree angle will make your job easier in cutting marble, natural stone and granite plates.
Schind 16651 bridge type cnc 4 axis marble cutting machine have most efficient and useable design. Schind 16651 CNC marble cutting machine have hydraulic damper table. Hydraulic table can moving 80 degree and slabs can be loading easily on the machine. Marble, granite, stone, onyx, travertine and other stones can be cutting with this machine and circular cut possible.
Machine linearity is important for marble, granite cutting process. Schind 16651 bridge type cnc marble granite cutting machine have linear rail on body movement and full automatic all movement. While you are cutting your marble or granite you notice that efficient cutting ability.
Wooden table and bellows are used in Schind 16651 CNC marble granite cutting machine.
Also 5 axis is option in this machine.
Longitudinal, transverse and 45 ° cutting machine,
Cuts on X and Y axis,
The bridge and its table work fully automatic,
There are both manual and automatic double page digital touchscreen management panel,
It can make automatic dimensioning in 10 different sizes,
Upper body movements are working with linear slides system, servo motors and gearbox,
There is a fully automated CNC control panel,
Marble plates can be easily put on the cutting table by the dumper hydraulic system,
Technical support is possible to the machine brain with internet connection,
Wooden table and bellows are used
SCHIND MACHINES
Turkey
SCHIND MACHINES
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Cutting stroke of the blade 3600 mm
Maximum vertical travel of the blade 400 mm
Maximum bridge movement on y axis 4300 mm
Maximum blade diameter 800 mm
Blade hole diameter 60 mm
Table dimensions 1720 x 3500 mm
Power of the blade motor 22 kW
Maximum cutting thickness 250 mm
Total installed power 29 kW
Adjustable blade speed of travel 0-24 m/min
Weight 4500 kg -
Add To Compare
Type: Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving,Engraving Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
Resistant Quality Ergonomic Design Som-maK Produced With Brand New Design For Machine Users
Z axis is motor with brake.
Has the ability to continue from where it left off in case of power failure
It is a LINEAR 20 guideway with fully processed rail systems.
Under the protection of machine tpe, the development of death design modeling is som-mak ltd company.
The machine is a monolithic cnc bending system with laser cutting and disassembly and is a unique design.
We have uploaded the production pictures of our product for you to notice the difference with other machines. By Som-mak
model 1250X800X200
Working area 1250 * 800 * 200 mm
Spindle Power 1,5.KW water cooling spindle / / AREL
Table Surface
Monolithic Platina (PINOMATIC STONE COMPACTION)
Case Steel
Welded Structure Processed Stress Relieved
X, Y Transmission System 0 - 60000 mm / min
Z Transmission System
Taiwan HIWIN Rail Linear and Ball Screw
Spindle Cooling
water cooling spindle
Spindle Speed
0 - 12000 RPM
Drive Motors
stepper motor / ball screw
Working Voltage AC380V,
Command Language
G Code
OS
DSP PANEL
X, Y period <0.01mm
Software Compatibility: Type3 / Ucancam / Artcam / Solidcam
Lubrication system: Manual /
Material: wood, PVC, MDF, marble, etc.
Som-maK
Turkey
Som-maK Mermer Granit Makina Ltd Sti
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Surface Processing Machines Stone Sandblasting Machine
$20000-25000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Marble Blasting Machine (overall): L: 5.200 W: 3000 H:4500 mm
Blasting stone dimensions (max): H:200 W:700 mm
Blasting cabinet armor: X120Mn12
Rubber Curtains: 4 set
Wheel (Turbine): 1 pcs
Conveyor Speed: 0,5-2m/min (with invertor)
Elevator: Belt bucket system
Separator: Air wash system
Cyclone: Front dust holder
Platform and stairs: necessary places
Control Panel: Inside materials Siemens/ Schneider (plc screen can be done if desired)
Turkey
Turk Blast Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesSingle Wire Block Squaring Machine
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
AOSM 25 ELECTRICALLY ANGLED AUTOMATIC SIZING MACHINE :
The diamond wire cuts the block marble by a rolling pulley. When the machine starts, engine moves the motor shaft and it turns the pulley. The gap creating while cutting on the diamond wire resolved by automatic walking engine, so that the cutting process occurs. Water is sending to the cutting zone by hoses controlled with valves. The water protects the cutting equipment from warming up and takes the marble dust away.
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The machine does full circular cutting, arrow, prism ve polygon cutting.
It does 45 degree cutting.
Turkey
ERHAN MARBLE AND GRANITE MACHINE
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
Marble, limestone, travertine tile Trimming Machine
Merkon Machine
Turkey
Merkon Machine
Contact Supplier
Have a Question? Ask our expert
Ask now
