Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
FOB Price:$85000-90000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Sandstone, Travertine
Machinery Function Features:
6 HEAD HORİZANTAL SPLITTING MACHINES
6 Kafa Yarma Makinesi / 6 Head Horizantal Splitting Machine
Teknik Özellikler Technical SpecificationsYYYM06 Testere sayısı / Number of saw adet - pcs 6
Testere çapları Diameter of the saw blades mm 650-700-875
Çalışma genişliği Max. cutting width mm 630
Çalışma kalınlığı Max. cutting tickness mm 100
Konveyor motor gücü Conveyor motor power kw 0,75
Yukarı/aşağı hareket motor gücü Up and down movement motor power kw 0,75
Yarma motor gücü (giriş) Splitting motor power (enter) kw 22
Yarma motor gücü (orta) Splitting motor power (middle) kw 22
Yarma motor gücü (çıkış) Splitting motor power (out) kw 22
Toplam elektrik gücü Total electric power kw 133,5
Makine ağırlığı Machine weight kg 7100
Makine ebatları (en x boy x yükseklik) Machine dimensions (width x lenght x height) mm 2210*6100*2100
Otomatik sayım Automatic counting
Mevcut /Available -
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
FOB Price:$18500-50000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Cutting capacity of the machine is between 200 mm and between 1200 mm
Working capacity of the one day 300 - 600 m2 / 8 h
Saw's engine power 5,5 kW
Ciftyildiz Mermer Makinalari
Turkey
Ciftyildiz Mermer Makinalari
Contact Supplier
-

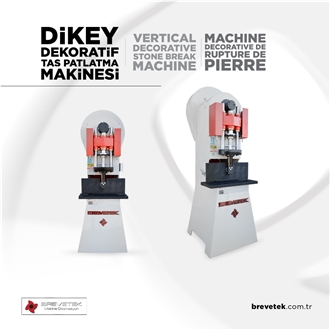

Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Sandstone, Travertine
Machinery Function Features:
Min. Stone Breaking Height: 50 mm
Max. Stone Breaking Height: 300 mm
Max. Stone Thickness: 150 mm
Brevetek Machinery
Turkey
Brevetek Machinery
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Sandstone, Travertine
Machinery Function Features:
EM01 DECORATIVE STONE CRUSHING MACHINE
Motor Power: 1,1 kW
Number Of Strokes: 140 pcs / min.
Min. - Mak. Stone Highest Range: 50 - 300 mm
Min. - Mak. Stone Thickness Range: 20 - 150 mm
Machine Dimensions ( W / L / H ): 850 / 850 / 2350 mm
https://ekizoglumakina.com/en/product/decorative-stone-crushing-machine-em01
Machine Weight: 750 Kgs
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
splitface machine Hydraulic Stone Splitting Machine
Konmak
Turkey
Konmak A.S.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
$2750-2850
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Travertine
Machinery Function Features:
Grade Cutting
Cutting between 90 and 45 degrees
Water Pump
0,5 Hp Centrifugal pump with water in the body to cool the diamond saws circulates.
Electric Engine
There are 3 Hp three-phase motors in the standard. Optionally, motor with a power of 5.5 Hp three-phase or 4 Hp a single-phase is available.
SEN-MAK Koll.
Turkey
SEN-MAK Koll.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
EM11 - Trimming Line
• Number Of Cutting Discs: 4
• Diameter of Disc: 350 mm
• Working Thickness: 10 – 60 mm
• Length Cutting Belt Width: 700 mm
• Length Cutting Working Width: 650 mm
• Sizing Belt Width: 1300 mm
• Sizing Working Width: 1200 mm
• Minimum Working Width: 100 mm
• Cutting Head Motor Power: 4 x 7,5 kW
• Head Movement Motor Power: 2 x 0,55 kW
• Belt Motor Power: 2 x 0,75 kW
• Rotator Motor Power: 0,55 kW
• Rotator Width: 1200 mm
• Total Electric Power: 34 kW
• Machine Dimensions ( W / L / H ): 2200 / 9500 / 2000 mm
• PLC Automatic Sizing Setting
• Pneumatic Piston Pusher
• Pneumatic Miter
https://ekizoglumakina.com/en/product/trimming-line-em11
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
DOUBLE - HEAD CERAMIC CUTTING MACHINE
•Working Width: 650 mm
•Belt Width: 700 mm
•Working Thicknes: 12 mm
•Number Of Head : 2
•Disc Diameter: 300 mm
•Cuting Motor Power: 11 kW
•Up & Down Motor Power: 0,37 kW
•Belt Motor Power: 0,75 kW
•Belt Speed: 0,75 m / min
•Water Consumption: 80 lt / min
•Machine Dimensions ( W / L / H ): 2000 / 3000 / 1980 mm
•Machine Weight : 1790 Kgs
Turkey
Grotto Group
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Description:
Technical Specifications Model:
Working Width 10 - 200 mm
Working Thickness 50 – 120 mm
Belt/Roller Width 300 mm
Motor Power 2,2 kW
Stroke Lenght 500 mm
Machine Dimensions ( W / L / H ) 1800 / 1100 / 1950 mm
Machine Color Yellow and Gray
Machine Weight 900 Kg
Made in Turkey
Turkey
Grotto Group
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
$2300-2350
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
MK Serie is a marble, granite, glass, brick, hard and soft stone transverse and lengthwise cutting multipurpose machine.
MK serie is portable with all parts demountable.
Main frame of the machine is the water tank.
By the help of recycling system, pulverized water allows fast and easy cutting and prolongs the diamond saw life.
Between 90° and 45° cutting and groowing feature.
SEN-MAK Koll.
Turkey
SEN-MAK Koll.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
EM05 - Multi-Disc Cutting Machine
• Belt Width *Optional: 700 mm
• Working Width: 650 mm
• Working Thickness: 10 – 60 mm
• Number Of Head: 1
• Disc Diameter: 300 – 350 mm
• Cutting Motor Power: 22 kW
• Up – Down Control Motor Power: 0,55 kW
• Belt Motor Power: 0,75 kW
• Belt Speed: 3 mt / min
• Machine Dimensions ( W / L / H ): 2200 / 3000 / 1980 mm
https://ekizoglumakina.com/en/product/multi-disc-cutting-machine
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
MACHINE FEATURES
• MOTOR POWER: 2.2 KW
• DOWN UP MOTOR POWER: MANUAL VOLAN
• BAND MOTOR POWER: 0.55 KW
• BAND RATE: 0.4-5 MT / DK
• MAX STONE WIDTH: 250MM
• MİN STONE WIDTH: 75MM
• MOST STONE THICKNESS: 70MM
• MINIMUM STONE THICKNESS: 10MM
• MACHINE DIMENSIONS (WIDTH-HEIGHT-HEIGHT): 2000.2500.1300
Turkey
Grotto Group
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Sandstone, Travertine
Machinery Function Features:
EM02 - Hydraulic Stone Crushing Press
• Working Width: 500 mm
• Working Height: 10 – 350 mm
• Blade Length: 500 mm
• Belt Width: 700 mm
• Feeding Conveyor Length: 2500 mm
• Output Conveyor Length: 1500 mm
• Belt Motor Power: 2×0,75 kW
• Hydraulic Motor Power: 30 kW
• Hydraulic Tank Capacity: 350 lt
• Working Pressure: 160 bar
• Machine Dimensions ( W / L / H ): 2200 / 6300 / 2840 mm
• Side Hydraulic Crusher Piston
• Conveyor Roller & Belt
• PLC Automatic Crushing Length Control
• Speed Control
• Forklift Loader Roller
https://ekizoglumakina.com/en/product/hydraulic-machine-for-breaking-stone
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Description:
Max.Strip Machinable width mm 600
Machine length (L) mm 3000
Water requirement for each spindle L/min 120
Number of disc-holder heads nr 1
Discs diameter mm 300 - 350
Cutting motor power kw 11/ 18/ 22
Unloading robot driving motor power w 0.37
Outfeed conveyor belt motor power kw 0.75
Machine height (H) mm 1980
Belt width mm 700
Main conveyor belt speed m/min 4
Approximate weight Kg 1700
Machine width (W) mm 2000
Turkey
Grotto Group
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
*Machine works as hydraulic
*Max Stone Lengt 30 cm, 40 cm, 50 cm
*Max Stone Width 12 cm , 20 cm
* Avarage daily production is about 120-150 sqm -
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
EM08 Head Cutting Machine
• Working Width: 680 mm
• Working Thickness: 10 – 100 mm
• Number Of Heads: 1
• Disc Diameter: 400 mm
• Cutting Unit Motor Power: 7,5 kW
• Bridge Motor Power: 0,75 kW
• Total Electric Power: 8,25 kW
• Machine Dimensions ( W / L / H ): 2200 / 3600 / 2100 mm
• Sensor Cutting Width Adjustment
• Linear Guide Bridge Movement
https://ekizoglumakina.com/en/product/head-cutting-machine
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
we have 48 cm and 65 cm belt wide with moulding body. you can have fully stainless steel cover. you can see all the vdeo from our facebook page. www.efarge.com -
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Mounted on a steel chassis, machine has a closed railing with lubrication system. Makes accurate and sensitive cutting works of given dimensions, by using both moving speed control and cutting speed control.
Desired dimensions of the stone are valued to the analog screen and machine is taken to the mode of Cutting Dimensions. Crank of saw moves down and the carriage wagon moves automatically, starts to cut stone. When the carriage comes out from the stone, saw automatically moves to upwards. Carriage wagon comes to the starting point again. Tower motor counts to the required value and saw crank comes downwards again and starts to cut again. Cutting work keeps repeating like this way till the ending point.
In cutting direction, main saw cutting speed and carriage wagon speed can be adjusted to desired value. At the end of cutting point speed is steady to fast move.
Our side cutting machine is built on totaly steel construction. Anti-rust epoxi paint reinforcements, special transmission closed railing system is strengthened wit waterproof coverings.
Cutting system works with the help of 90 degrees and 45 degrees gearboxes.
Flat watertight motor models are used on our machine. Head movements are accurate and sensitive for quality of cutting works
Our side cutting machine is designed for both side cutting works and side trimming.
Rotation move of main head of the machine ( C axis ) is manual.
45 Degrees Move is manual by gearbox.
Sliding ways Moves ( Y axis ) automatic and manual.
Carriage wagon Moves ( X axis ) automatic and manual.
Can be operated both automatically and manually.
Head system makes cutting 0 – 90 degrees, steady at 45 degrees.
With the help of gearboxes speed controlled, machine makes cutting works automatically.
Information about the materials that used on the machine
Electric Motors : Gearboxes
* Motored gearbox for Sliding Ways (Gearbox 0,75 gamak motored gearbox)
* Motored gearbox for Piston Sliding (Gearbox 0,75 gama motored gearbox)
* Motored gearbox for carriage wagon moves (Gearbox 0,75 inter motored gearbox)
* Gearbox for 45 degrees cutting moves (Volant/Gearbox)
* Flat watertight Motor for marble and granite cutting works ( 9,3 kw 1500 / 3000 dual rounded köylüm motor)
Movement / Walking Systems:
* 0,5’’ steel sprocket mechanism for carriage wagon movement
* Head cutting movement system with the help of trapeze.
* Cable carrying systems are applied on functionality of sliding ways movement.
* Carriage wagon Closed sliding way walking equipment is provided with transmission crank.
Steel Construction of the Machine
*Side cutting machine is steel monoblocked and massive.
* Chassis is built up on material of 320 NPLU.
* Carriage wagon is designed from material of 80 X 20.
* Carriage awagon also has a steel chassis and processed on CNC machinery for 6 axises.
* Back tower is built from 10 mm massive sheet metal, designed to reduce the vibration of the machine.
* Upper sliding ways are processed on CNC machinery from 10 mm massive sheet metal with 8 mm between grid.
* Wagon parts , wagon wheels are founded from şifero gg50 alloy for resistance of wear.
* Piston System is massive steel thick pipe.
* All head cutting group parts are cleared on milling machine.
* Head group parts are covered with anti-corrosion and rust components.
……..……..THE OPERATING PROCEDURE OF THE MACINE………………
The periodic maintenance of the machine has to be done daily, weekly and yearly.
Lubrication of critical parts of the machine has to be done regularly. ( like hubs of the pressure wheels, sliding ways, motor lubricating pump, etc…)
In case of any problems resulting from any weak or none maintenance, buyer firm pays for repairing and fixing expenses.
Our company provides technical support as soon as possible depending on the conditions.
In case of any faults depending on user or wrong operating, any intervention will be executed after an expert examination on the machine.
It is under warranty in period of 1 years.
It is buyers duty to supply cutting saws on the machine.
Consumable parts of the machine are not included to the warranty. (like cutting saws)
Accomodation and transportation expences of installation crew, belongs to buyer firm.
…..….THE ACTS THAT YOUR SIDE HAVE TO DO ON STAGE OF INSTALLATION…...
To supply 13 kw electricity to near the fuse panel of the machine, an electrician is needed on setting up for cable connections.
To supply water plumbing near machine.
It is needed to supply the cutting saws on the installation.
The place needed for machine install : 7000 mm X 3000 mm X 2500 mm (height)
One tin of machine oil (number 30) , one tin of Grease oil.
Marble Side Cutting
Som-maK
Turkey
Som-maK Mermer Granit Makina Ltd Sti
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
EM14 Multi-Disc Cutting Machine for Granite & Basalt
• Belt Width: 700 mm
• Working Width: 650 mm
• Working Thickness For Basalt: 10 – 150 mm
• Working Thickness For Granite: 10 – 100 mm
• Number Of Heads: 1
• Diameter Of Disc: 500 – 600 mm
• Cutting Motor Power *Optional: 30 kW
• Up – Down Motor Power: 0,75 kW
• Belt Motor Power: 0,75 kW
• Belt Speed: 3 mt / min
• Water Consumption: 125 lt / min
• Total Electric Power: 32 kW
• Machine Dimensions ( W / L / H ): 2650 / 3500 / 2000 mm
https://ekizoglumakina.com/en/product/multi-disc-cutting-machine-for-granite-basalt
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
EM04 Hydraulic Mosaic Stone Crushing Machine
• Working Width: 10 – 70 mm
• Working Height: 20 – 100 mm
• Working Length: 10 – 300 mm
• Belt Width: 75 mm
• Belt Motor Power: 0,37 kW
• Hydraulic Motor Power: 4 kW
• Hydraulic Tank Capacity: 60 lt.
• Working Pressure: 110 bar
• Machine Dimension ( W / L / H ): 1400 x 1100 x 1100 mm
• Automatic Crushing Control With Sensor
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
BELTED FAST SERIES SIDE CUTTING MACHINE
* Our banded serial cutting machine is our machine that can make fast and precise cutting.
* It is a factory type machine that provides serial cutting.
* Our machine has 3 double spring pressure arms.
* Our machine is provided with up and down back and forth movement system with reducers.
* Seals protecting the back of the saw head bearings are heat and abrasion resistant Felts.
* The Cutting Area of our machine is 600 mm.
* Bandwidth of our machine is 600 mm, Rubber is a special cutting band.
* Band movement is serial manual electronic speed controlled.
Som-maK
Turkey
Som-maK Mermer Granit Makina Ltd Sti
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
EM22 - Hydraulic Machine for Breaking Wedge Stone
Working Width: 10 - 200 mm
Working Height: 10 – 300 mm
Blade Length: 250 mm
Working Pressure: 100 Bar
Belt Width: 400 mm
Belt Motor Power: 0,55 kW
Hydraulic Motor Power: 5,5 kW
Hydraulic Tank Capacity: 60 lt
Machine Dimensions ( W / L / H ): 850 / 2000 / 2000 mm
Automatic / Manual Working Function
PLC Automatic Crushing Length Control
Speed Control
Manual Pedal Crushing
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
EM07 DOUBLE–HEAD CERAMIC & PORCELAIN CUTTING MACHINE
• Belt Width: 700 mm
• Working Width: 650 mm
• Working Thickness: 10 – 60 mm
• Number Of Cutting Heads: 2
• Disc Diameter: 300 mm
• Cutting Unit Motor Power: 2 x 11 kW
• Up – Down Control Motor Power: 0,55 kW
• Belt Motor Power: 0,75 kW
• Belt Speed: 3 mt / min
• Water Consumption: 120 lt / min
• Total Eletric Power: 24 kW
• Machine Dimensions ( W / L / H ): 2200 / 4500 / 1980 mm
https://ekizoglumakina.com/en/product/double-head-ceramic-cutting-machine
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
EM03 - Mini Hydraulic Stone Crushing Machine
• Working Height Range: 10 – 150 mm
• Working Width Range: 10 – 300 mm
• Working Length: Free Length
• Roller Conveyor Motor Power: 0,55 kW
• Hydraulic Tank Capacity: 90 lt
• Hydraulic Motor Power: 5,5 kW
• Max. Working Pressure: 180 bar
• Machine Dimensions ( W / L / H ): 970 / 660 / 2000 mm
• Automatic Sensor - Manual Pedal Crushing Control
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
EM25-1 Stone Veneering Machine
• Belt Width: 200 mm
• Working Width: 250 mm
• Working Height: 300 mm
• Double 45 Degree Conveyor Belts
• Number Of Head: 1
• Disc Diameter: 900 mm
• Cutting Unit Motor Power: 22 kW
• Belt Motor Power: 2x 0,55 kW
• Belt Speed : 3 mt / min
• Machine Dimensions ( W / L / H ) : 2200 / 3200 / 1750 mm
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
EM09 - Multi-Disc Cross-Cutting Machine
• Number Of Cutting Discs: 5
• Diameter of Disc: 350 – 400 mm
• Working Thickness: 10 – 80 mm
• Working Width Min. / Max. : 250 – 3000 mm
• Cutting Disc Motor Power: 5 x 7,5 x 11 kW
• Cutting Disc Distance Setting Motor Power: 4 x 0,55 kW
• Bridge Movement Motor Power: 2,2 kW
• Belt Motor Power: 0,75 kW
• Total Electrical Power: 43 x 61 kW
• Machine Dimensions ( W / L / H ): 2300 / 6000 / 2500 mm
• Linear Guide Bridge Movement
• Pneumatic Piston Pusher
• Automatic Cutting Dimensions Control
https://ekizoglumakina.com/en/product/multi-disc-cross-cutting-machine
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite
Machinery Function Features:
The machine, which is mounted on a steel chassis, has a closed and oil reservoir rail system, and the speed control and the dimensions given with the desired cut precision cuts.
Saw speed and car speed tab is the target of the desired cut, while the target is to exit at high speed
Fully Steel is Used on the Side Cutting Machine with Wagon, Anti-Rust Epoxy Paint Reinforcement, Special Transmission Rail System Closed Slide is Supported with Water-Free Protective Guards.
Our machine works with the help of cutting 90 degrees and 45 degrees reducers.
Flat Water Motor Has Been Used On Our Machine Head Cutting Up Down Inner Shell System Using Special Materials To Provide Precise Cutting In Bridge Cutting Machines, It Serves As A Sliding Coupling.
Our Wagon Side Cutting Machine is Designed as Both Cutting Sizing and Side Sizing.
Our machine Head rotation folk movement (C axis) is Manual
Our machine is 45 degree movement manual with reducer
Our machine is Slide Movement (Y axis) AUTOMATIC / Manual
Our machine is WAGON Movement (X axis) AUTOMATIC / Manual
It can be used both manually and automatically.
Head System is fixed at 45 degrees by cutting 0 to 90 degrees.
The Machine Has Been Made Completely Steel NPL-U
With the help of a reducer, it provides speed controlled automatic cutting.
Information on the materials used in the machine
Electric Motors: Reducers
* Motorized Gearbox for Slip Ways (Transmission 0.75 gamak motor transmission)
* Piston Sliding Motorized gearbox (Transmission 0.75 gamma motor gearbox)
* Motorized transmission for transport wagon movements (Transmission between 0.75 motorized transmission)
* Gear box for 45 degree cutting movements (Flywheel / Gear Box)
* Straight waterproof motor for marble and granite cutting works (9.3 kW 1500/3000 double rounded peasant motor)
Movement / Walking Systems:
* 0.5 '' steel gear mechanism for transport wagon movement
* Head cutting motion system with the help of trapeze.
* Cable transport systems, sliding paths are applied on the motion functionality.
* Transport wagon Closed sliding track walking equipment is provided with transmission crank.
Steel Construction of the Machine
* Side cutting machine is steel monoblock and massive.
* The chassis is made of 320 NPLU material.
* The transport wagon is designed from 80 X 20 material.
* The carrier wagon also has a steel chassis and is processed in 6 axes on CNC machines.
* The rear tower is made of 10 mm thick solid sheet metal and designed to reduce the vibration of the machine.
* Top slide ways are processed from 10 mm solid sheet metal to 8 mm between the grid in CNC machines.
* Wagon parts, wagon wheels are made of chiffon gg50 alloy to resist wear.
* Piston System is solid steel thick pipe.
* All head cutting group parts are cleaned in the milling machine.
* Head group parts are covered with anti-corrosion and rusty parts.
…… .. …… .. WORKING PROCEDURE OF THE MACHINE ………………
Periodic maintenance of the machine should be done daily, weekly and annually.
Lubrication of critical parts of the machine should be done regularly. (such as hubs of pressure impellers, slide ways, engine lubrication pump, etc.)
In case of problems caused by poor maintenance or lack of maintenance, the buyer company covers the repair and repair costs.
Our company provides technical support as soon as possible depending on the conditions.
In case of any malfunction or incorrect operation depending on the user, any intervention will be performed after an expert inspection on the machine.
It is under warranty for 1 year.
It is the buyers' duty to supply on-machine cutting saws.
The machine's consumables are not covered by the warranty. (such as cut-off saws)
Accommodation and transportation costs of the assembly team belong to the buyer company.
… ..…. ACTIONS THAT MUST BE TAKEN BY YOUR PARTY DURING THE INSTALLATION PHASE… ...
An electrician is required for the installation of the cable connections to provide 13 kW of electricity near the fuse board of the machine.
To provide plumbing next to the machine.
Cutting saws must be provided on the installation.
Required space for machine installation: 7000 mm X 3000 mm X 2500 mm (height)
One can of machine oil (30 size), one can of Grease.
Marble Side Cutting ...
Som-maK
Turkey
Som-maK Mermer Granit Makina Ltd Sti
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
SCHIND CC01 Marble and Granite Cross Cutting Machine
Only the transverse cutting machine cuts jagged edges without any difficulty with its powerful motor.
It cuts straight on Y axis… No 45 ° cutting, No head rotation to another directions,
Cutting ability is net 800 mm on Y axis,
Cutting head group moves on the linear slides by button / joystick. Saw Forward – Saw Backward,
Marble slabs can be easily load on the plastic rolls for squaring,
Cutting speed is adjustable
Option: assembling bellows to cover upper body moving linear with additional cost
SCHIND MACHINES
Turkey
SCHIND MACHINES
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
€-1
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
EM25-2 STONE VENEERING MACHINE: • Belt Width: 200 mm • Working Width: 250 mm • Working Height: 300 mm • Double 45 Degree Conveyor Belts • Number Of Heads: 2 • Disc Diameter: 900 mm • Head Motor Power: 2 X 22 kW • Belt Motor Power: 2 X 0,55 kW • Belt Speed: 2 mt / min • Machine Dimensions ( W / L / H ): 2350 / 4400 / 2000 mm
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
EM25-3 STONE VENEERING MACHINE • Belt Width: 210 mm & 300 mm • Working Width: 250 mm • Working Height: 50 - 300 mm • Double 45 Degree Conveyor Belts • Number Of Heads: 3 • Disc Diameter *Optional: 900 mm - 700 mm - 500 mm • Head Motor Power *Optional: 2 x 22 kW, 1 x 11 kW • Belt Motor Power: 2 x 0,55 kW • Up-Down Motor Power: 0,55 kW • Belt Speed: 3- 5,5 mt / min • Machine Dimensions ( W / L / H ) : 2550 / 5700 / 2100 mm
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS
Çalışma Genişliği / Working Width 680 mm
Çalışma Kalınlığı / Working Thickness 75 mm
Bant Motor Gücü / Band Engine Power 2 hp
Testere Motoru / Saw Engine 15 kw 3000 dev/dak (Rpm)
Testere Çapı / Saw Diameter 450 mm
Kesim Hareket Motoru Gücü / Cutting Movement Engine Power 2 hp
Toplam Güç Tüketimi / Total Electricity Consumption 6,25 kw
Ebatlar / Dimensions 190 x 190 x 480 cm
Ağırlık / Weight 1500 kg
Kontrol Paneli / Control Panel PLC Otomasyon / Automation
GÖLER MAKİNA
Turkey
Goler Makine Rulman San Tic. Ltd. Sti.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS
Çalışma Genişliği / Working Width 680 mm
Çalışma Kalınlığı / Working Thickness 75 mm
Bant Motor Gücü / Band Engine Power 2 hp
Testere Motoru / Saw Engine 15 kw 3000 dev/dak (Rpm)
Testere Çapı / Saw Diameter 450 mm
Kesim Hareket Motoru Gücü / Cutting Movement Engine Power 2 hp
Toplam Güç Tüketimi / Total Electricity Consumption 6,25 kw
Ebatlar / Dimensions 190 x 190 x 480 cm
Ağırlık / Weight 1500 kg
Kontrol Paneli / Control Panel PLC Otomasyon / Automation
GÖLER MAKİNA
Turkey
Goler Makine Rulman San Tic. Ltd. Sti.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Travertine
Machinery Function Features:
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS
Çalışma Genişliği / Working Width 650 mm
Çalışma Kalınlığı / Working Thickness 8/60 mm
Ebatlı Kesim Uzunluğu / Cut to Size Length 1750 mm
Testere Motoru / Saw Engine 7,5 kw
Testere Çapı / Saw Diameter 350 mm
Kesim Hareket Motoru Gücü / Cutting Movement Engine Power 0,75 kw
Toplam Güç Tüketimi / Total Power Consumption 8,25 kw
Ebatlar / Dimensions 3750 x160 x1200 mm
Ağırlık / Weight 1300 kg
GÖLER MAKİNA
Turkey
Goler Makine Rulman San Tic. Ltd. Sti.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Slate, Onyx, Basalt, Sandstone, Travertine
Machinery Function Features:
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS
Çalışma Genişliği / Working Width 480 mm
Faydalı Kesim Genişliği / Useful Cutting Width 430 mm
Kesim Kafa Sayısı / Cutting Head Number 1 Adet / Piece
Takılabilir Disk Sayısı / Attechable Saw Number 30 Adet / Piece
Çalışma Kalınlığı / Working Depth 40 mm
Kesim Motor Gücü / Cutting Engine Power 22 kw
Konveyör Bant Hızı / Conveyor Band speed 0-4, 9 m/dk 0-4, 9 mt/min
Disk Çapı / Disk Diameter 300 mm
En Küçük Kesim Ebadı / The Smallest Cutting Dimensions 10x10
Kesim Motor Devri / Cutting Engine Revulations 2940 dev/dk (Rpm)
Makina Ebatları / Machine Dimensions 2450mm / 1840mm
GÖLER MAKİNA
Turkey
Goler Makine Rulman San Tic. Ltd. Sti.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Horizontal Splitting Machine
MKS Machinery Company
Turkey
MKS Machinery Company
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
You can cut marble slabs at 90° and 45° in X and Y directions with PLC controlled 3-axis movement capability. With the strong chassis structure due to NPU steel, you can obtain a smooth surface in cutting your granite slabs. Natural stone processing...
Longitudinal, transverse and 45 ° cutting machine,
X and Y axis cuts,
Cutting head and its table works fully automatic,
It has both manual and automatic double-page digital touchscreen management panel,
It can make automatic sizing in 10 different sizes,
Linear slide system is used for upper body movements,
Technical support is possible to the machine brain with internet connection,
Made of NPU 260 chassis.
Table height from floor: 90cm
SCHIND MACHINES
Turkey
SCHIND MACHINES
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Alligator® provides unique production experience to its customers in sizing natural and artificial products such as ceramic, glass, composite material, marble, travertine and granite.
Its first quality certified steel manufactured body is equipped with top-end quality machine elements and apparatus.
Alligator which also called crocodile, multi disc cutting machine, mosaic cutting machine, multi-cutting machine
has single and multiple heads versions and each heads can have several blades. Alligator does the process of cutting
Stones, marbles, ceramic, brick and granite. With it’s 500, 700, 900 and 1250 mm. Cutting width versions,
Alligator® can produce thousands of product in different dimensions.
TOKSEL MACHINE
Turkey
TOKSEL MACHINE LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Alligator® in 2 headed, 3 headed, 4 headed mosaic sizing and cutting heads’ back and forth up and down fine movements in drawing operations are controlled from touch-operated operator panel. In precut cuttings the saw on the second head following previous drawing route may be exposed to various corrosions. Alligator ® provides an opportunity for the setting of precision of back and forth Alligator ® , despite the cutting problems that may arise from abrasion, it allows for forward-backward wear adjustment with a precision of 1/10 of a millimeter.
Alligator which also called crocodile, multi disc cutting machine, mosaic cutting machine, multi-cutting machine has single and multiple heads versions and each heads can have several blades. Alligator does the process of cutting Stones, marbles, ceramic, brick and granite. With it’s 500, 700, 900 and 1250 mm. Cutting width versions, Alligator® can produce thousands of product in different dimensions.
TOKSEL MACHINE
Turkey
TOKSEL MACHINE LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
High quality, durable and long life marble cutting machine will make your job easier by cutting marble, natural stone and granite platters with side cutting feature.
Our machines, which we produce with our experience in the marble and granite sector developed in Turkey, have effective and efficient designs. With the Schind 16400 marble, granite, stone cutting machine, you can speed up your production process thanks to this effective and efficient design. You save work and time with the possibility of longitudinal and 45° marble cutting.
The chassis of Schind 16400 marble, granite, stone cutting machine is produced with NPU 240 iron. Thus, you can obtain smooth parts without vibration during cutting.
You can shape your production as you want with two different sawing speed options.
Longitudinal cutting machine
45° cutting
It cuts only on X axis
Cutting head can't turn
It can be used manually
Made of NPU 240 chassis
SCHIND MACHINES
Turkey
SCHIND MACHINES
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Alligator which also called crocodile, multi disc cutting machine, mosaic cutting machine, multi-cutting machine
has single and multiple heads versions and each heads can have several blades. Alligator does the process of cutting
Stones, marbles, ceramic, brick and granite. Up to 300 mm. Cutting width versions, Alligator® can produce
thousands of product in different dimensions.
TOKSEL MACHINE
Turkey
TOKSEL MACHINE LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
EM25-4 STONE VENEERING MACHINE • Belt Width: 300 mm & 300 mm • Working Width: 300 mm • Working Height: 50 - 300 mm • Double 45 Degree Conveyor Belts • Number Of Heads: 4 • Disc Diameter *Optional: 1000 mm - 900 mm - 800 mm - 600 mm • Head Motor Power *Optional: 3 x 22 kW, 1 x 7,5 kW • Belt Motor Power: 2 x 0,55 kW • Up-Down Motor Power: 0,55 kW • Belt Speed: 3- 5,5 mt / min • Machine Dimensions ( W / L / H ) : 2420 / 6880 / 2180 mm
Ekizoglu
Turkey
Ekizoglu Makina
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Slate, Onyx, Basalt, Sandstone, Travertine
Machinery Function Features:
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS
Çalışma Genişliği / Working Width 480 mm
Faydalı Kesim Genişliği / Useful Cutting Width 430 mm
Kesim Kafa Sayısı / Cutting Head Number 1 Adet / Piece
Takılabilir Disk Sayısı / Attechable Saw Number 30 Adet / Piece
Çalışma Kalınlığı / Working Depth 40 mm
Kesim Motor Gücü / Cutting Engine Power 22 kw
Konveyör Bant Hızı / Conveyor Band speed 0-4, 9 m/dk 0-4, 9 mt/min
Disk Çapı / Disk Diameter 300 mm
En Küçük Kesim Ebadı / The Smallest Cutting Dimensions 10x10
Kesim Motor Devri / Cutting Engine Revulations 2940 dev/dk (Rpm)
Makina Ebatları / Machine Dimensions 2450mm / 1840mm
GÖLER MAKİNA
Turkey
Goler Makine Rulman San Tic. Ltd. Sti.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Sandstone, Travertine
Machinery Function Features:
Min. Stone Breaking Height: 50 mm
Max. Stone Breaking Height: 300 mm
Max. Stone Thickness: 150 mm
Brevetek Machinery
Turkey
Brevetek Machinery
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The marble or granite strips from the calibrating and polishing machine are positioned 90 ° to the saws and cut in series.
Our machine has a strong steel body structure and it is painted with epoxy paint.
Machine dimensions may be changed according to customer request. And double head is possible.
SCHIND MACHINES
Turkey
SCHIND MACHINES
Contact Supplier
Have a Question? Ask our expert
Ask now
